Toyota Yaris Grmn

2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 2 illustrations

Illustrations

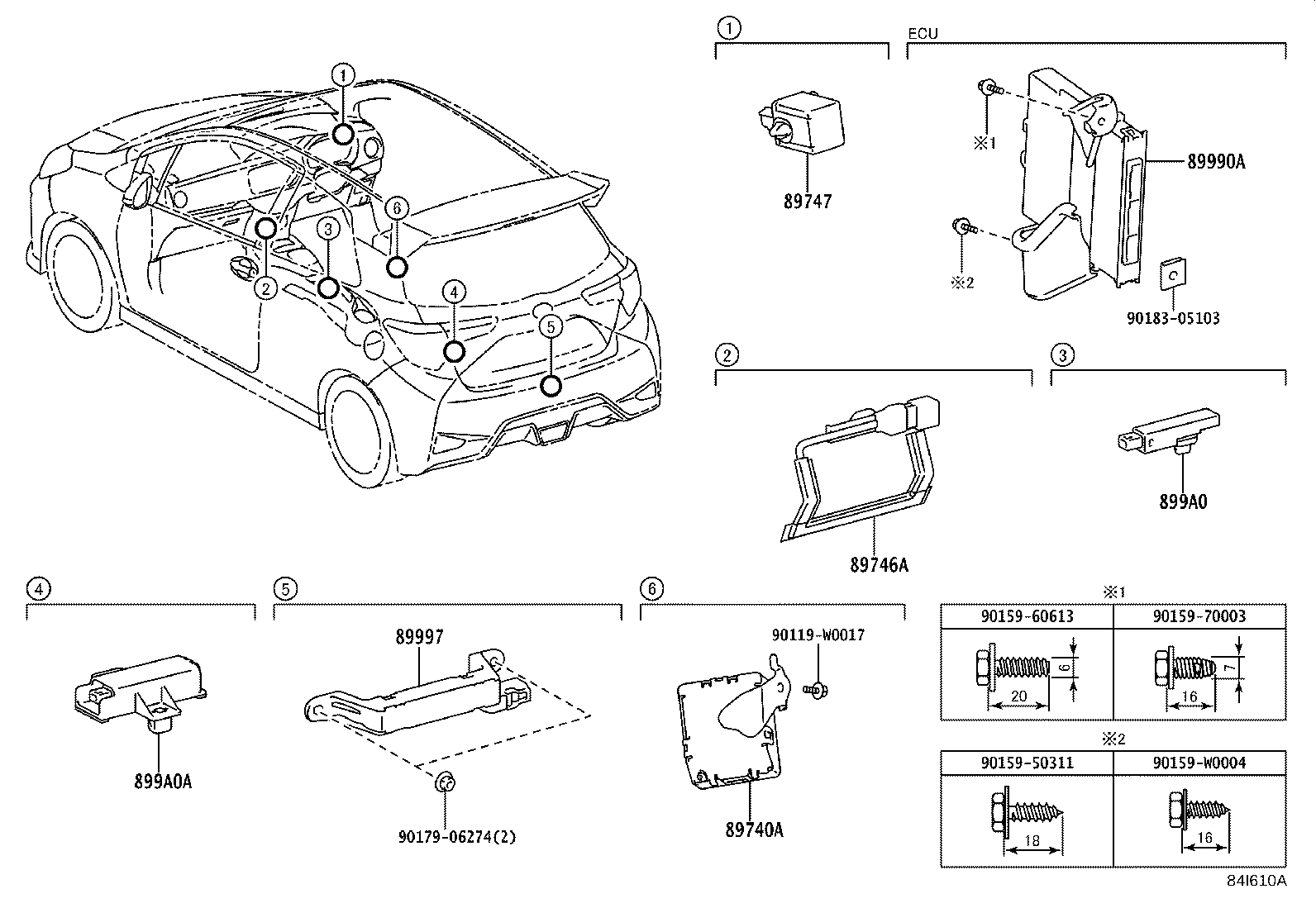

Figure 84I609A 84I609A 2017-11 → — Figure 84I610A 84I610A 2017-11 → —

Part groups

PNCDescription
89740A Receiver Assy, Smart Door Control
89746A Harness, Electrical Key Wire
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
