Toyota Yaris Grmn
2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe
Supported model
Data version 2018-09
Heating & Air Conditioning - Control & Air Duct
14 part groups · 5 illustrations
Part groups

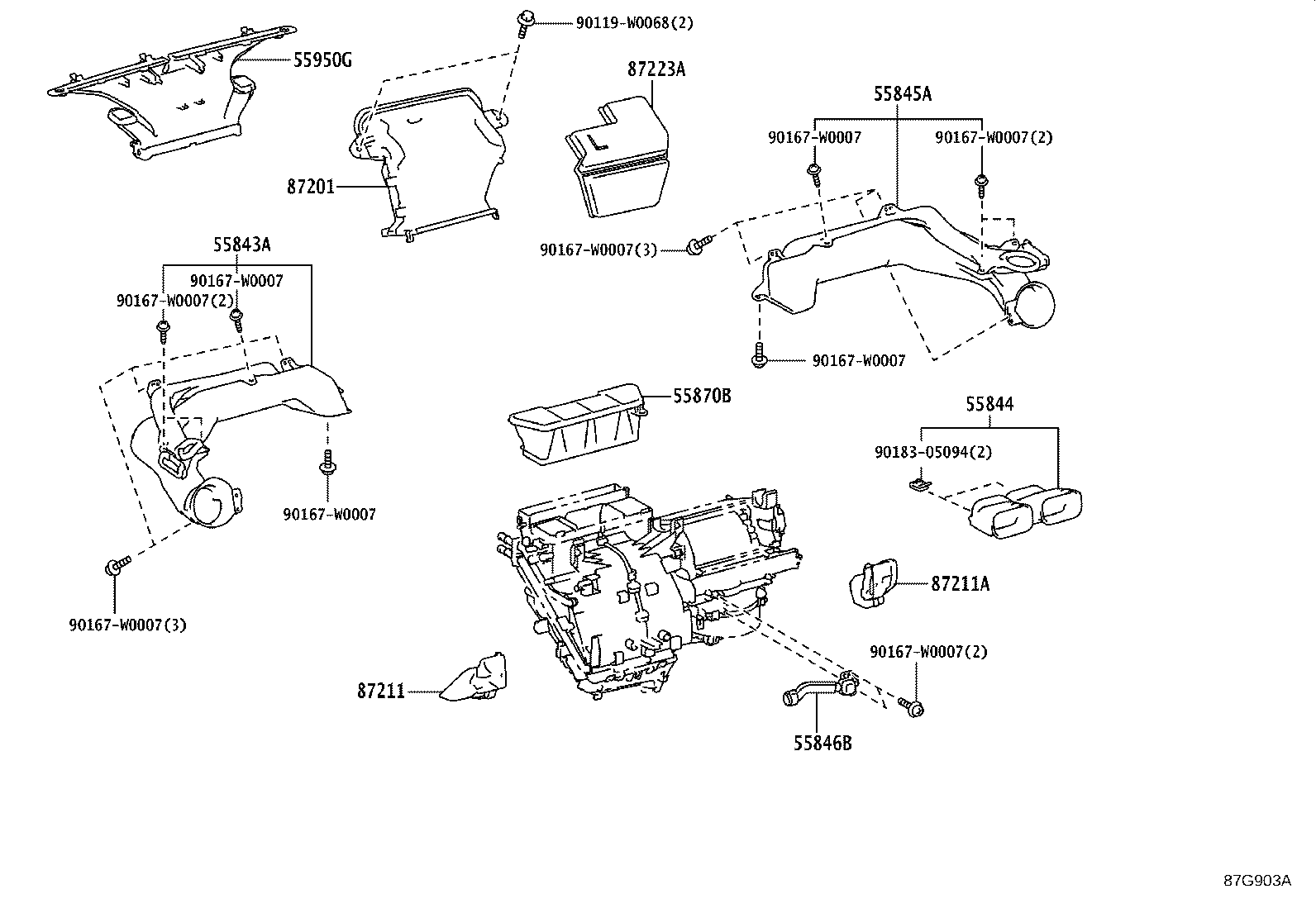

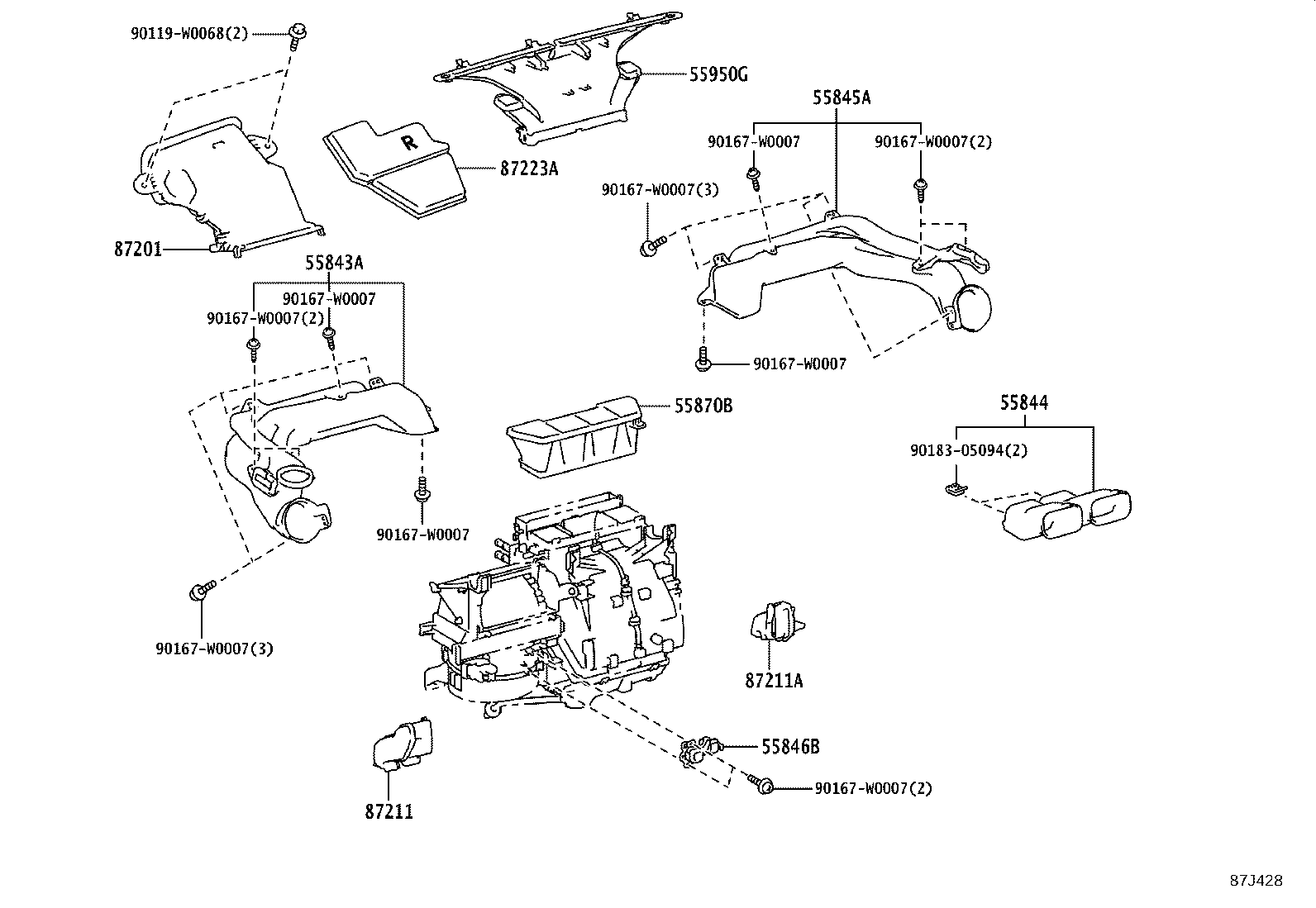

| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55870B | Duct Assy, Heater TO Register |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87223A | Pad, Air Duct |

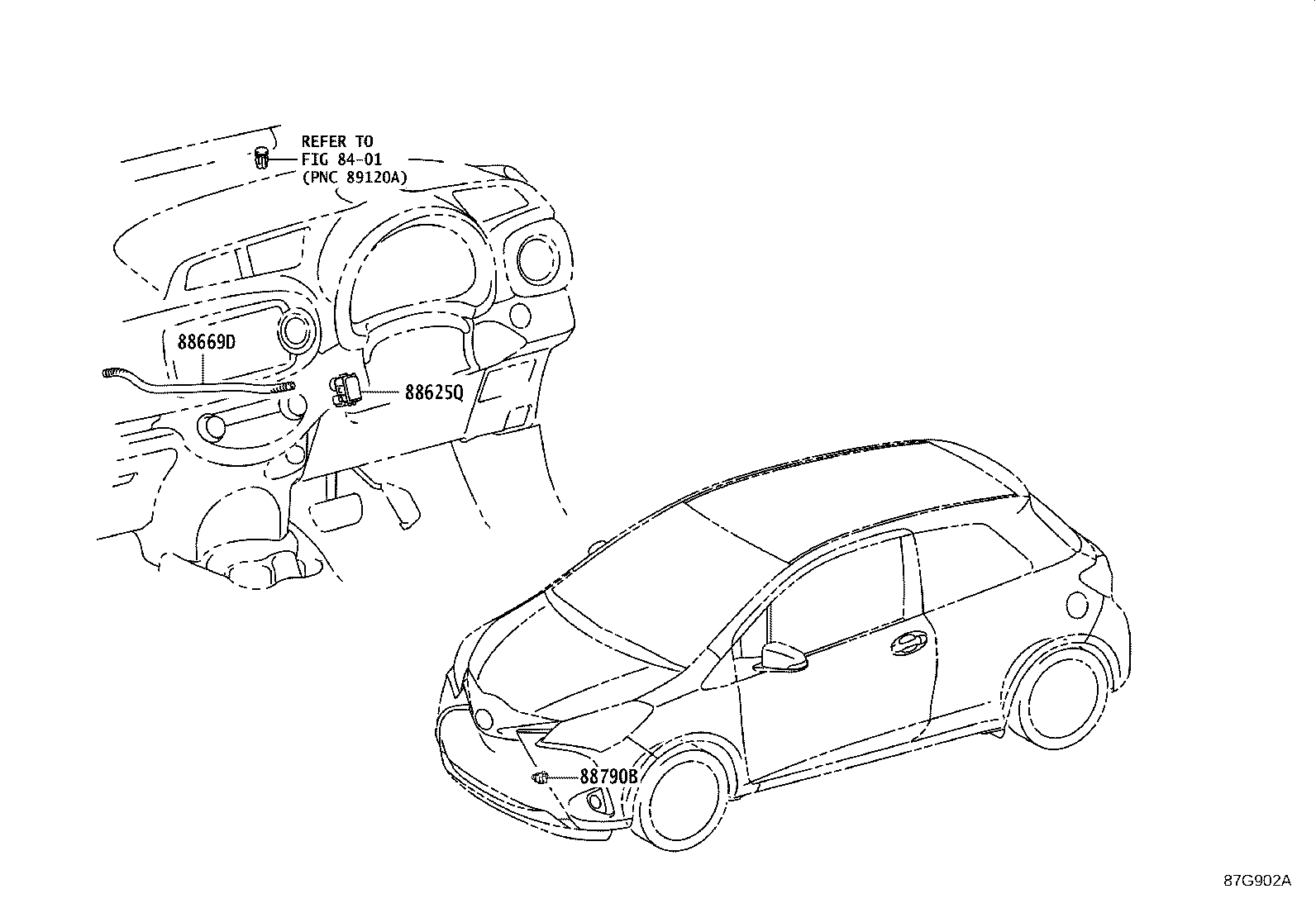

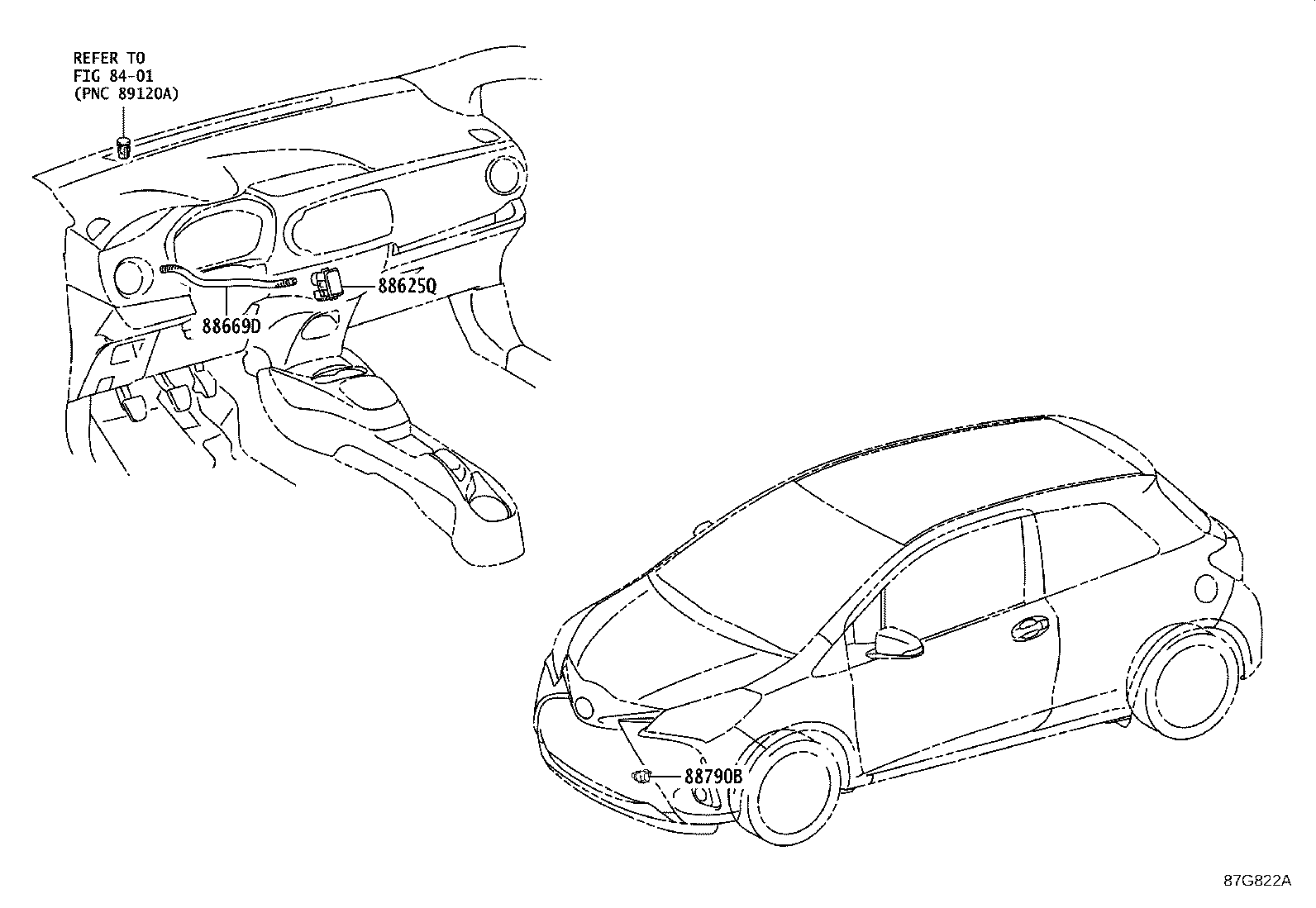

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669D | Hose, Air |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
