Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe
Supported model
Data version 2024-10

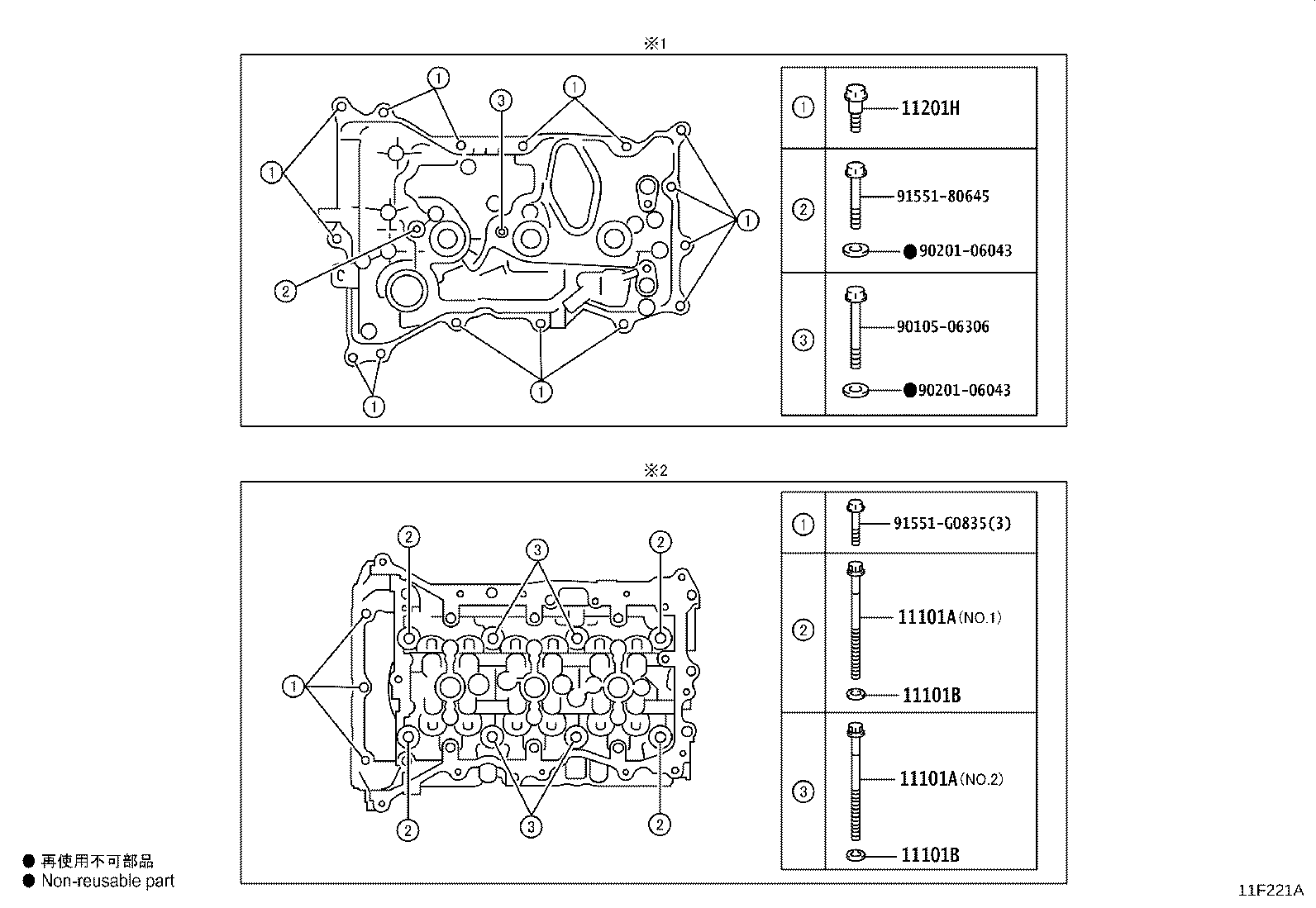

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02209 note |
Bolt(FOR CYLINDER HEAD SET)
2020-08 → 2024-04
ended
|
G16EGTS GXPA16 | — | |
| 90910-02210 note |
Bolt(FOR CYLINDER HEAD SET)
2020-08 → 2024-04
ended
|
G16EGTS GXPA16 | — | |
| 90910-02209 note |
Bolt(FOR CYLINDER HEAD SET)
2024-04 → —
|
G16EGTS GXPA16 ARL,EUR | — | |
| 90910-02209 note |
Bolt(FOR CYLINDER HEAD SET)
2024-12 → —
|
G16EGTS GXPA16 CHI | — | |
| 90910-02210 note |
Bolt(FOR CYLINDER HEAD SET)
2024-04 → —
|
G16EGTS GXPA16 ARL,EUR | — | |
| 90910-02210 note |
Bolt(FOR CYLINDER HEAD SET)
2024-12 → —
|
G16EGTS GXPA16 CHI | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2020-08 → 2024-04
ended
|
G16EGTS GXPA16 | — | |
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2024-04 → —
|
G16EGTS GXPA16 ARL,EUR | — | |
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2024-12 → —
|
G16EGTS GXPA16 CHI | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 |
Bolt(FOR CYLINDER HEAD COVER)
2020-08 → 2024-04
ended
|
G16EGTS GXPA16 | — | |
| 90109-06384 |
Bolt(FOR CYLINDER HEAD COVER)
2024-04 → —
|
G16EGTS GXPA16 ARL,EUR | — | |
| 90109-06384 |
Bolt(FOR CYLINDER HEAD COVER)
2024-12 → —
|
G16EGTS GXPA16 CHI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
