Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

33 part groups · 2 illustrations

Illustrations

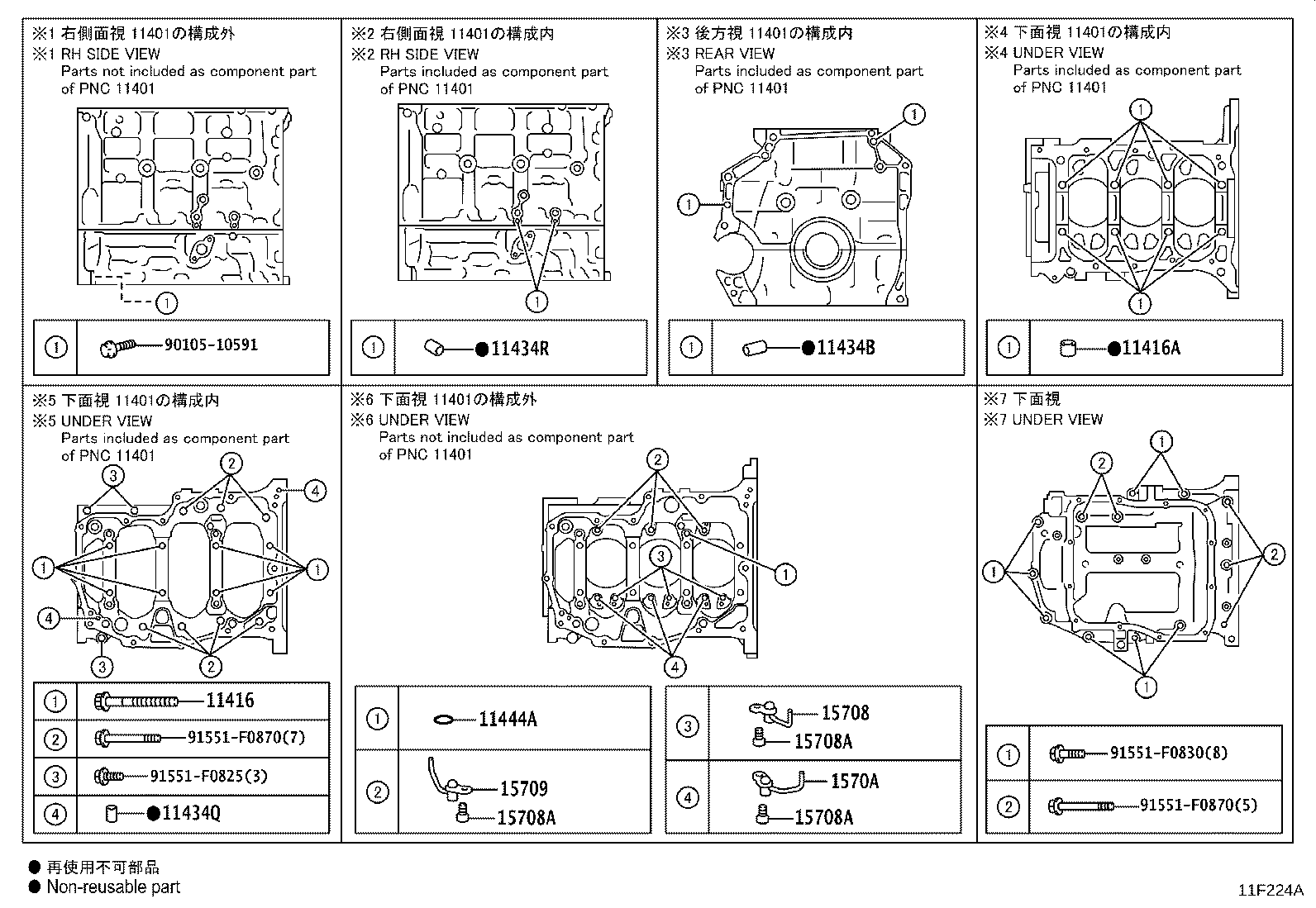

Figure 11F225D 11F225D 2020-08 → — Figure 11F224A 11F224A 2020-08 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11401V O-ring, Crank Position Sensor
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11434 Pin, Straight(FOR TIMING CHAIN COVER)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434Q Pin, Straight(FOR CRANKCASE)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11444A Ring, O
11485A Spacer, Balanceshaft Housing
11486 Spacer, Balanceshaft Housing, NO.2
11487 Spacer, Balanceshaft Housing, NO.3
11488 Spacer, Balanceshaft Housing, NO.4
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12101D Plug NO.1(FOR OIL PAN)
12101L Gasket NO.1(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
12581A Insulator, Cylinder Block, NO.1
12583A Insulator, Cylinder Block, NO.3
12584 Insulator, Cylinder Brock, NO.4
13620B Balancer Assy, Engine
15708 Nozzle Sub-assy, Oil, NO.1
15708A Bolt, Oil Nozzle
15709 Nozzle Sub-assy, Oil, NO.2
1570A Nozzle Sub-assy, Oil, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
