Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe
Supported model
Data version 2024-10

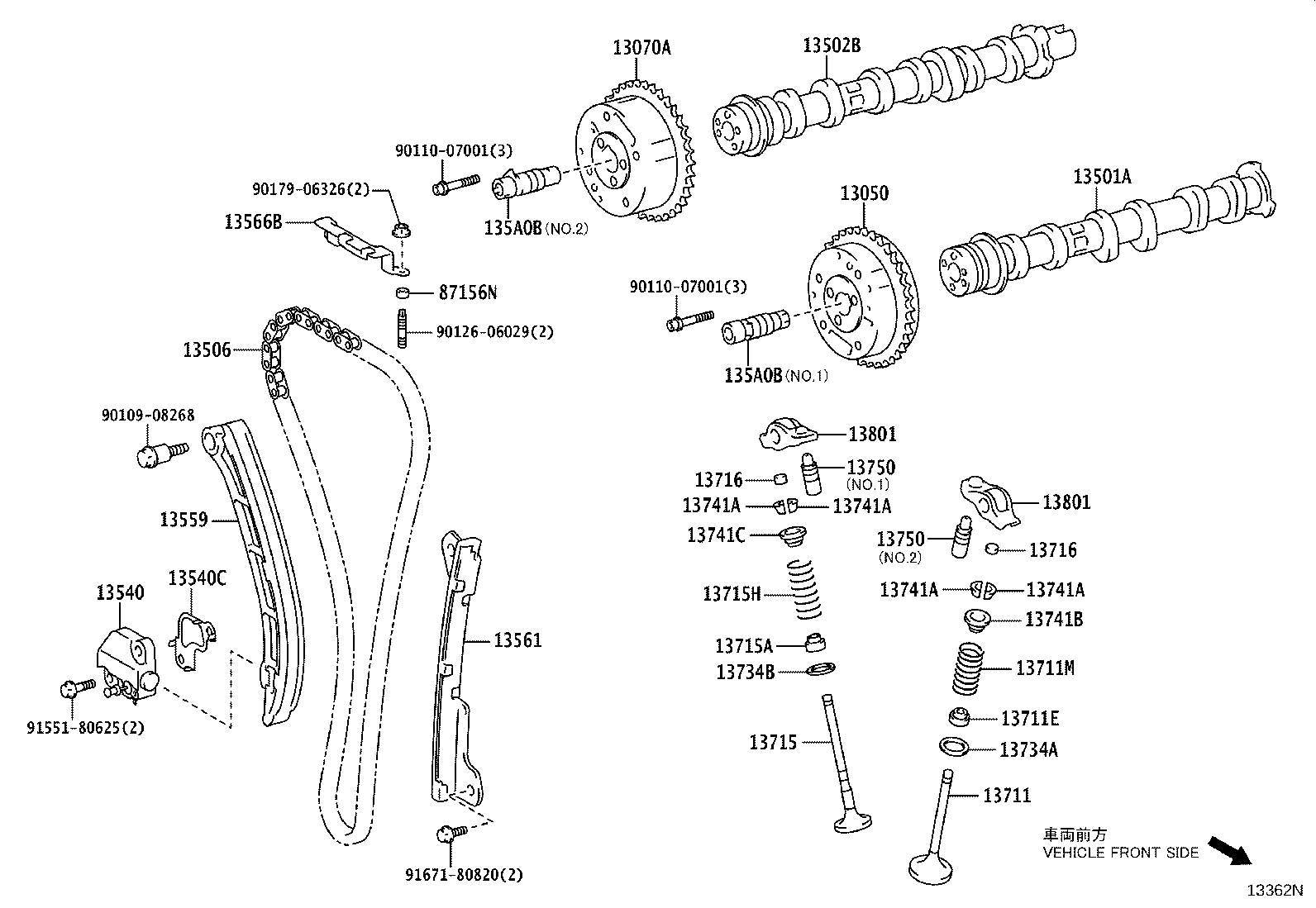

Camshaft & Valve
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13070A | Gear Assy, Camshaft Timing Exhaust |
| 13501A | Camshaft Sub-assy, Intake |
| 13502B | Camshaft Sub-assy, Exhaust |
| 13506 | Chain Sub-assy |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13566B | Guide, Timing Chain |
| 135A0B | Valve Assy, Camshaft Timing |
| 13711 | Valve, Intake |
| 13711E | Seal, Intake Valve Stem Oil |
| 13711M | Spring, Compression(FOR INTAKE VALVE) |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13715H | Spring, Compression(FOR EXHAUST VALVE) |
| 13716 | Cap, Valve Stem |
| 13734A | Seat, Intake Valve Spring |
| 13734B | Seat, Exhaust Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13741B | Retainer, Intake Valve Spring |
| 13741C | Retainer, Exhaust Valve Spring |
| 13750 | Adjuster Assy, Valve Lash |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 87156N | Spacer, Damper Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
