Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 3 illustrations

Illustrations

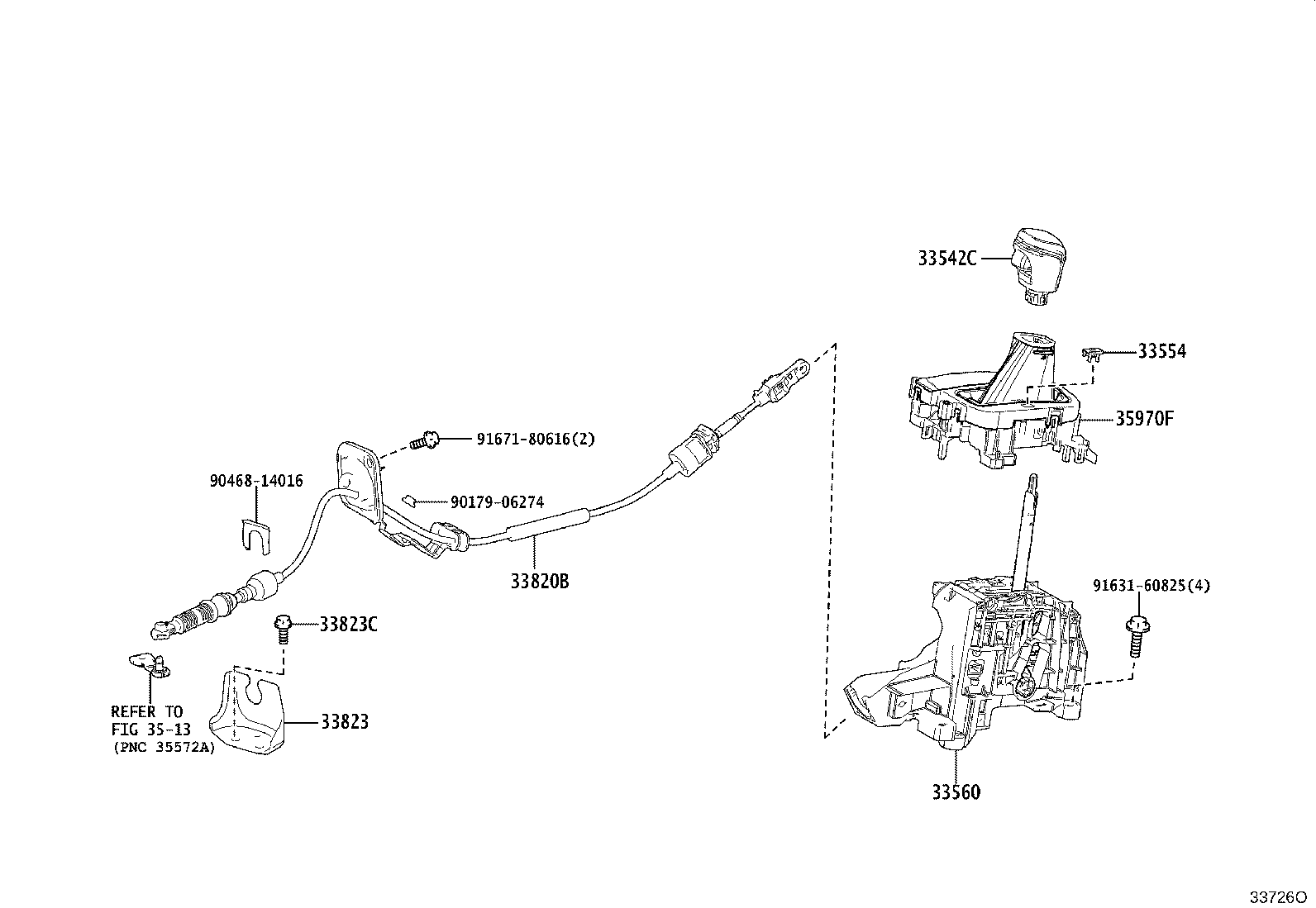

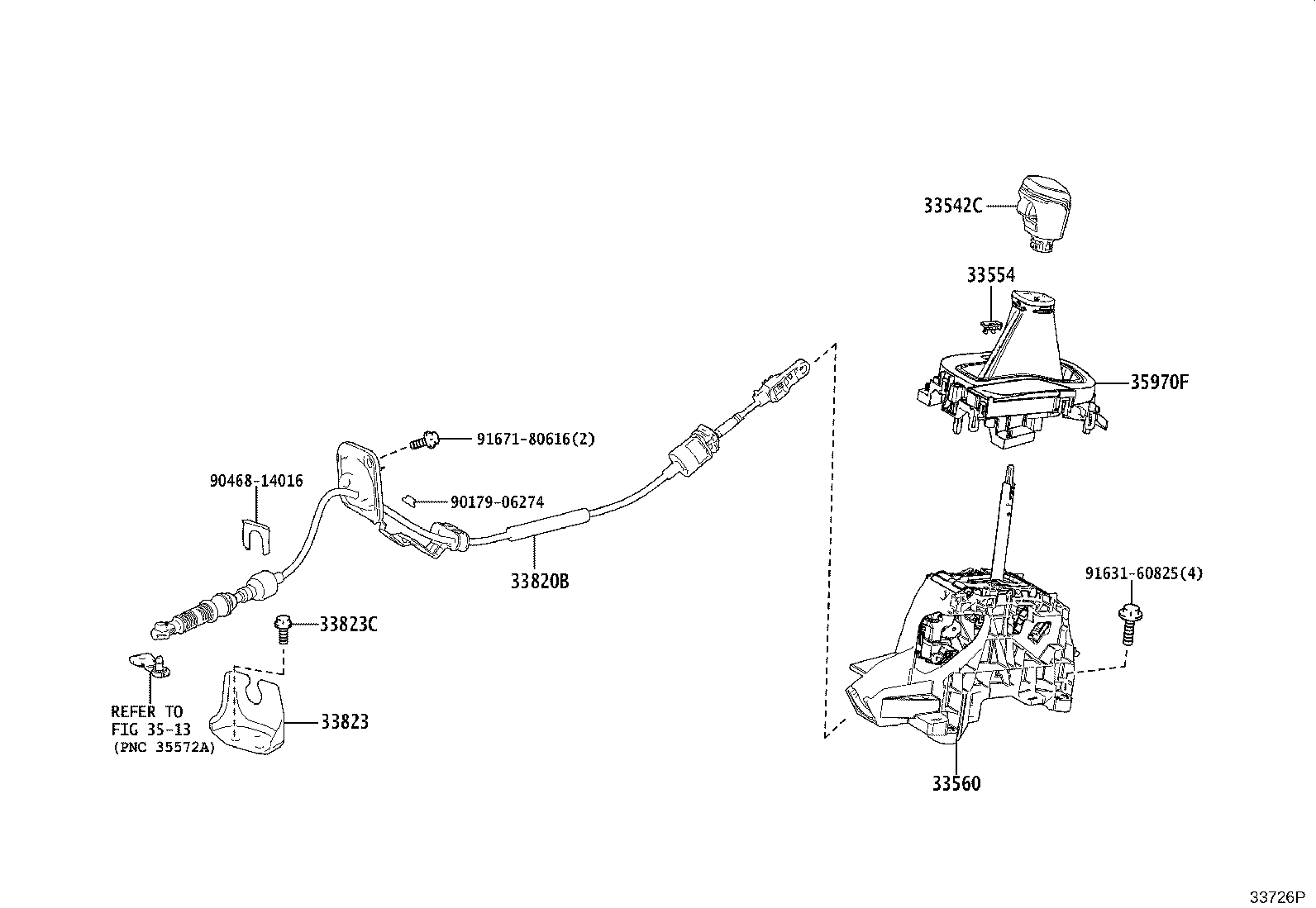

Figure 336399B 336399B 2020-08 → — Figure 33726P 33726P 2024-04 → — Figure 33726O 33726O 2024-04 → —

Part groups

PNCDescription
33261D Bush (FOR SHIFT & SELECT LEVER)
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33534P Washer, Plate (FOR SELECTING BELLCRANK NO.1)
33542C Knob, Shift Lever
33554 Cap, Shift Lever
33557F Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
33560 Unit Assy, Shift Lock Control
33590F Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
