Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe
Supported model
Data version 2024-10

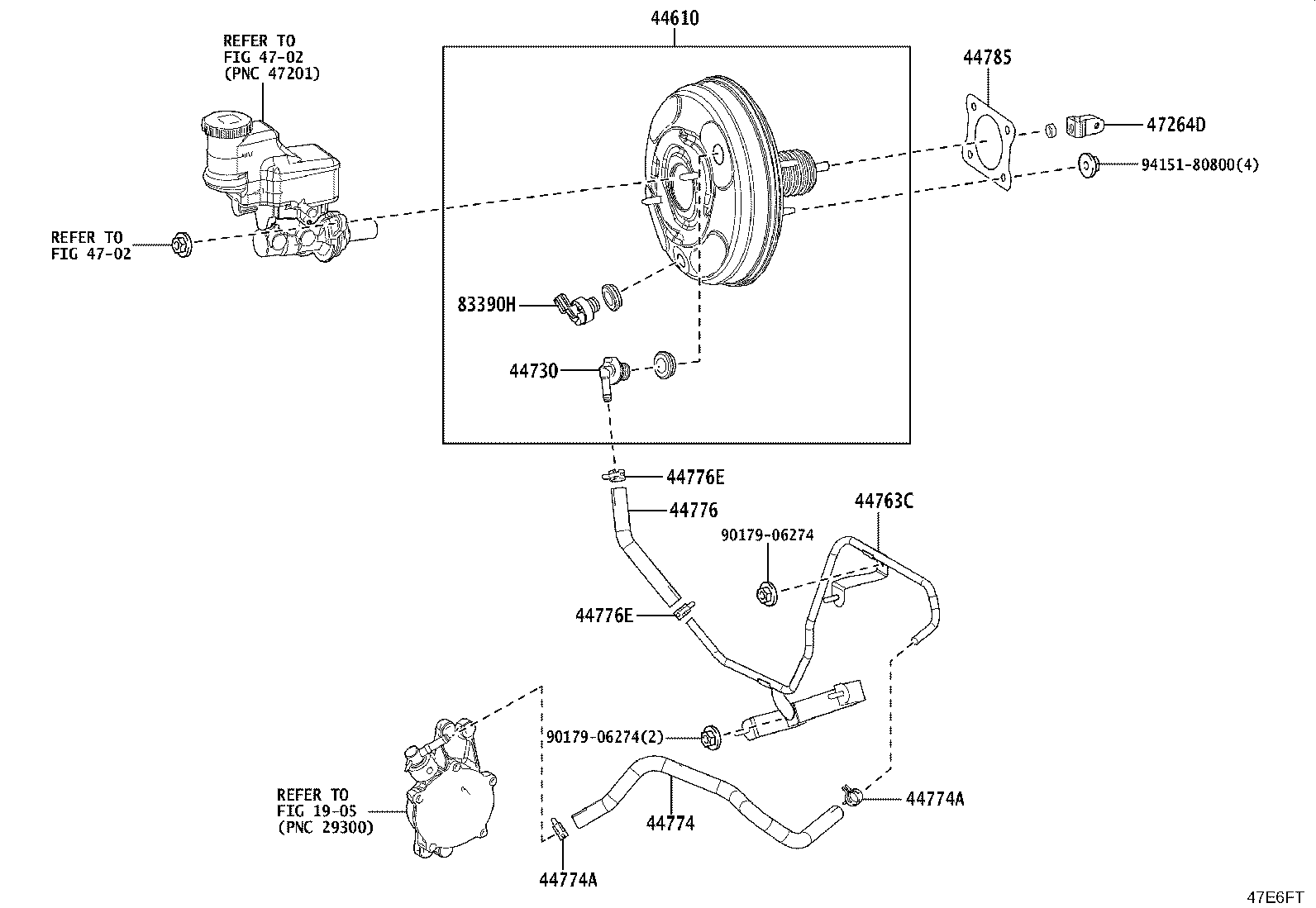

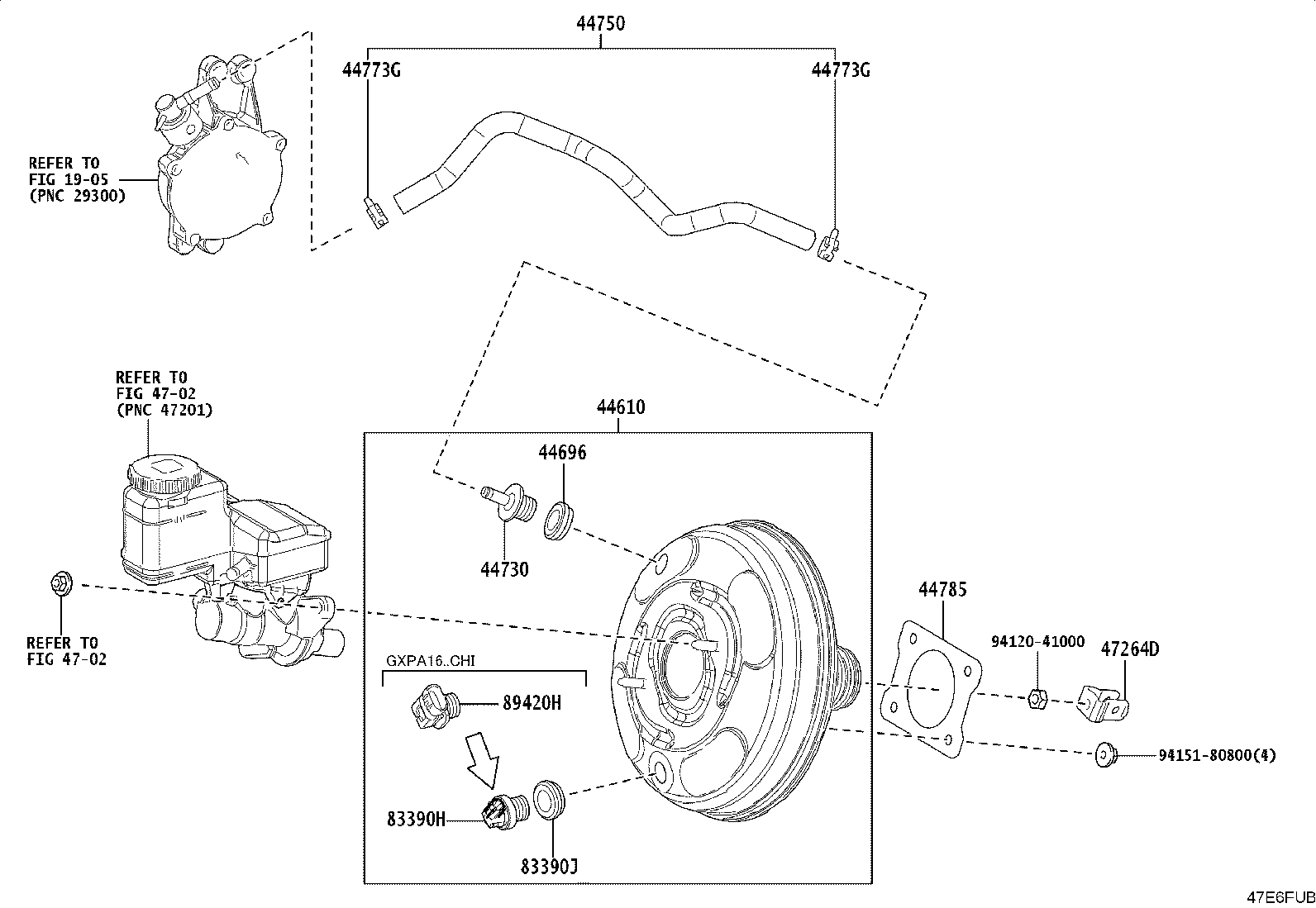

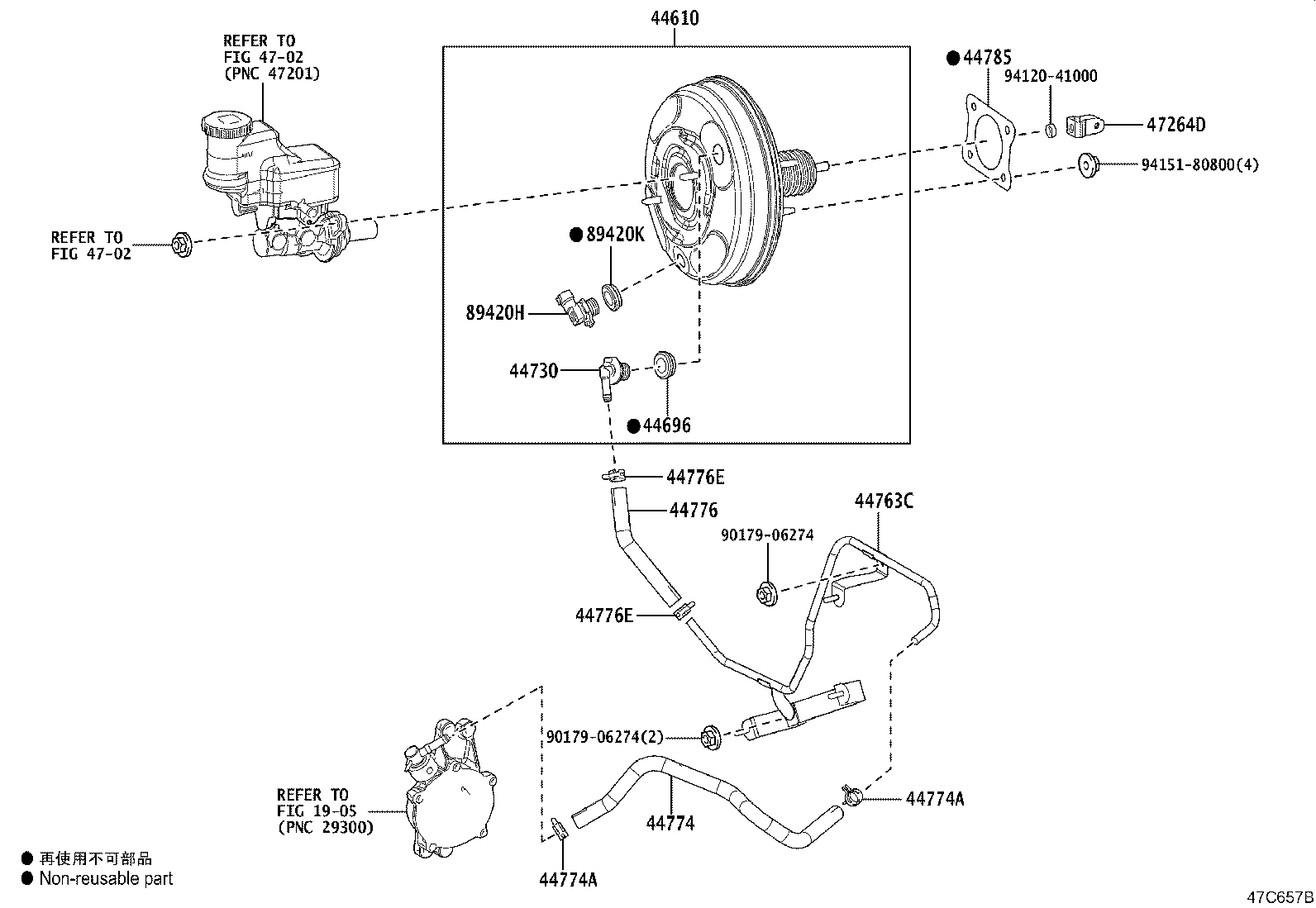

Brake Booster & Vacuum Tube
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44750 | Hose Assy, Vacuum |
| 44763C | Tube, Hose TO Hose, NO.2 |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44776 | Hose, Brake Booster |
| 44776E | Clip(FOR BRAKE BOOSTER HOSE) |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
| 89420H | Sensor Assy, Vacuum |
| 89420K | Grommet, Vacuum Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
