Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe
Supported model
Data version 2024-10

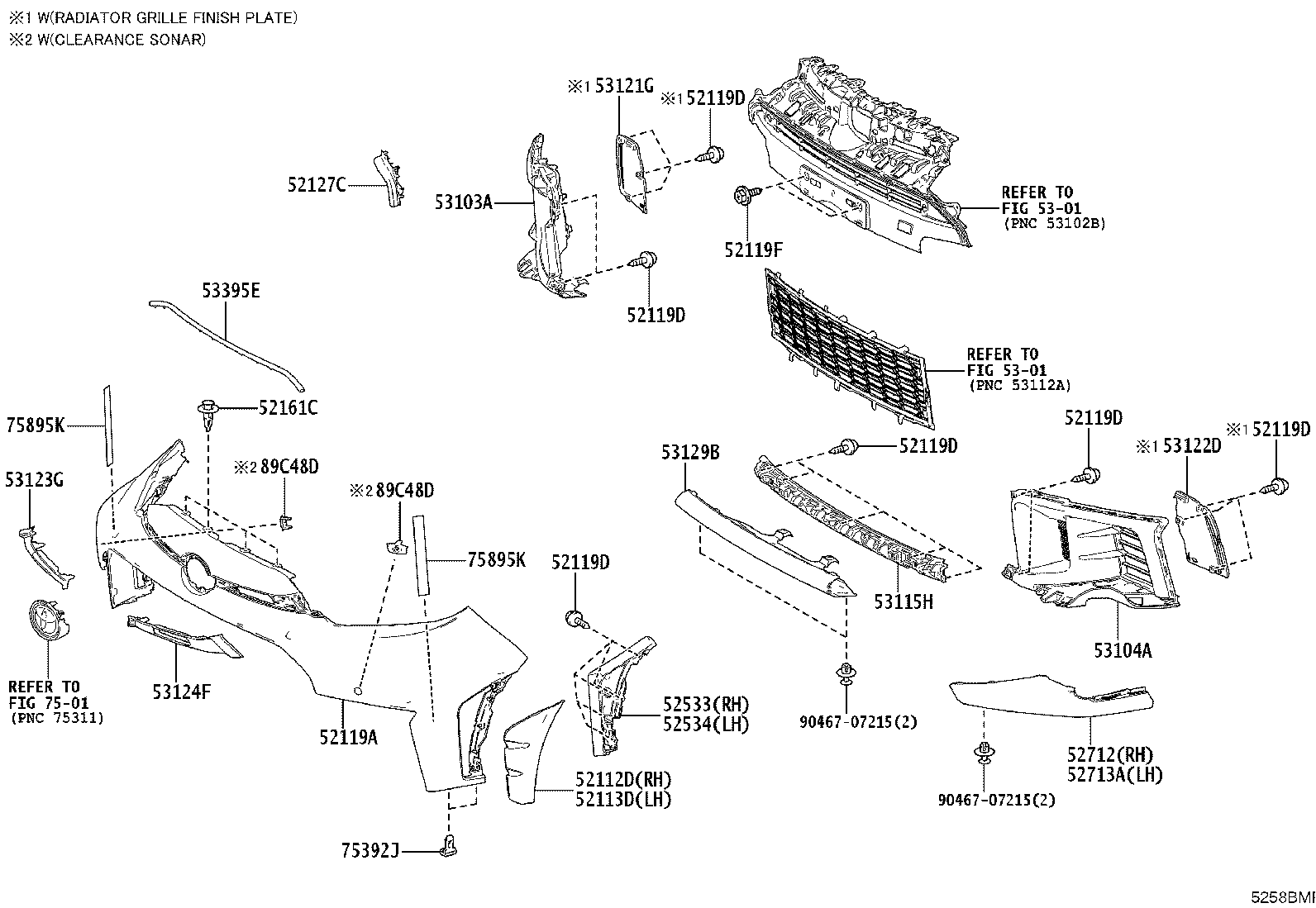

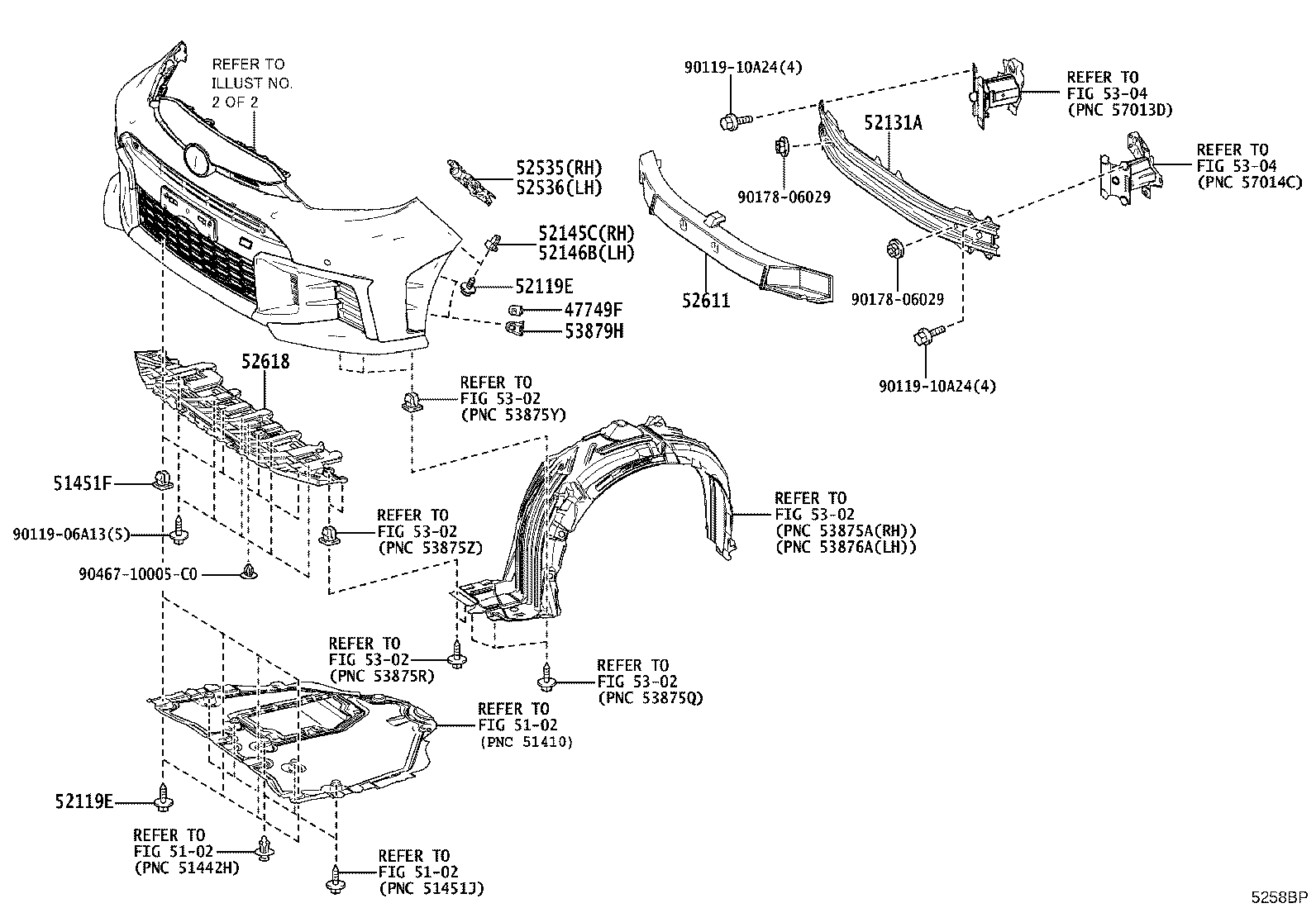

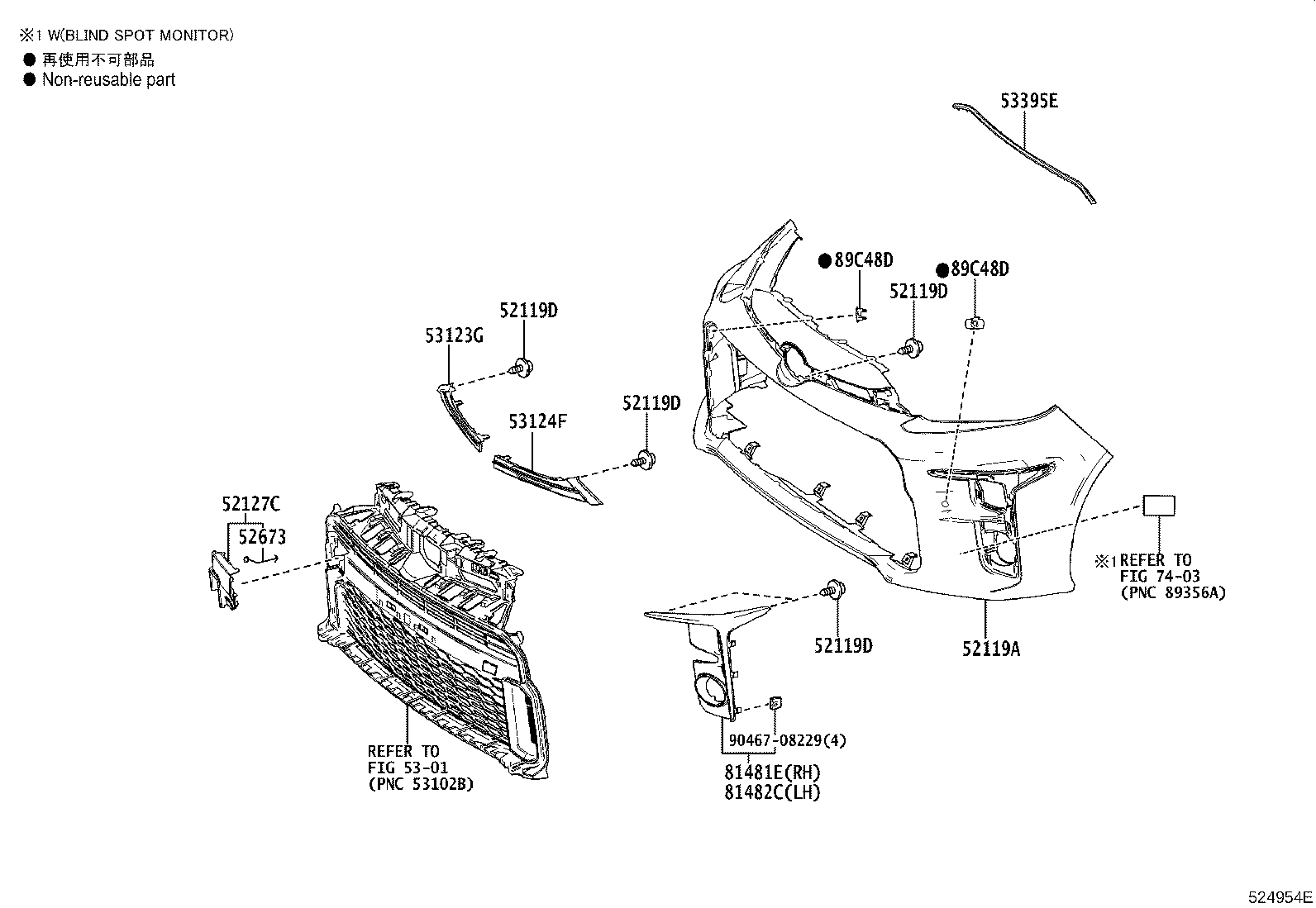

Front Bumper & Bumper Stay
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451F | Grommet, NO.1 |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52119E | Screw, NO.2 |
| 52119F | Screw, NO.3 |
| 52127C | Cover, Front Bumper Hole |
| 52131A | Reinforcement, Front Bumper |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52533 | Bracket, Front Bumper Retainer, NO.1 |
| 52534 | Bracket, Front Bumper Retainer, NO.2 |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52673 | Arm, Front Bumper, NO.1 |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53103A | Grille Sub-assy, Radiator, Lower RH |
| 53104A | Grille Sub-assy, Radiator, Lower LH |
| 53115H | Bracket, Radiator Grille |
| 53121G | Plate, Radiator Grille Finish, RH |
| 53122D | Plate, Radiator Grille Finish, LH |
| 53123G | Moulding, Radiator Grille Side, RH |
| 53124F | Moulding, Radiator Grille Side, LH |
| 53129B | Moulding, Radiator Grille, NO.9 |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 75392J | Retainer, Outside Moulding |
| 75895K | Tape, Moulding, NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
