Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

49 part groups · 17 illustrations

Illustrations

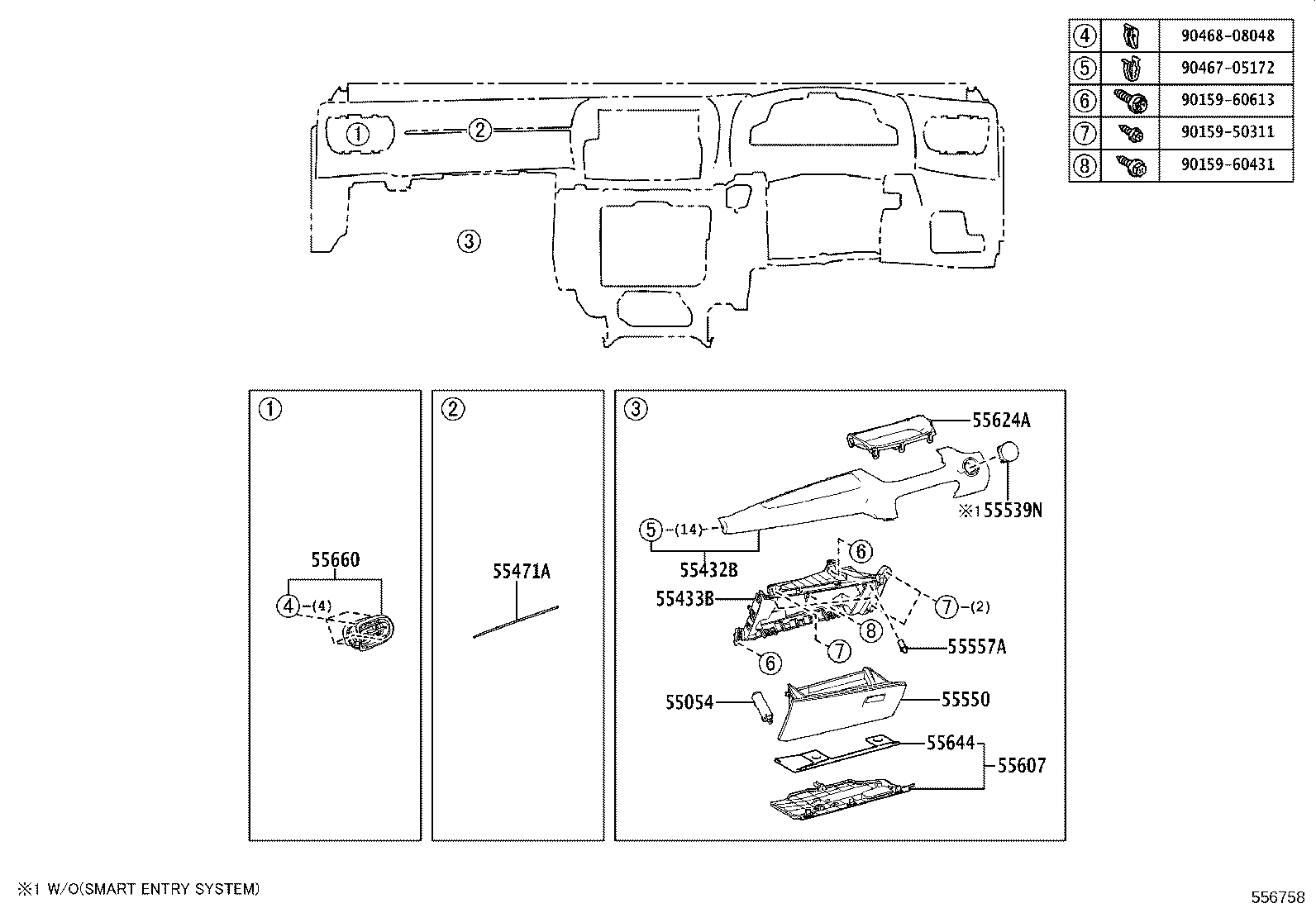

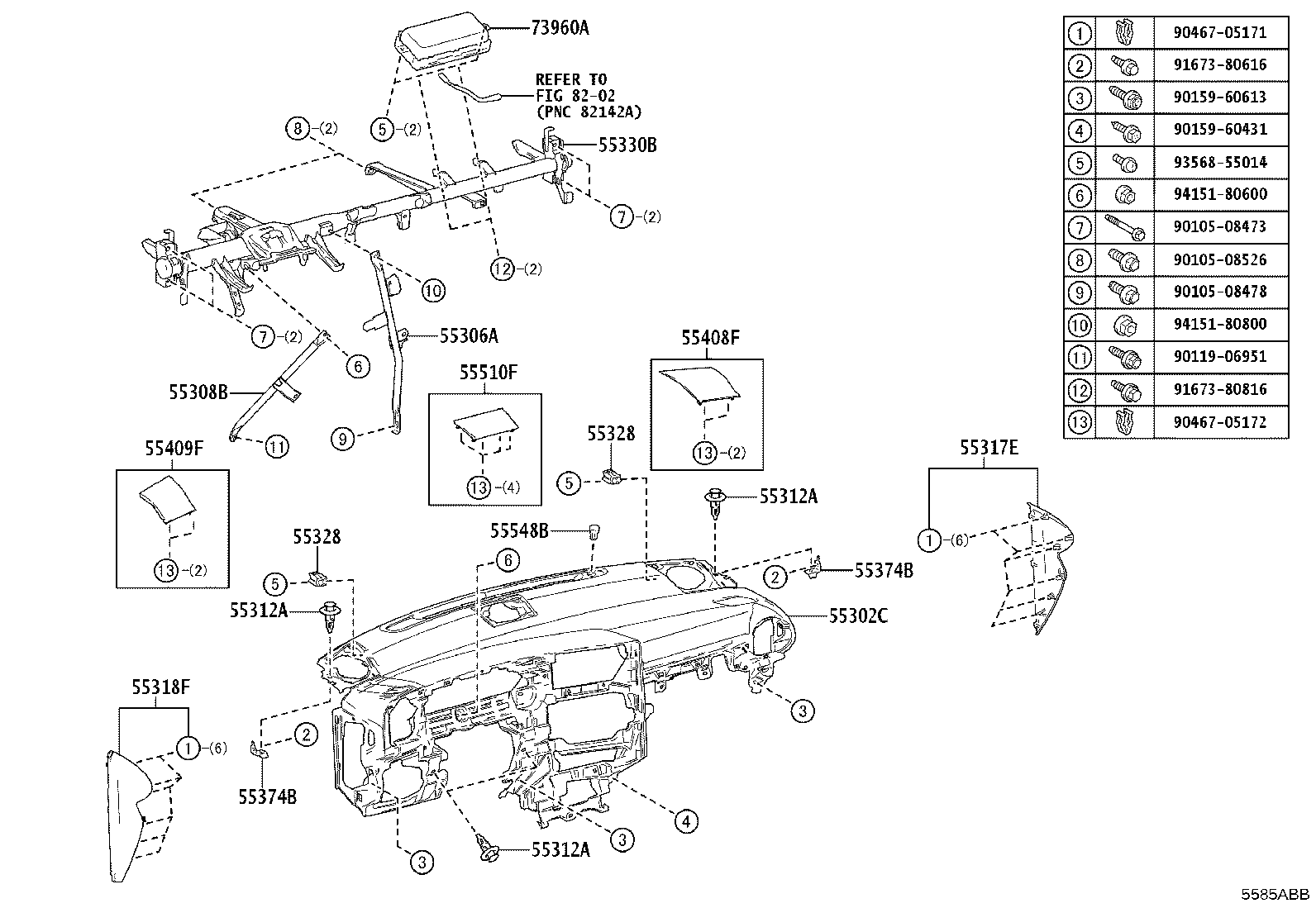

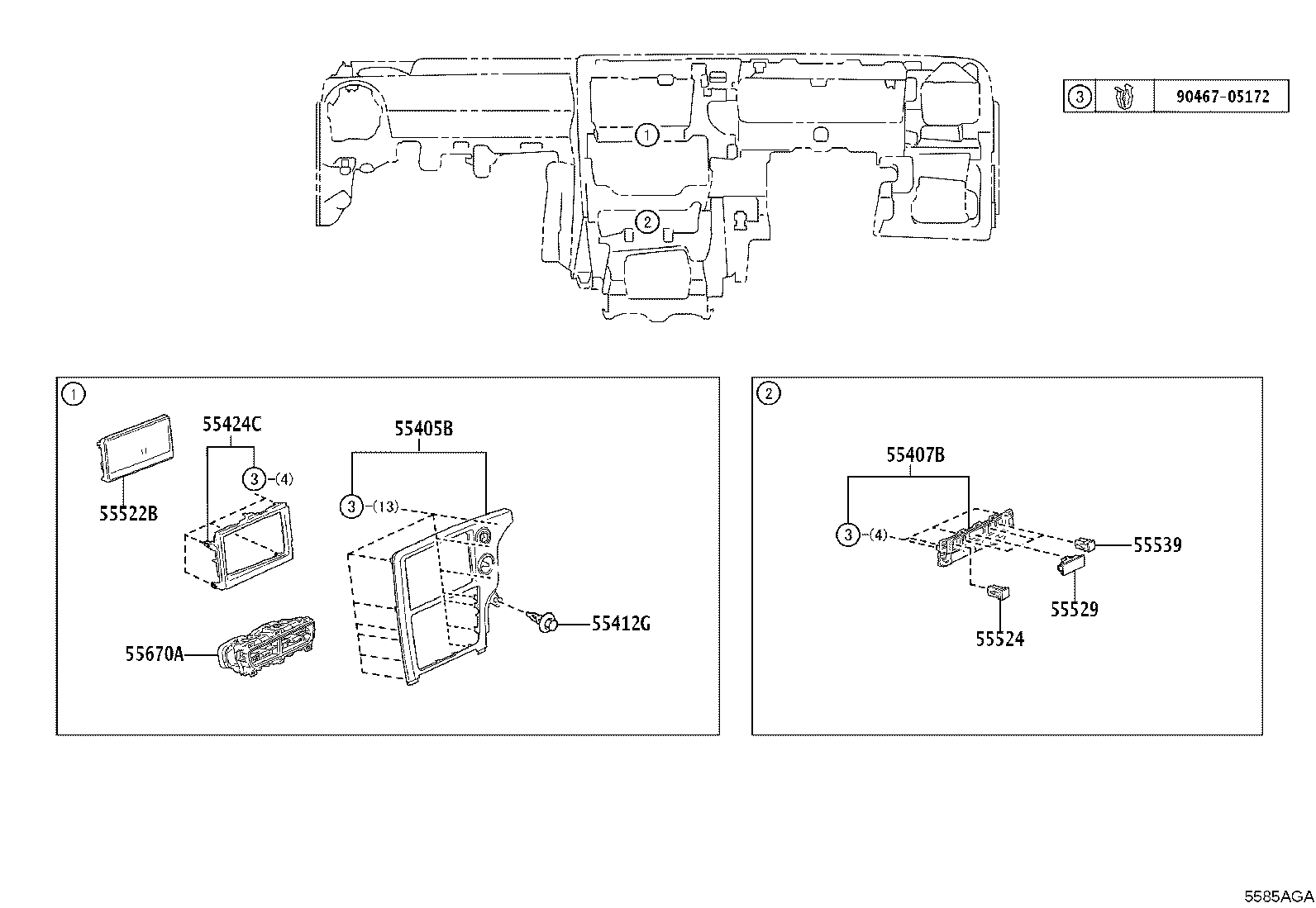

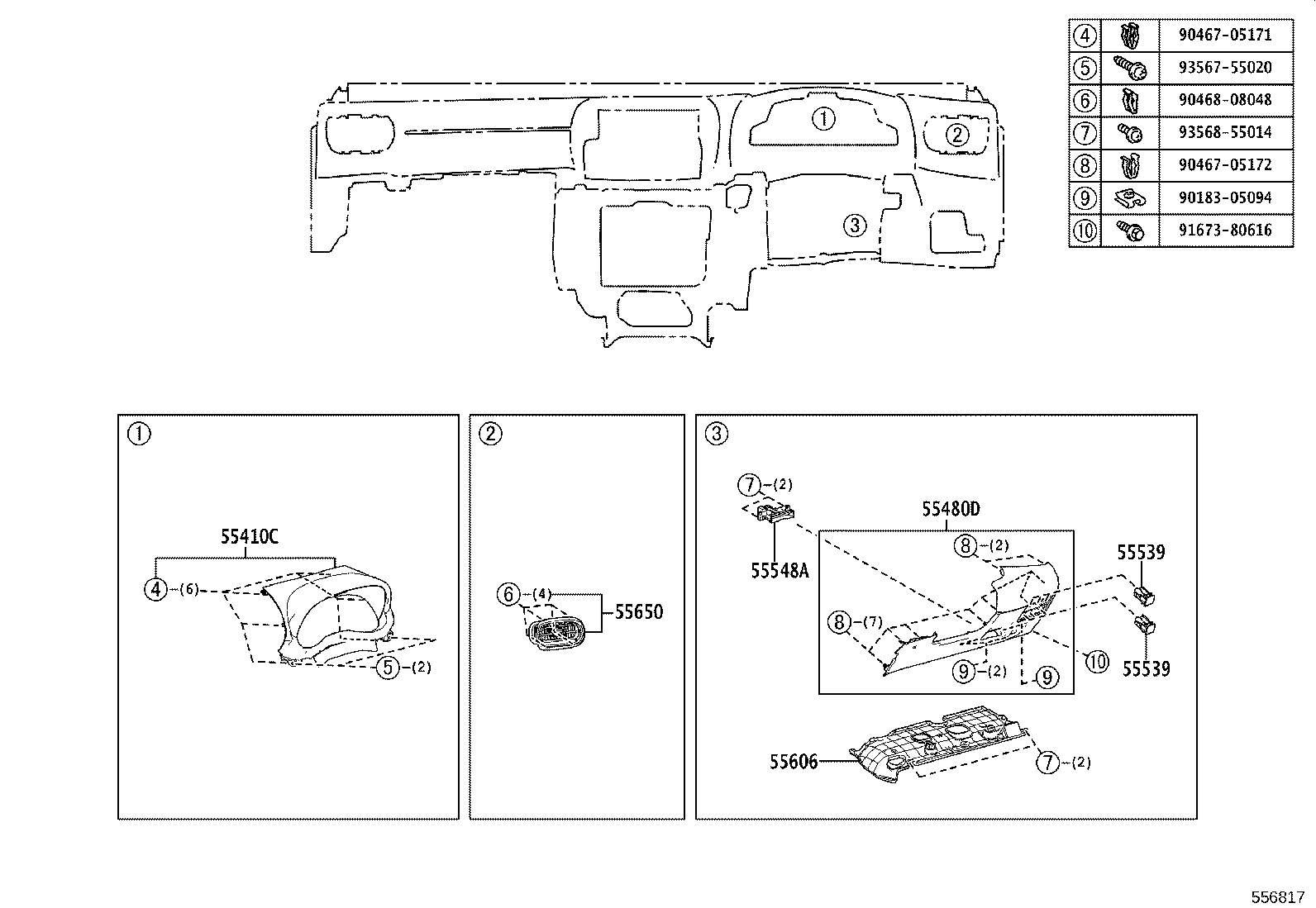

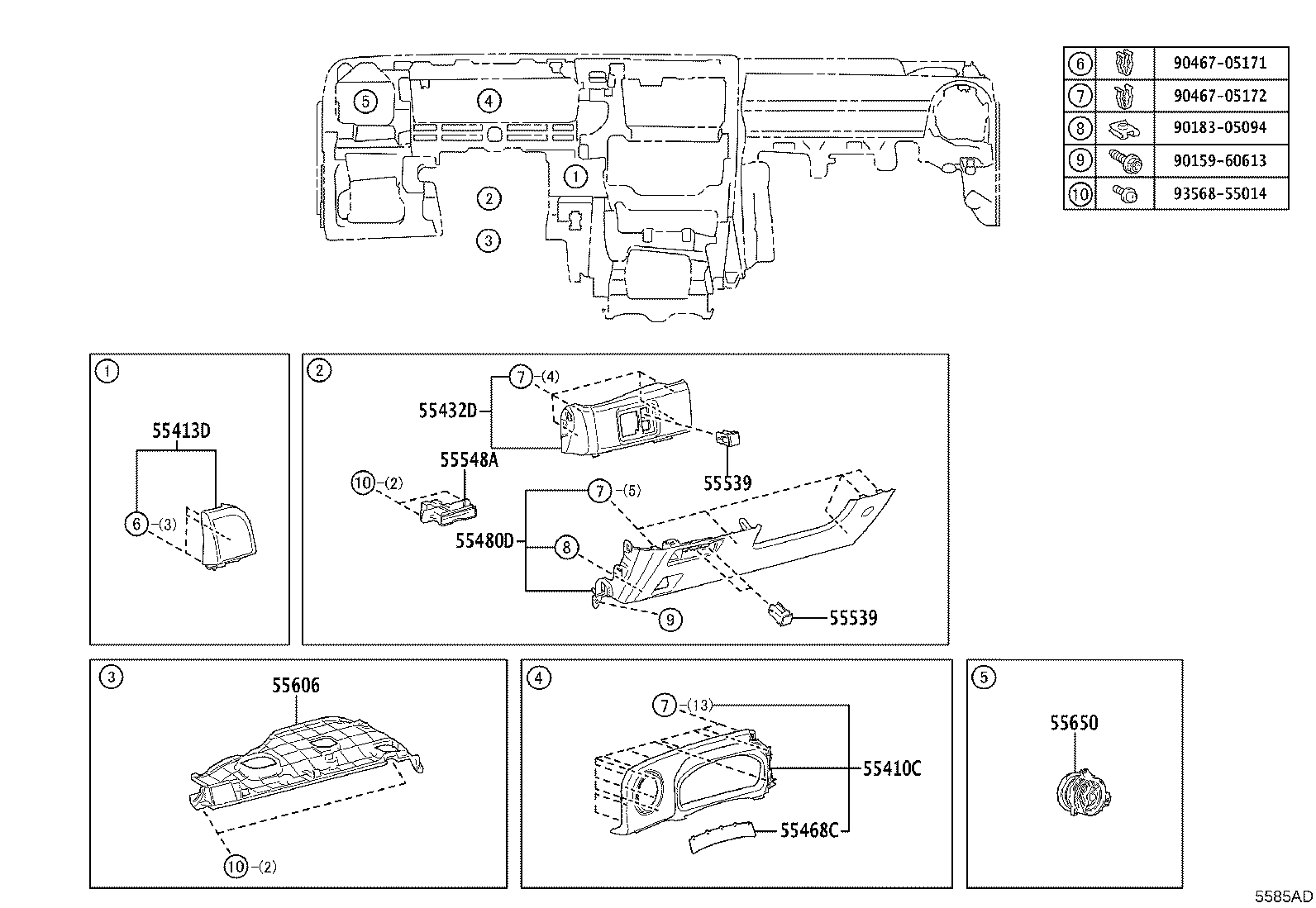

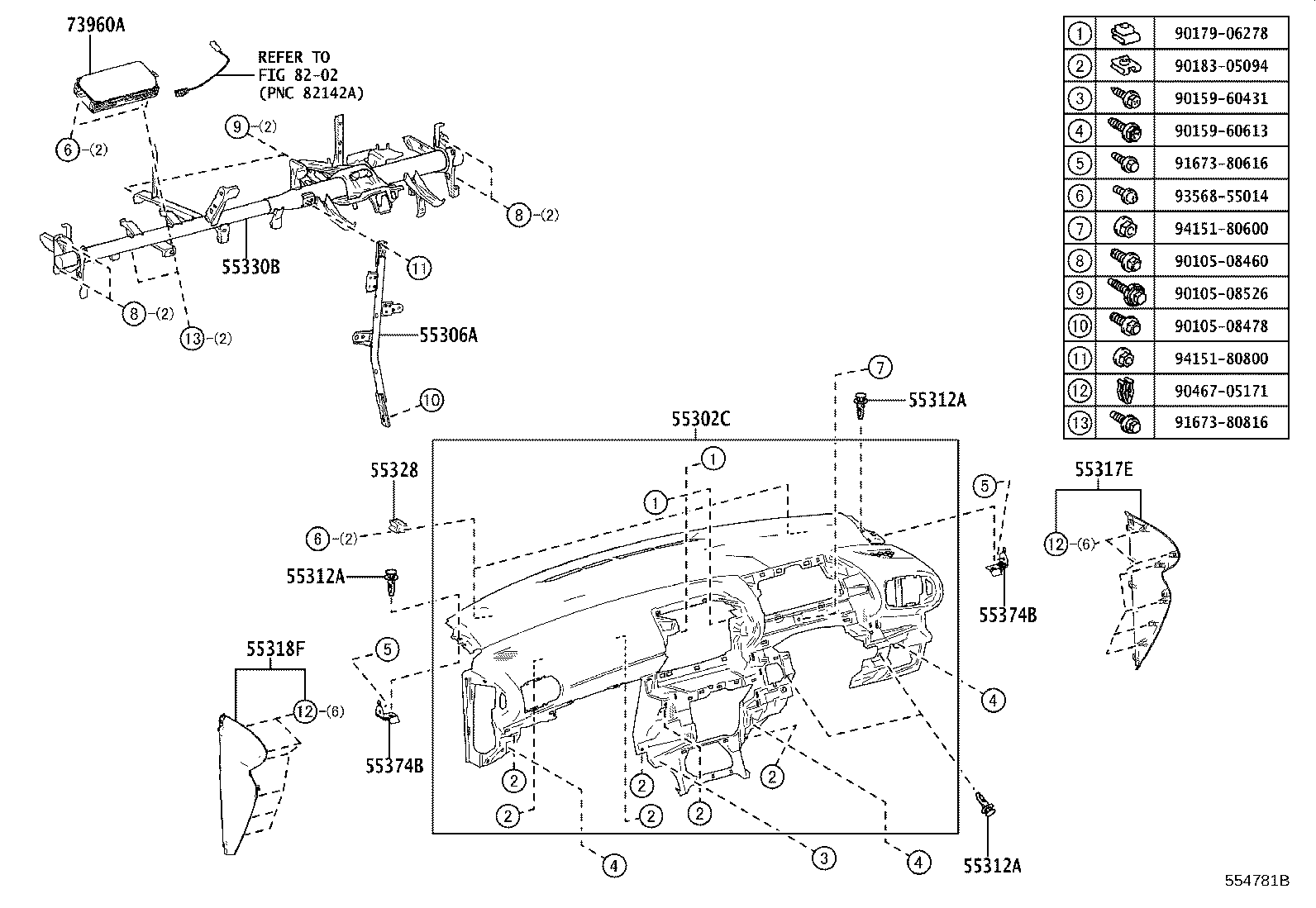

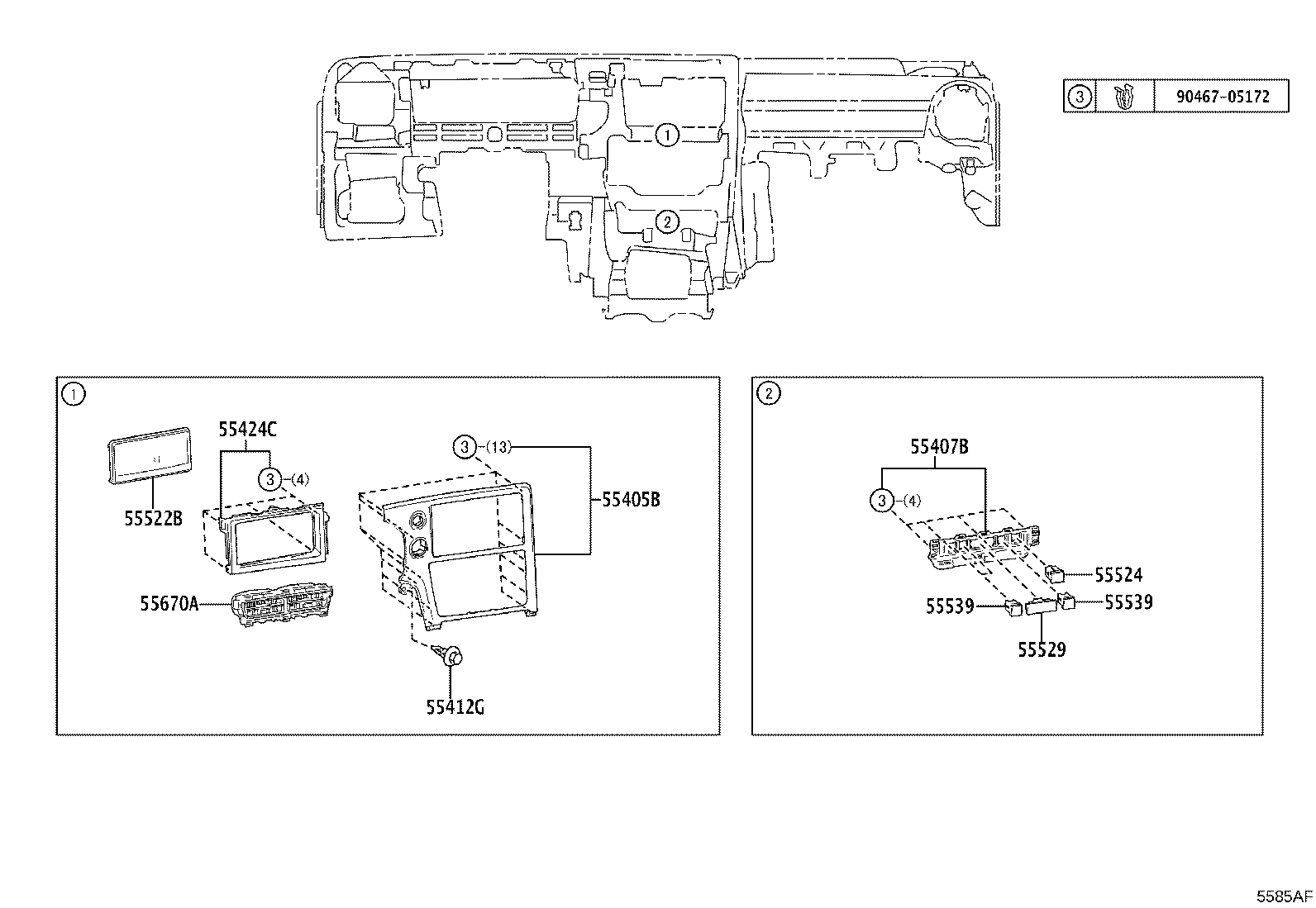

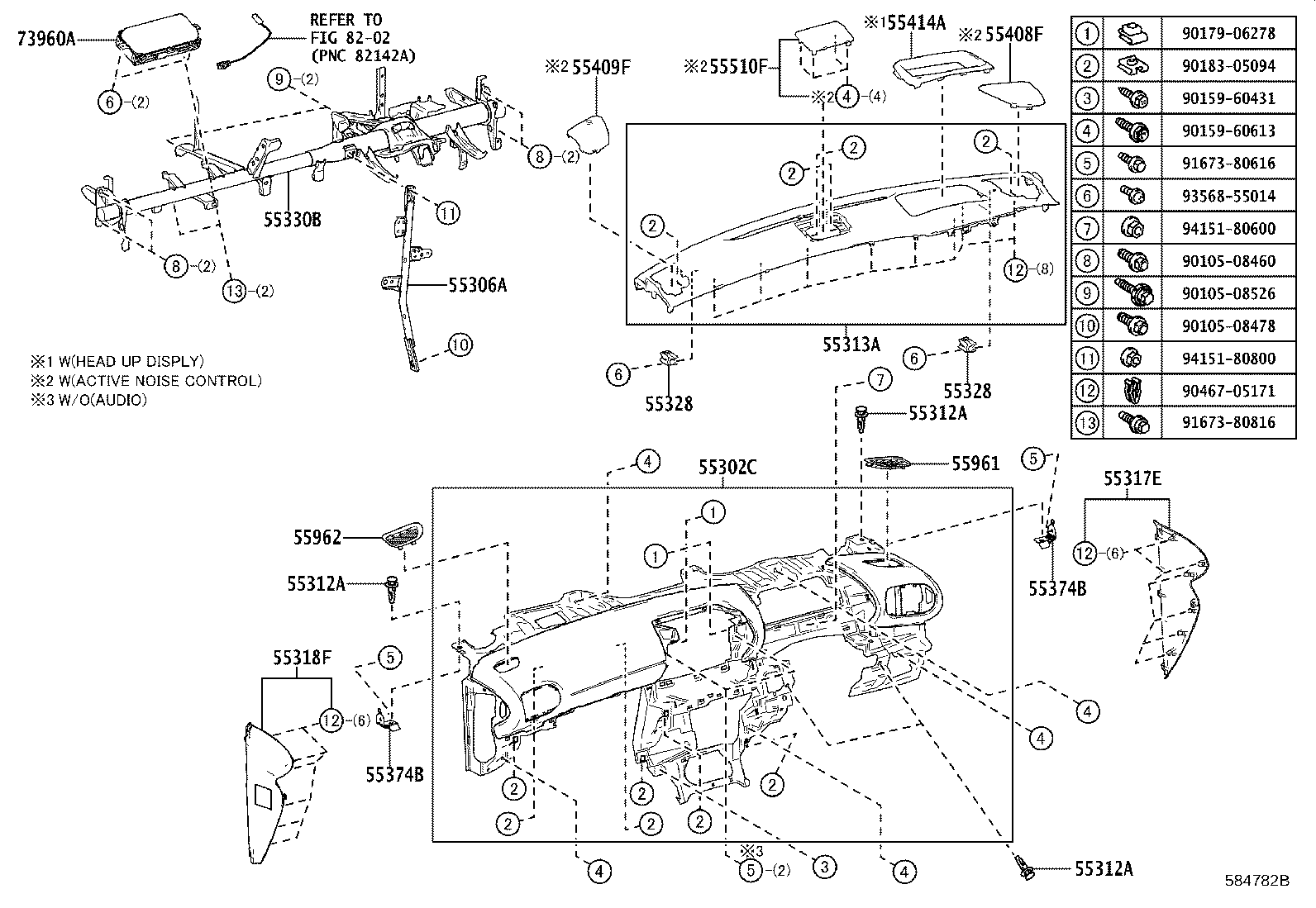

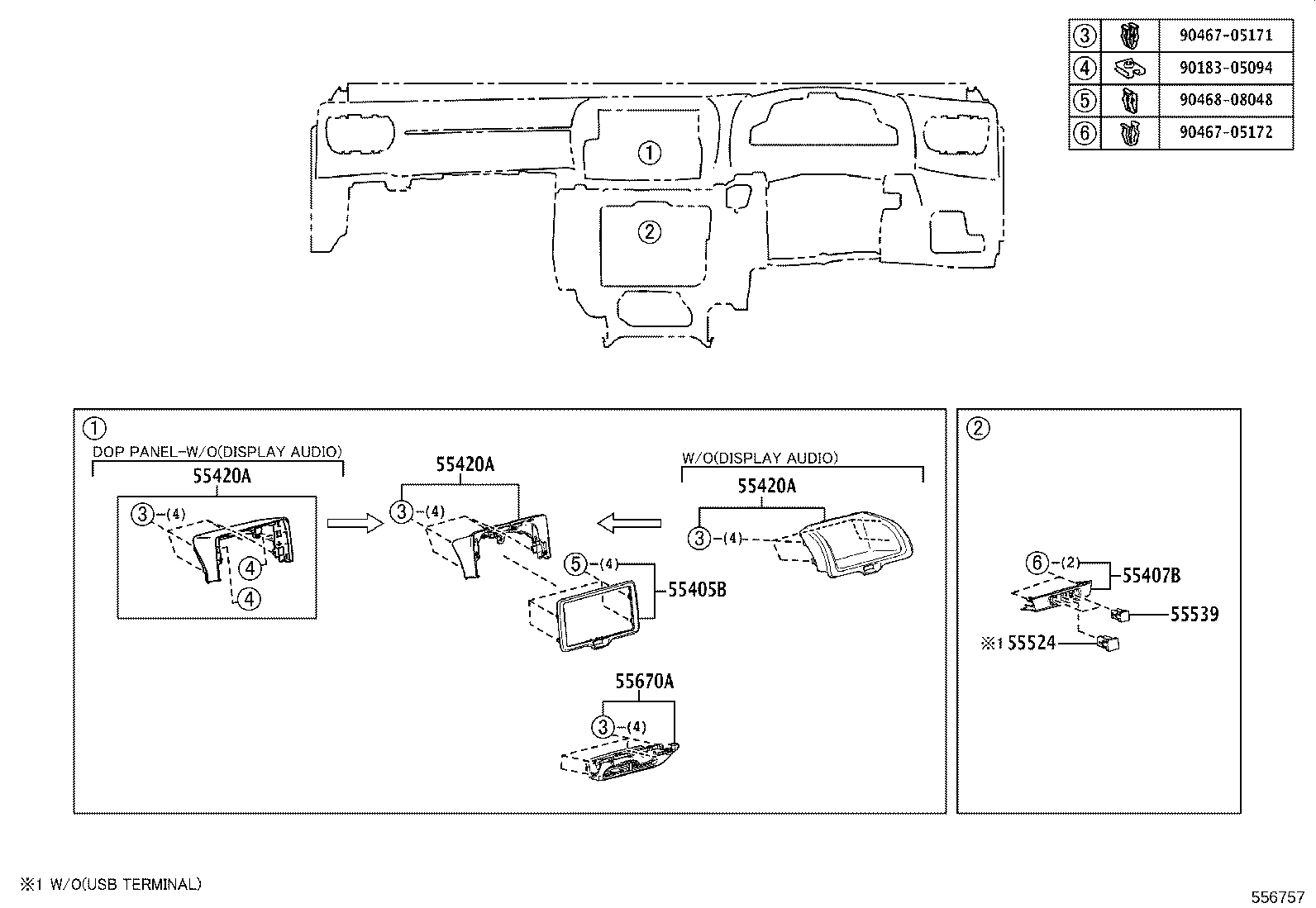

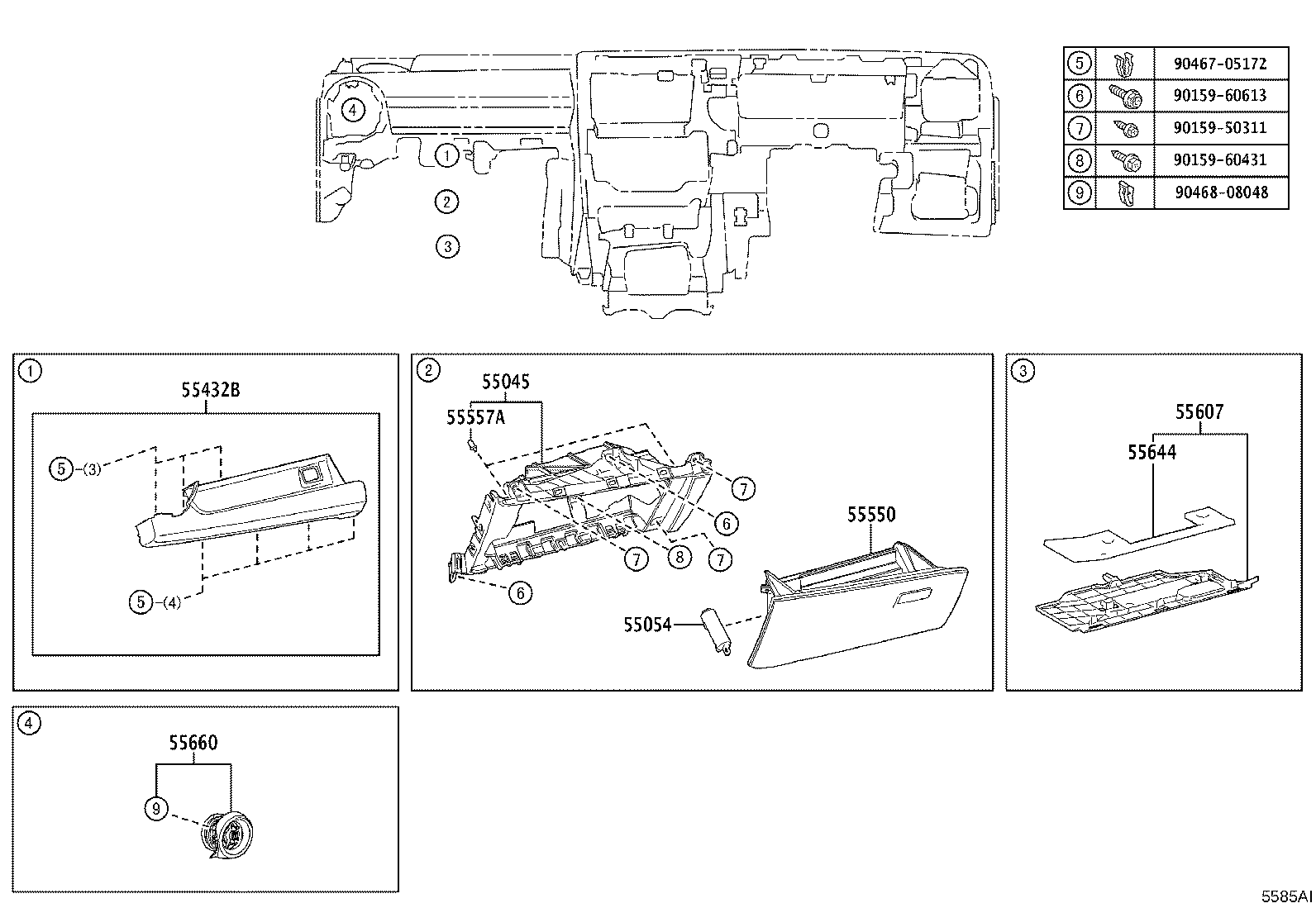

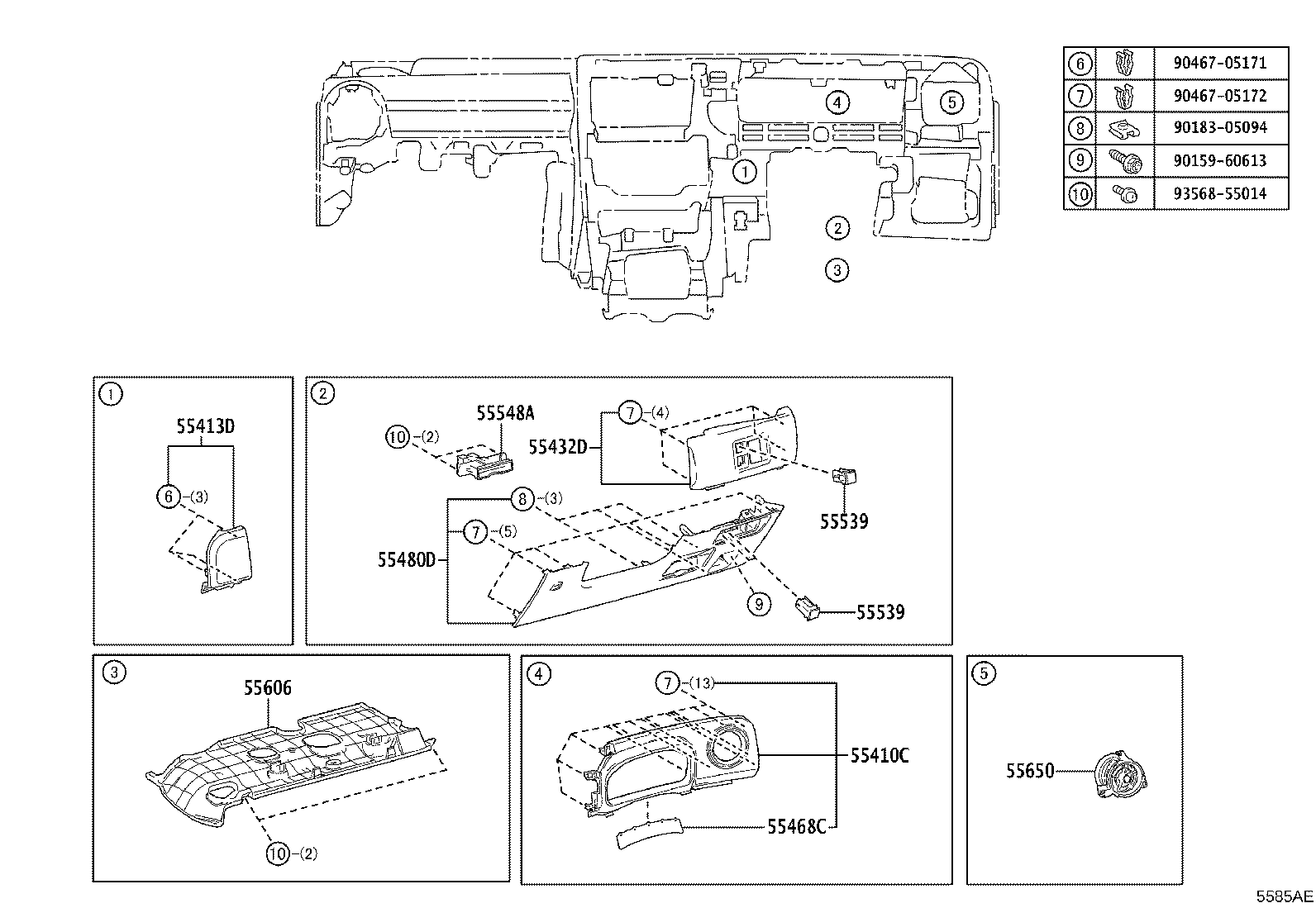

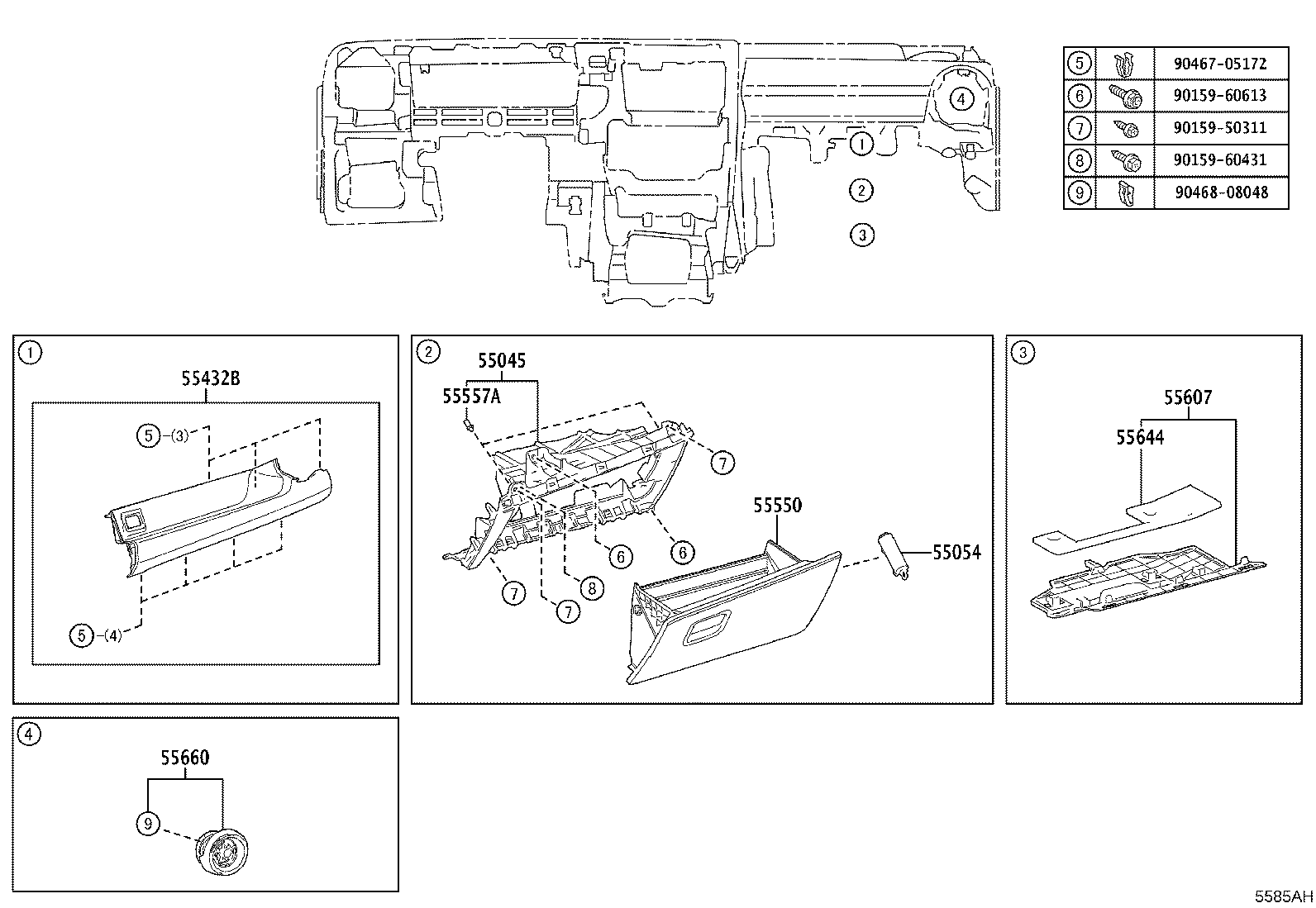

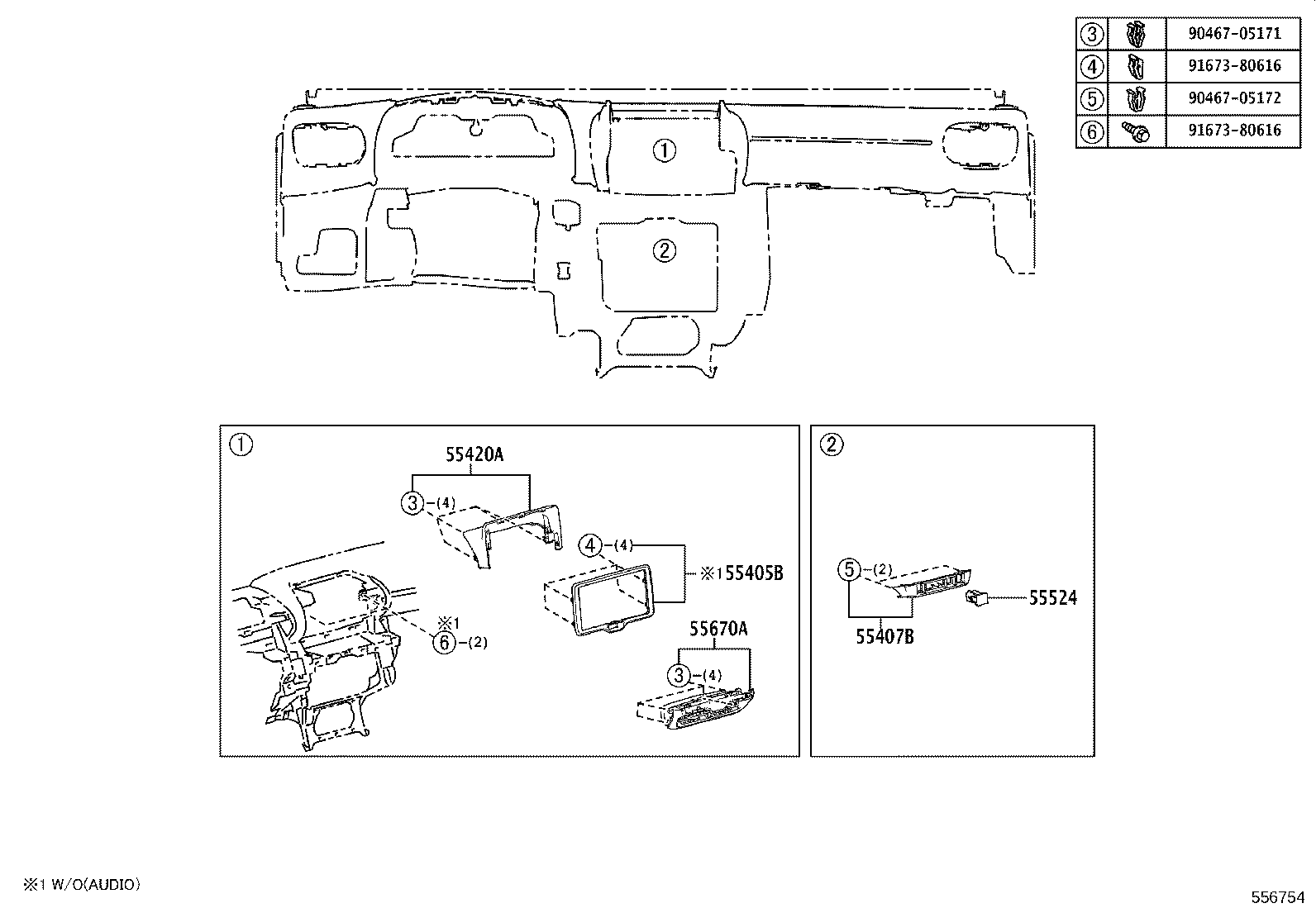

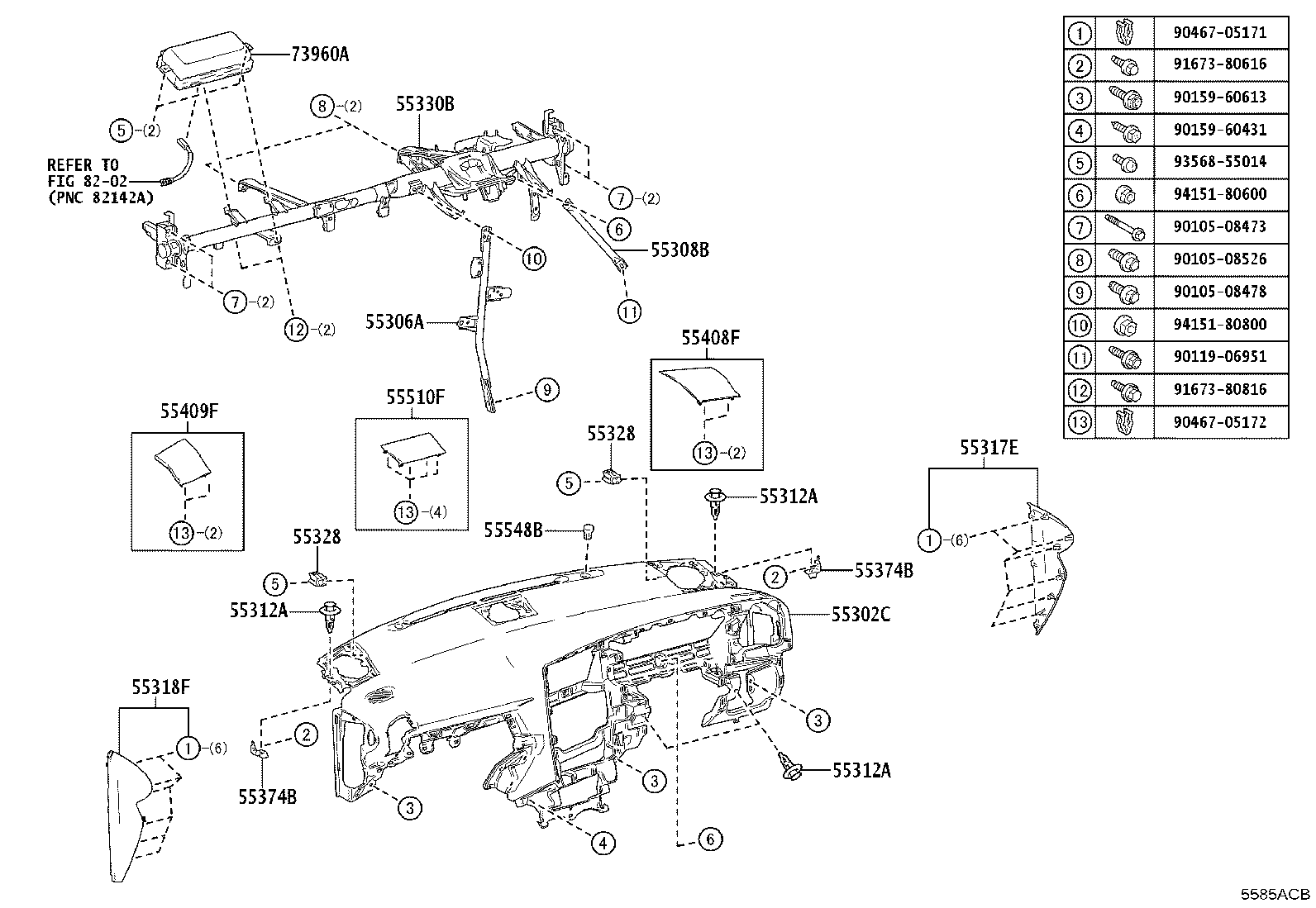

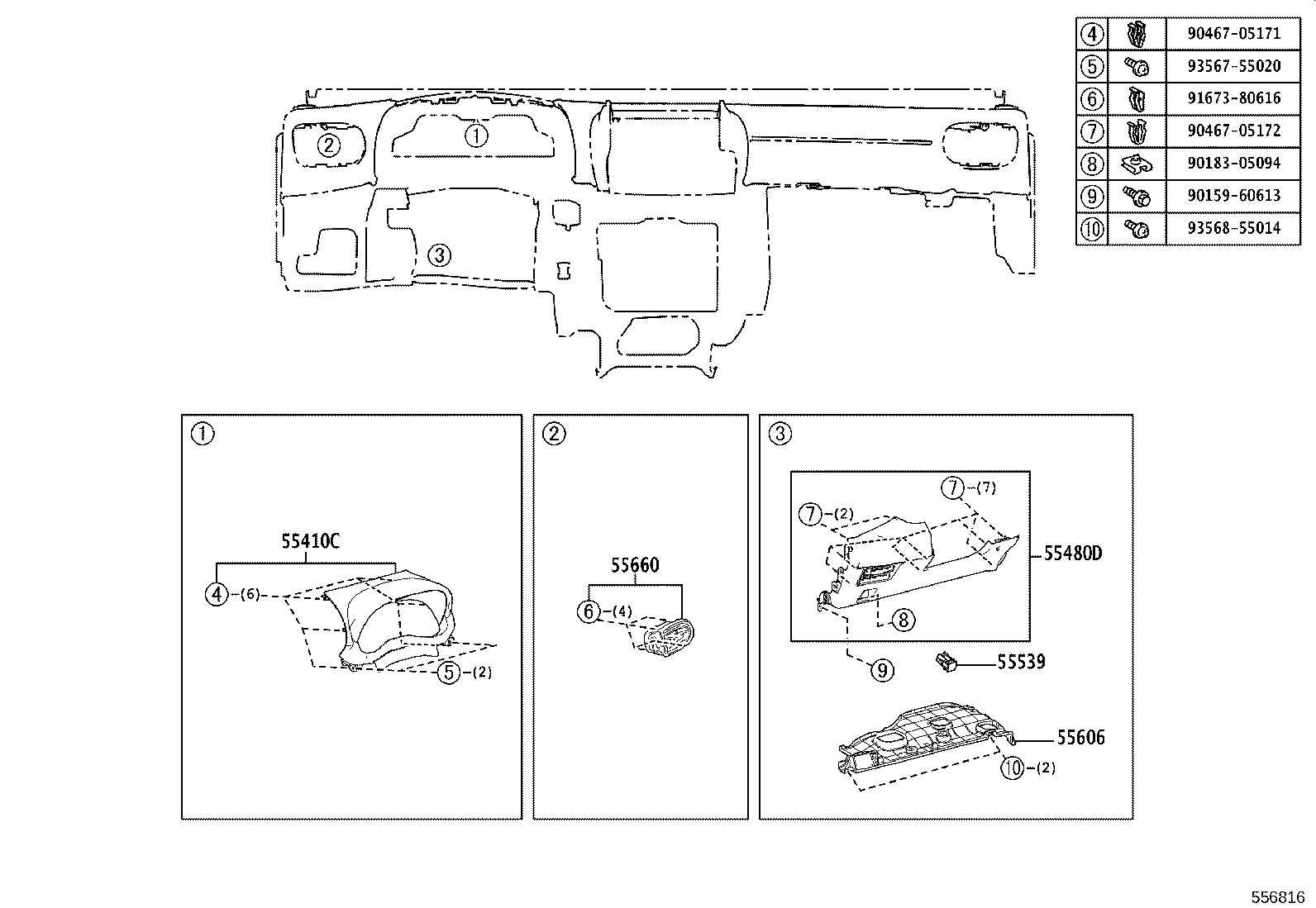

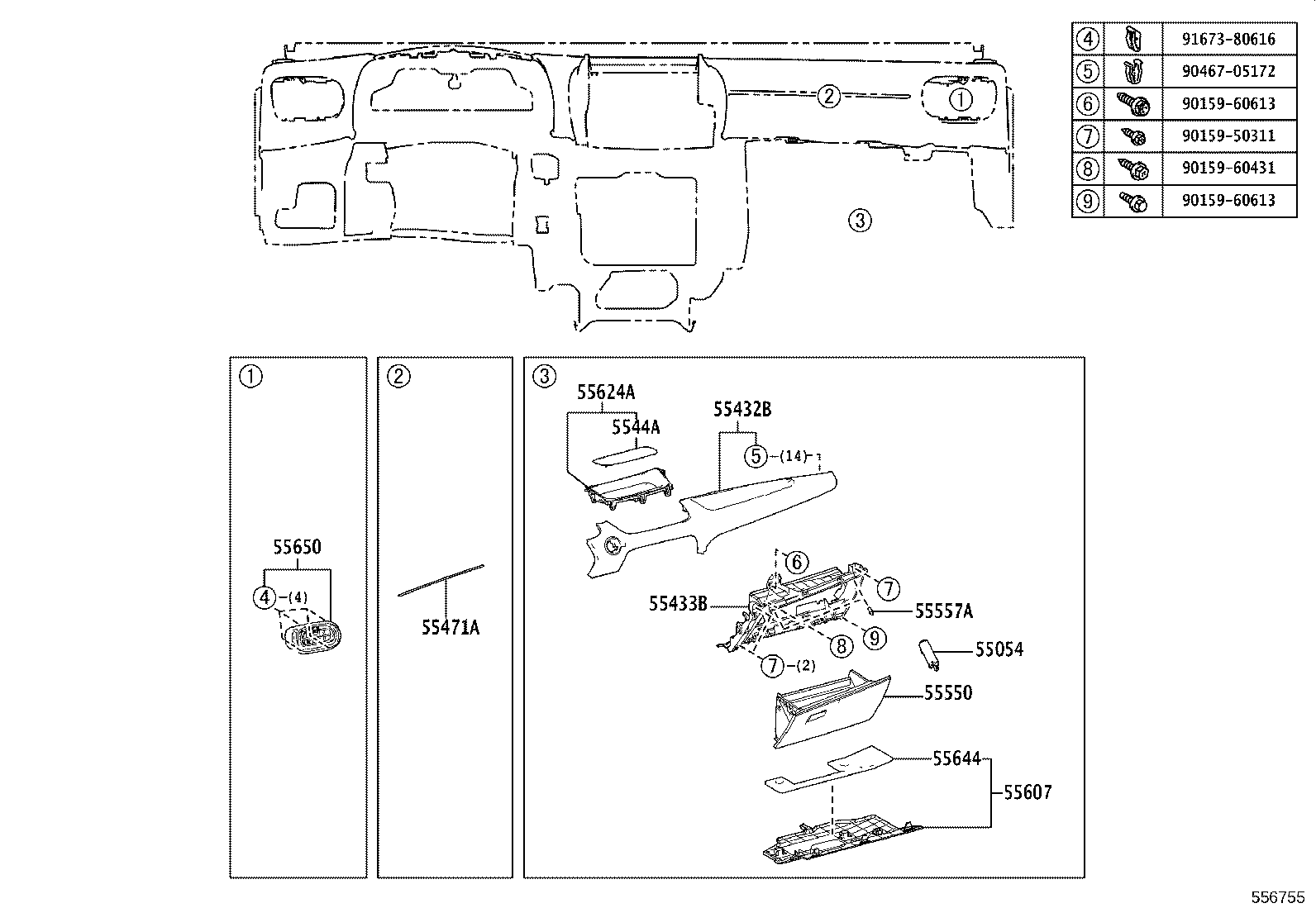

Figure 554784D 554784D 2020-08 → — Figure 554781B 554781B 2020-08 → — Figure 554782B 554782B 2020-08 → — Figure 5585ABB 5585ABB 2024-04 → — Figure 5585ACB 5585ACB 2024-04 → — Figure 556816 556816 2020-08 → — Figure 556817 556817 2020-08 → — Figure 5585AD 5585AD 2024-04 → — Figure 5585AE 5585AE 2024-04 → — Figure 556754 556754 2020-08 → — Figure 556757 556757 2020-08 → — Figure 5585AF 5585AF 2024-04 → — Figure 5585AGA 5585AGA 2024-04 → — Figure 556755 556755 2020-08 → — Figure 556758 556758 2020-08 → — Figure 5585AH 5585AH 2024-04 → — Figure 5585AI 5585AI 2024-04 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55302C Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312A Clip, Instrument Panel
55313A Panel, Instrument Main
55317E Panel, Instrument Side, NO.1
55318F Panel, Instrument Side, NO.2
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55374B Bracket, Instrument Panel
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55407B Base Sub-assy, Switch Hole
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55413D Panel, Instrument Cluster Finish, Center Lower
55414A Panel, Instrument Cluster Finish, End
55420A Panel Assy, Instrument Cluster Finish, Center
55424C Panel, Radio Tuner Finish
55432B Panel, Instrument Panel Finish, Lower
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
5544A Mat, Insutrument Panel Tray
55468C Seal, Instrument Cluster Finish Panel, NO.1
55471A Ornament, Instrument Cluster Finish Panel
55480D Panel Assy, Instrument Panel Finish, Lwr
55510F Cover Assy, Speaker Opening, NO.1
55522B Cover, Radio Tuner Opening
55524 Cover, Switch Bace Hole
55529 Cover, Warning Lamp Hole
55539 Cover, Spare Switch Hole
55539N Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55548B Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55624A Tray, Instrument Panel, Center
55644 Pad, Instrument Panel Under Silencer, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
