Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

10 part groups · 2 illustrations

Illustrations

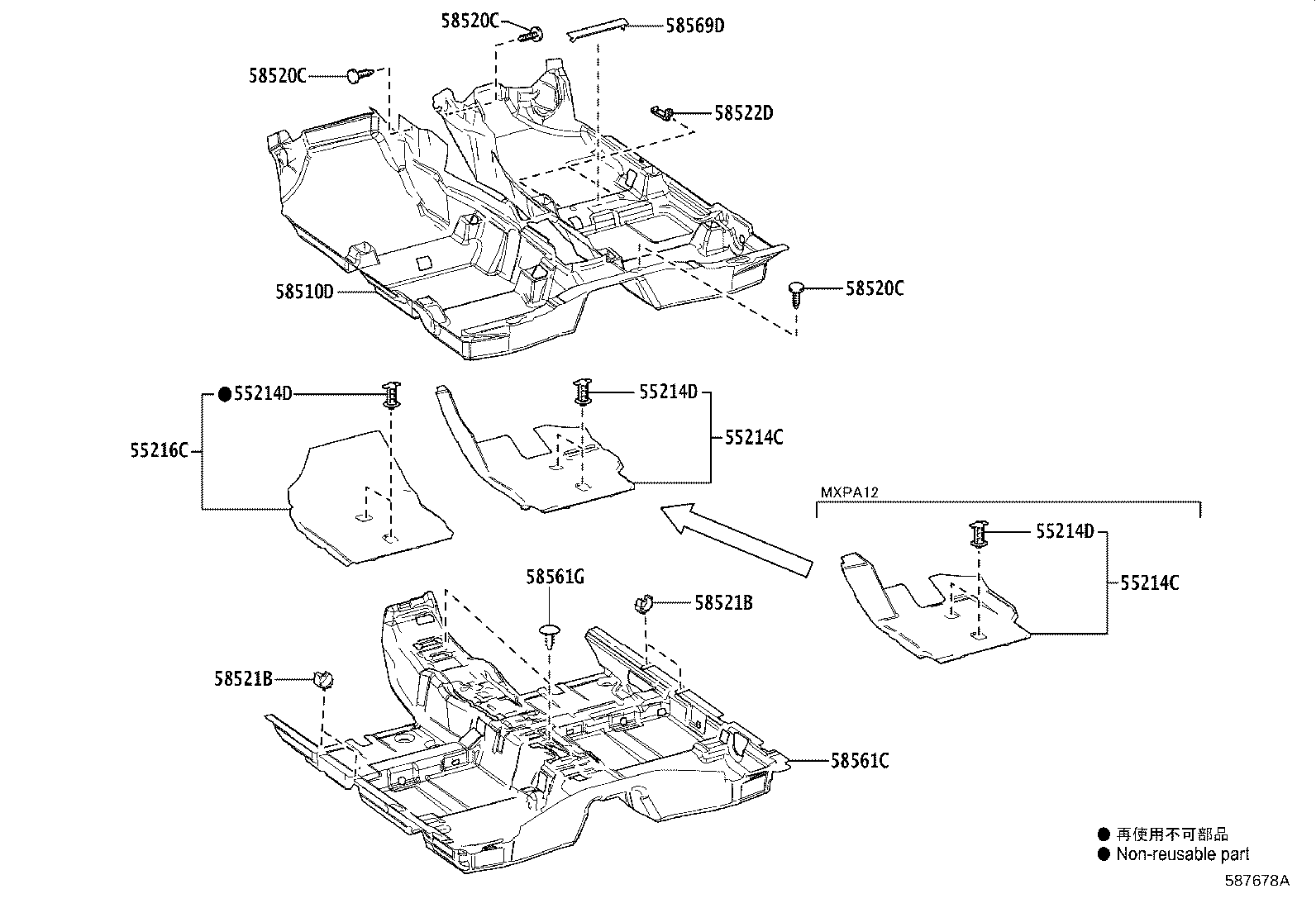

Figure 587677B 587677B 2020-08 → — Figure 587678A 587678A 2020-08 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55216C Pad, Dash Panel Insulator, NO.4
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
