Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

7 part groups · 2 illustrations

Illustrations

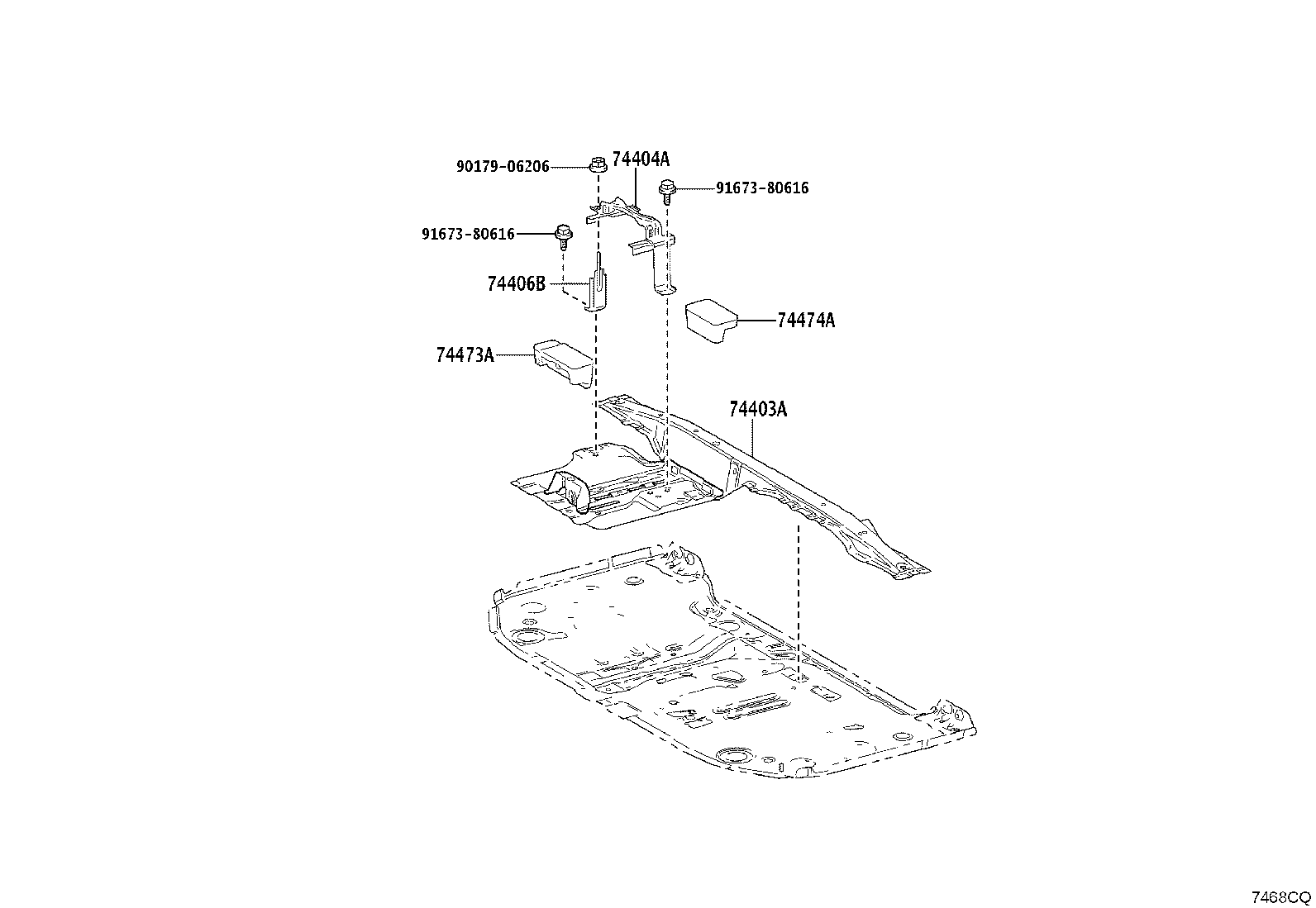

Figure 745299B 745299B 2020-08 → — Figure 7468CQ 7468CQ 2024-10 → —

Part groups

PNCDescription
74403A Carrier Sub-assy, Battery
74404A Clamp Sub-assy, Battery
74406B Clamp Sub-assy, Battery Hold Down
74452A Bolt, Battery Clamp, NO.2
74473A Spacer, Battery, NO.1
74474 Pad, Battery
74474A Spacer, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
