Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

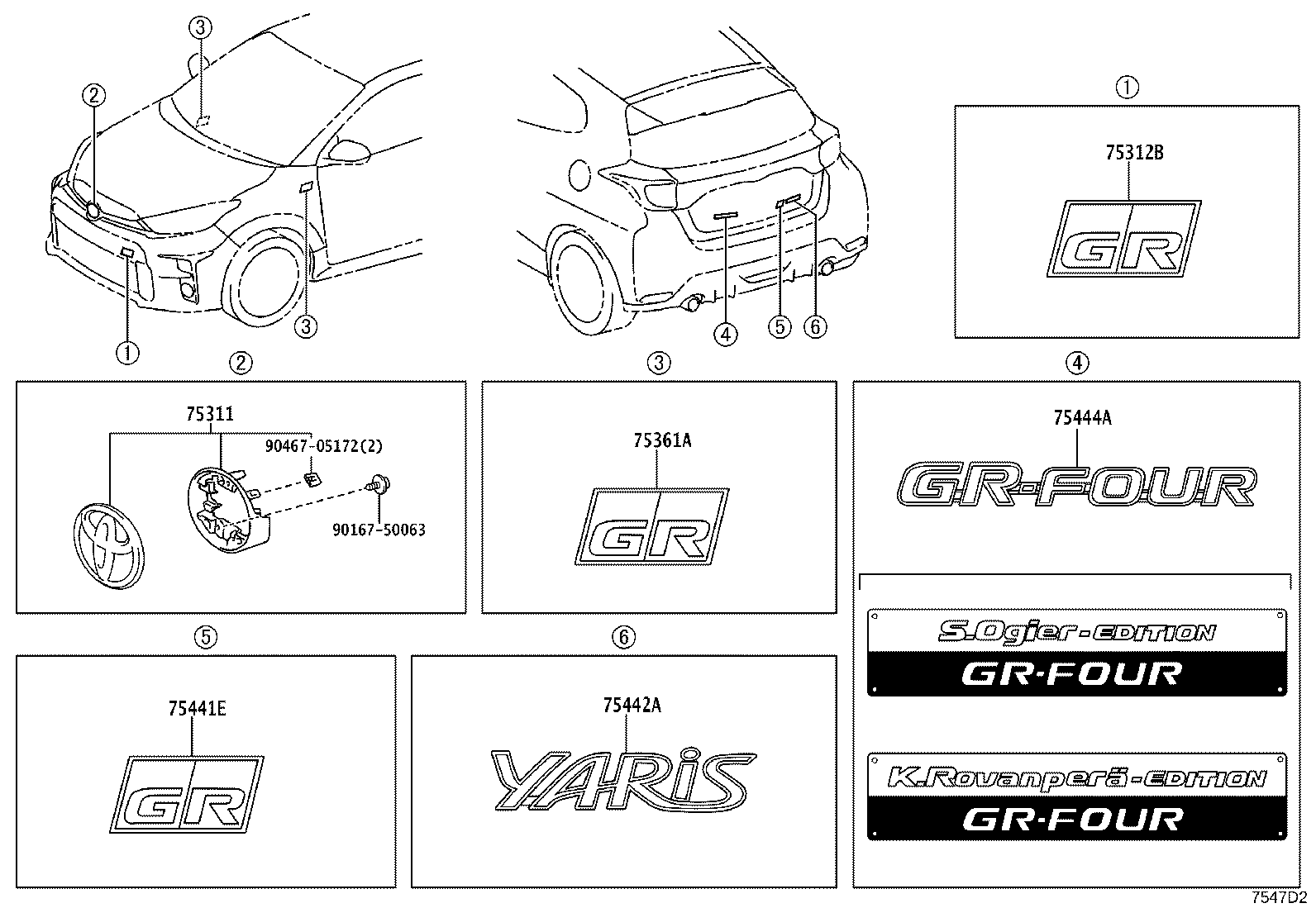

Figure 754109B 754109B 2020-08 → 2024-04 Figure 7547D2 7547D2 2024-04 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75361A Plate, Front Fender Name, NO.1
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75444A Plate, Back Door Name, NO.4
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
