Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

72 part groups · 14 illustrations

Illustrations

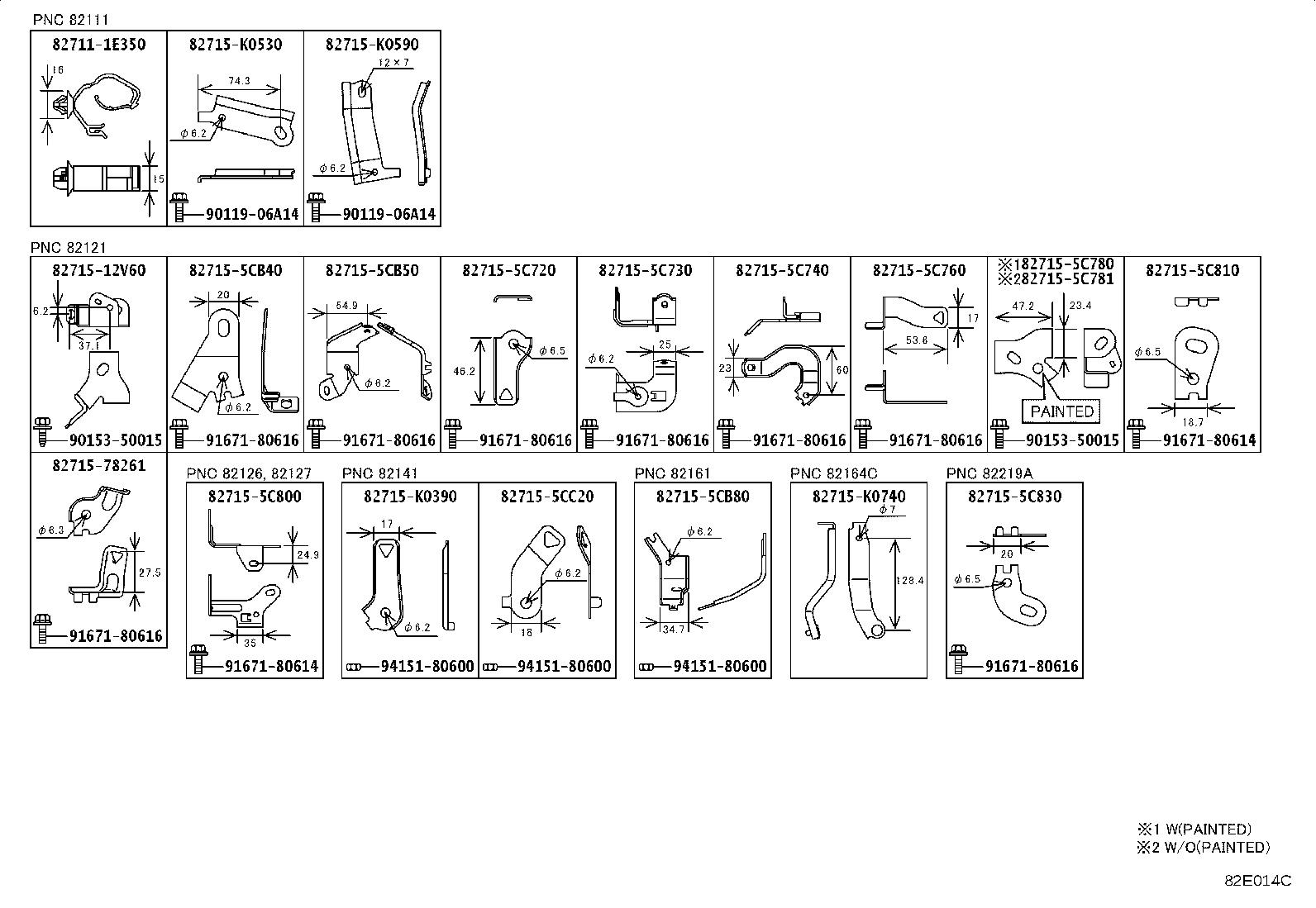

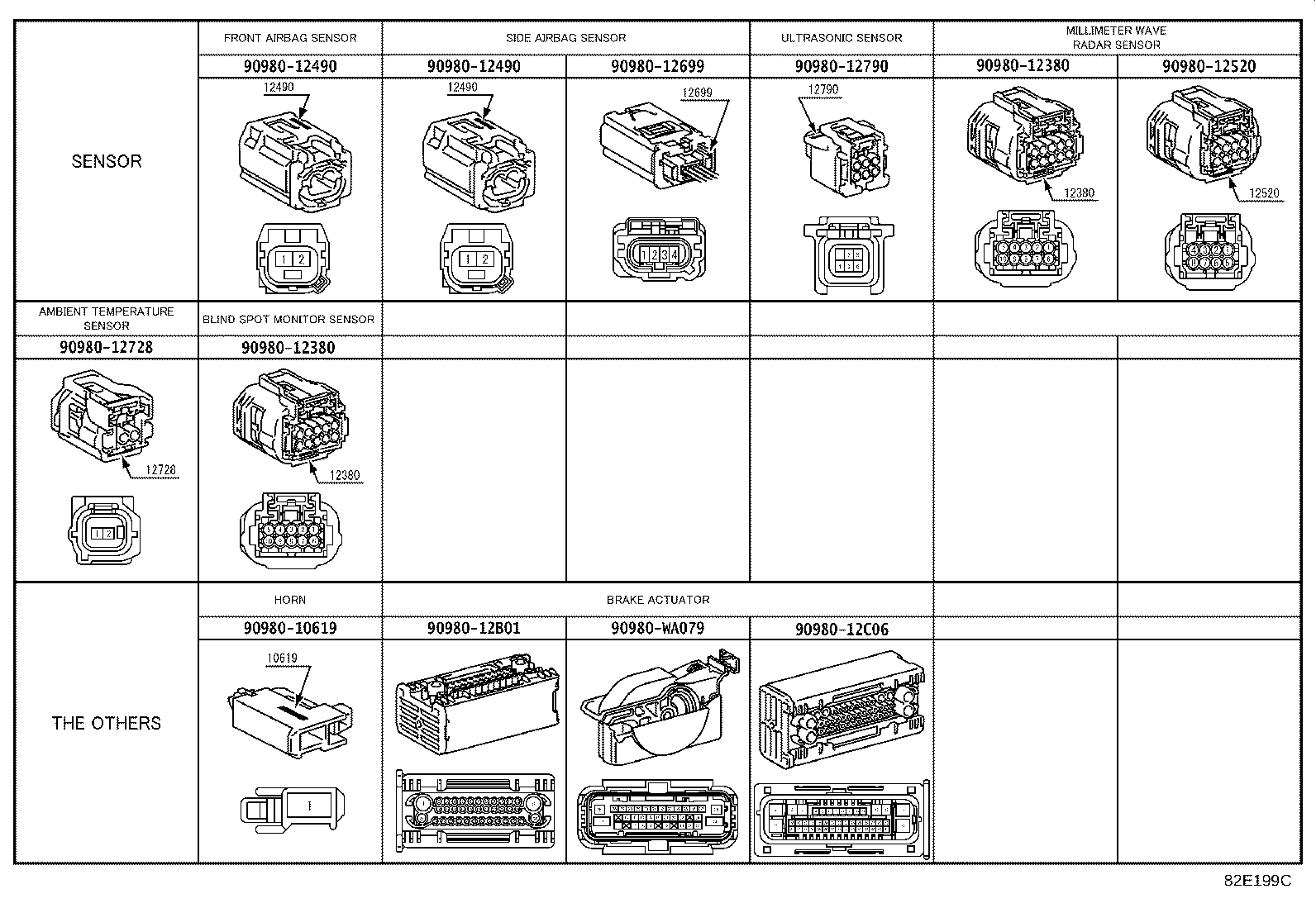

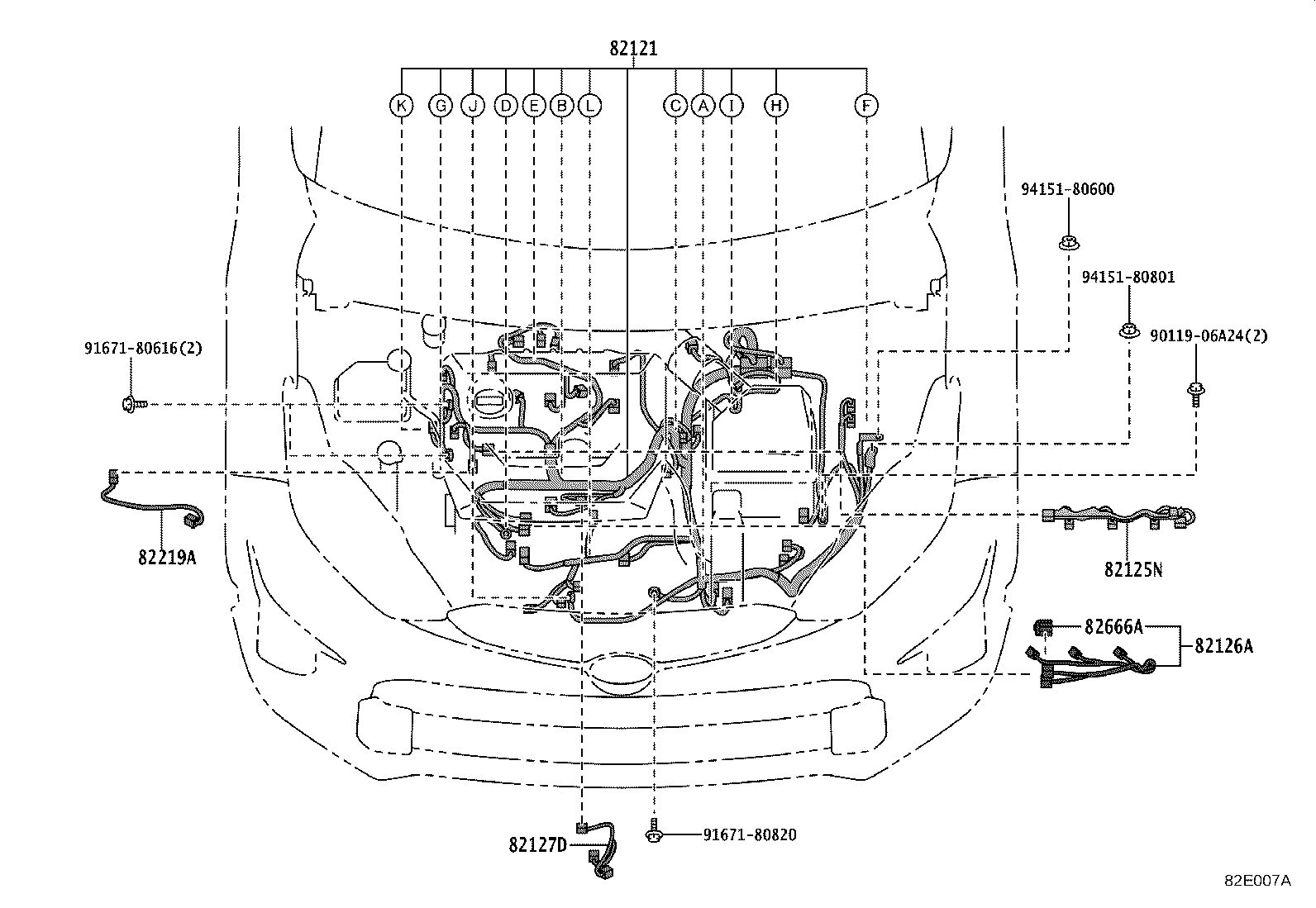

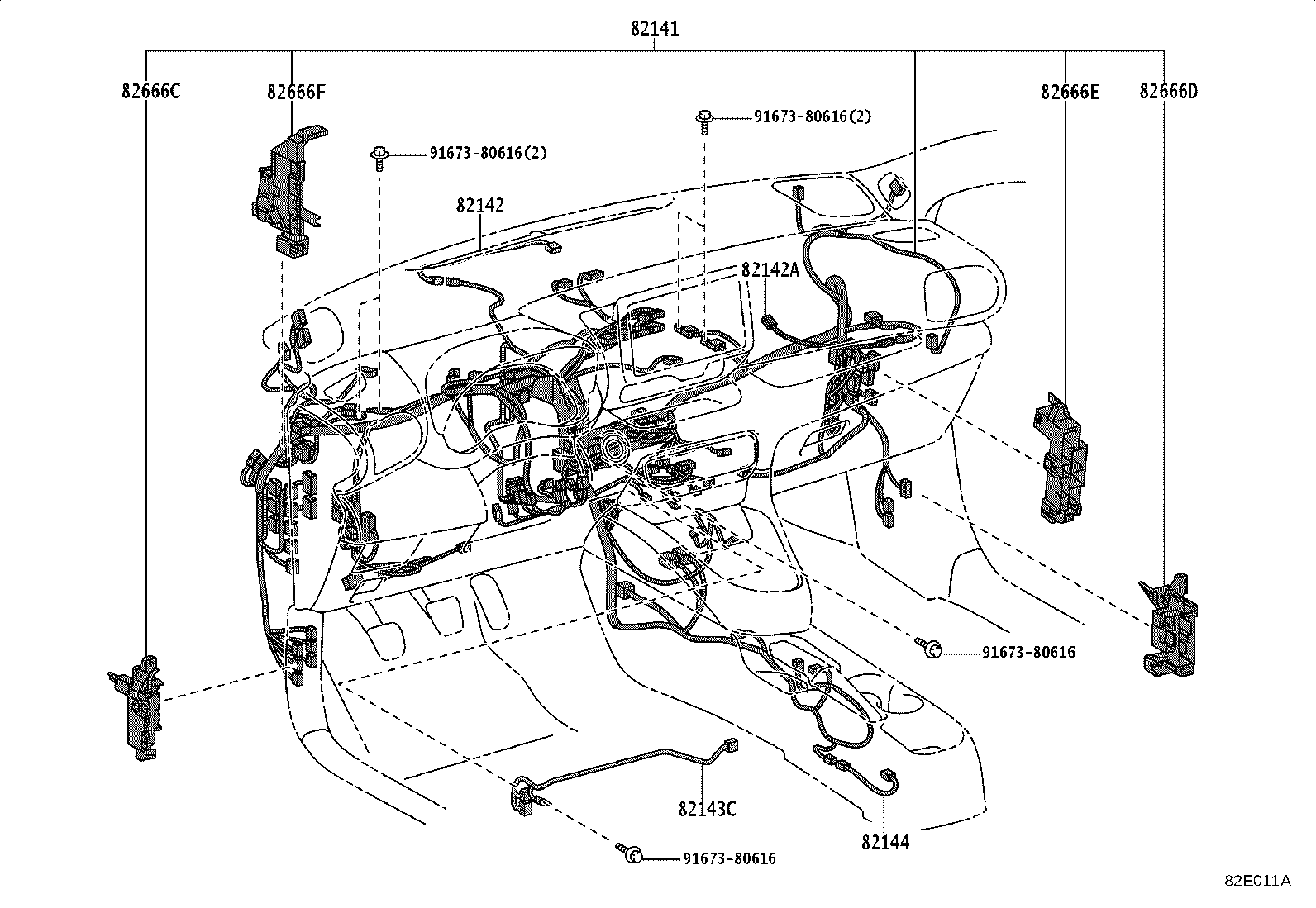

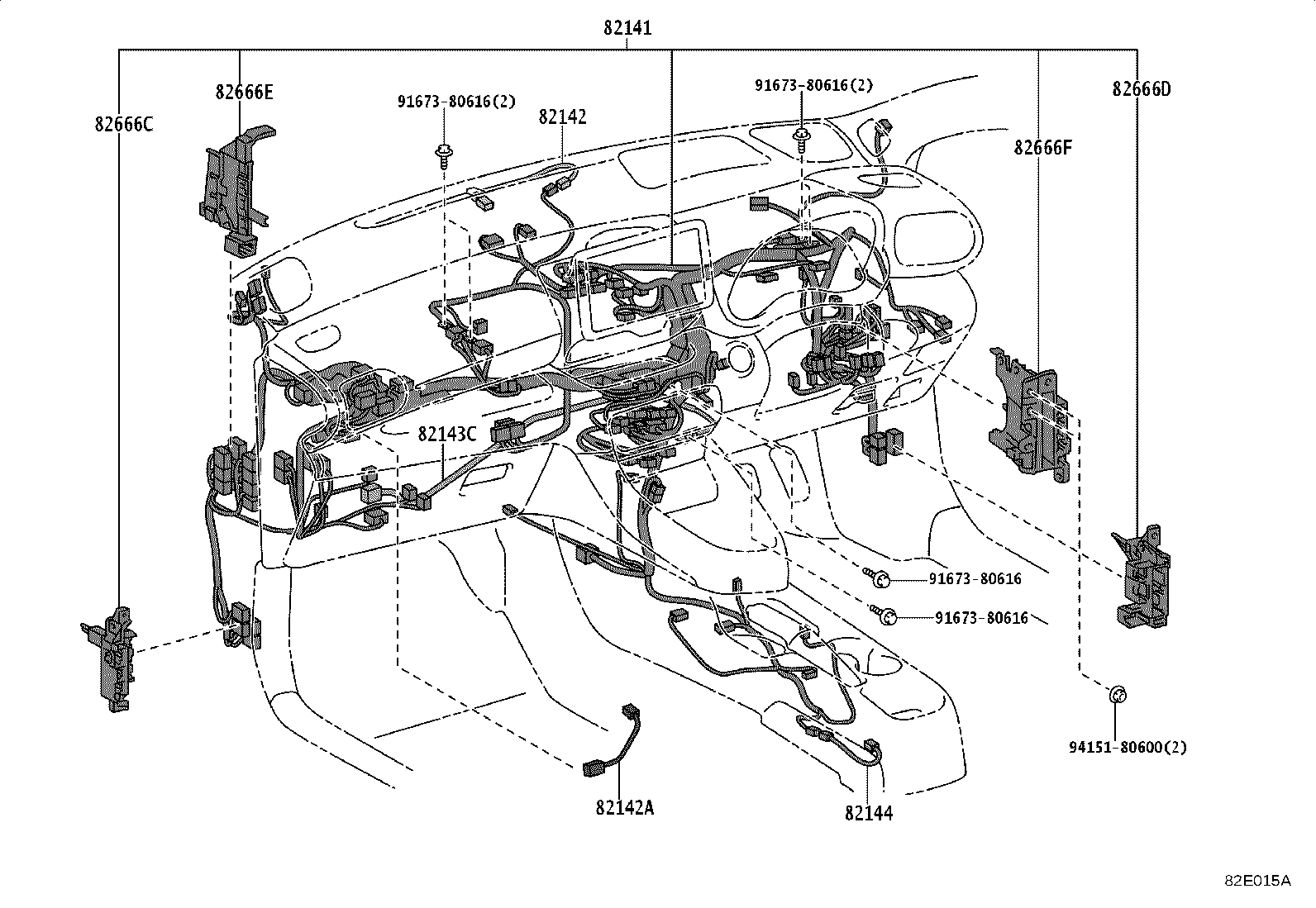

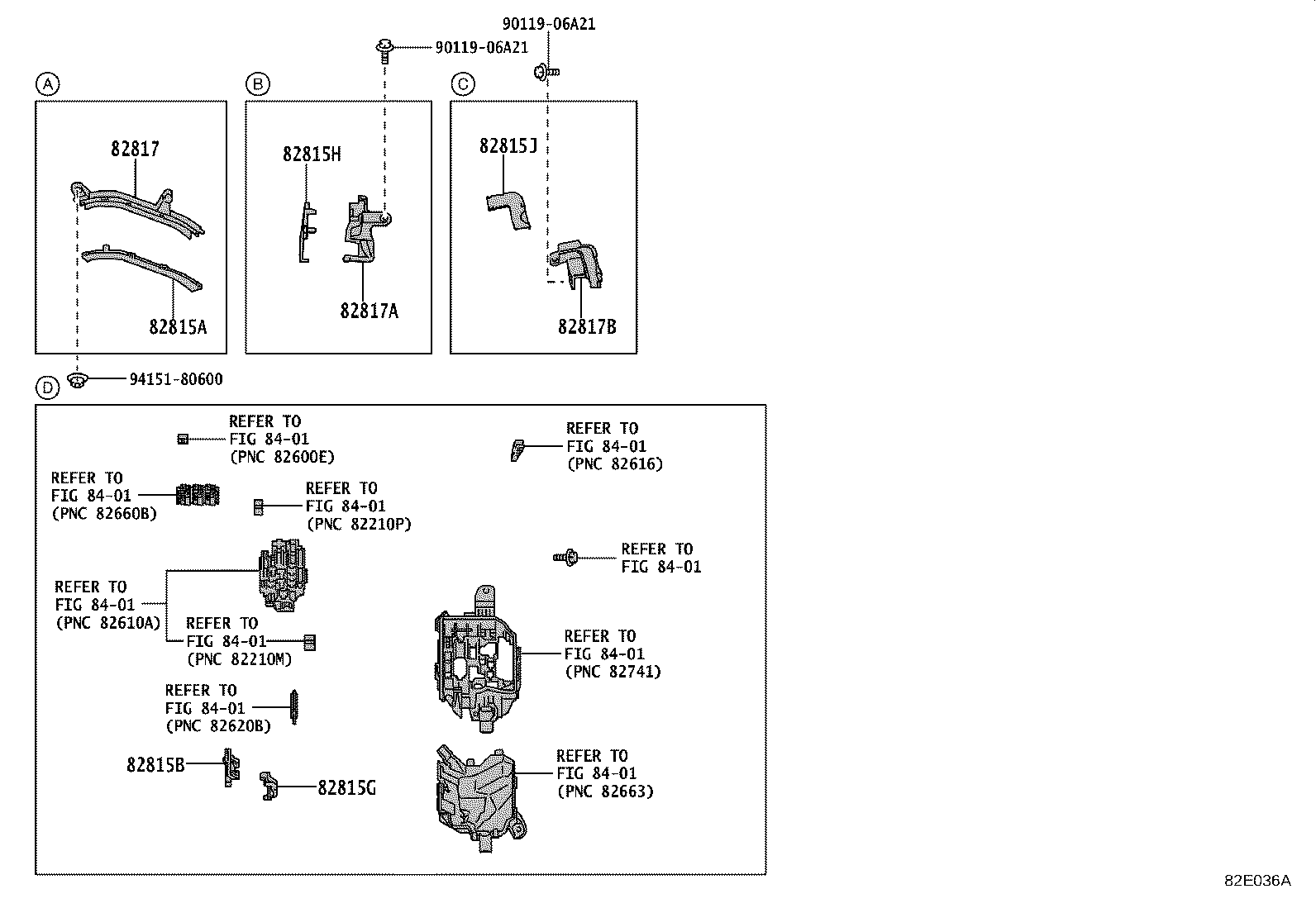

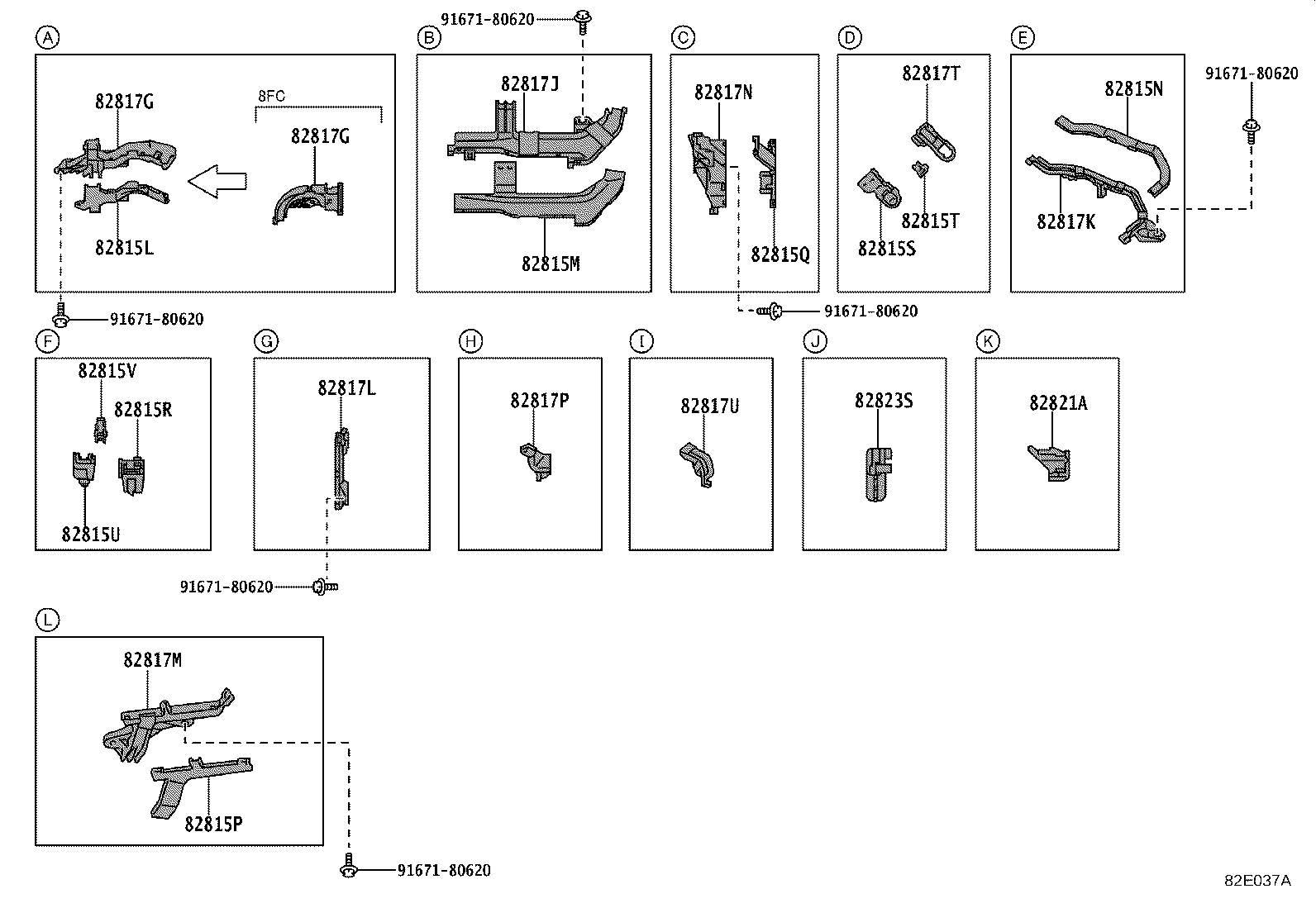

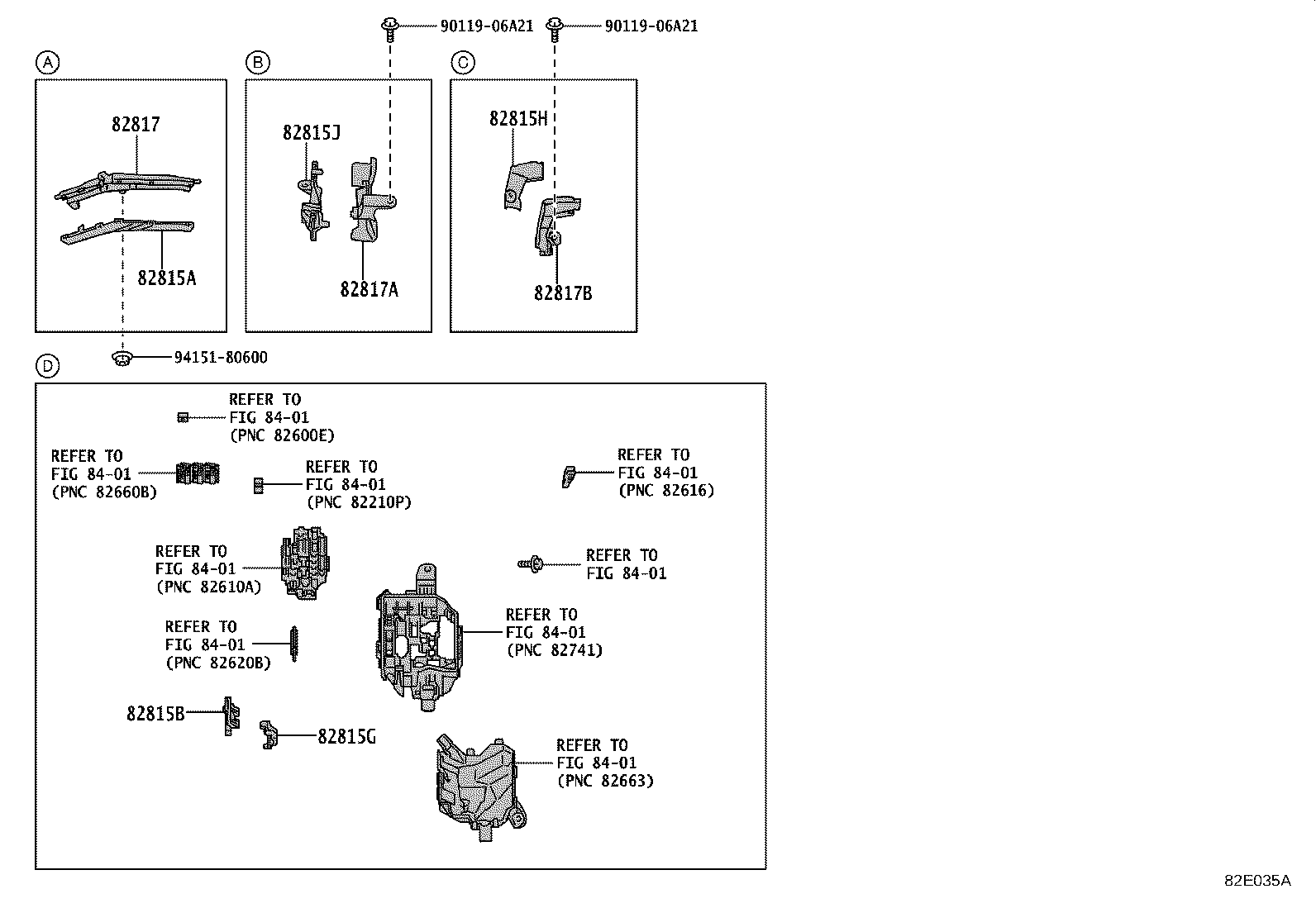

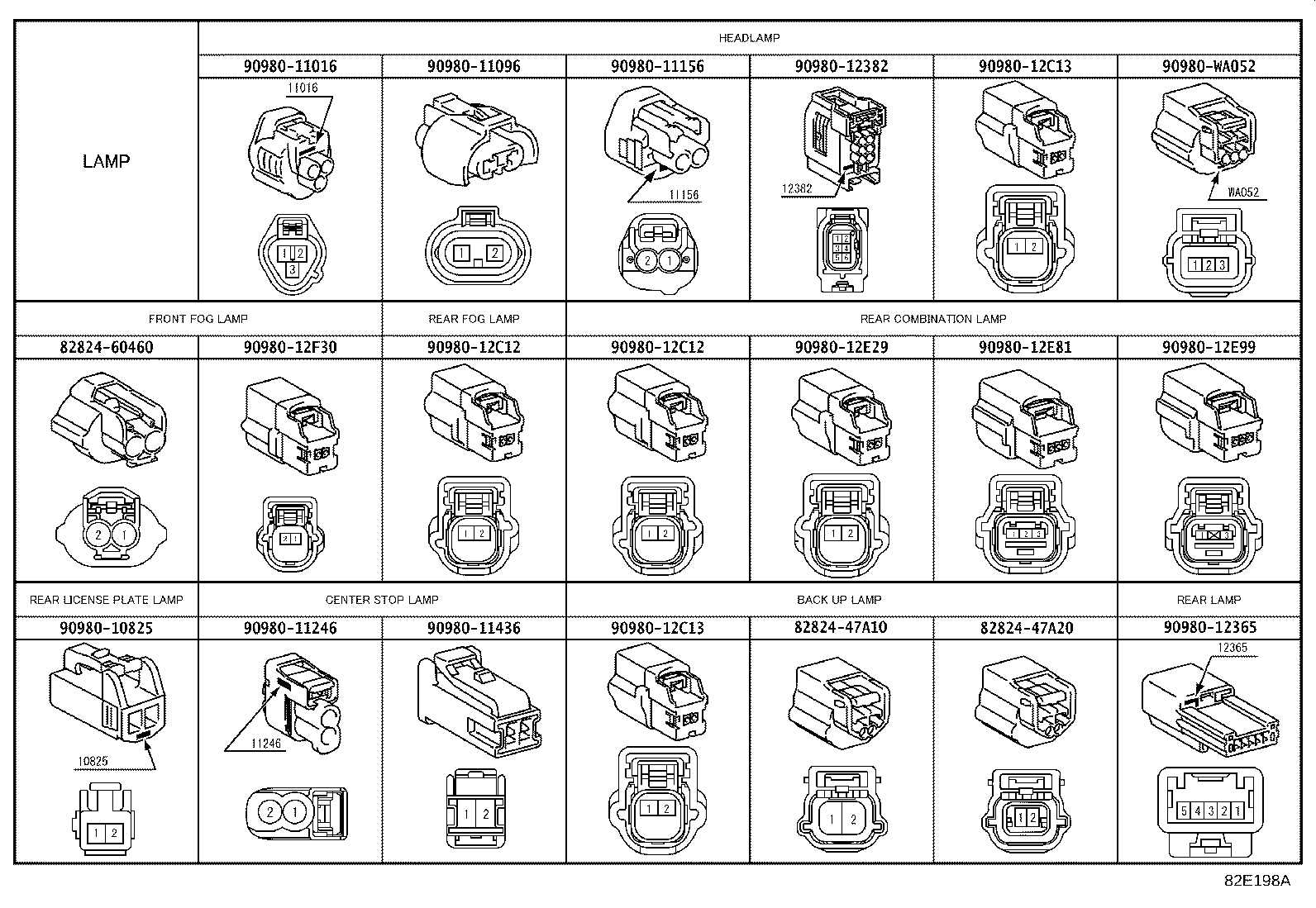

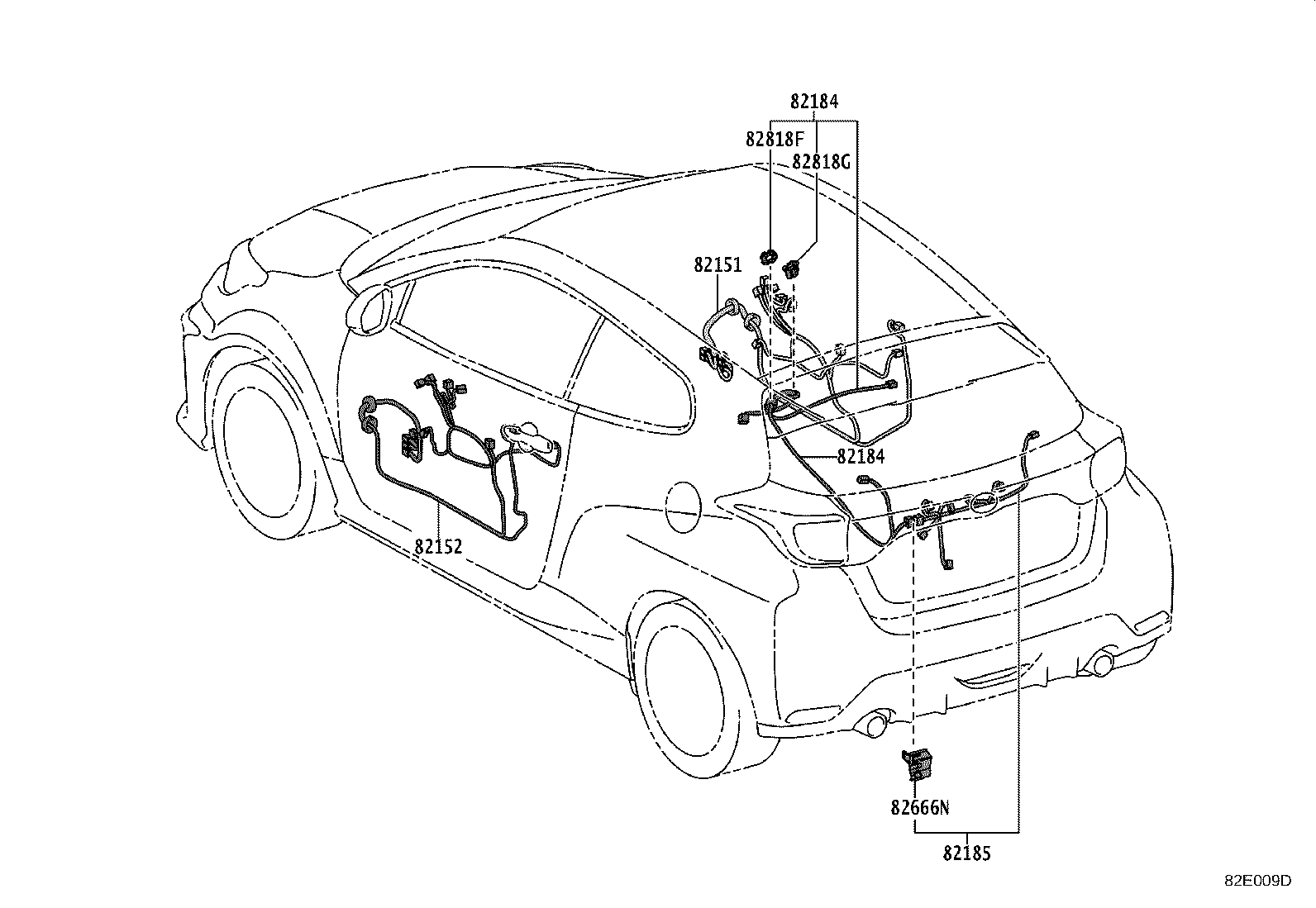

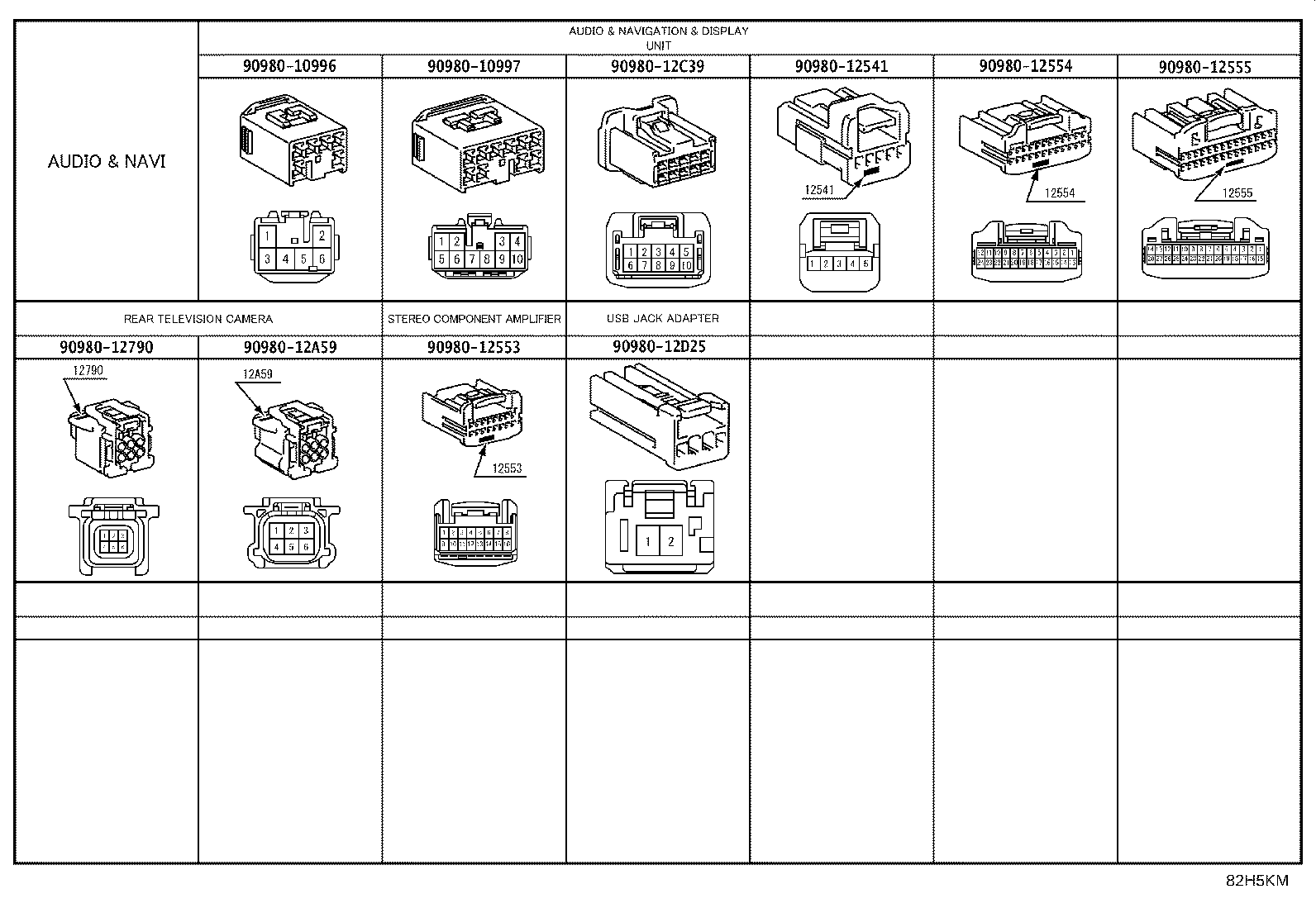

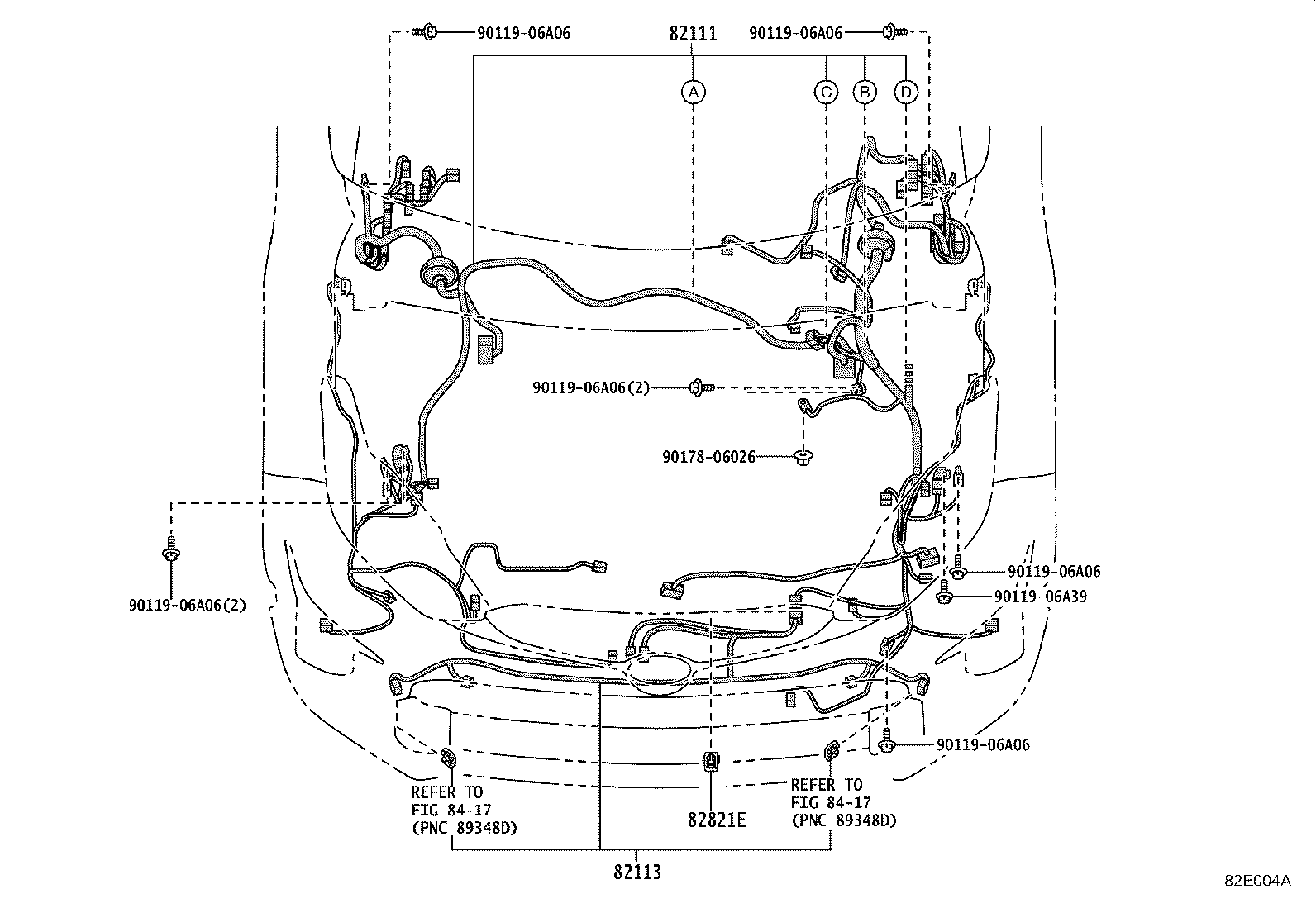

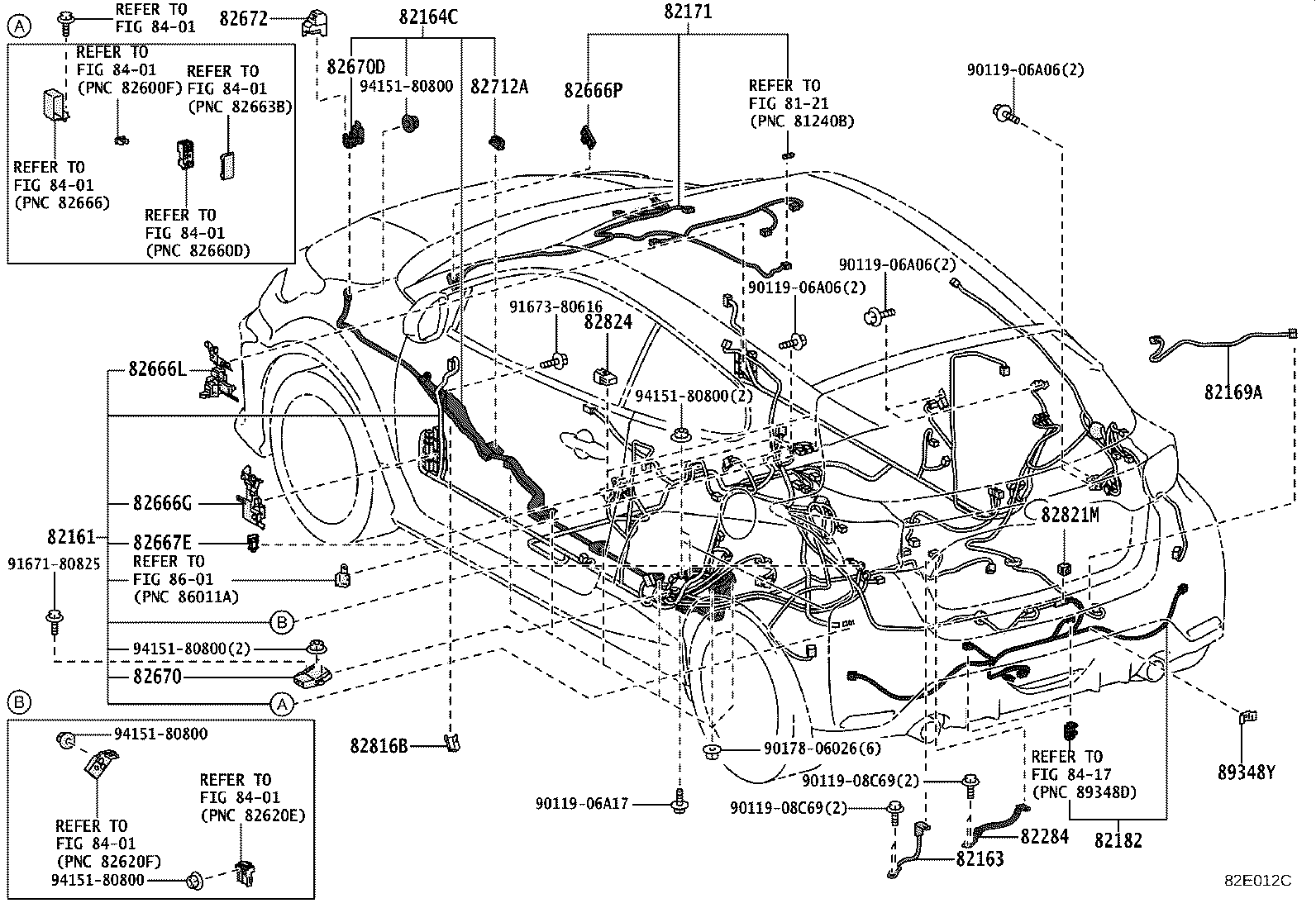

Figure 82E003A 82E003A 2020-08 → — Figure 82E035A 82E035A 2020-08 → — Figure 82E004A 82E004A 2020-08 → — Figure 82E036A 82E036A 2020-08 → — Figure 82E007A 82E007A 2020-08 → — Figure 82E037A 82E037A 2020-08 → — Figure 82E011A 82E011A 2020-08 → — Figure 82E015A 82E015A 2020-08 → — Figure 82E009D 82E009D 2020-08 → — Figure 82E012C 82E012C 2020-08 → — Figure 82E014C 82E014C 2020-08 → — Figure 82E198A 82E198A 2020-08 → — Figure 82E199C 82E199C 2020-08 → — Figure 82H5KMA 82H5KMA 2020-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82219A Wire, Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82667E Holder, Connector, NO.20
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82672 Cover, Junktion Block
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82816B Cover, Wiring Harness Protector, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82824 Connector, Wiring Harness
89348Y Clip, Ultrasonic Sensor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
