Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

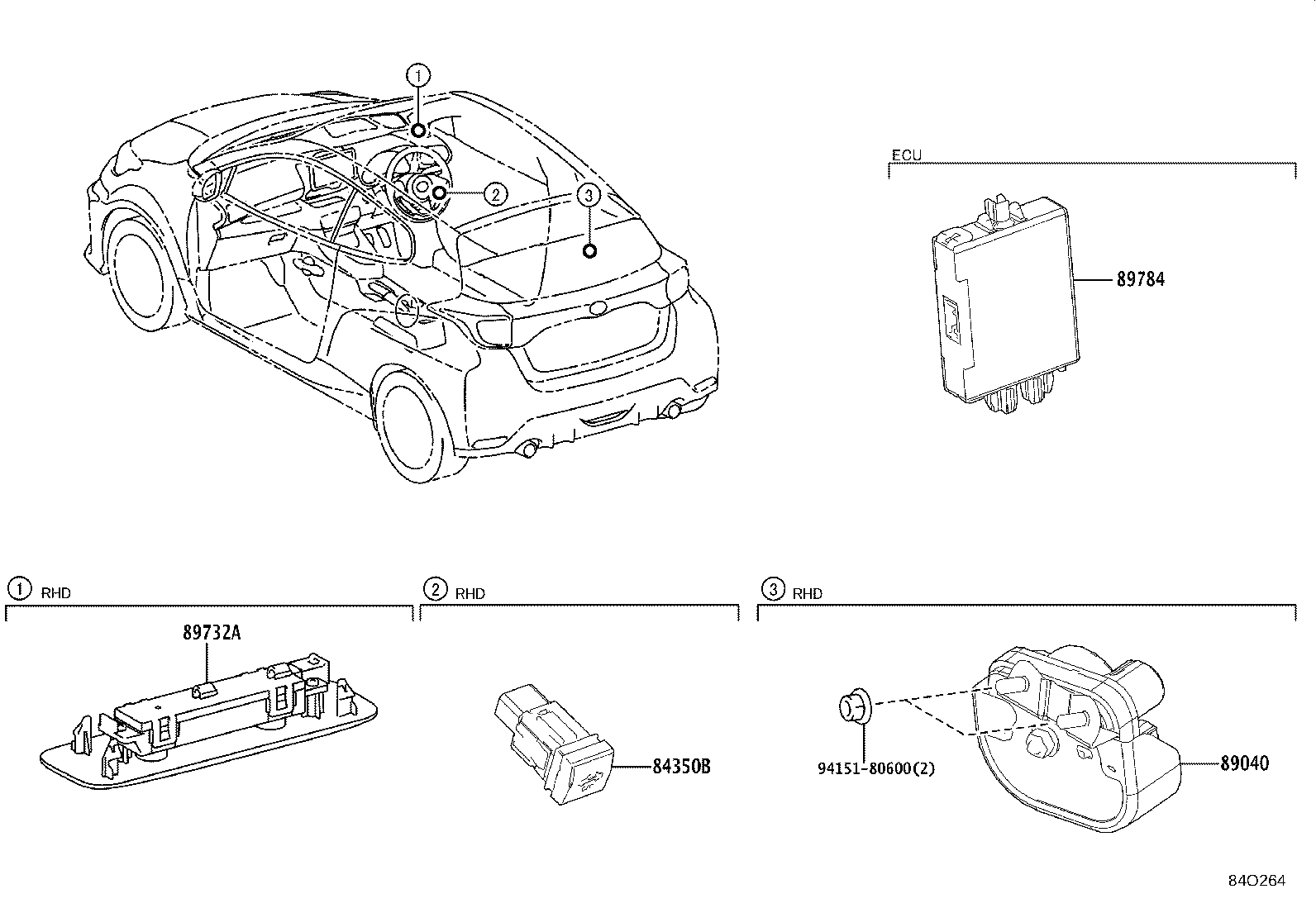

Figure 84M280 84M280 2020-08 → 2021-12 Figure 84O264 84O264 2021-12 → —

Part groups

PNCDescription
84350B Switch Assy, Theft Warning Sensor
89040 Siren Assy, Theft Warning
89732A Sensor, Theft Warning Ultrasonic
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
