Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

5 part groups · 2 illustrations

Illustrations

Figure 868326A

868326A 2020-08 → 2024-04

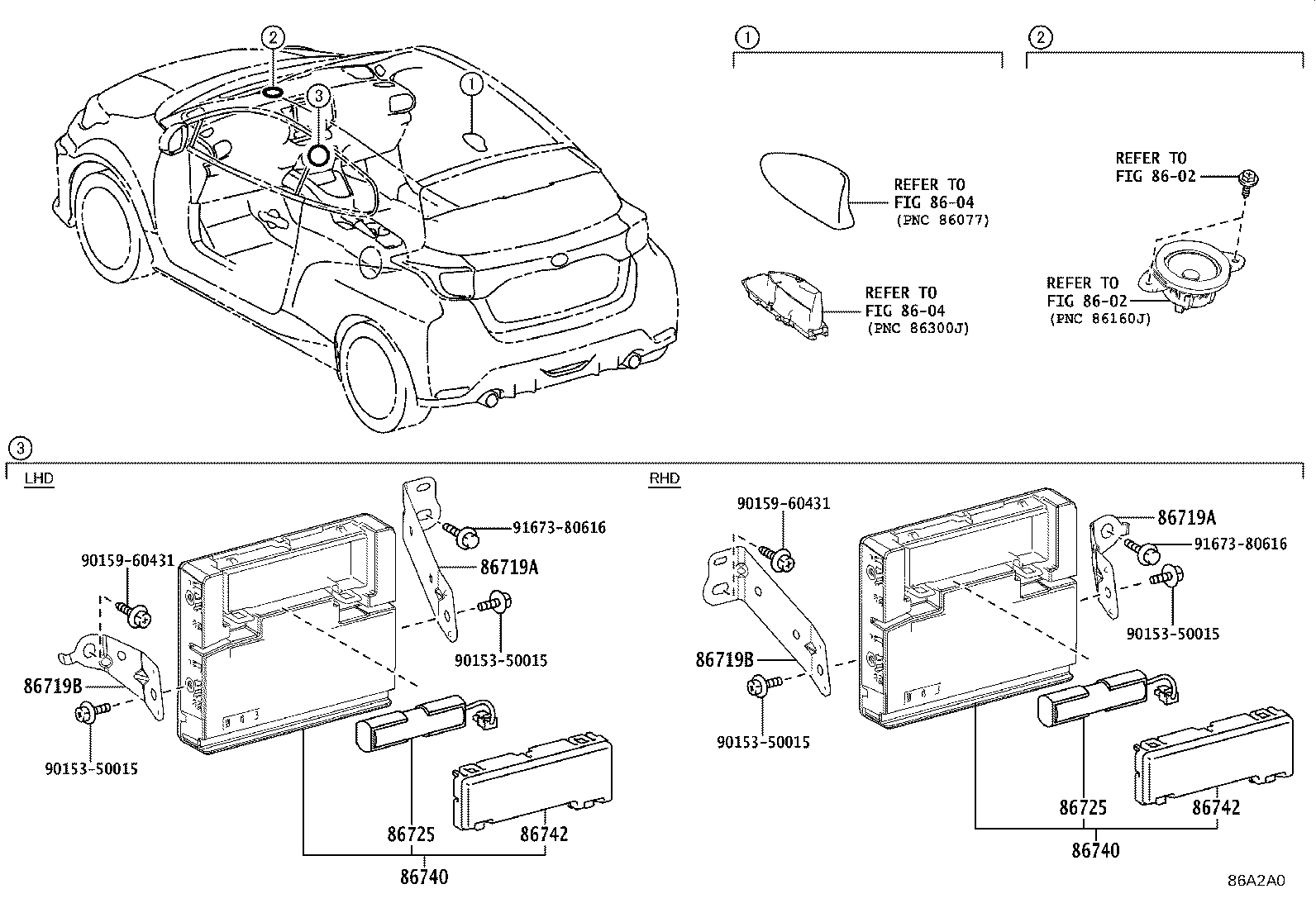

Figure 86A2A0

86A2A0 2024-04 → —

Part groups

PNC	Description
86719A	Bracket, Telephone NO.1
86719B	Bracket, Telephone NO.2
86725	Battery, Mobilephone
86740	Transceiver Assy, Telephone
86742	Cover, Transceiver

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
