Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe
Supported model
Data version 2024-10

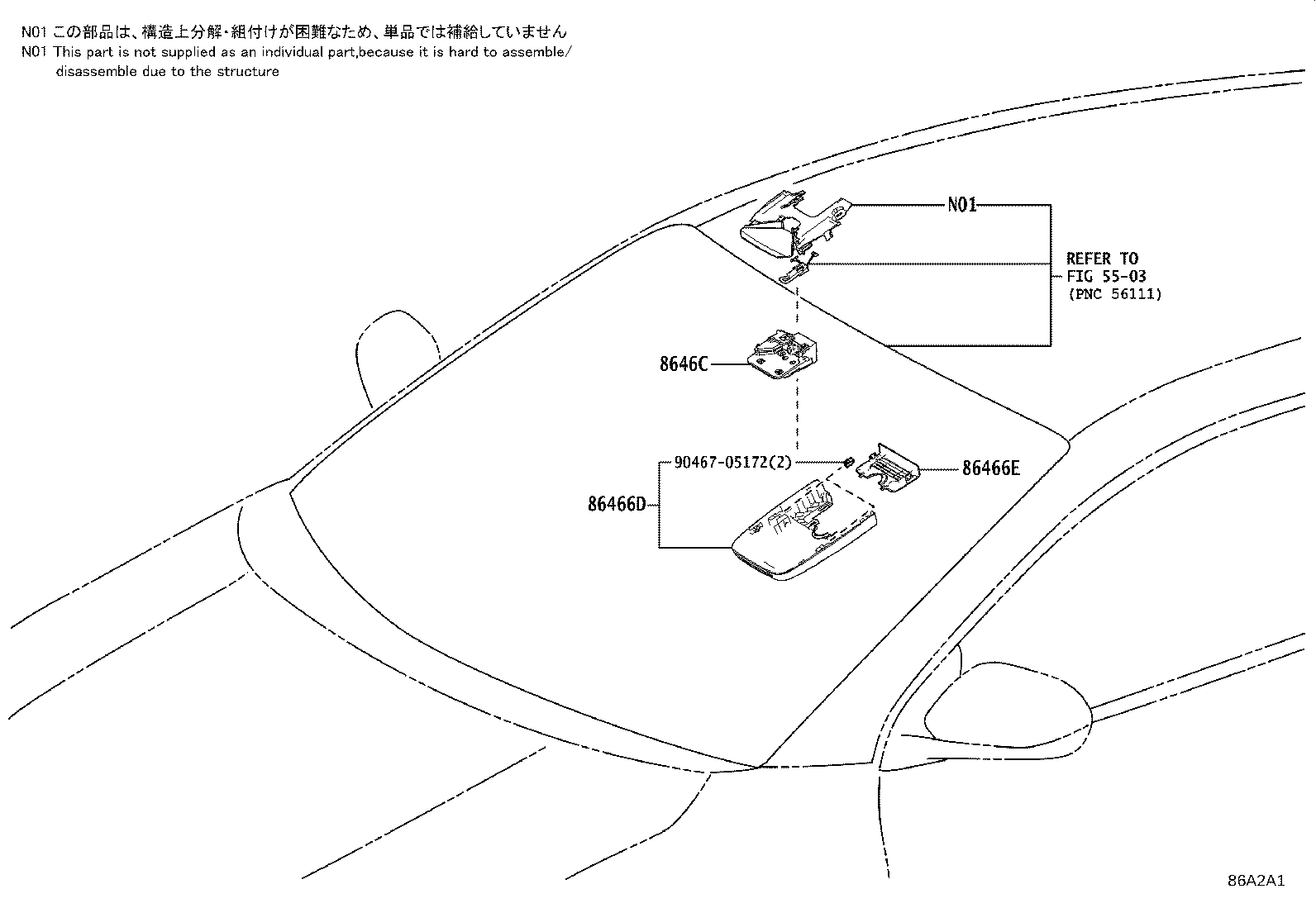

Pre-collision System
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86401 | Hood Sub-assy, Forward Recognition W/Heater |
| 86464A | Latch, Forward Recognition |
| 86466D | Cover, Forward Recognition, NO.1 |
| 86466E | Cover, Forward Recognition, NO.2 |
| 8646C | Camera, Forward Recognition |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
