Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 8 illustrations

Illustrations

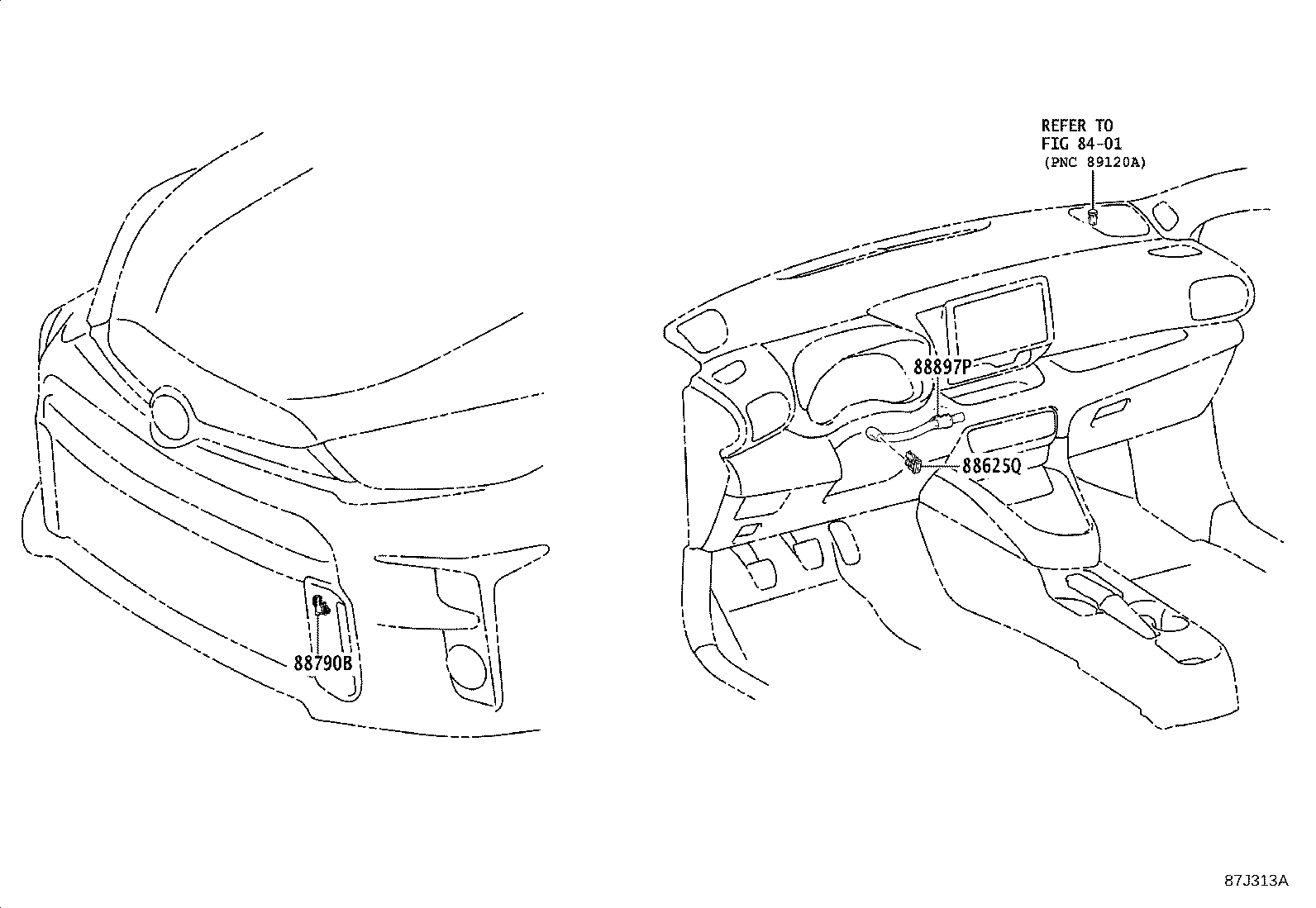

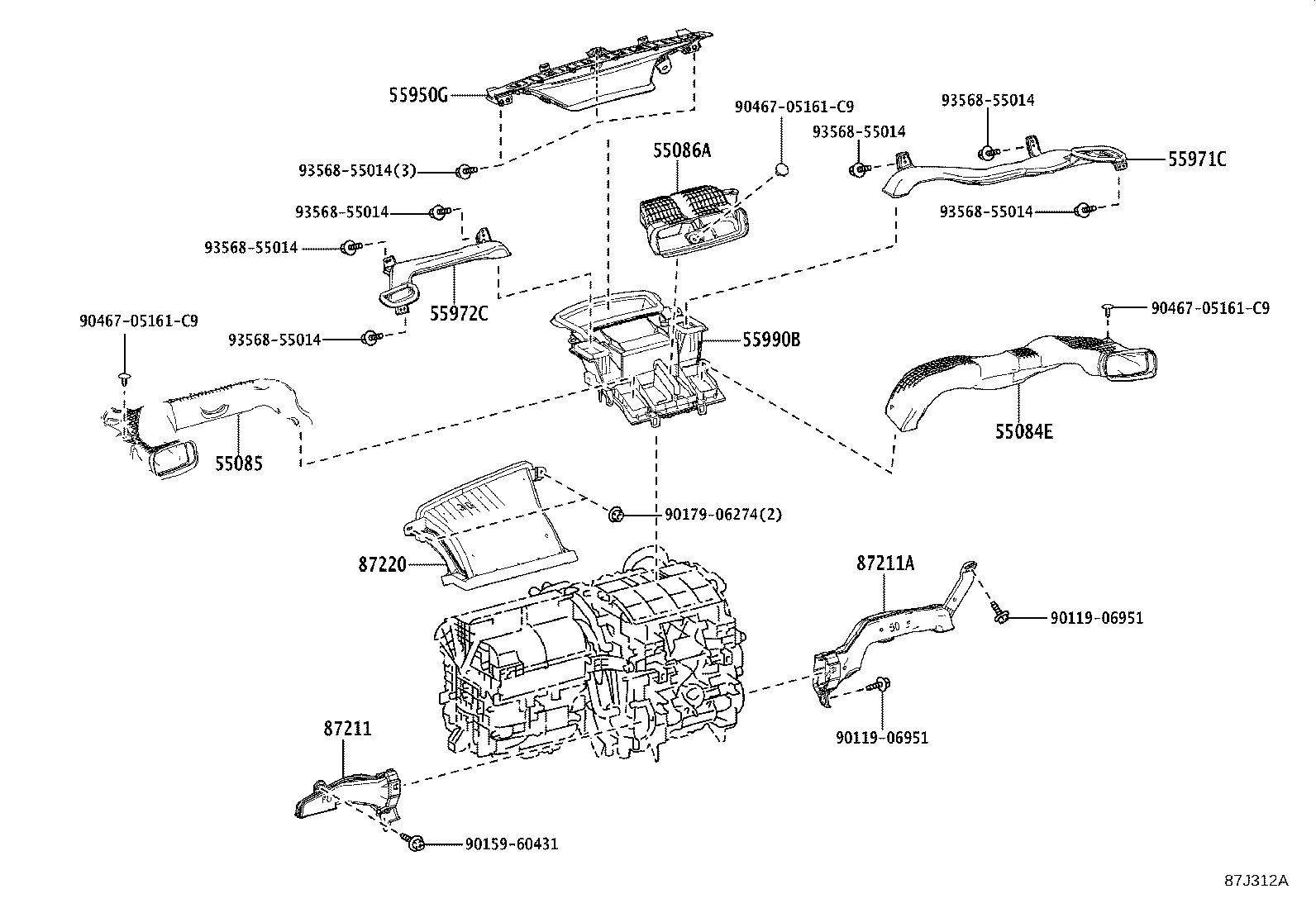

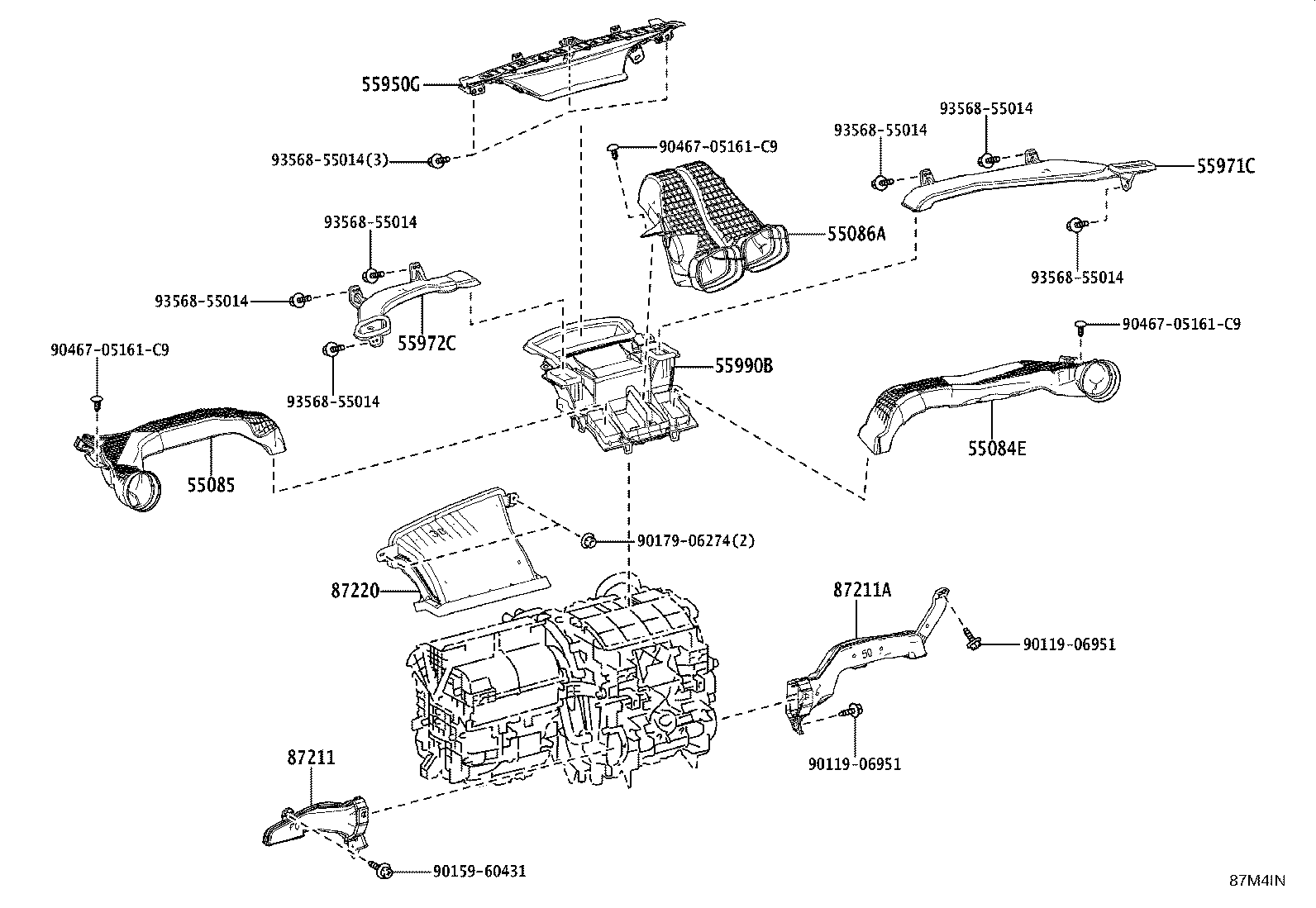

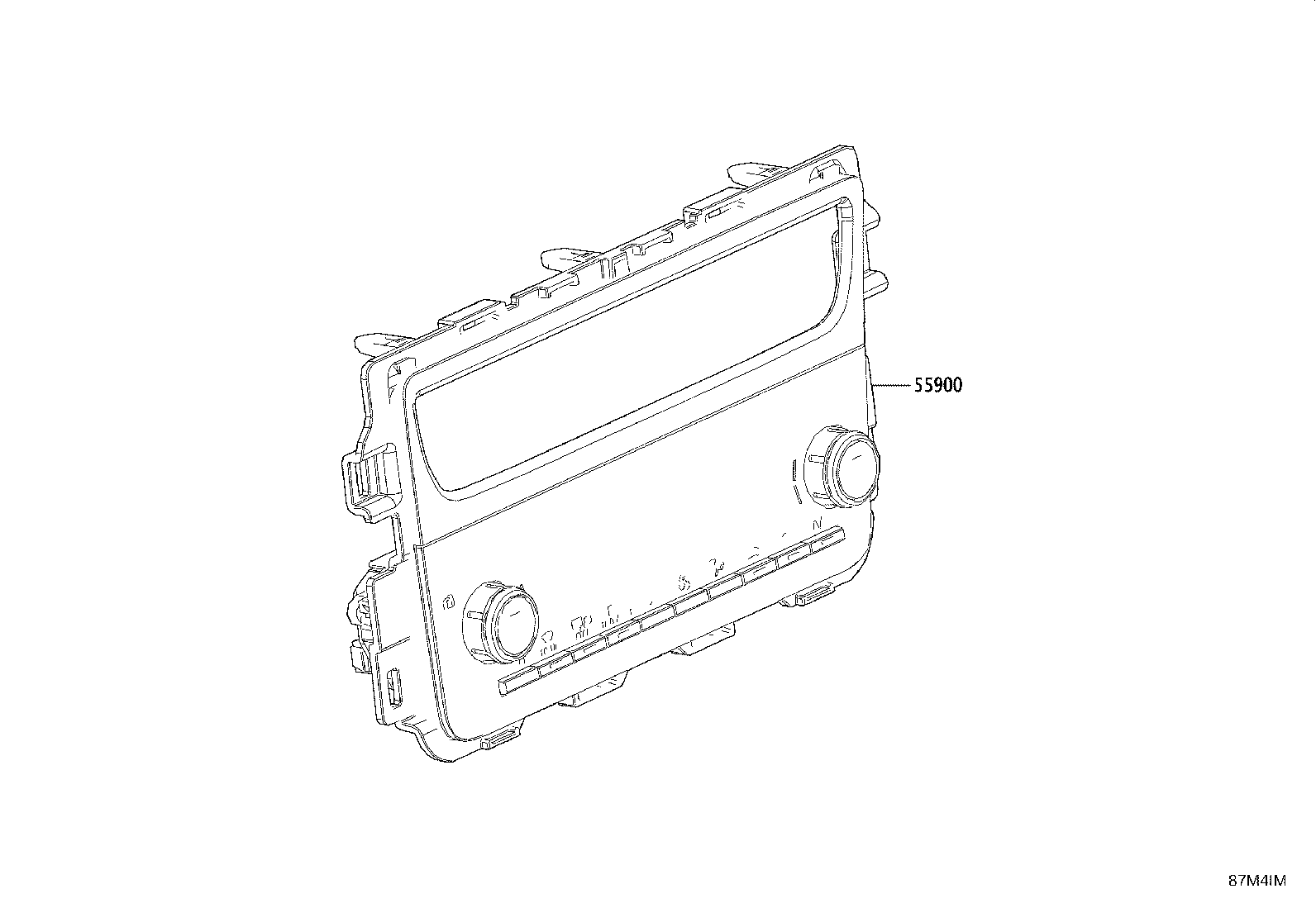

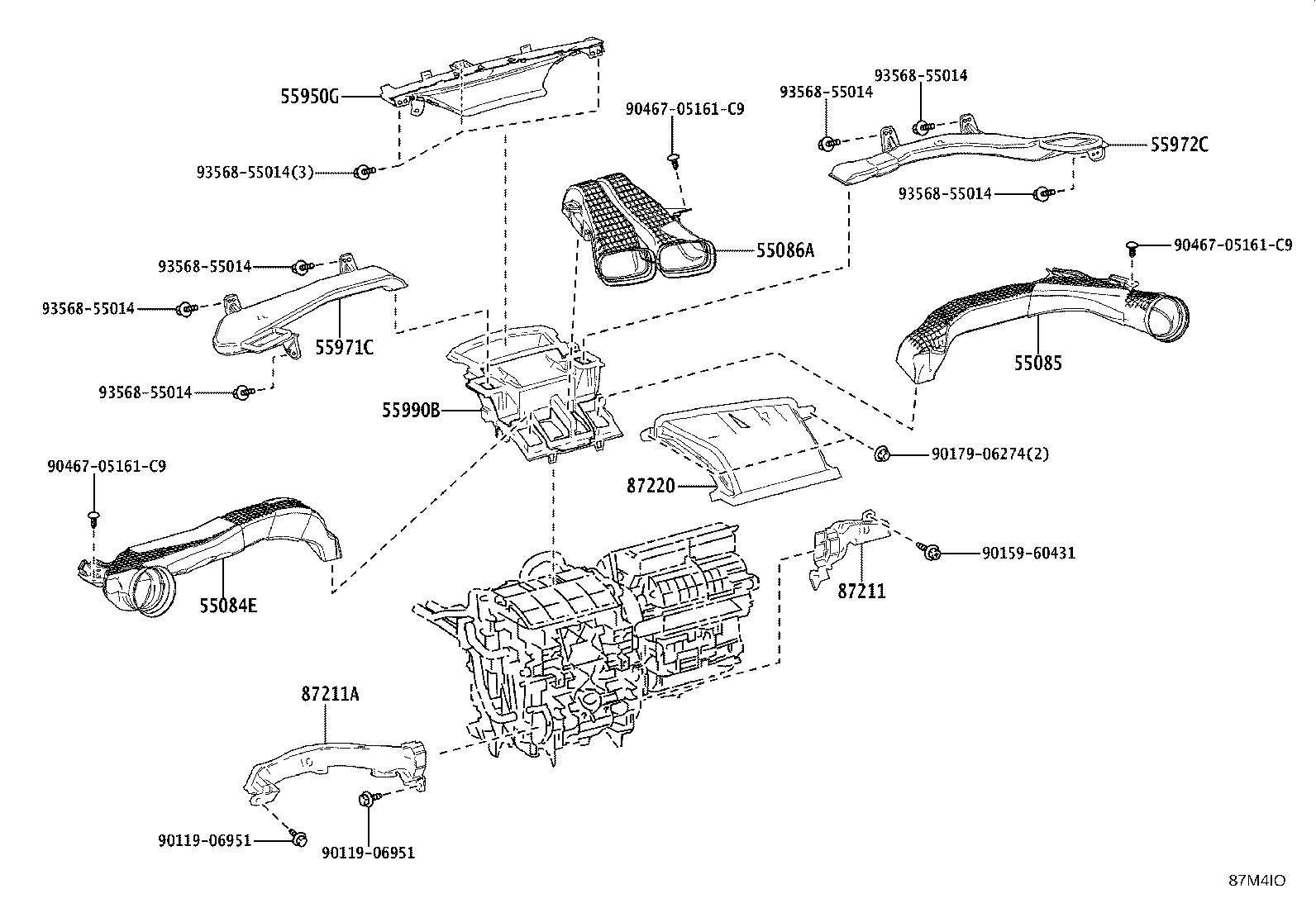

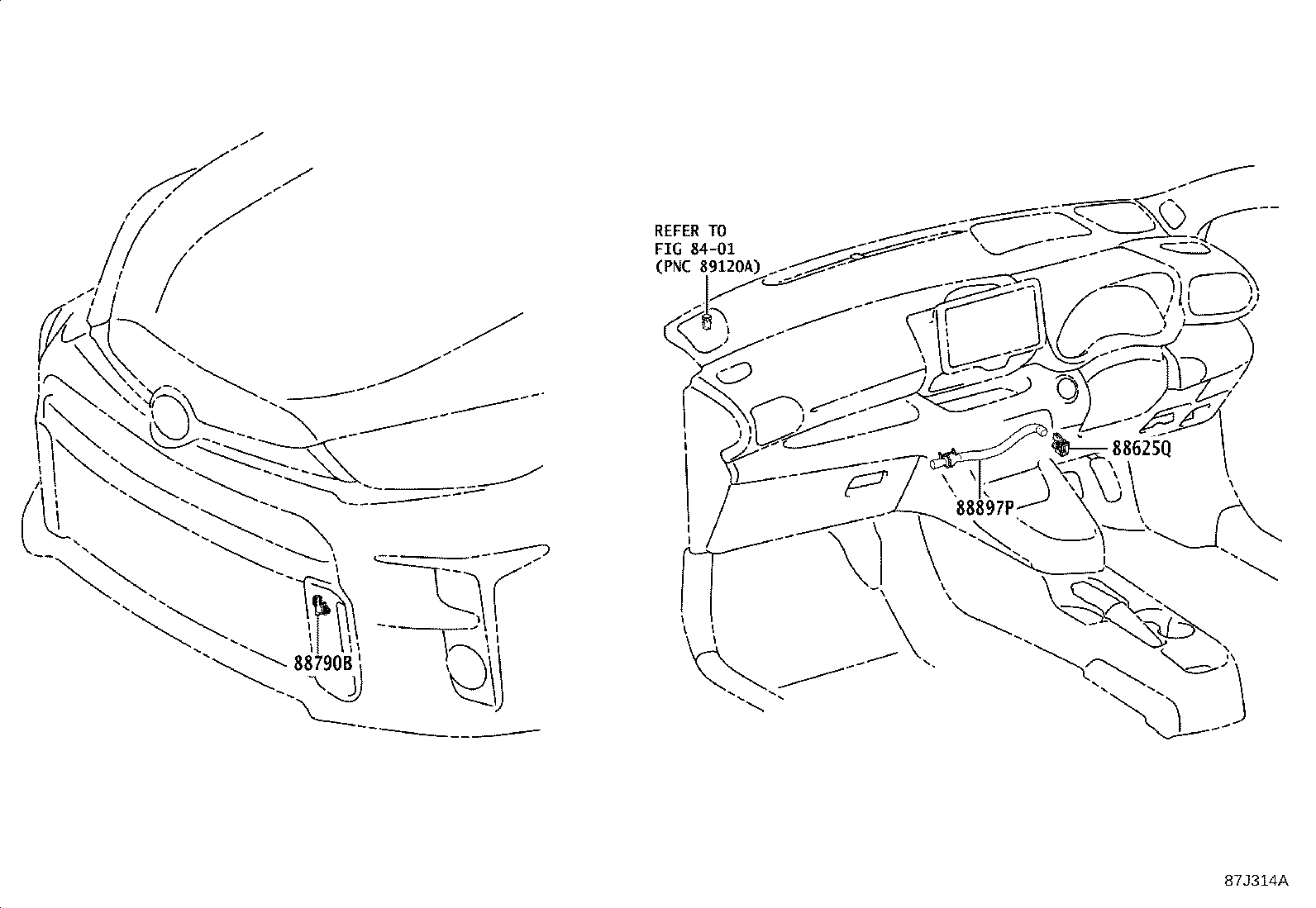

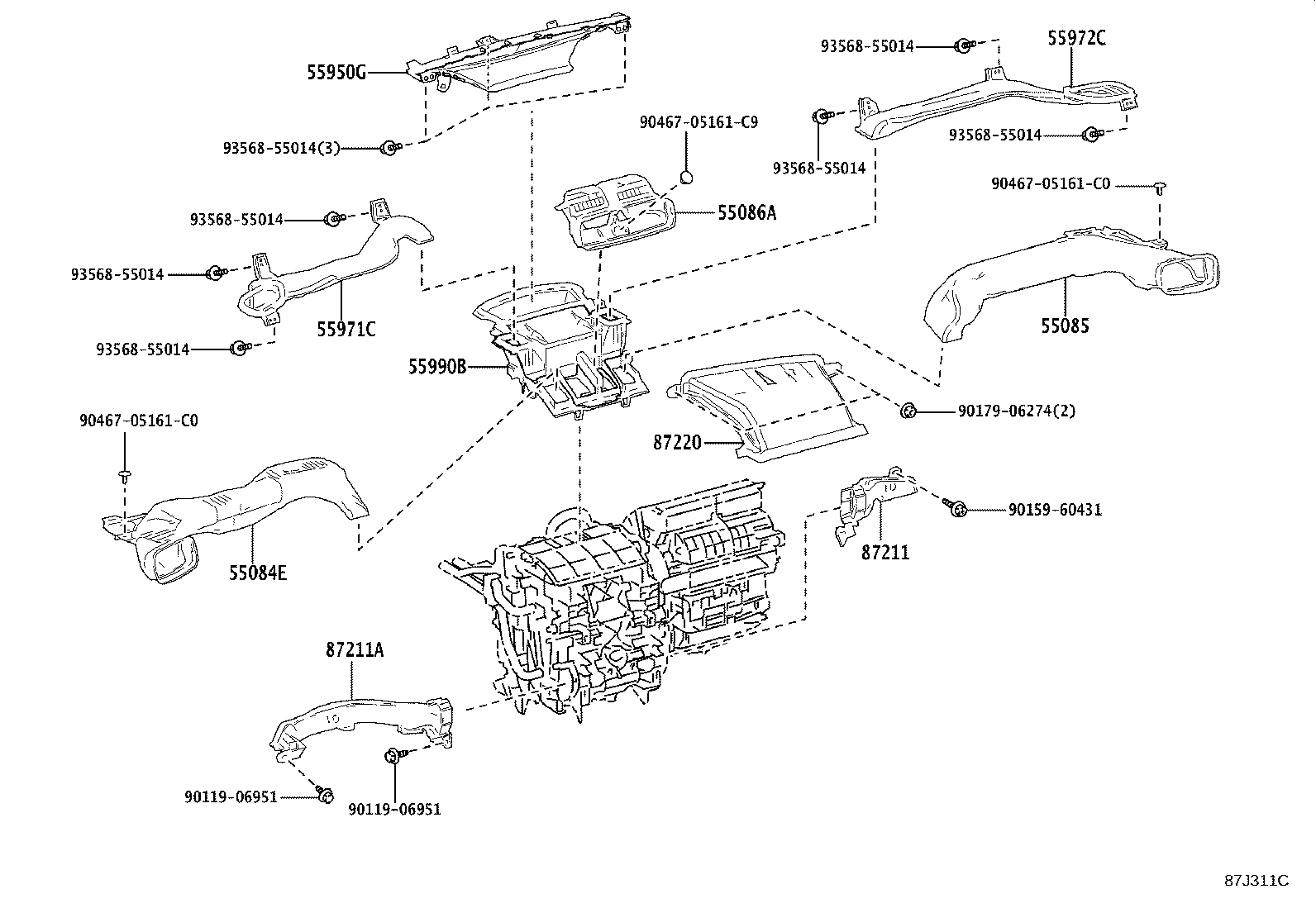

Figure 87J310 87J310 2020-08 → 2024-04 Figure 87M4IM 87M4IM 2024-04 → — Figure 87J311C 87J311C 2020-08 → 2024-04 Figure 87M4IO 87M4IO 2024-04 → — Figure 87J312A 87J312A 2020-08 → 2024-04 Figure 87M4IN 87M4IN 2024-04 → — Figure 87J313A 87J313A 2020-08 → — Figure 87J314A 87J314A 2020-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87220 Duct Assy, Air
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
