Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

4 part groups · 4 illustrations

Illustrations

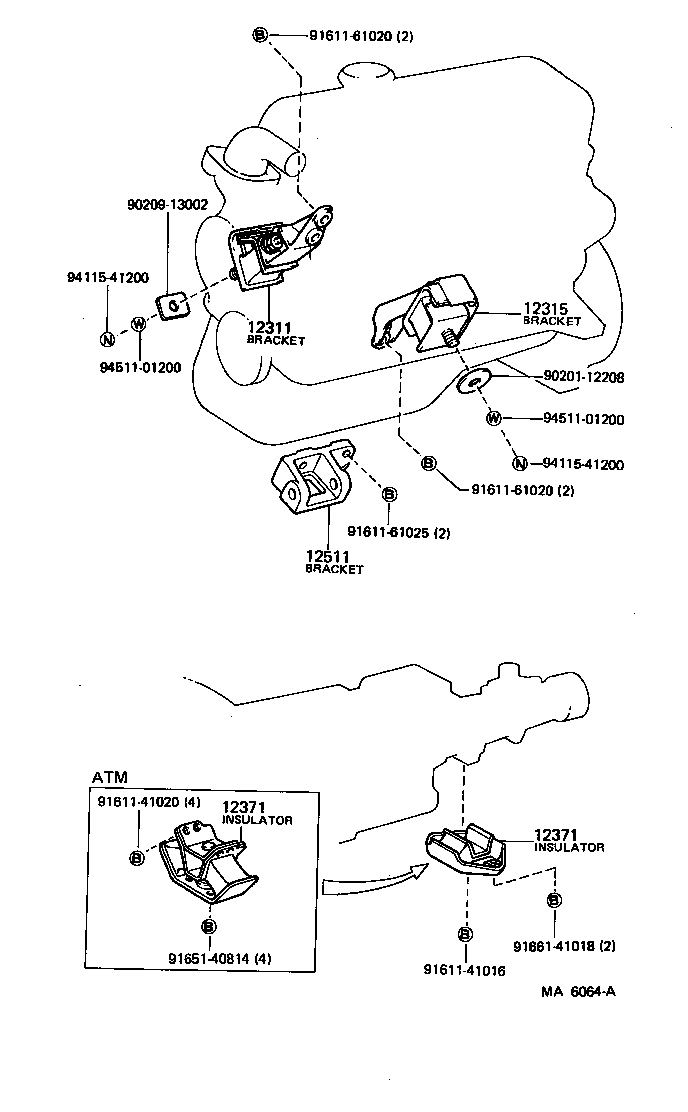

Figure MA3152F MA3152F 1978-02 → 1981-08 Figure MA3152F MA3152F 1981-08 → 1982-08 Figure MA5487A MA5487A 1981-08 → 1982-08 Figure MA6064A MA6064A 1982-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12371 Insulator, Engine Mounting, Rear NO.1
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
