Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 8 illustrations

Illustrations

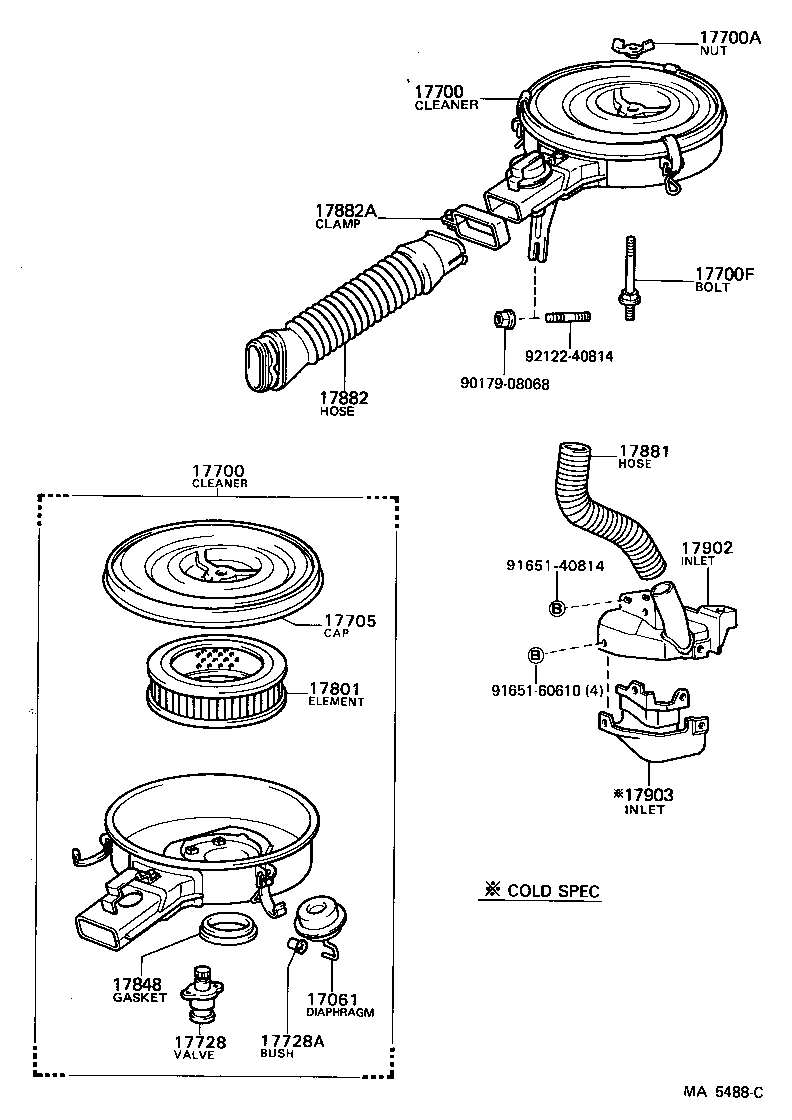

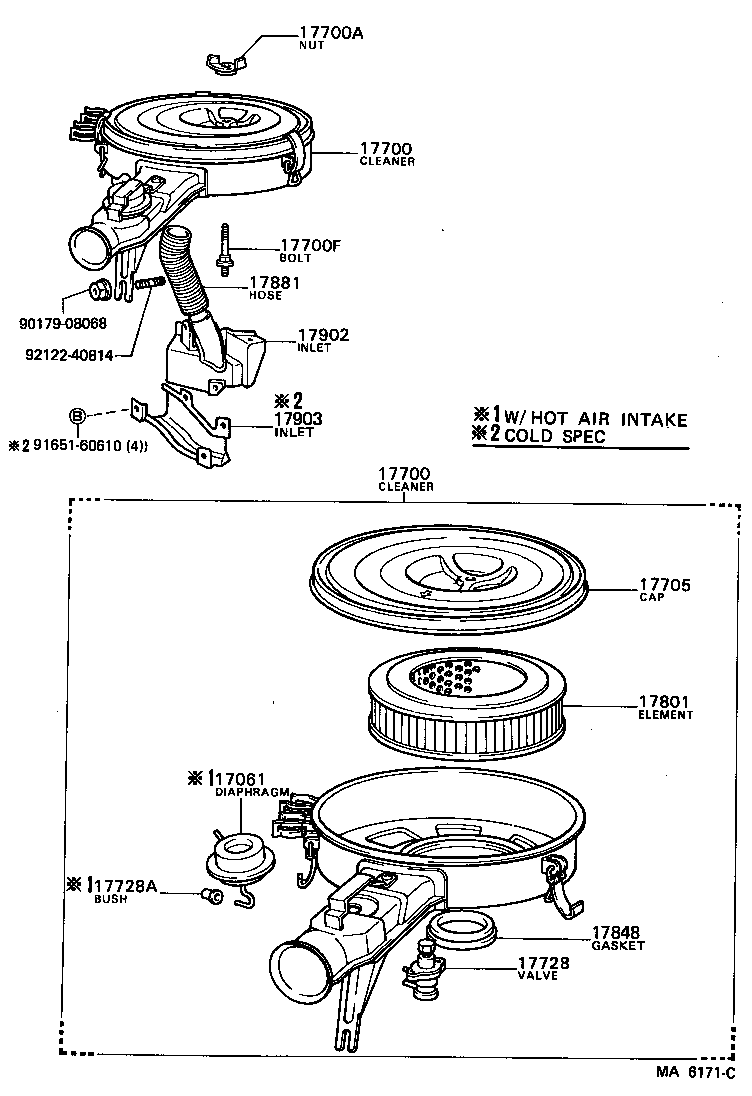

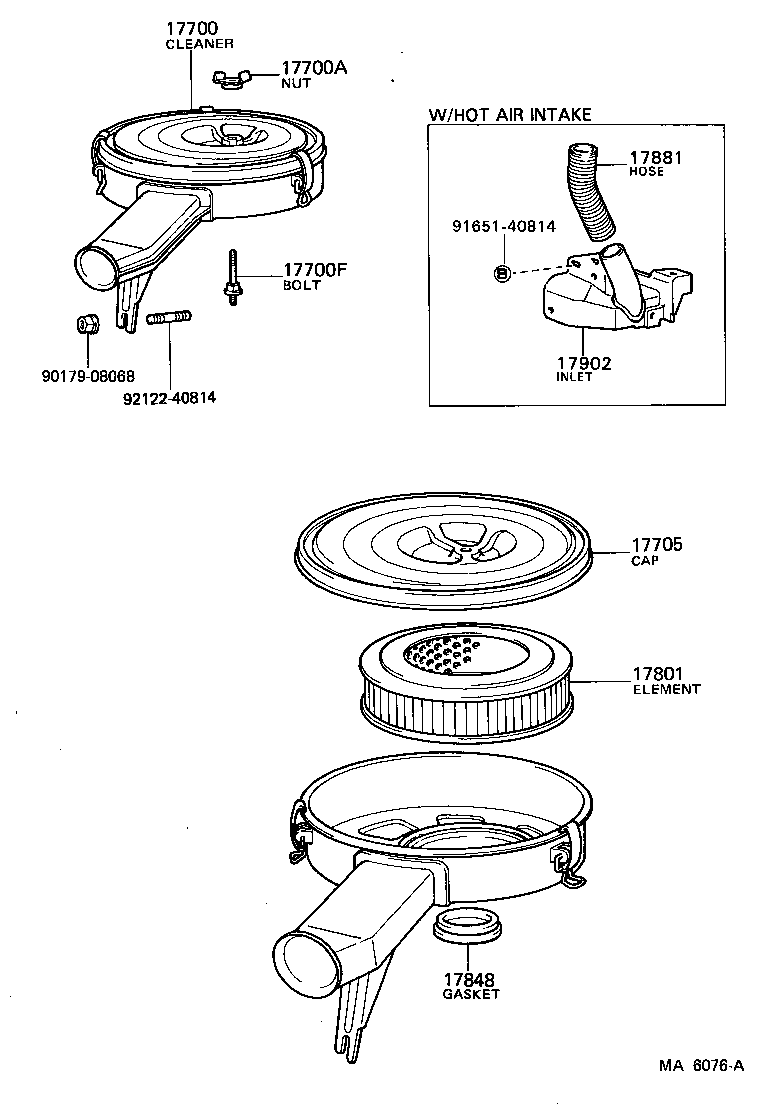

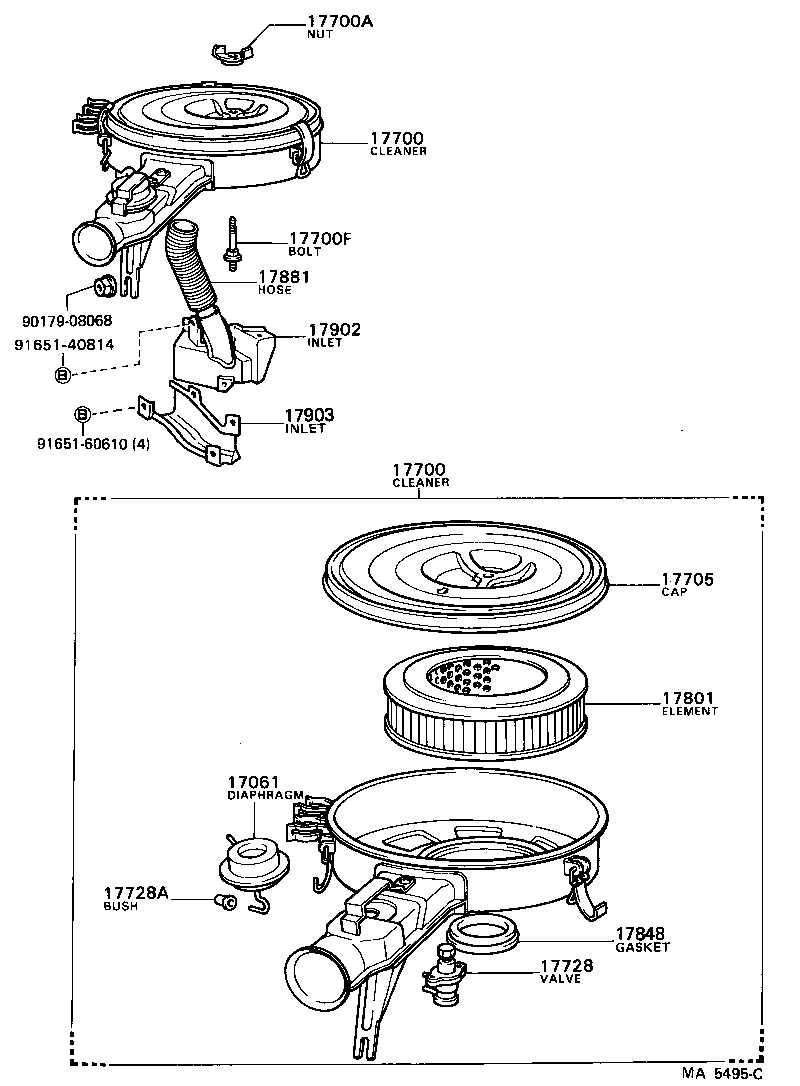

Figure MA3163C MA3163C 1978-02 → 1982-08 Figure MA6076A MA6076A 1982-08 → — Figure MA6171C MA6171C 1982-08 → — Figure MA3319A MA3319A 1978-07 → 1981-02 Figure MA3319A MA3319A 1981-02 → 1982-08 Figure MA5135A MA5135A 1981-02 → 1981-08 Figure MA5488C MA5488C 1981-08 → — Figure MA5495C MA5495C 1981-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17728A Bush
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
