Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 8 illustrations

Illustrations

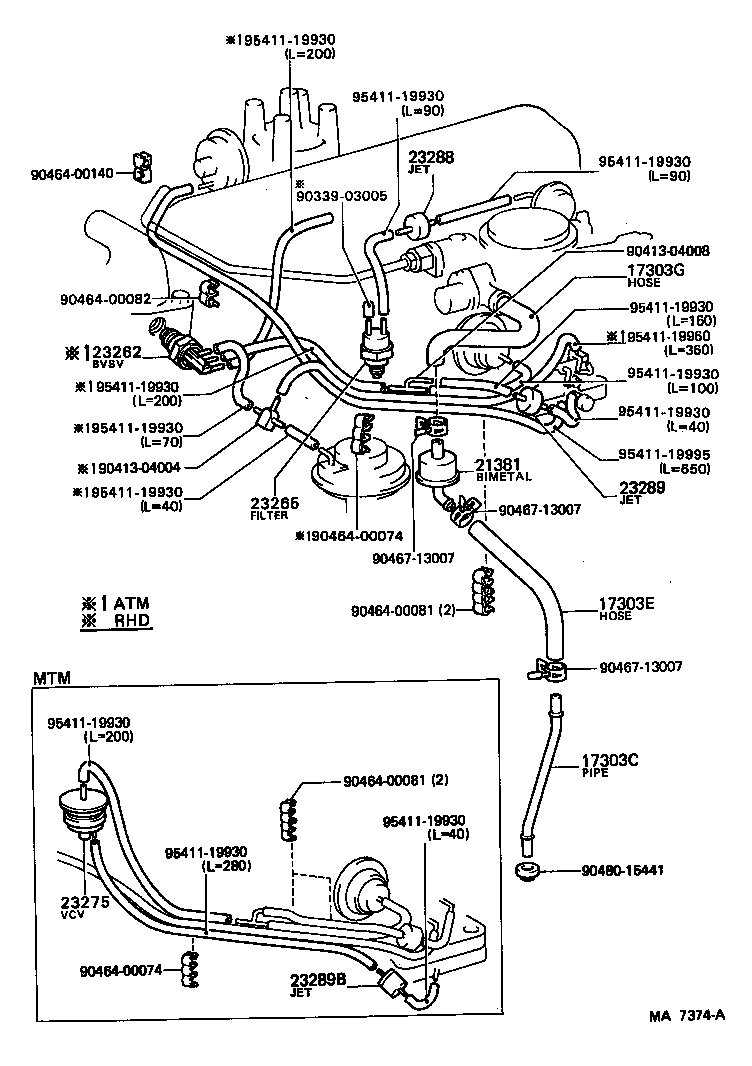

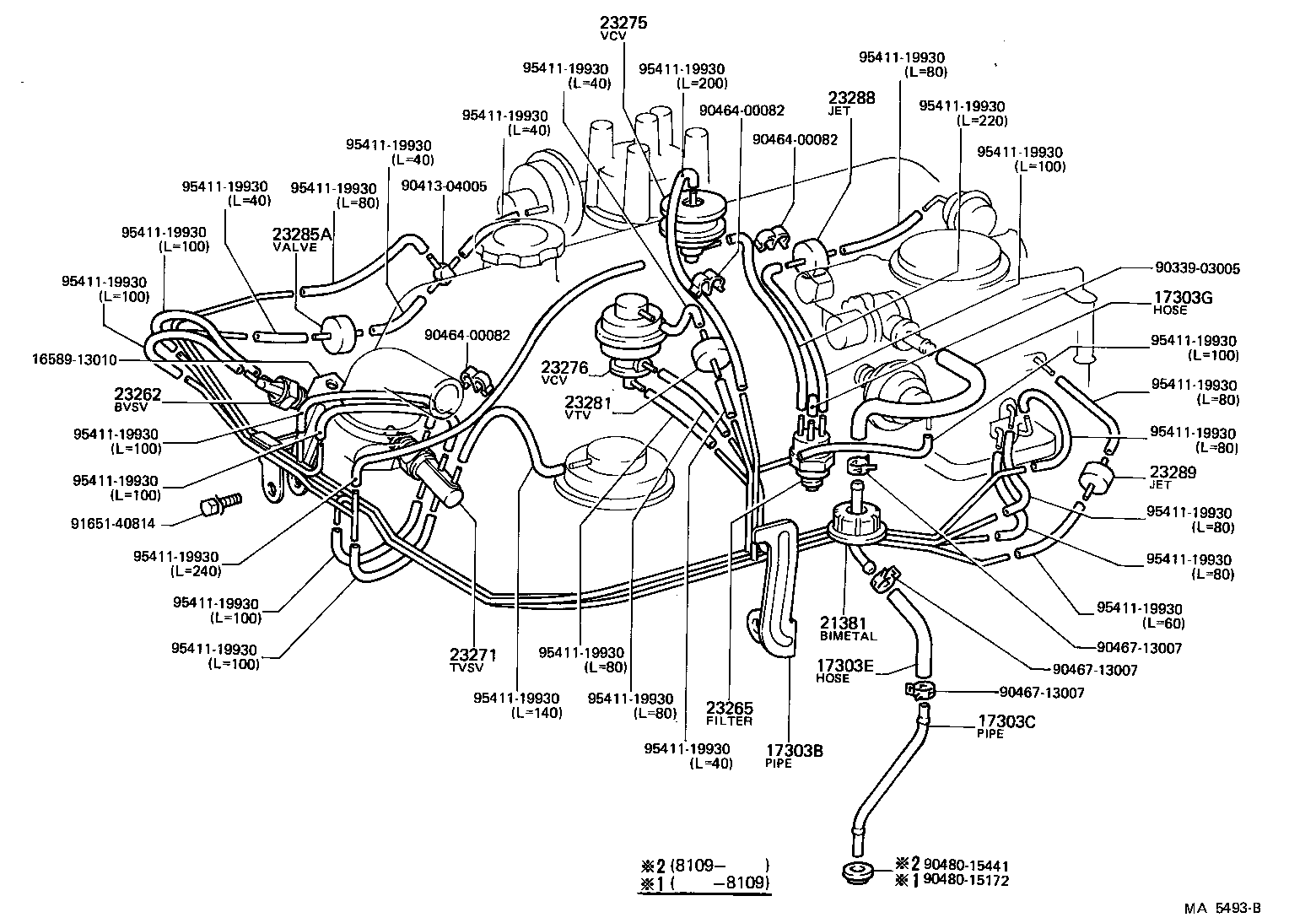

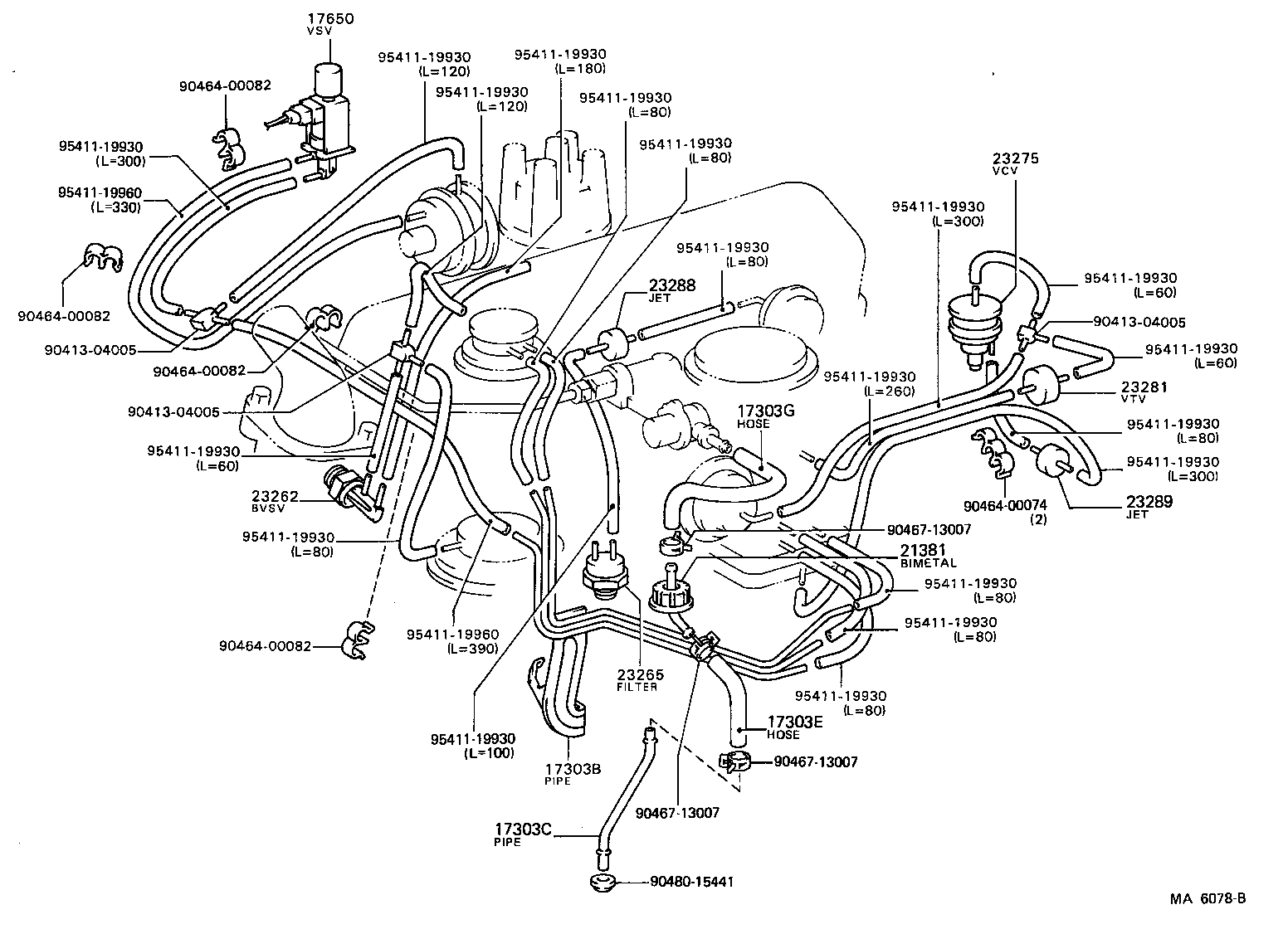

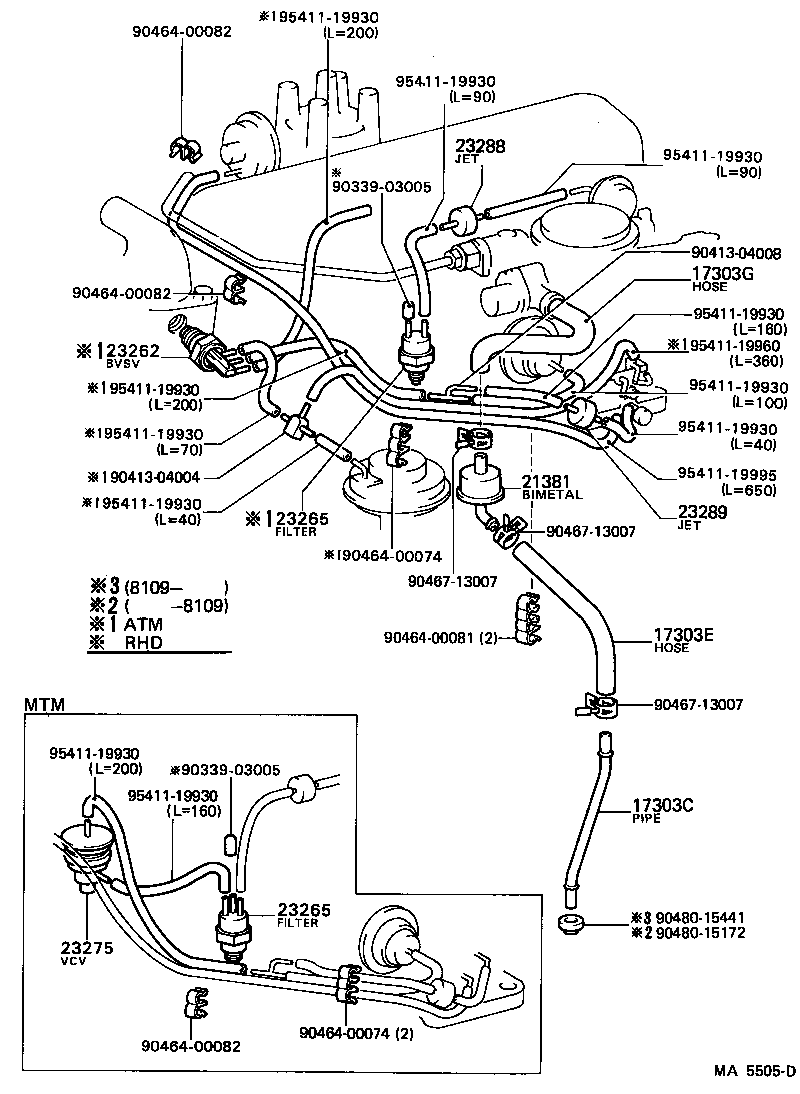

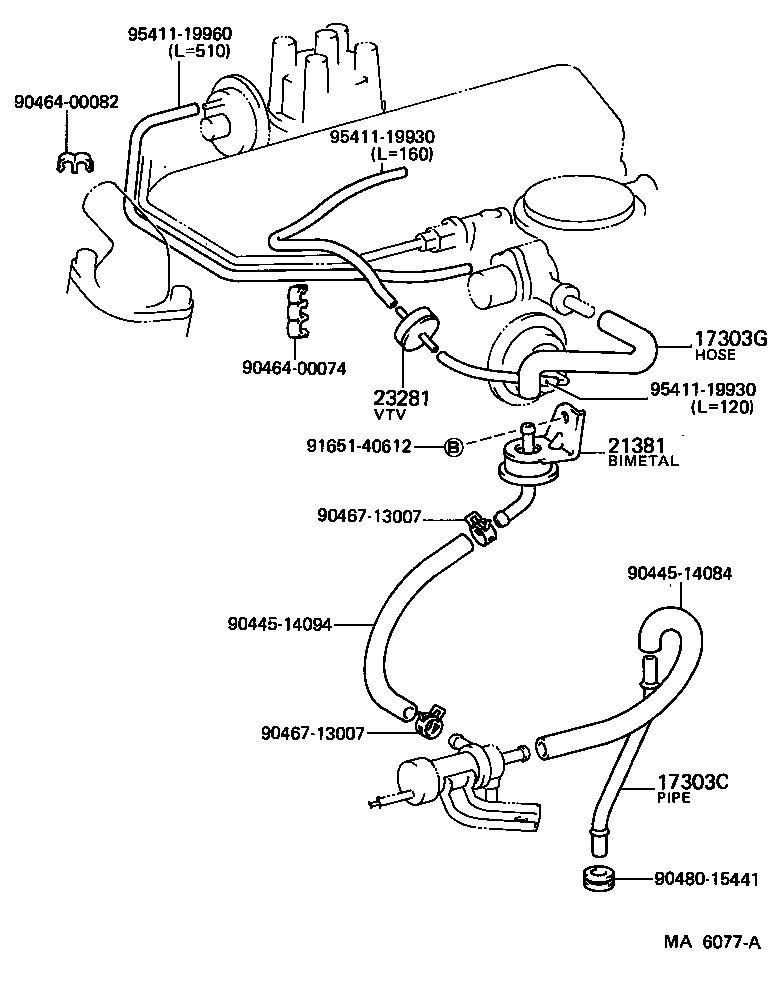

Figure MA9501 MA9501 1978-02 → — Figure MA6077A MA6077A 1982-08 → — Figure MA3320D MA3320D 1978-07 → 1981-08 Figure MA5136 MA5136 1981-02 → 1981-08 Figure MA5505D MA5505D 1981-08 → 1983-12 Figure MA7374A MA7374A 1983-12 → — Figure MA5493B MA5493B 1981-08 → 1982-08 Figure MA6078B MA6078B 1982-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303E Hose, NO.1(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
