Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

8 part groups · 3 illustrations

Illustrations

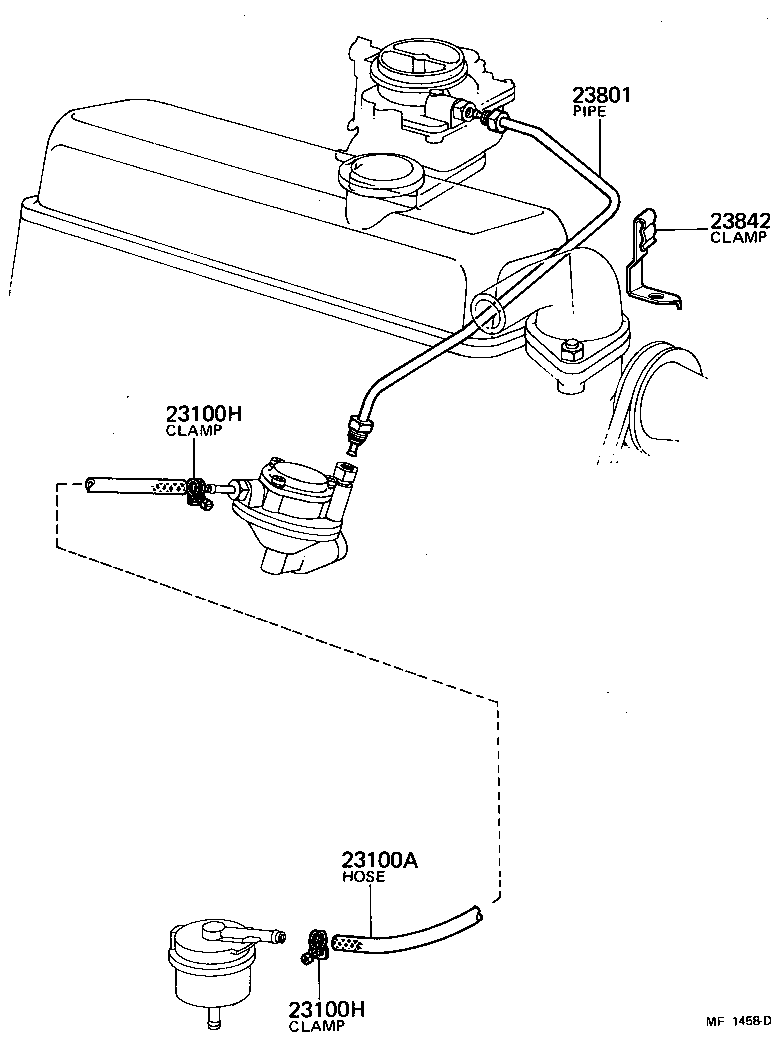

Figure MF1967A MF1967A 1978-02 → 1979-11 Figure MF1458D MF1458D 1978-07 → 1979-11 Figure MF2446E MF2446E 1979-11 → —

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
