Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03

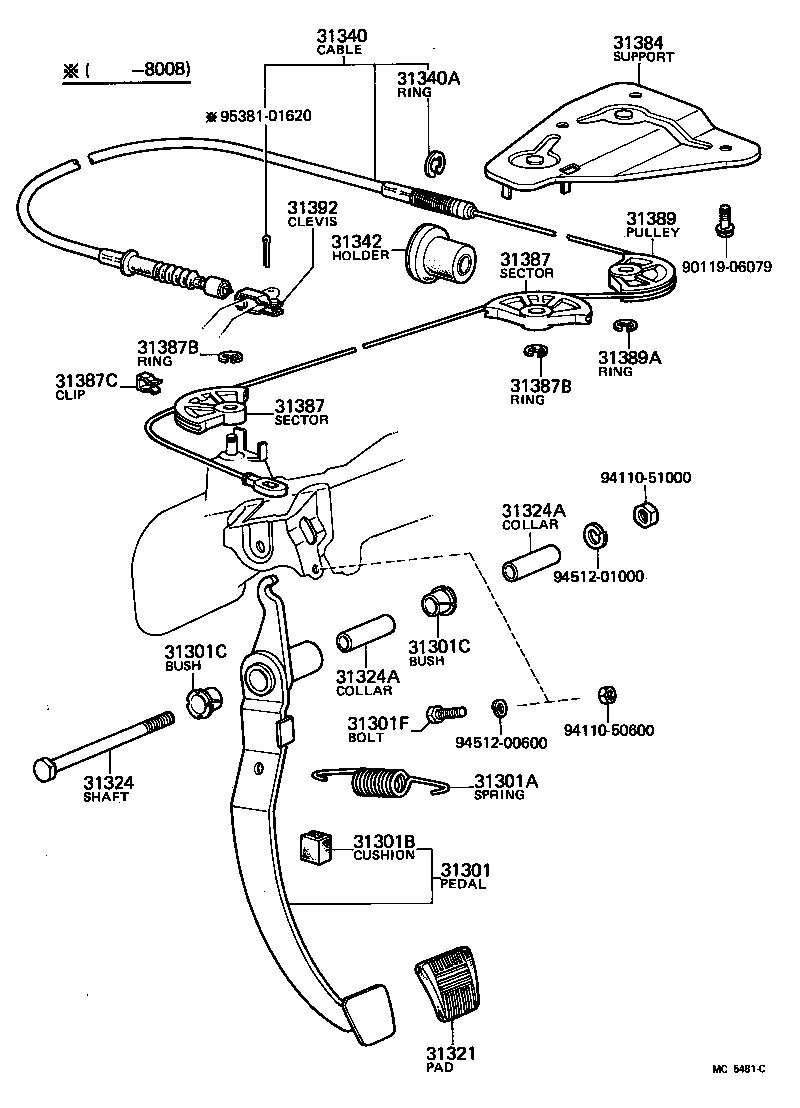

Clutch Pedal & Flexible Hose
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31340 | Cable Assy, Clutch Release |
| 31340A | Ring, E(FOR CLUTCH RELEASE CABLE) |
| 31342 | Holder, Clutch Cable, Inner |
| 31346 | Weight, Clutch Cable |
| 31384 | Support Assy, Clutch Release Sector |
| 31387 | Sector, Clutch Release |
| 31387B | Ring, E(FOR CLUTCH RELEASE SECTOR) |
| 31387C | Clip(FOR CLUTCH RELEASE SECTOR) |
| 31389 | Pulley, Clutch Release |
| 31389A | Ring, E(FOR CLUTCH RELEASE PULLEY) |
| 31392 | Clevis, Clutch Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
