Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 4 illustrations

Illustrations

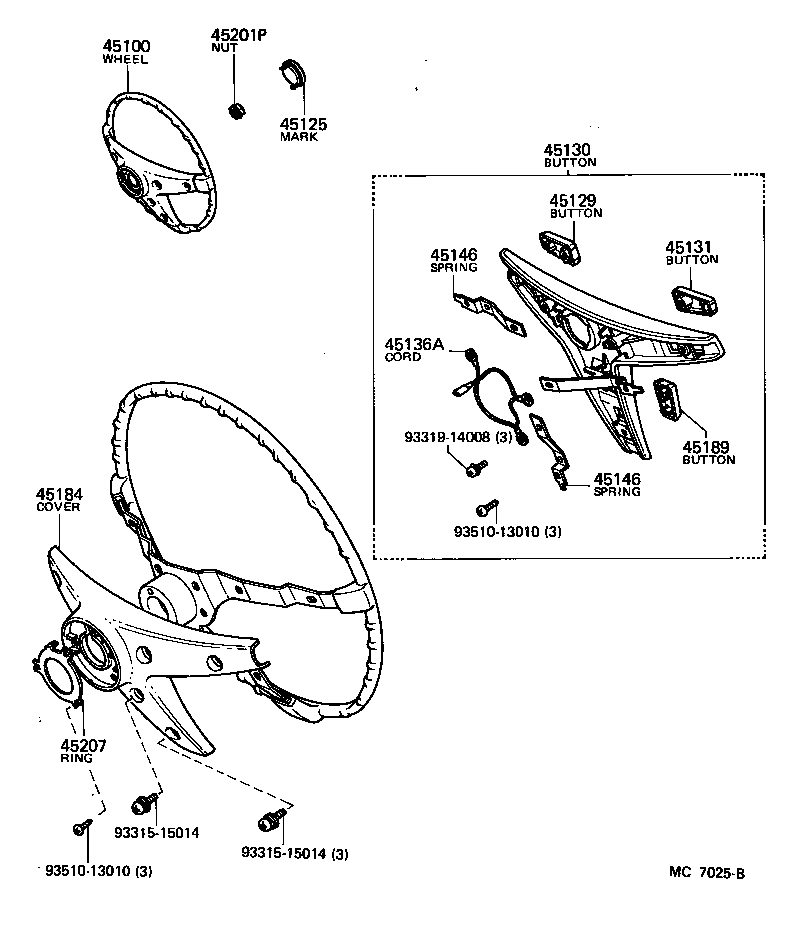

Figure MC5463D MC5463D 1978-02 → 1982-08 Figure MC7025B MC7025B 1980-05 → 1982-08 Figure MC8864B MC8864B 1982-08 → — Figure MC8440B MC8440B 1982-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136A Cord(FOR HORN CONTACT RING)
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
