Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

20 part groups · 2 illustrations

Illustrations

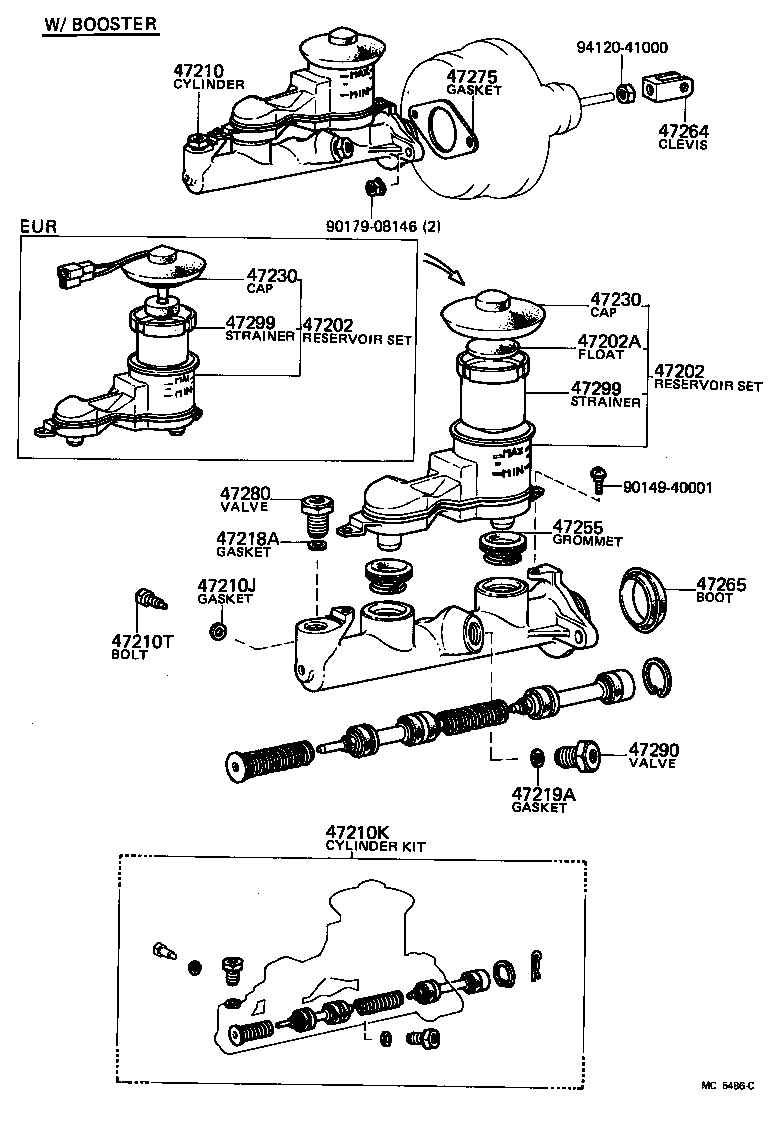

Figure MC5485D MC5485D 1978-02 → — Figure MC5486C MC5486C 1978-02 → —

Part groups

PNCDescription
47202 Reservoir Sub-assy, Brake Master Cylinder
47202A Float, Master Cylinder Reservoir
47210 Cylinder Assy, Master, W/O Booster
47210J Gasket(FOR MASTER CYLINDER)
47210K Cylinder Kit, Brake Master
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47218A Gasket(FOR FLUID OUTLET PLUG)
47219A Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47261 Rod, Master Cylinder Push
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47276 Bracket, Brake Master Cylinder
47276B Grommet(FOR BRAKE MASTER CYLINDER BRACKET)
47278 Gasket, Brake Master Cylinder Bracket
47280 Valve Assy, Brake Master Cylinder Outlet Check
47290 Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
