Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

24 part groups · 3 illustrations

Illustrations

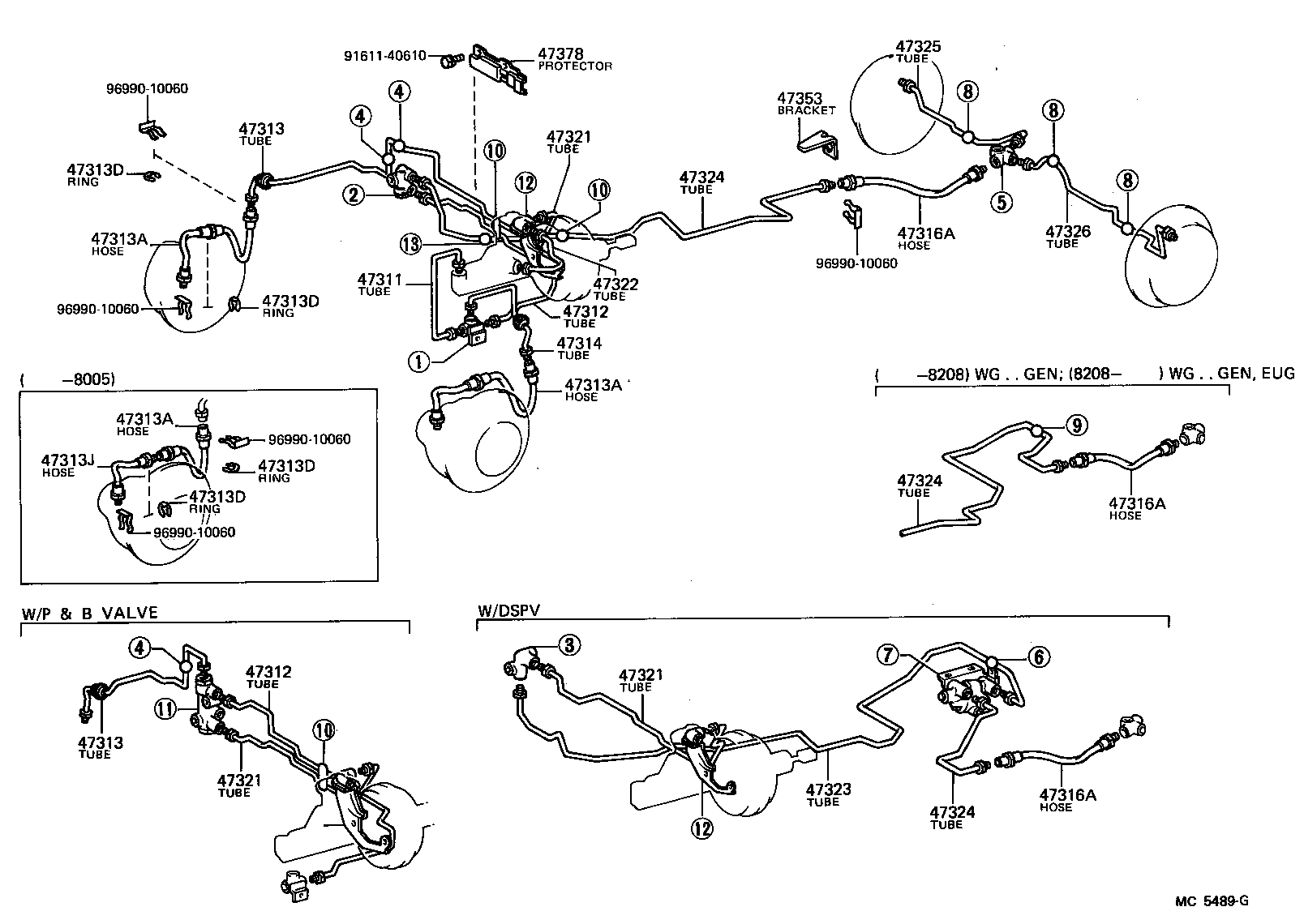

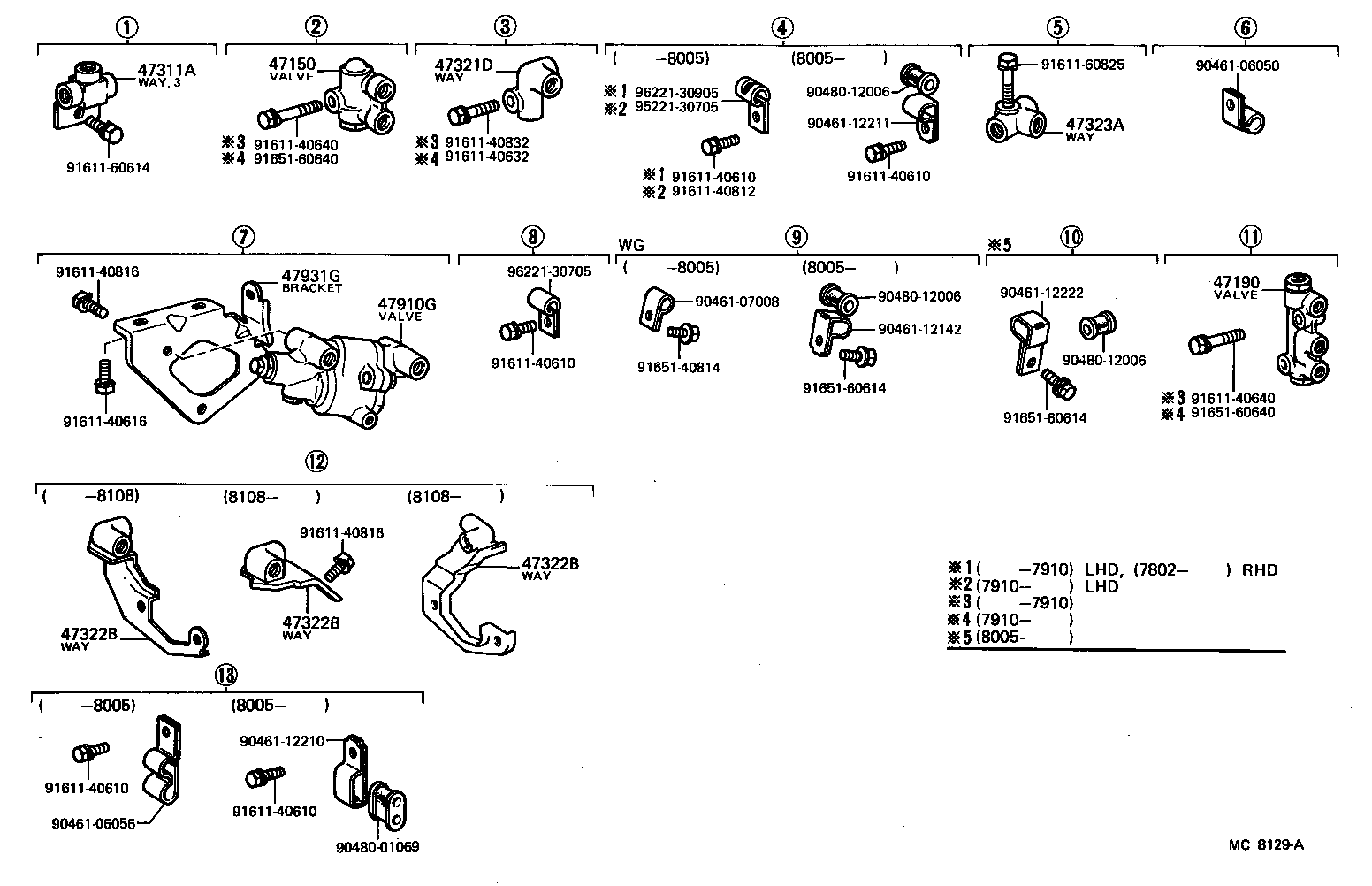

Figure MC5488G MC5488G 1978-02 → — Figure MC5489G MC5489G 1978-02 → — Figure MC8129A MC8129A 1978-02 → —

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47353 Bracket, Flexible Hose(FOR REAR)
47378 Protector, Brake Tube
47910G Valve Assy, Deceleration Sensing Proportioning
47931G Bracket, Deceleration Sensing Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
