Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

38 part groups · 3 illustrations

Illustrations

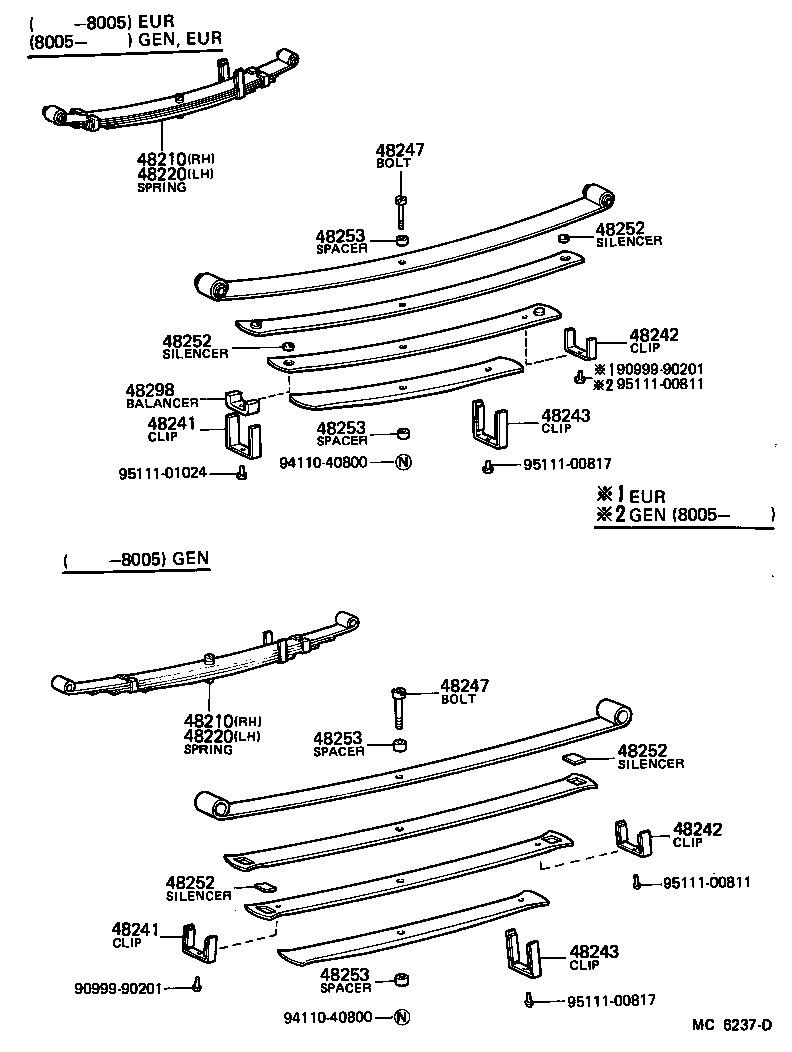

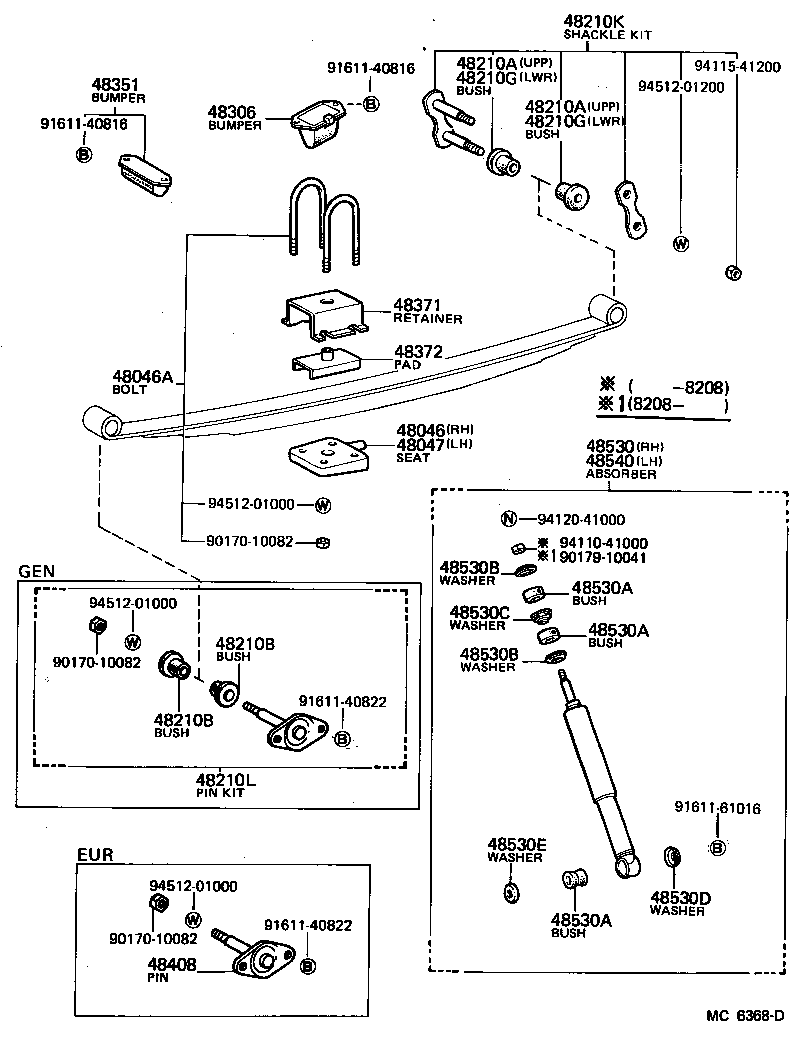

Figure MC5479D MC5479D 1978-02 → — Figure MC6368D MC6368D 1978-10 → — Figure MC6237D MC6237D 1978-10 → —

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48210K Shackle Kit, Rear Spring
48210L Pin Kit, Rear Spring
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48257 Insulator, Rear Coil Spring
48257A Insulator, Rear Coil Spring, Lower
48298 Balancer, Rear Spring, NO.1
48306 Bumper Sub-assy, Rear Spring
48351 Bumper, Differential Carrier
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48408 Pin Sub-assy, Spring Bracket
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48710 Arm Assy, Upper Control
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
