Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 3 illustrations

Illustrations

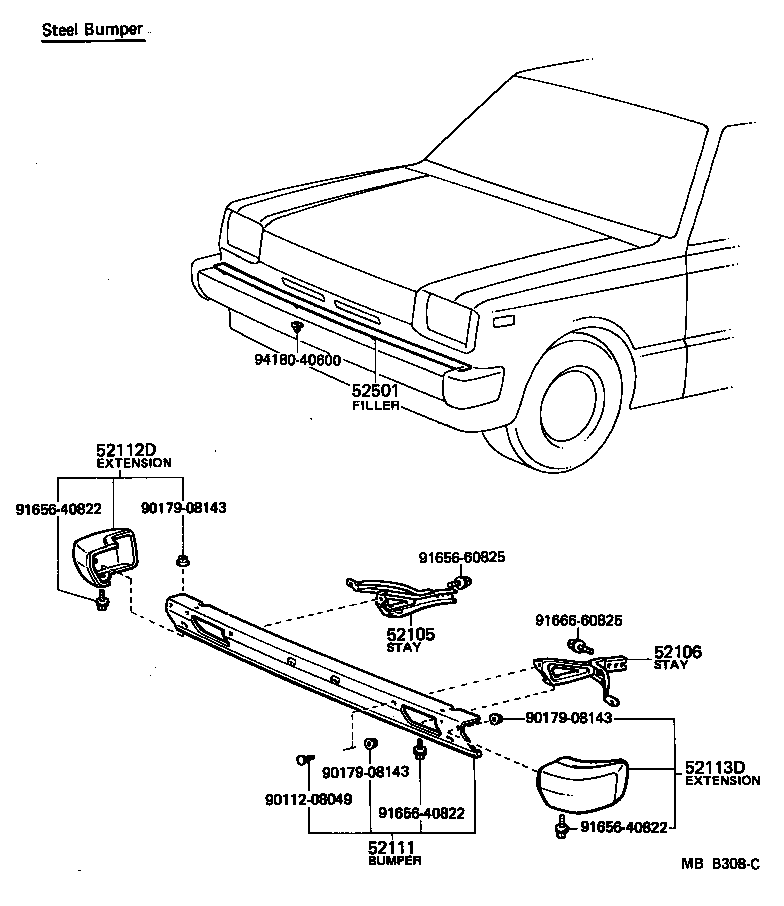

Figure MB8439E MB8439E 1978-02 → 1980-05 Figure MBB308C MBB308C 1980-05 → 1982-08 Figure MBE145A MBE145A 1982-08 → —

Part groups

PNCDescription
52021A Reinforcement Sub-assy, Front Bumper, RH
52022A Reinforcement Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52501 Filler Sub-assy, Front Bumper
52518 Pad, Front Bumper Filler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
