Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 2 illustrations

Illustrations

Figure MB7751J

MB7751J 1978-02 → —

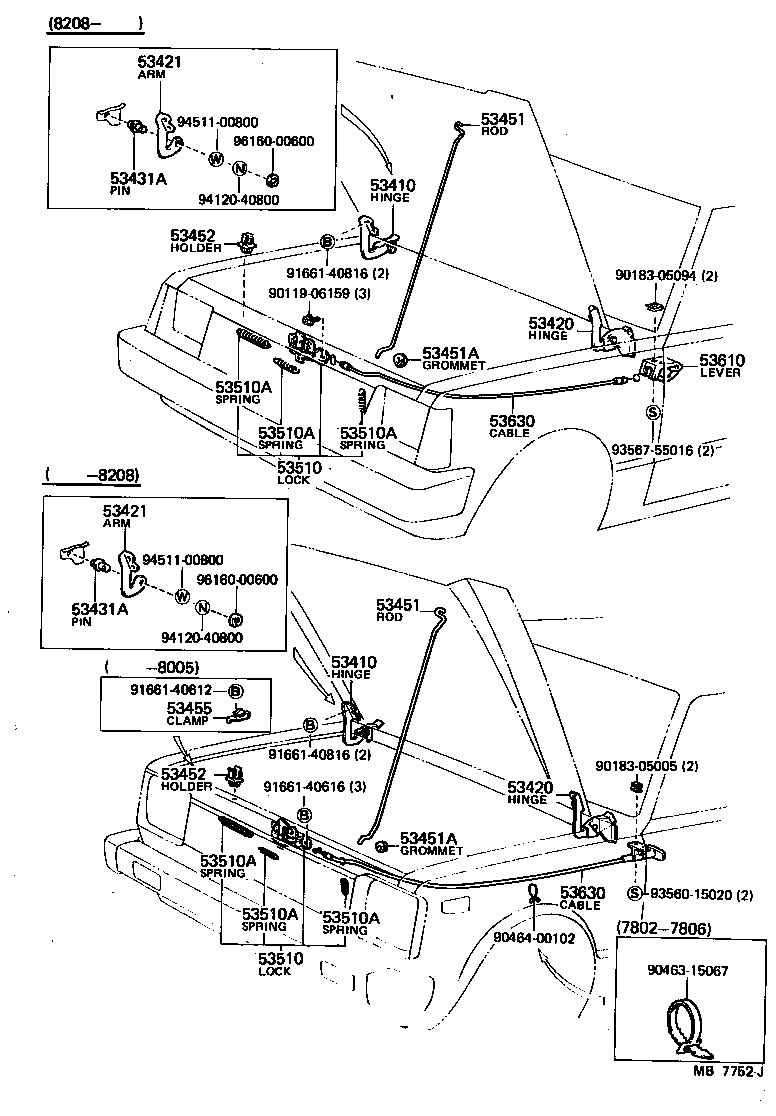

Figure MB7752J

MB7752J 1978-02 → —

Part groups

PNC	Description
53410	Hinge Assy, Hood, RH
53420	Hinge Assy, Hood, LH
53421	Arm, Hood Hinge
53431A	Pin, Hood Hinge
53451	Rod, Hood Support
53451A	Grommet(FOR HOOD SUPPORT ROD)
53452	Holder, Hood Stay
53455	Clamp, Hood Support Rod
53510	Lock Assy, Hood
53510A	Spring, Tension(FOR HOOD LOCK)
53610	Lever Assy, Hood Lock Release
53630	Cable Assy, Hood Lock Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
