Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

19 part groups · 2 illustrations

Illustrations

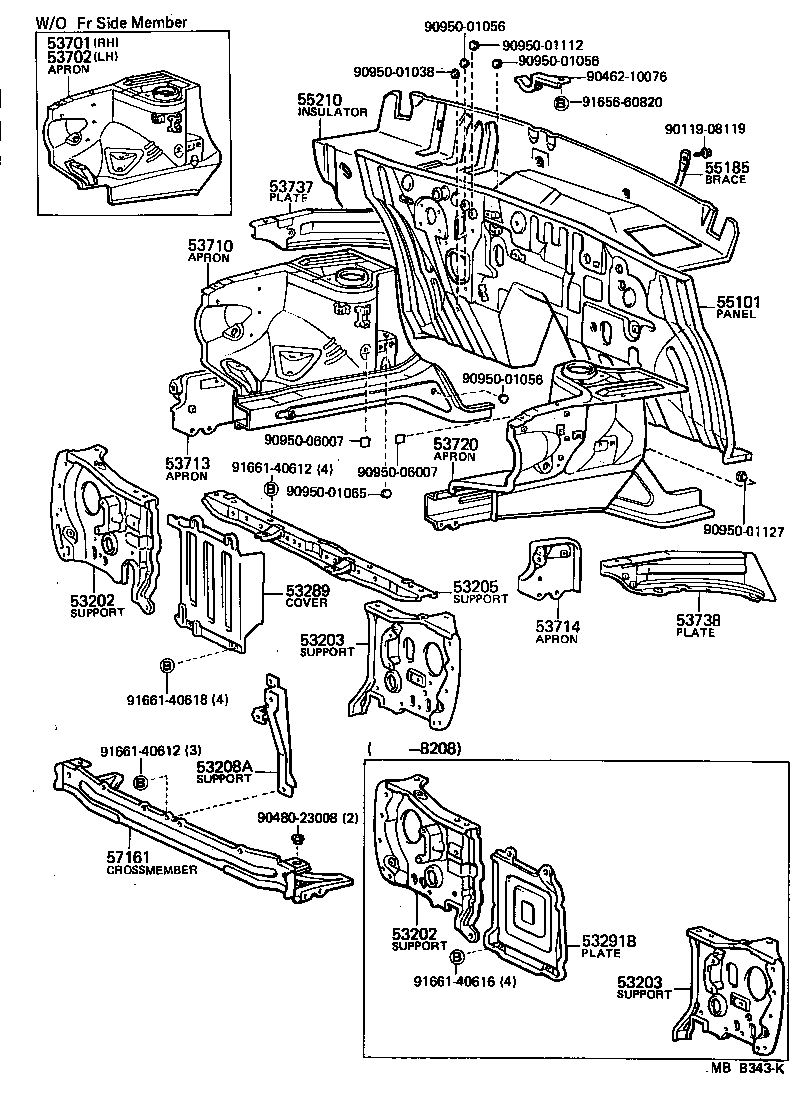

Figure MB7821K MB7821K 1978-02 → 1980-05 Figure MBB343K MBB343K 1980-05 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53265 Plate, Battery Carrier Mounting, NO.2
53289 Cover, Radiator Side Baffle
53291B Plate, Radiator Cover
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53710 Apron Assy, W/Front Side Member, RH
53713 Apron, Fender Side, RH
53714 Apron, Fender Side, LH
53720 Apron Assy, W/Front Side Member, LH
53737 Plate, Front Apron TO Cowl Side Member, RH
53738 Plate, Front Apron TO Cowl Side Member, LH
55101 Panel Sub-assy, Dash
55185 Brace, Dash Panel TO Cowl
55210 Insulator Assy, Dash Panel
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
