Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

15 part groups · 2 illustrations

Illustrations

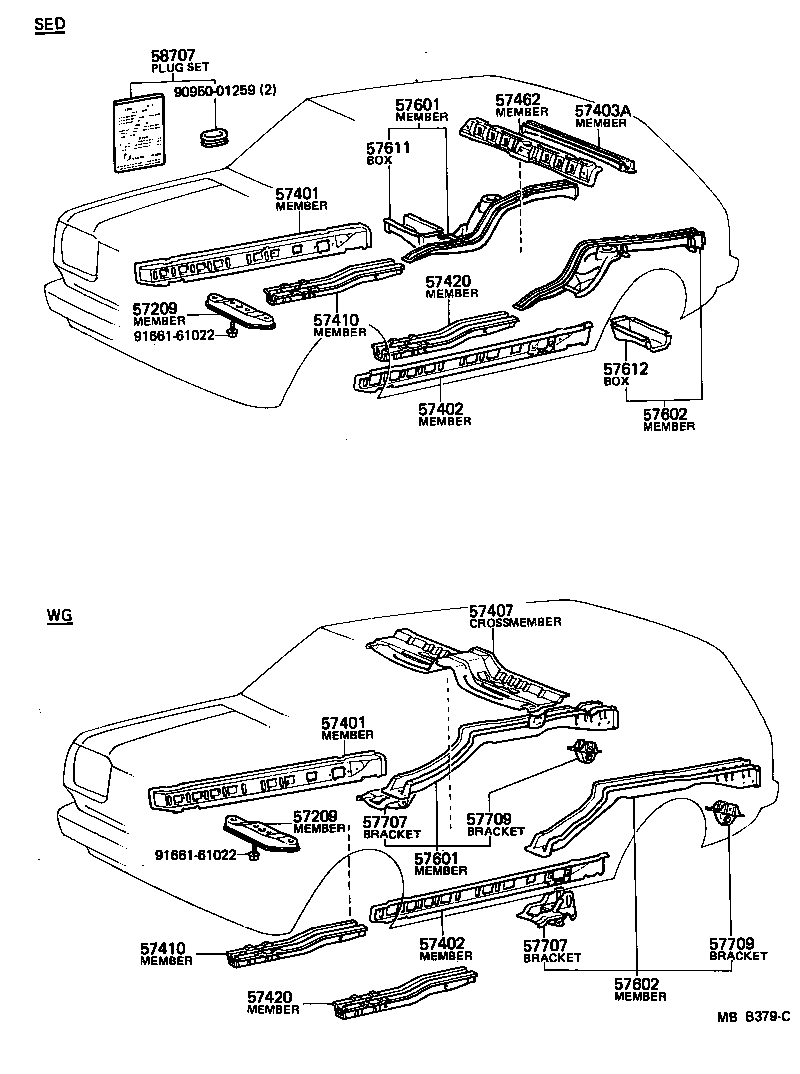

Figure MB8933B MB8933B 1978-02 → 1980-05 Figure MBB379C MBB379C 1980-05 → —

Part groups

PNCDescription
57209 Member Sub-assy, Engine Rear Support
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57403A Member Sub-assy, Center Floor Cross, NO.3
57407 Crossmember Sub-assy, Center Floor, NO.1
57410 Member Assy, Floor Side, RH
57420 Member Assy, Floor Side, LH
57462 Member, Center Floor Cross, NO.2
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57611 Box Sub-assy, Torque, Rear RH
57612 Box Sub-assy, Torque, Rear LH
57707 Bracket Sub-assy, Rear Spring, Front
57709 Bracket Sub-assy, Rear Spring, Rear
58707 Plug Set, Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
