Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 2 illustrations

Illustrations

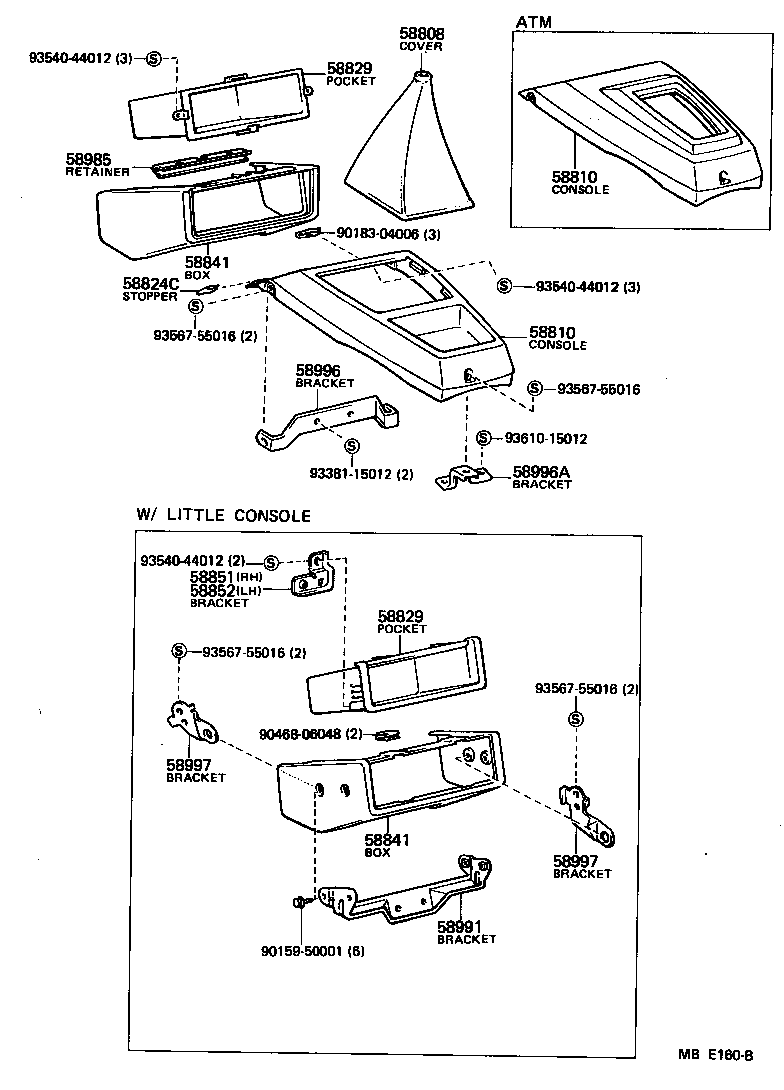

Figure MBB349B MBB349B 1980-05 → 1982-08 Figure MBE160B MBE160B 1982-08 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58801 Console Sub-assy, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58824C Stopper, Console Rear Panel, NO.2
58829 Pocket, Console Box
58841 Box, Console, Upper
58851 Bracket, Console Support, Upper RH
58852 Bracket, Console Support, Upper LH
58985 Retainer, Console Box
58991 Bracket, Console Box Mounting, Upper
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
