Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

51 part groups · 9 illustrations

Illustrations

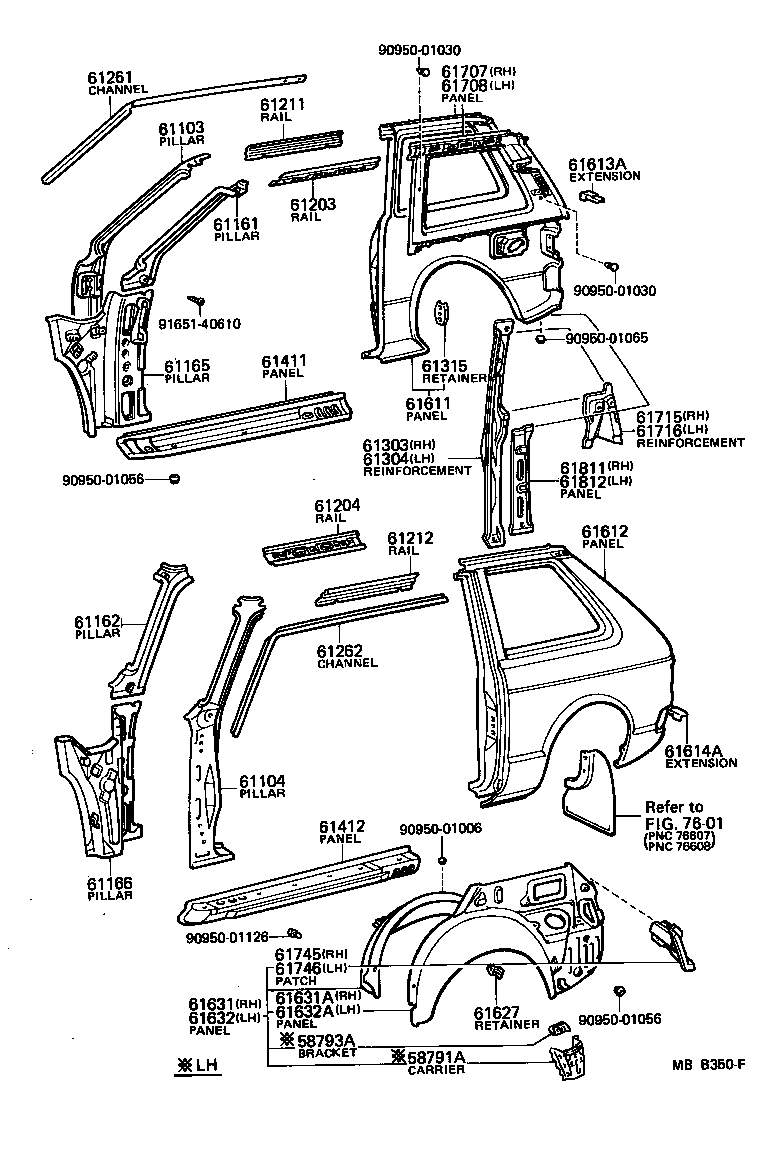

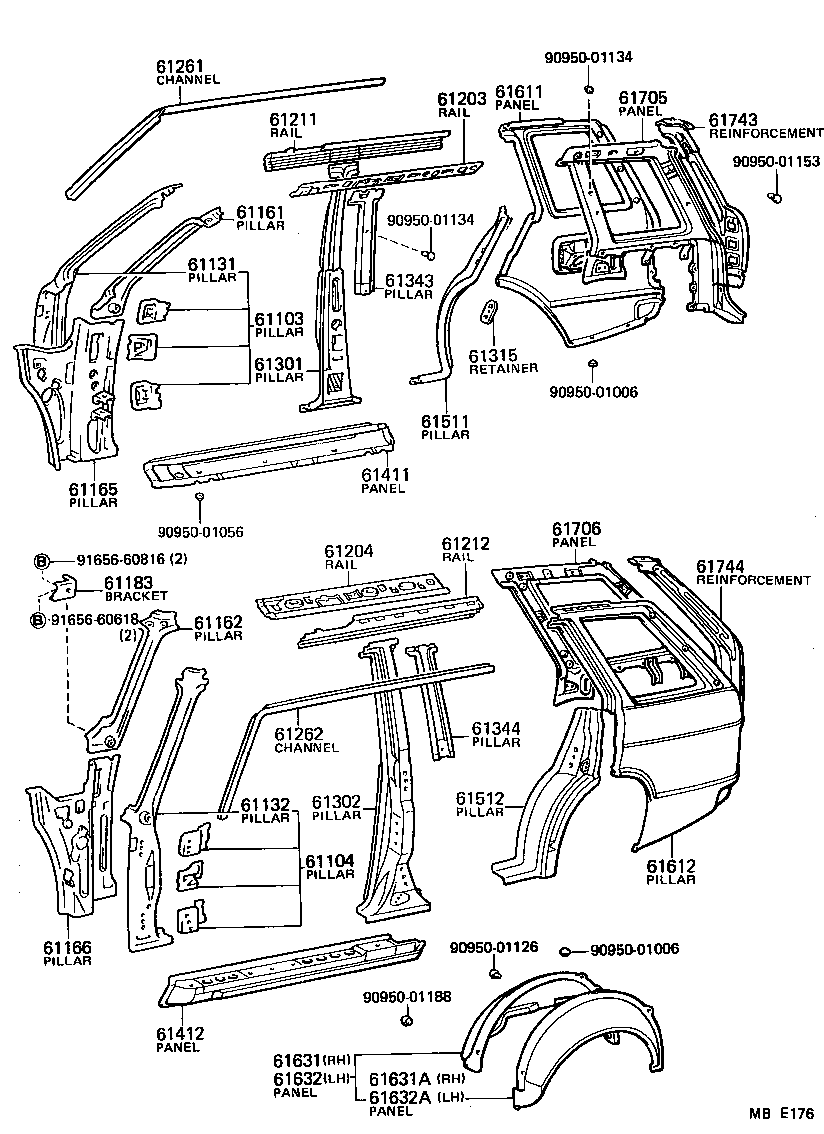

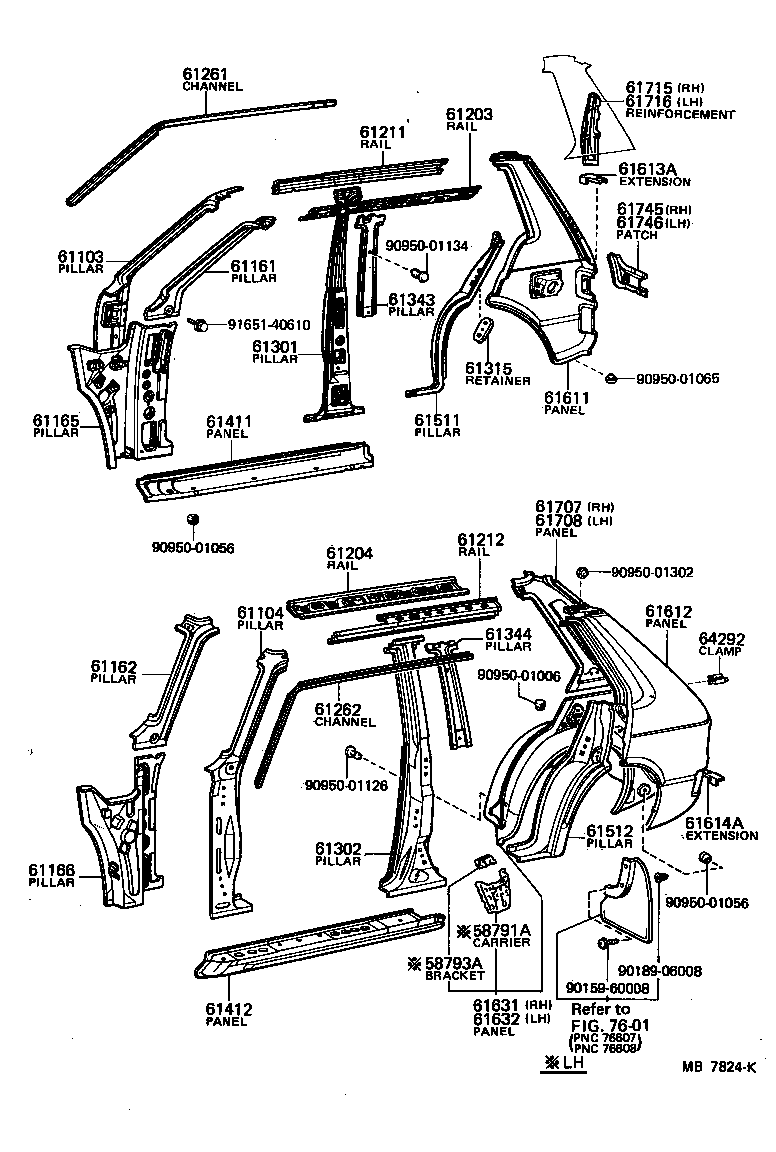

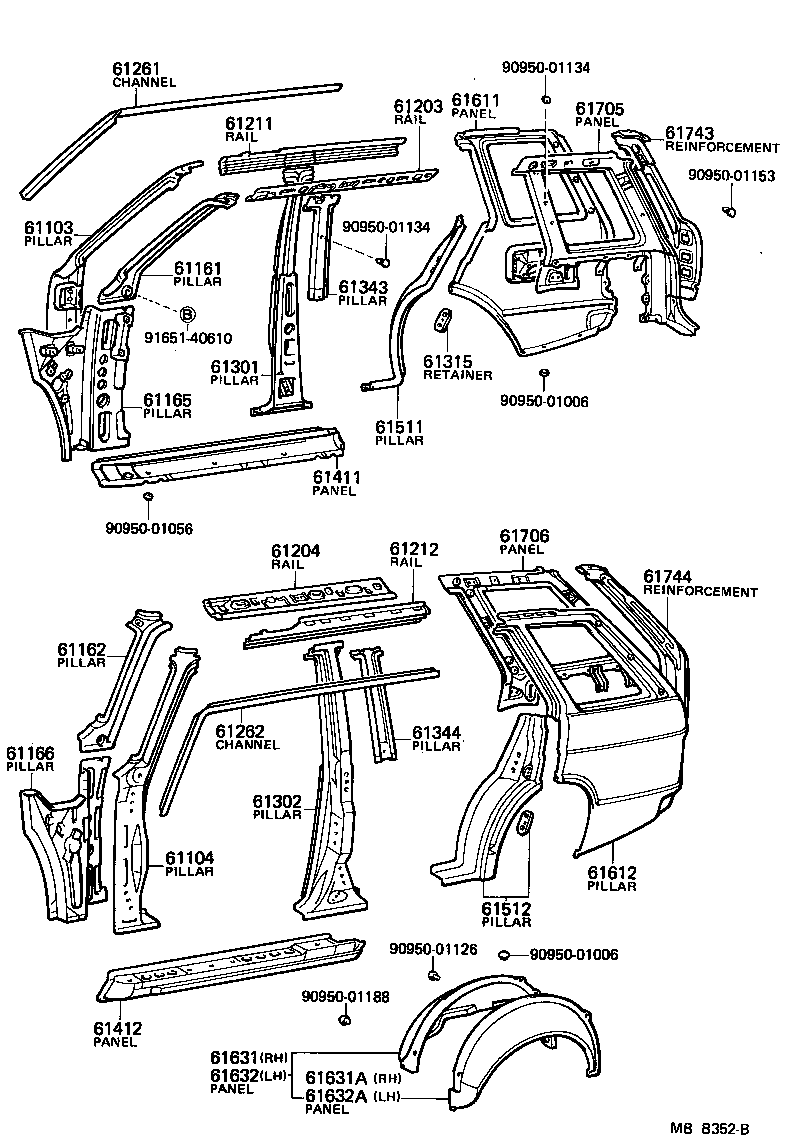

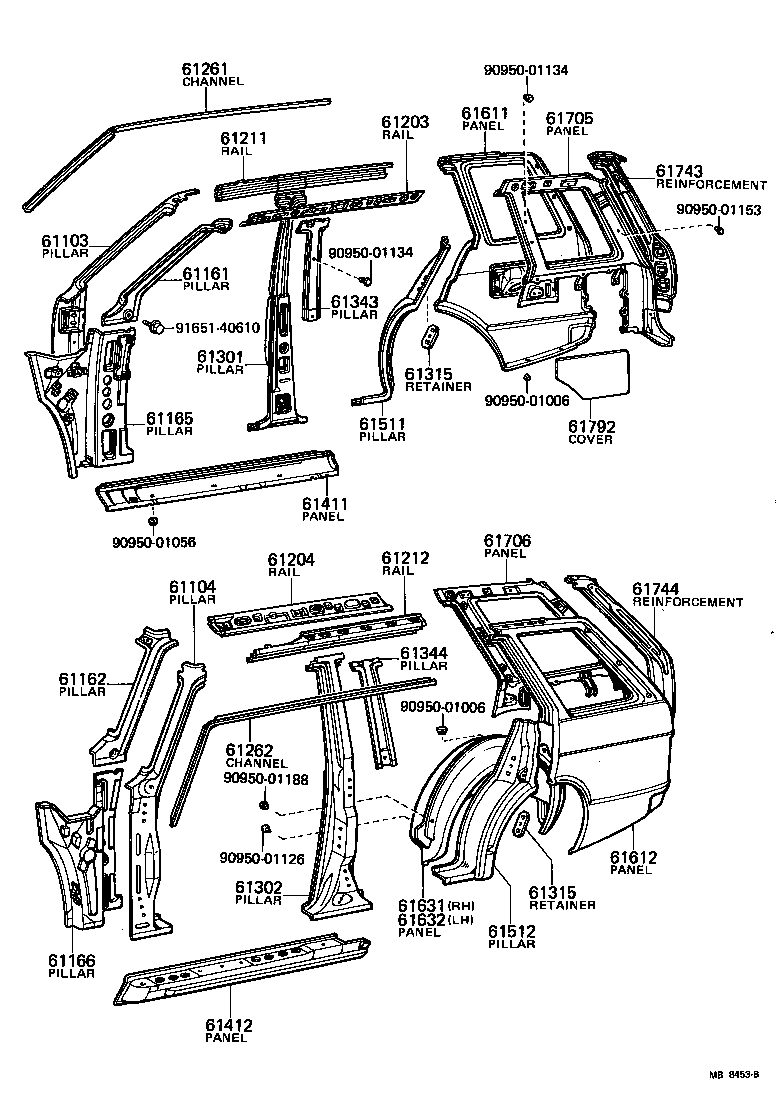

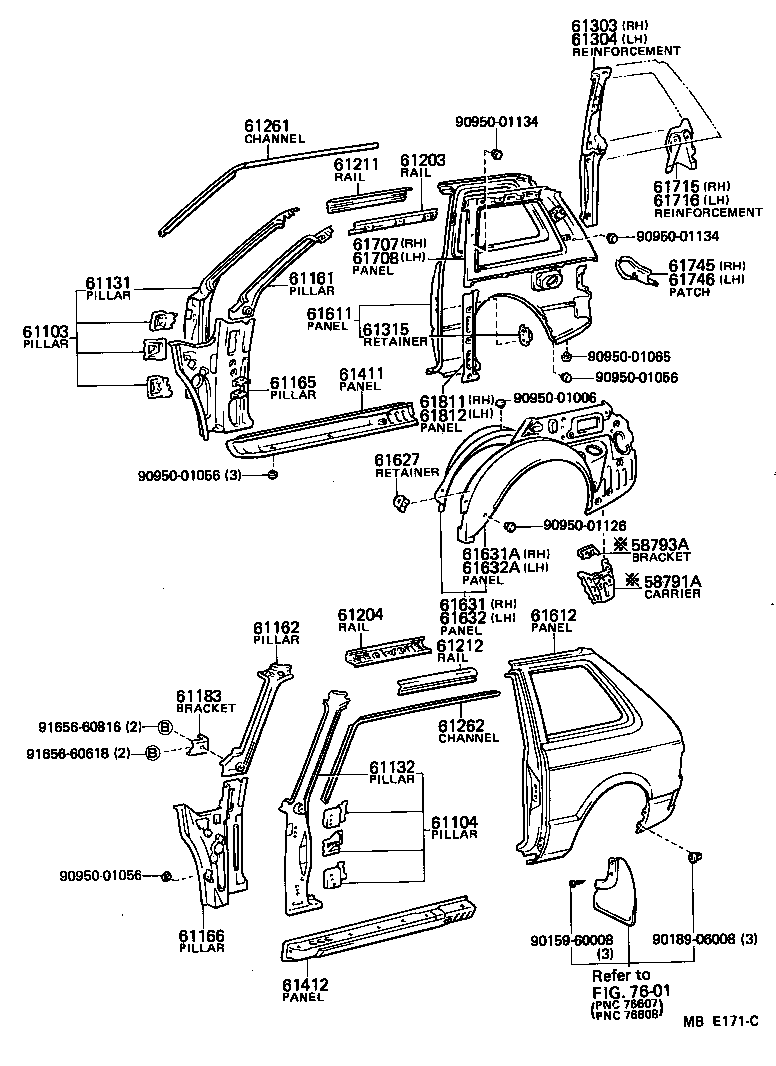

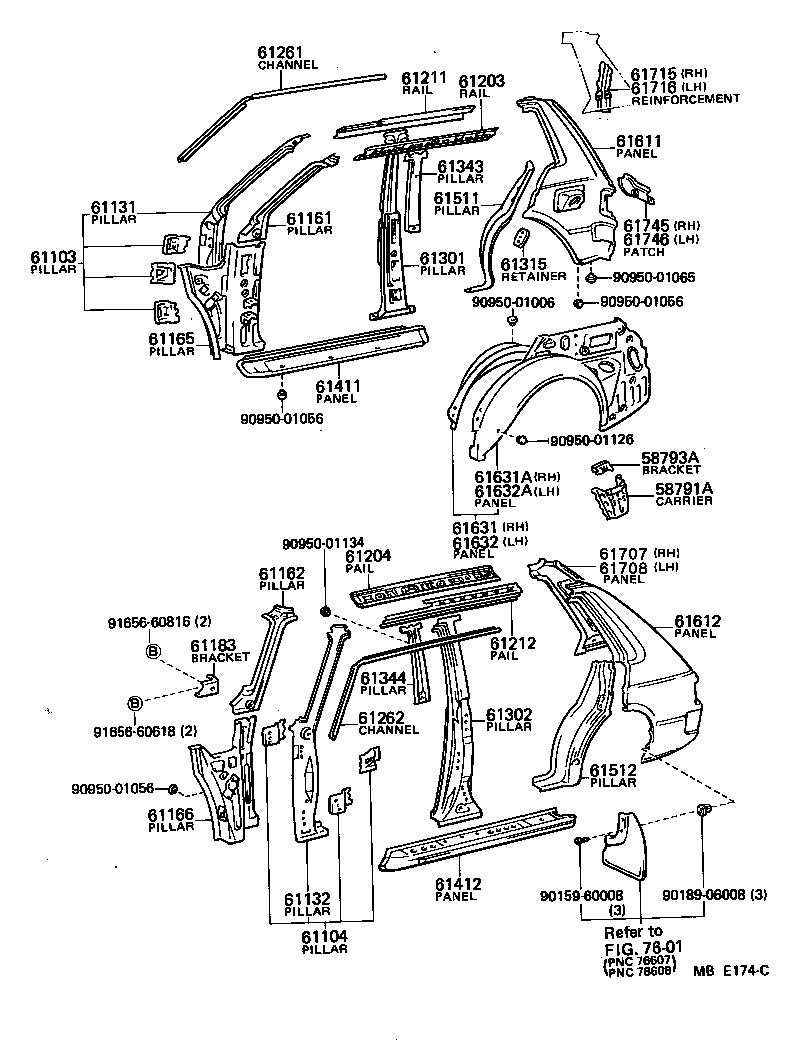

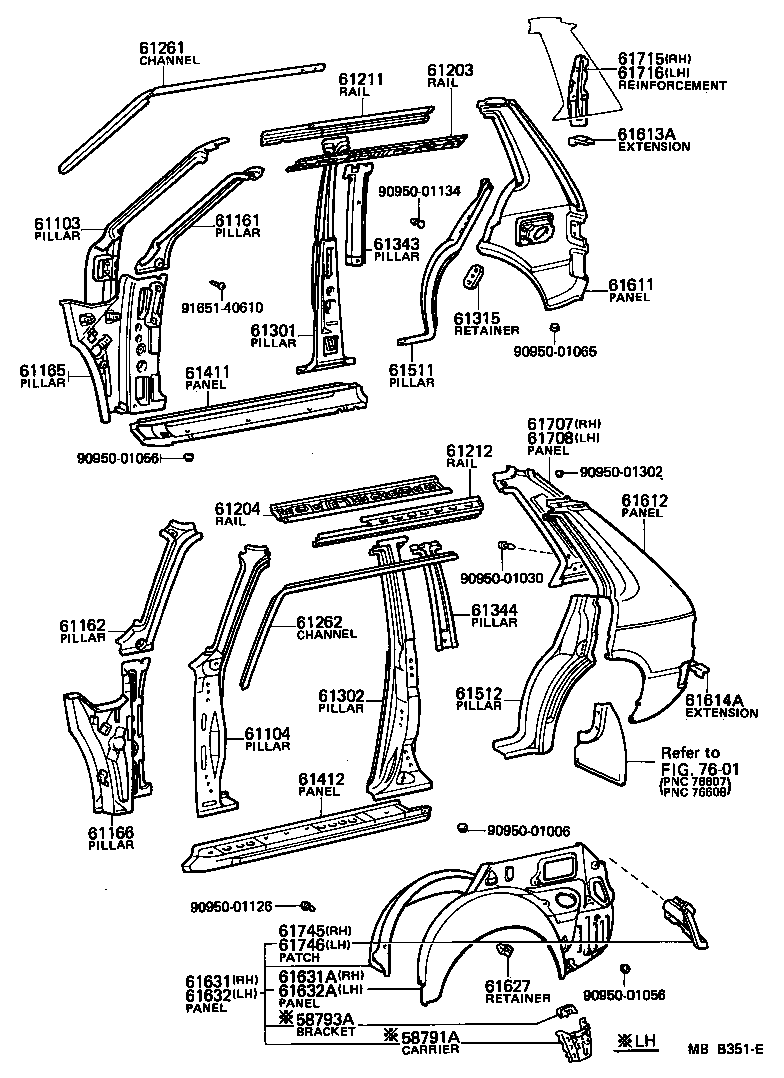

Figure MB7823J MB7823J 1978-02 → 1980-05 Figure MBB350F MBB350F 1980-05 → 1982-08 Figure MBE171C MBE171C 1982-08 → — Figure MB7824K MB7824K 1978-02 → 1980-05 Figure MBB351E MBB351E 1980-05 → 1982-08 Figure MBE174C MBE174C 1982-08 → — Figure MB8453B MB8453B 1978-10 → 1980-05 Figure MBB352B MBB352B 1980-05 → 1982-08 Figure MBE176 MBE176 1982-08 → —

Part groups

PNCDescription
58791A Carrier, Jack
58793A Bracket, Jack Carrier
61103 Pillar Sub-assy, Front Body, RH
61104 Pillar Sub-assy, Front Body, LH
61131 Pillar, Front Body, Upper Outer RH
61132 Pillar, Front Body, Upper Outer LH
61161 Pillar, Front Body, Upper Inner RH
61162 Pillar, Front Body, Upper Inner LH
61165 Pillar, Front Body Lower Inner, RH
61166 Pillar, Front Body Lower Inner, LH
61183 Bracket, Instrument Panel Side
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61261 Channel, Roof Drip, RH
61262 Channel, Roof Drip, LH
61301 Pillar Sub-assy, Center Body, RH
61302 Pillar Sub-assy, Center Body, LH
61303 Reinforce Sub-assy, Center Body Pillar, Upper RH
61304 Reinforce Sub-assy, Center Body Pillar, Upper LH
61315 Retainer, Door Lock Striker Plate
61343 Pillar, Center Body, Inner Upper RH
61344 Pillar, Center Body, Inner Upper LH
61411 Panel, Rocker, Outer RH
61412 Panel, Rocker, Outer LH
61511 Pillar, Quarter Lock, RH
61512 Pillar, Quarter Lock, LH
61611 Panel, Quarter, RH
61612 Panel, Quarter, LH
61613A Extension, Quarter Panel Rear, RH
61614A Extension, Quarter Panel, Rear LH
61627 Retainer, Quarter Trim, Lower
61631 Panel, Quarter Wheel House, RH
61631A Panel, Quarter Wheel House, Outer RH
61632 Panel, Quarter Wheel House, LH
61632A Panel, Quarter Wheel House, Outer LH
61705 Panel Sub-assy, Roof Side, Inner RH
61706 Panel Sub-assy, Roof Side, Inner LH
61707 Panel Sub-assy, Quarter, Inner RH
61708 Panel Sub-assy, Quarter, Inner LH
61715 Reinforcement, Roof Side, Inner Rear RH
61716 Reinforcement, Roof Side, Inner Rear LH
61743 Reinforcement, Back Door Opening, Inner RH
61744 Reinforcement, Back Door Opening, Inner LH
61745 Patch, Back Door Opening, Lower RH
61746 Patch, Back Door Opening, Lower LH
61792 Cover, Roof Side Inner Service Hole
61811 Panel, Quarter Inside, Front RH
61812 Panel, Quarter Inside, Front LH
64292 Clamp, Jack Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
