Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

27 part groups · 2 illustrations

Illustrations

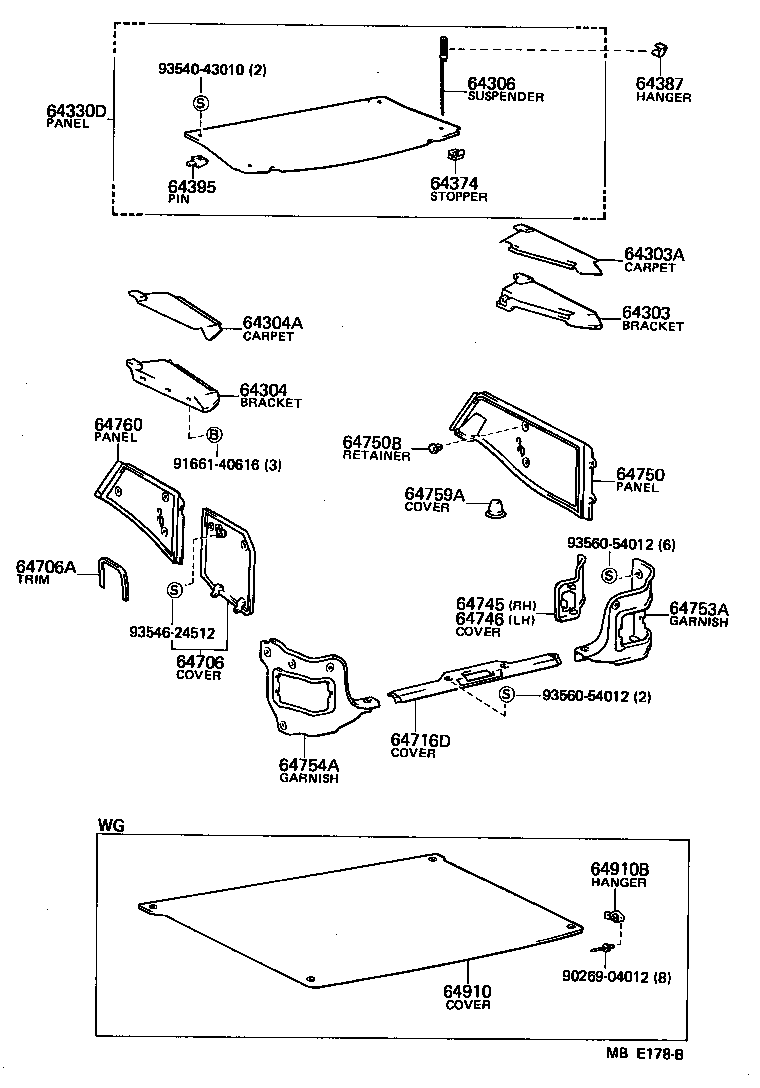

Figure MB8029K MB8029K 1978-02 → 1982-08 Figure MBE178B MBE178B 1982-08 → —

Part groups

PNCDescription
64303 Bracket Sub-assy, Package Tray, RH
64303A Carpet, Package Tray Trim, RH
64304 Bracket Sub-assy, Package Tray, LH
64304A Carpet, Package Tray Trim, LH
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64374 Stopper, Package Tray Trim
64387 Hanger, Package Tray Trim
64395 Pin, Package Tray Trim Hinge
64706 Cover Sub-assy, Quarter Trim, Jack
64706A Trim, Jack House Opening
64709A Retainer, Lower Back Panel Cover
64709B Cover, Service Hole, NO.1(FOR LOWER BACK PANEL COVER)
64709C Cover, Service Hole, NO.2(FOR LOWER BACK PANEL COVER)
64716D Cover, Deck Trim, Rear
64739 Cover, Deck Trim Side Washer
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64750 Panel Assy, Deck Side Trim, RH
64750B Retainer(FOR DECK SIDE TRIM PANEL)
64753A Garnish, Deck Side, Rear, RH
64754A Garnish, Deck Side, Rear, LH
64759A Cover, Shock Absorber Head
64760 Panel Assy, Deck Side Trim, LH
64910 Cover Assy, Parcel
64910B Hanger, Parcel Cover
64910G Pin, Parcel Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
