Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

17 part groups · 3 illustrations

Illustrations

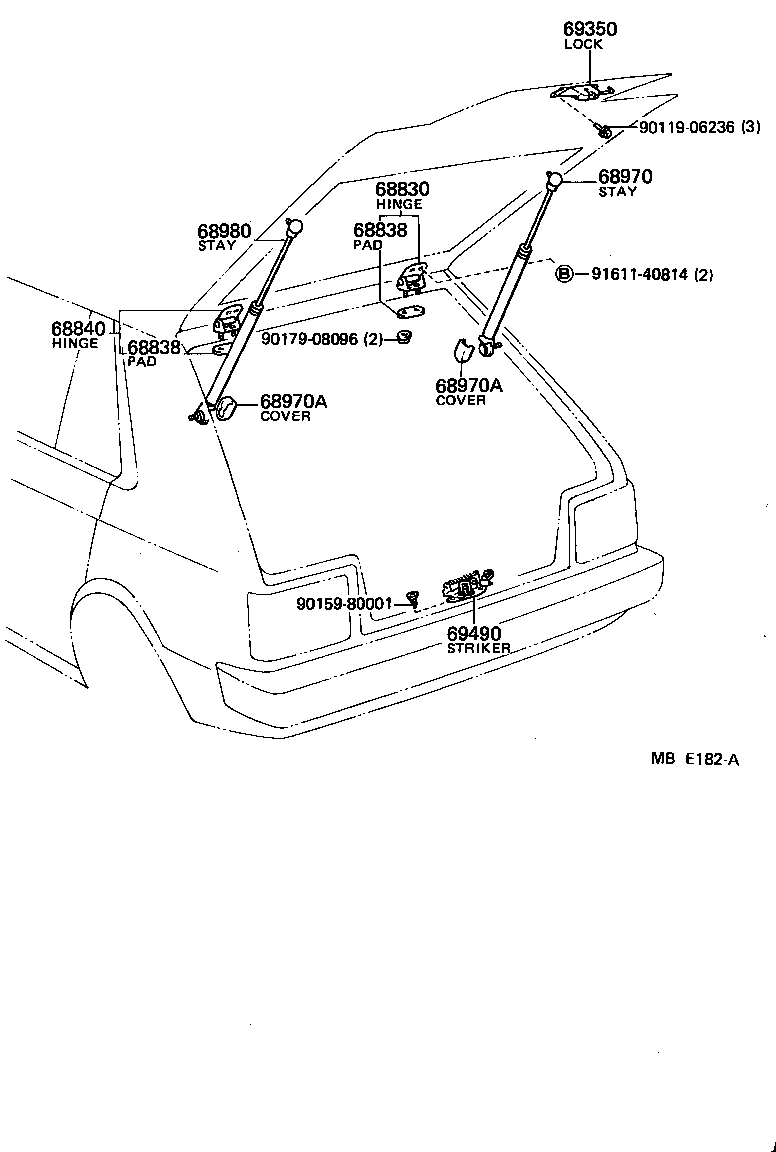

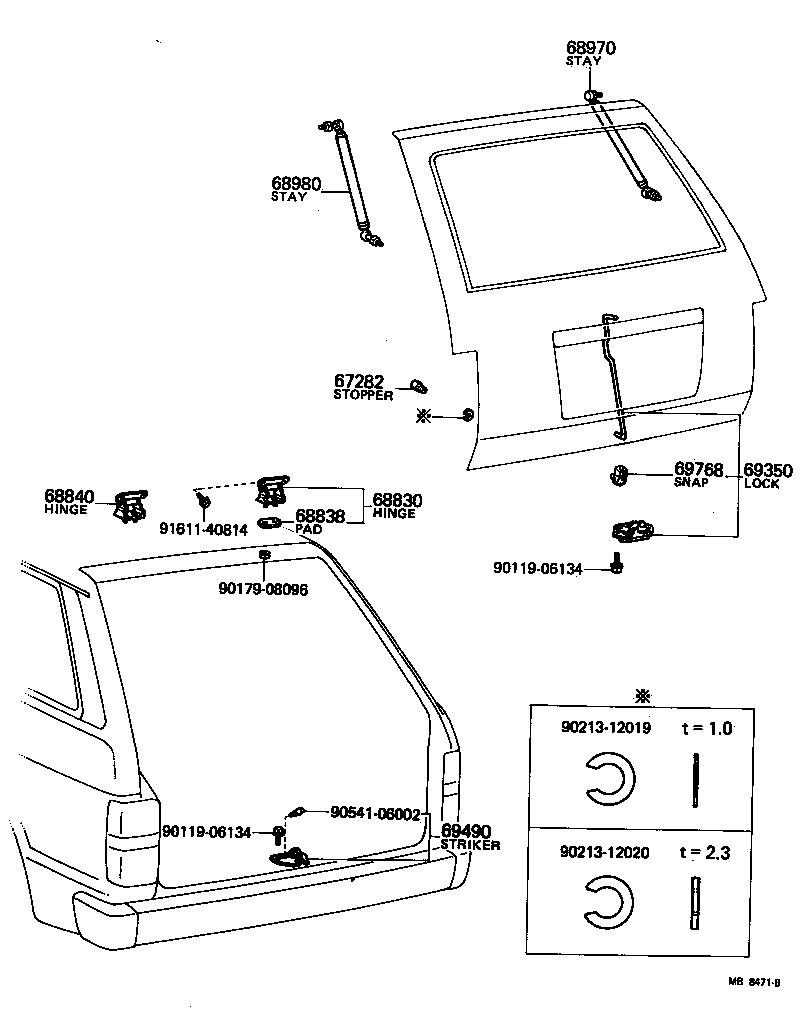

Figure MBB812B MBB812B 1978-02 → 1982-08 Figure MBE182A MBE182A 1982-08 → — Figure MB8471B MB8471B 1978-10 → —

Part groups

PNCDescription
67282 Stopper, Back Door, NO.1
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68640 Control Assy, Back Door Lock
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68970 Stay Assy, Back Door, RH
68970A Cover, Back Door Stay
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69350A Spring(FOR BACK DOOR LOCK)
69490 Striker Assy, Back Door Lock
69756 Rod, Back Door Locking Control Push
69756A Cable, Back Door Locking Control
69768 Snap, Back Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
