Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

41 part groups · 6 illustrations

Illustrations

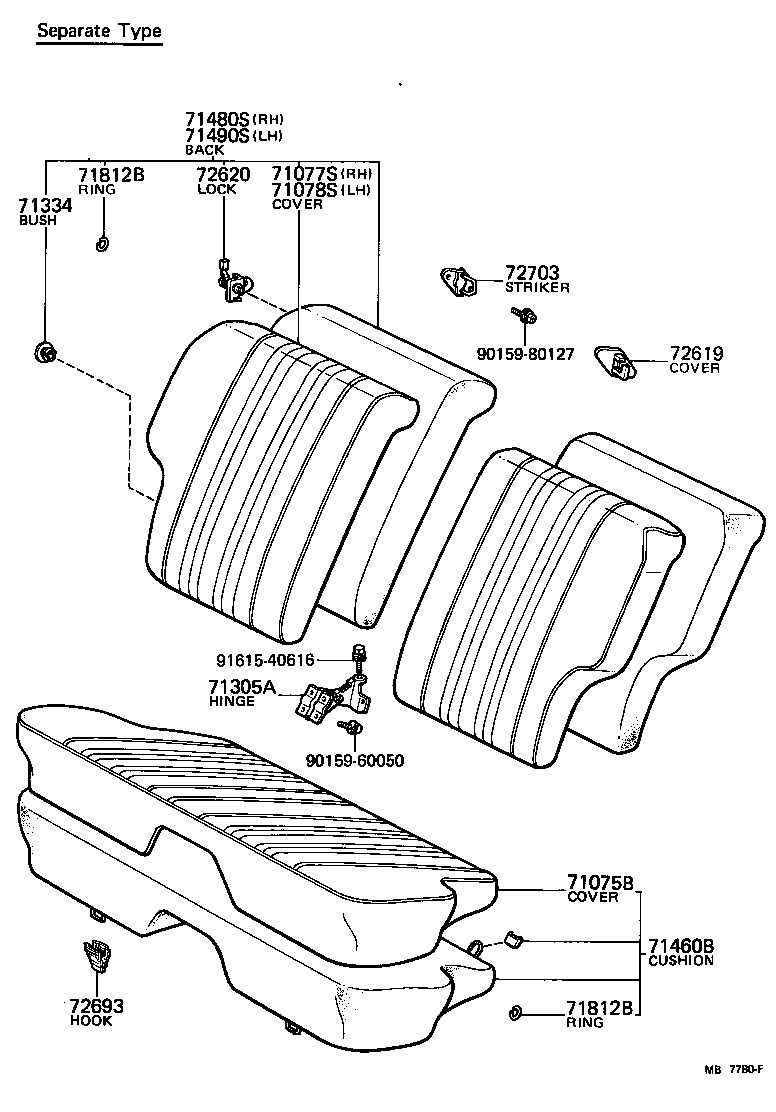

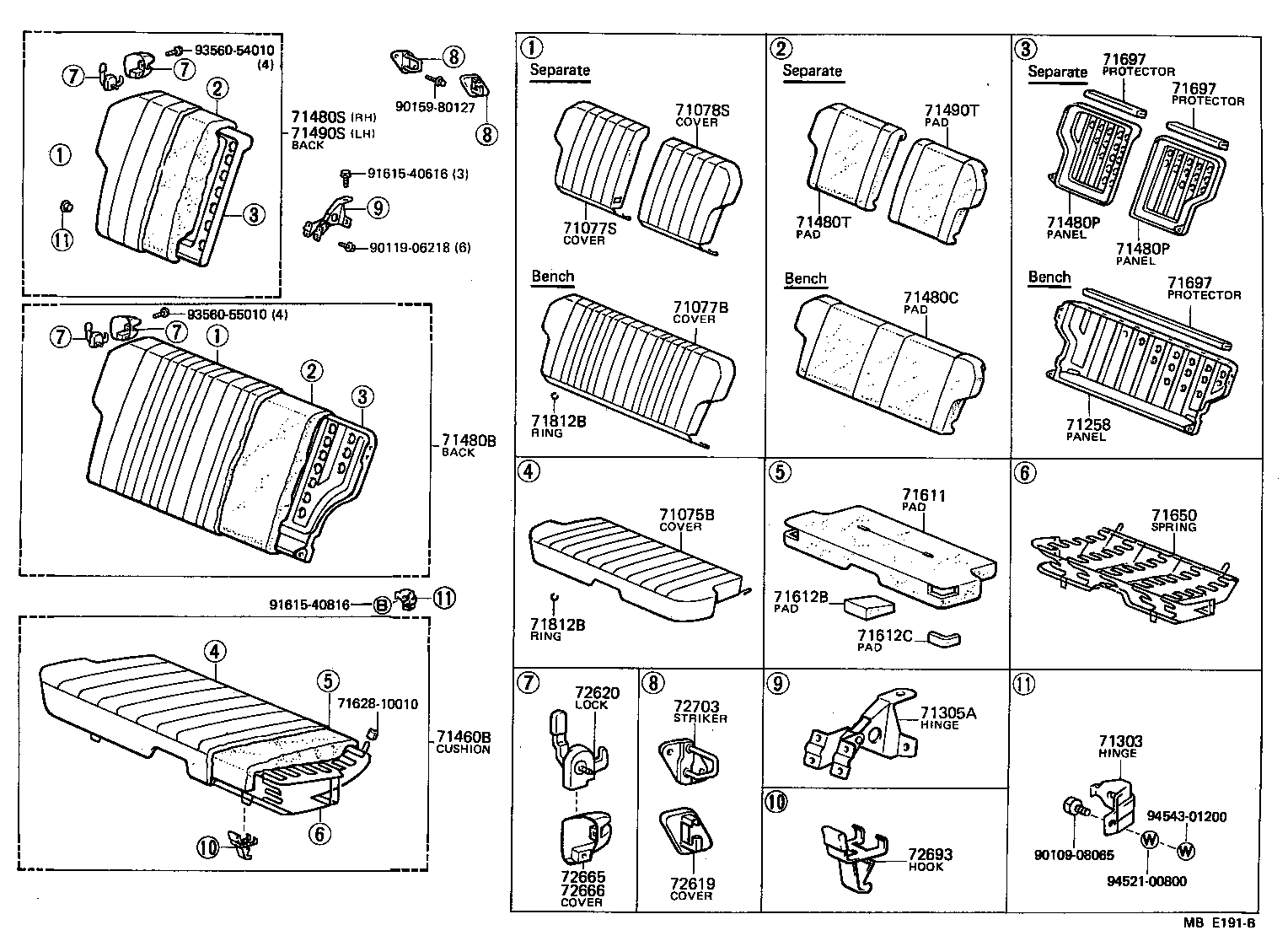

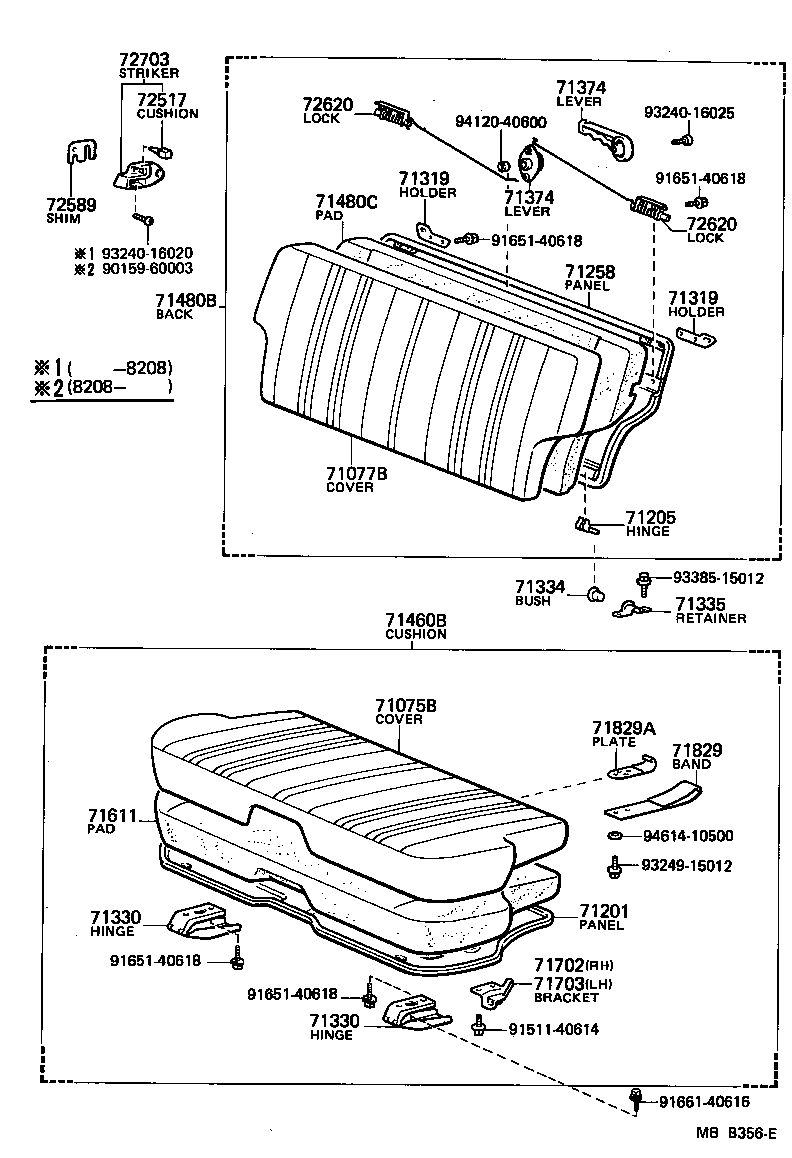

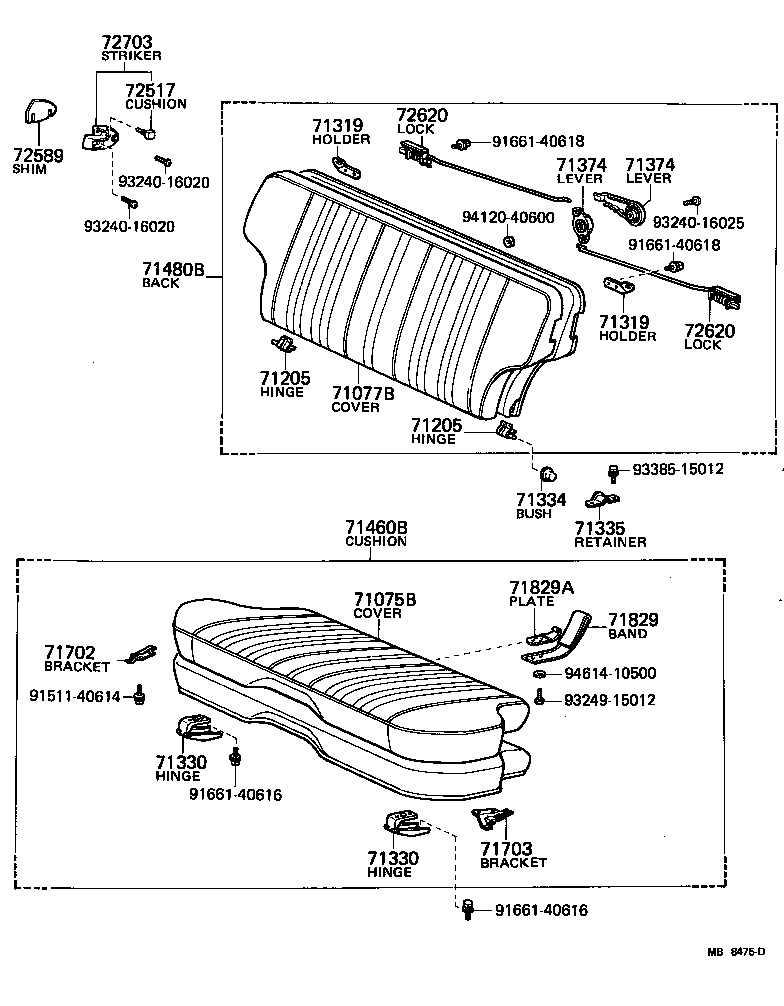

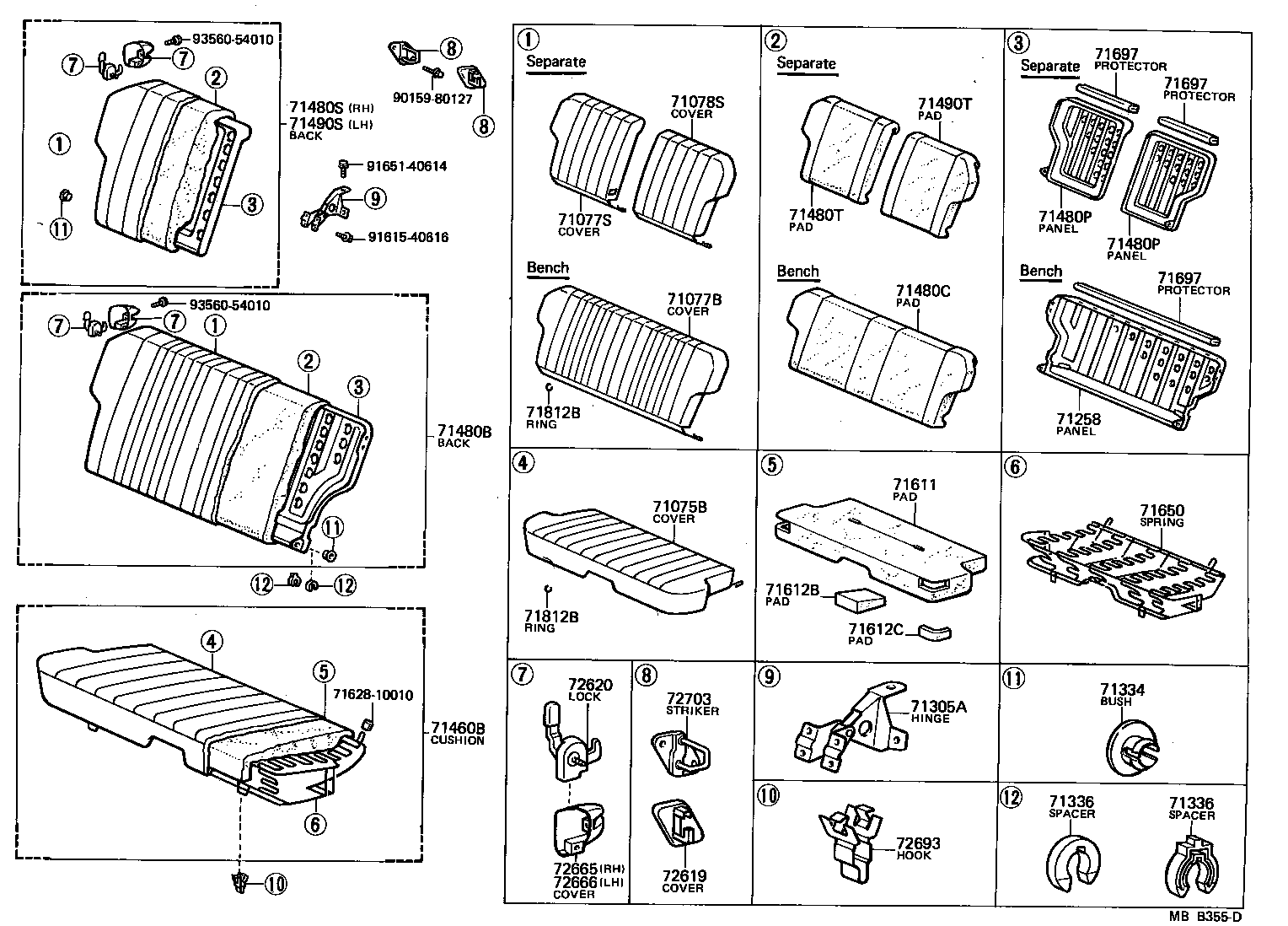

Figure MB7779D MB7779D 1978-02 → 1980-05 Figure MB7780F MB7780F 1978-02 → 1980-05 Figure MBB355D MBB355D 1980-05 → 1982-08 Figure MBE191B MBE191B 1982-08 → — Figure MB8475D MB8475D 1978-10 → 1980-05 Figure MBB356E MBB356E 1980-05 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71205 Hinge Sub-assy, Rear Seatback, Outside
71258 Panel Sub-assy, Rear Seatback
71303 Hinge Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71319 Holder, Rear Seatback
71330 Hinge Assy, Rear Seat Cushion
71334 Bush, Rear Seatback Pivot
71335 Retainer, Rear Seatback Pivot, Upper
71336 Bush OR Spacer, Rear Seatback Hinge
71374 Lever, Rear Seatback Rod Control
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480C Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480P Panel Sub-assy, Rear Seatback
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71611 Pad, Rear Seat Cushion
71612B Pad, Rear Seat Cushion, B
71612C Pad, Rear Seat Cushion, C
71650 Spring Assy, Rear Seat Cushion
71697 Protector, Rear Seatback Edge
71702 Bracket Sub-assy, Rear Seatback Stop, RH
71703 Bracket Sub-assy, Rear Seatback Stop, LH
71812B Clip(FOR REAR SEAT CUSHION COVER)
71829 Band, Rear Seat Cushion
71829A Plate, Rear Seat Cushion Band Support
72517 Cushion, Rear Seatback Stop
72589 Shim, Rear Seatback Stop
72619 Cover, Rear Seatback Lock Striker
72620 Lock Assy, Rear Seatback
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72703 Striker Sub-assy, Rear Seatback Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
