Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

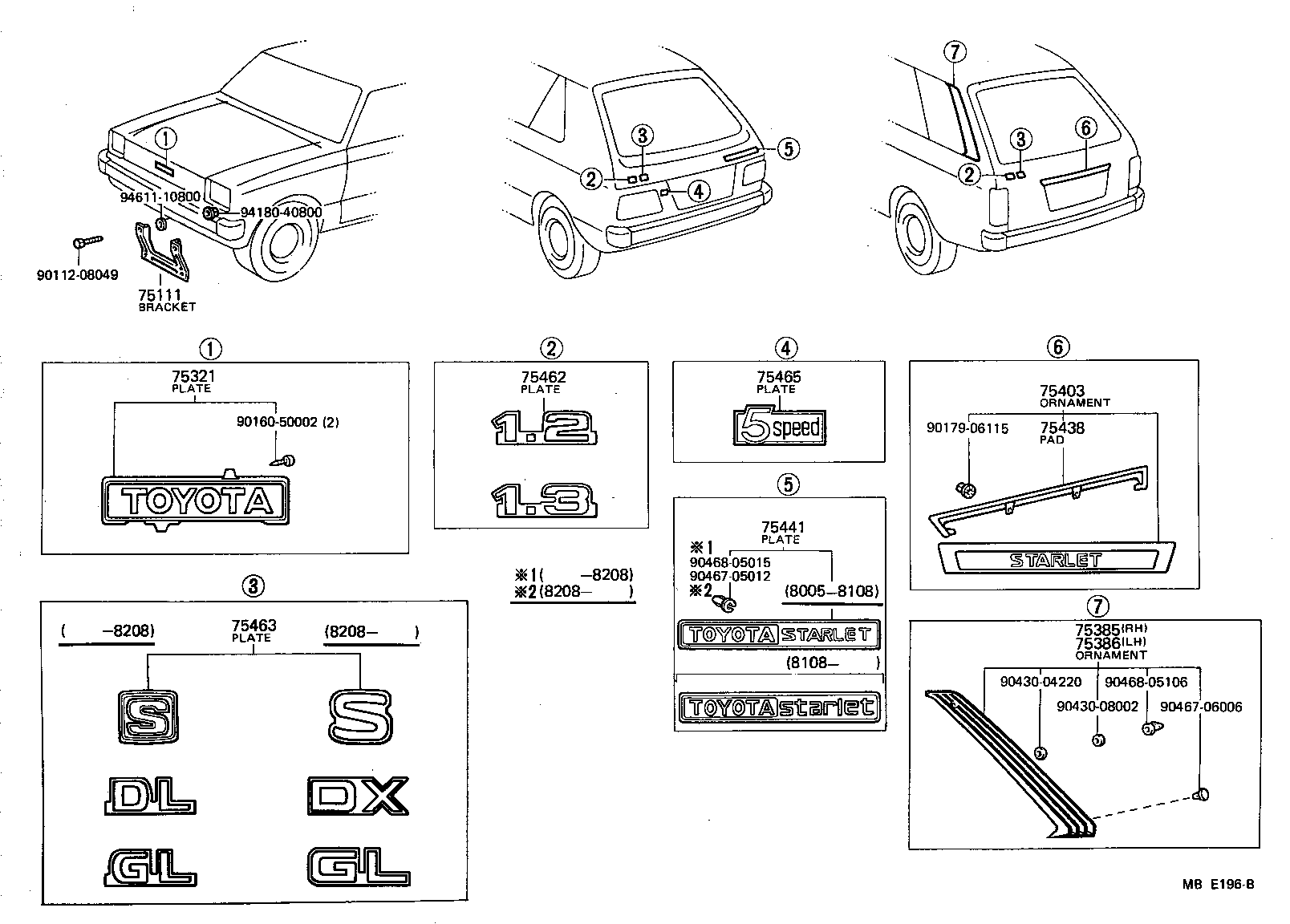

Figure MB8479E MB8479E 1978-02 → 1980-05 Figure MBE196B MBE196B 1980-05 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75385 Ornament, Roof Side, RH
75386 Ornament, Roof Side, LH
75403 Ornament Sub-assy, Back Door
75438 Pad, Back Door Ornament
75441 Plate, Rear Name, NO.1
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
