Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03

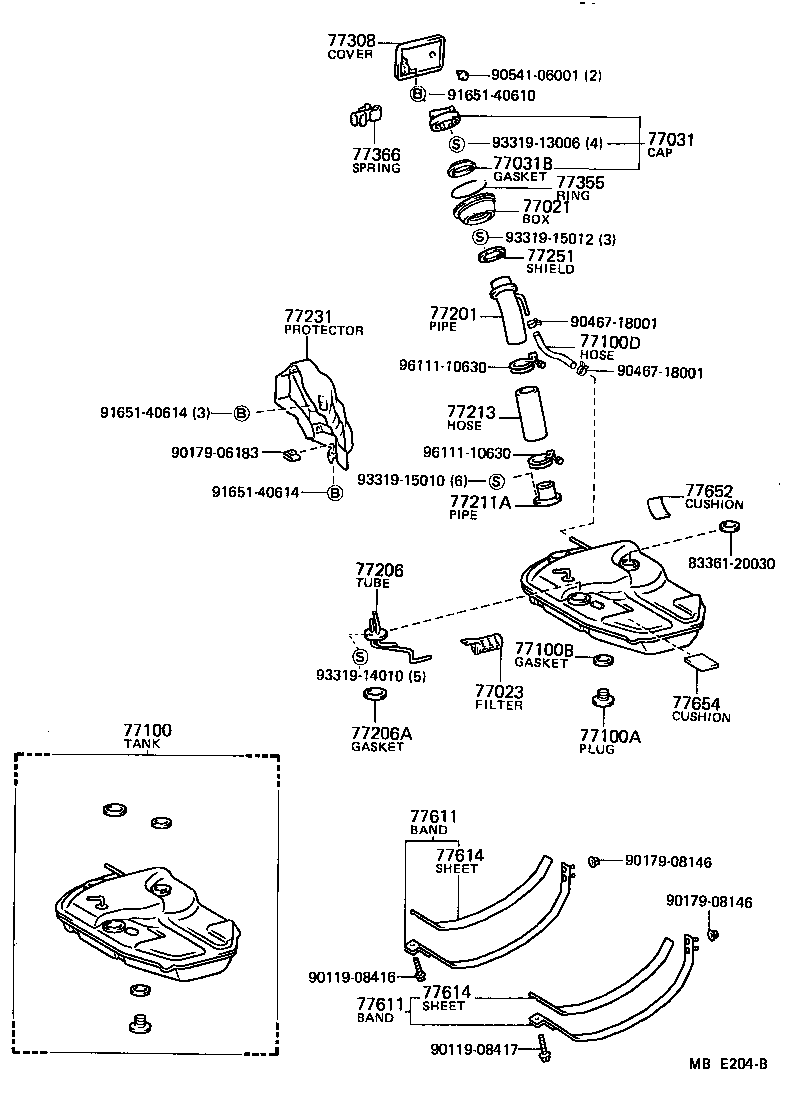

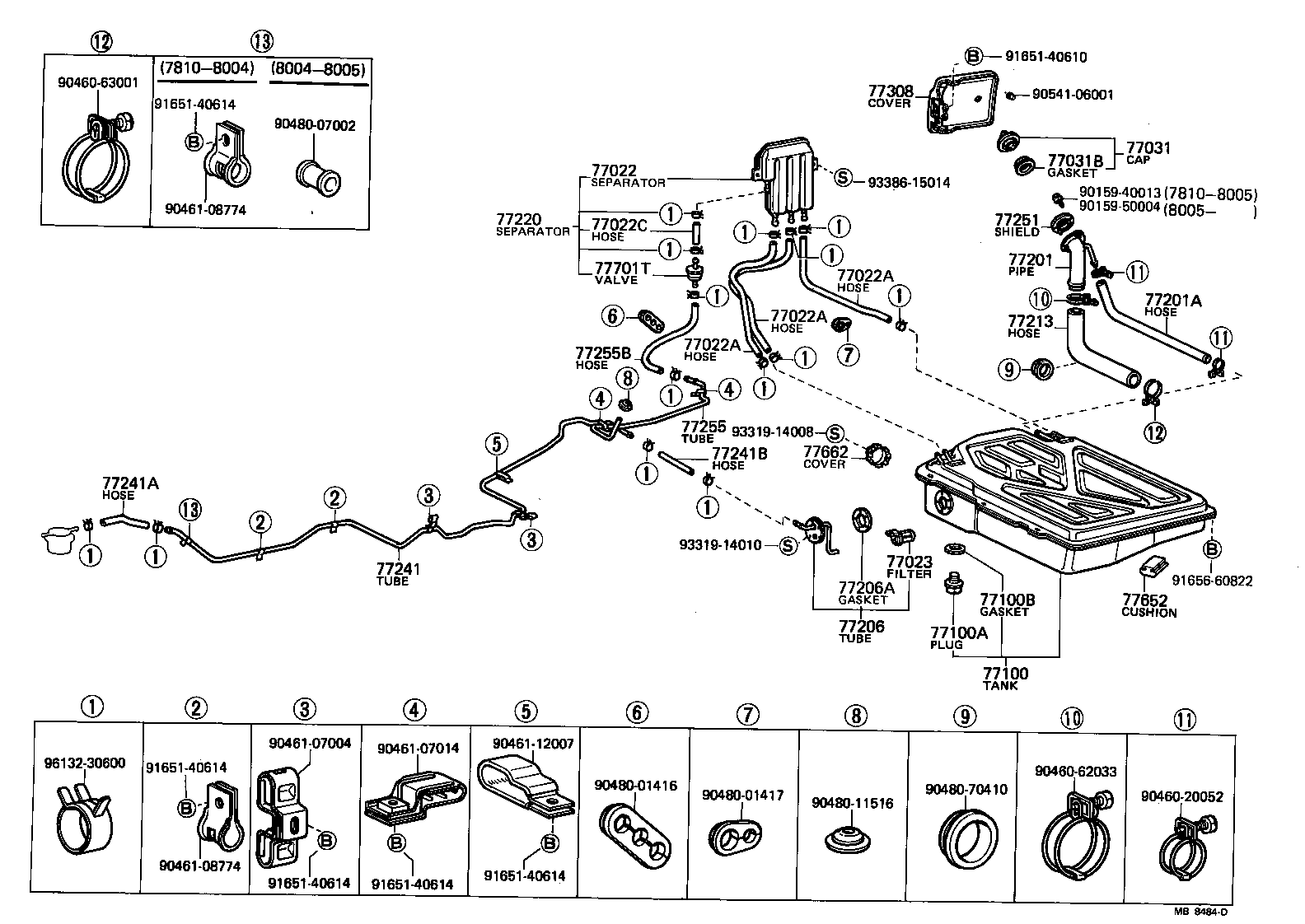

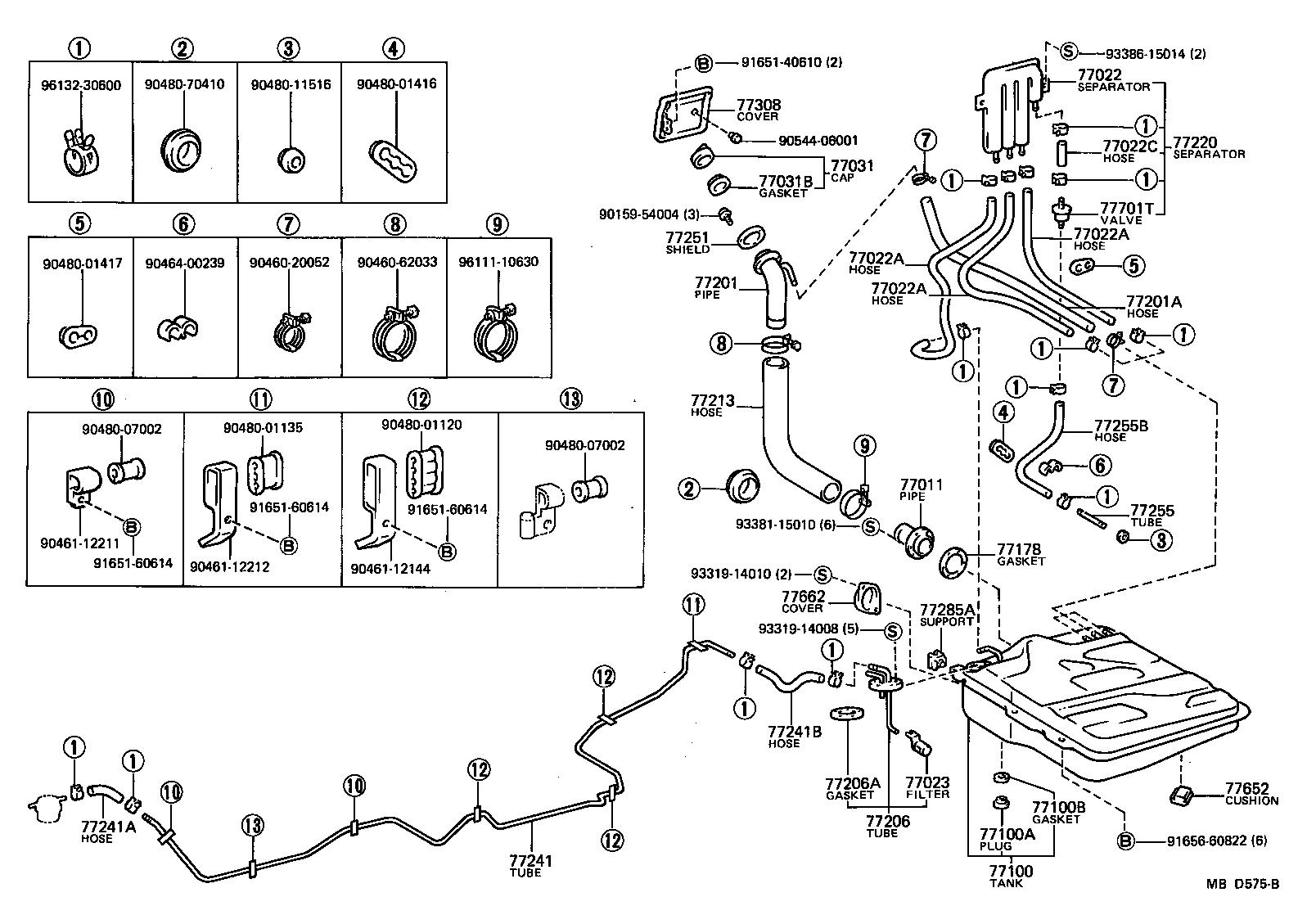

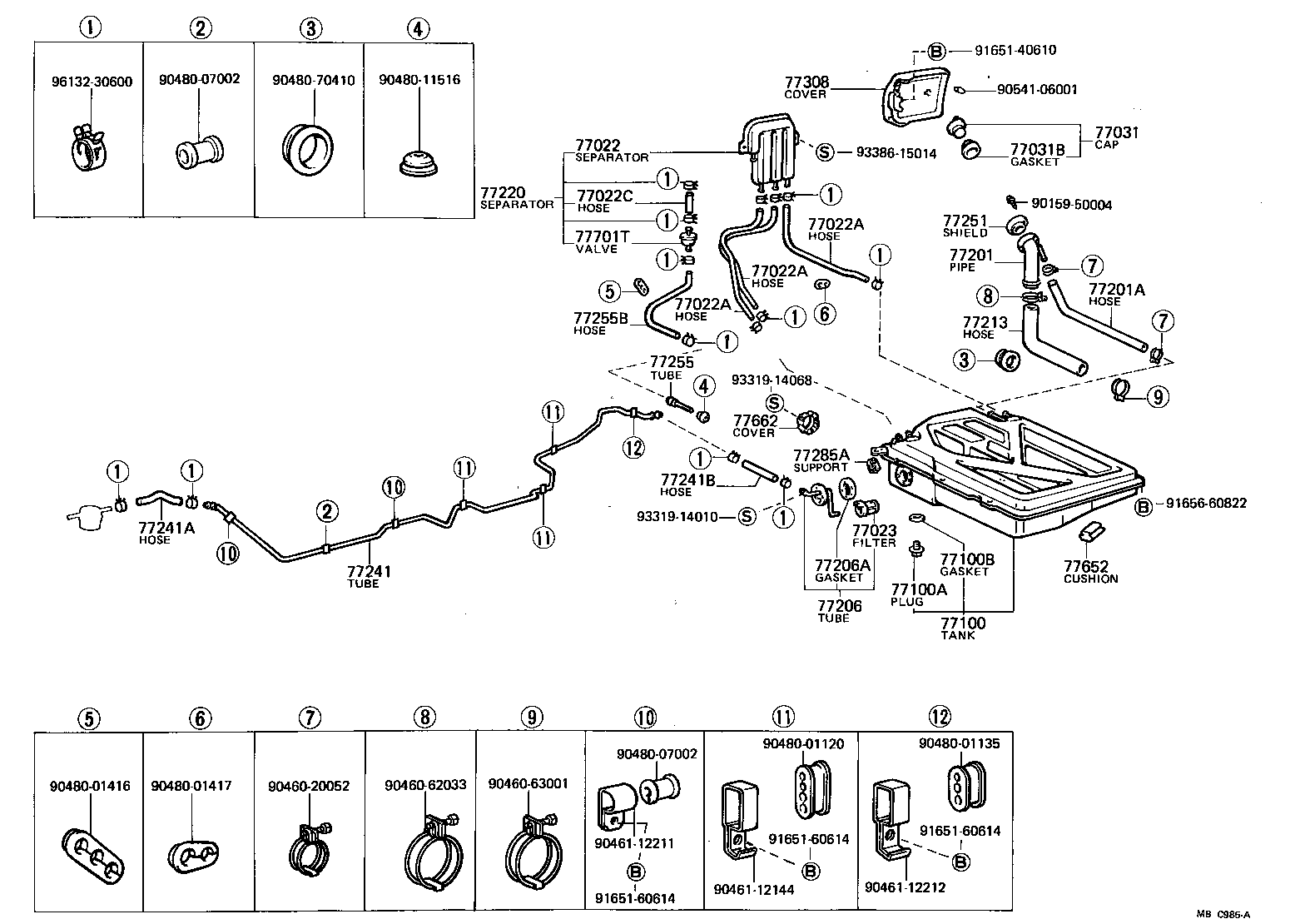

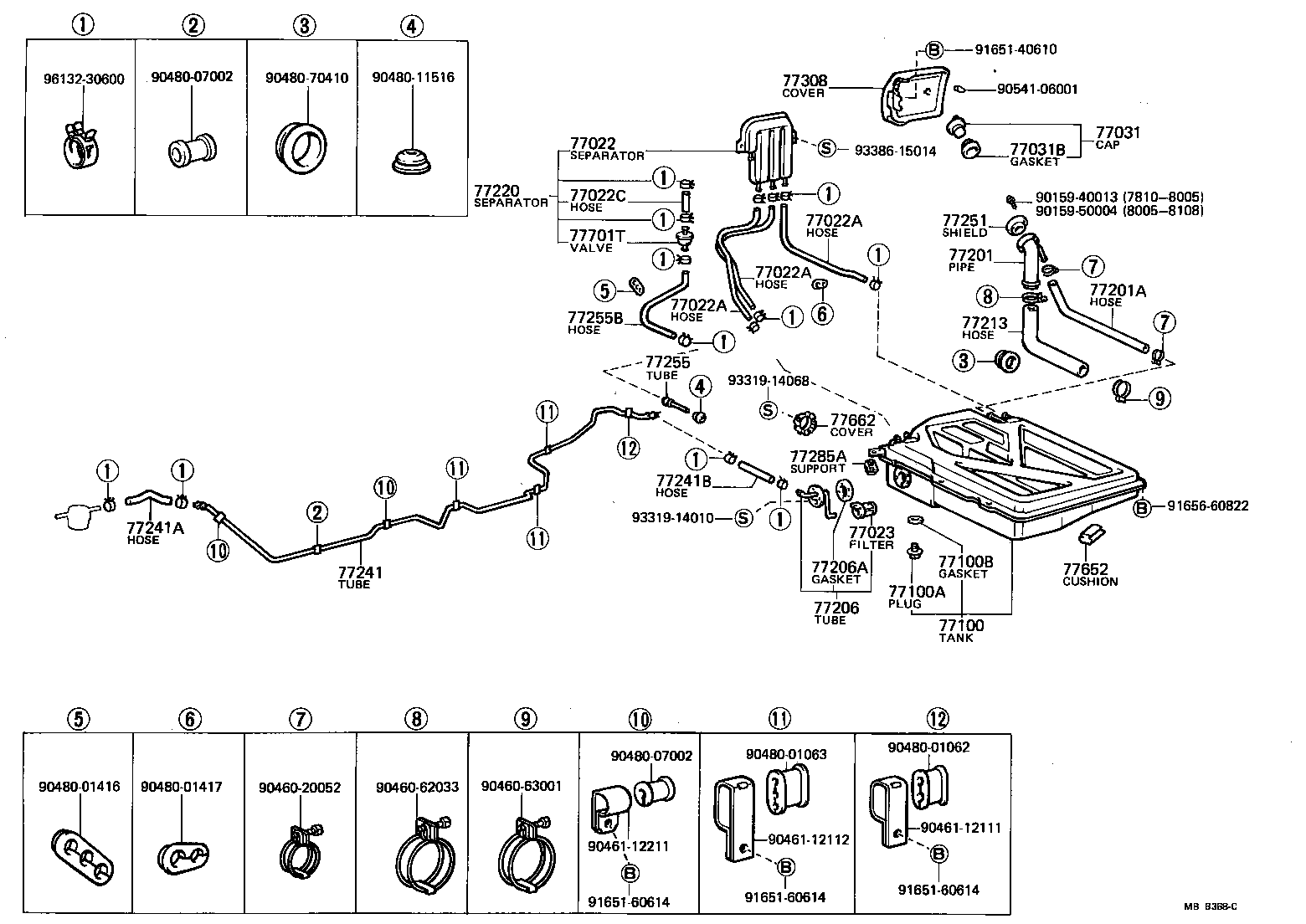

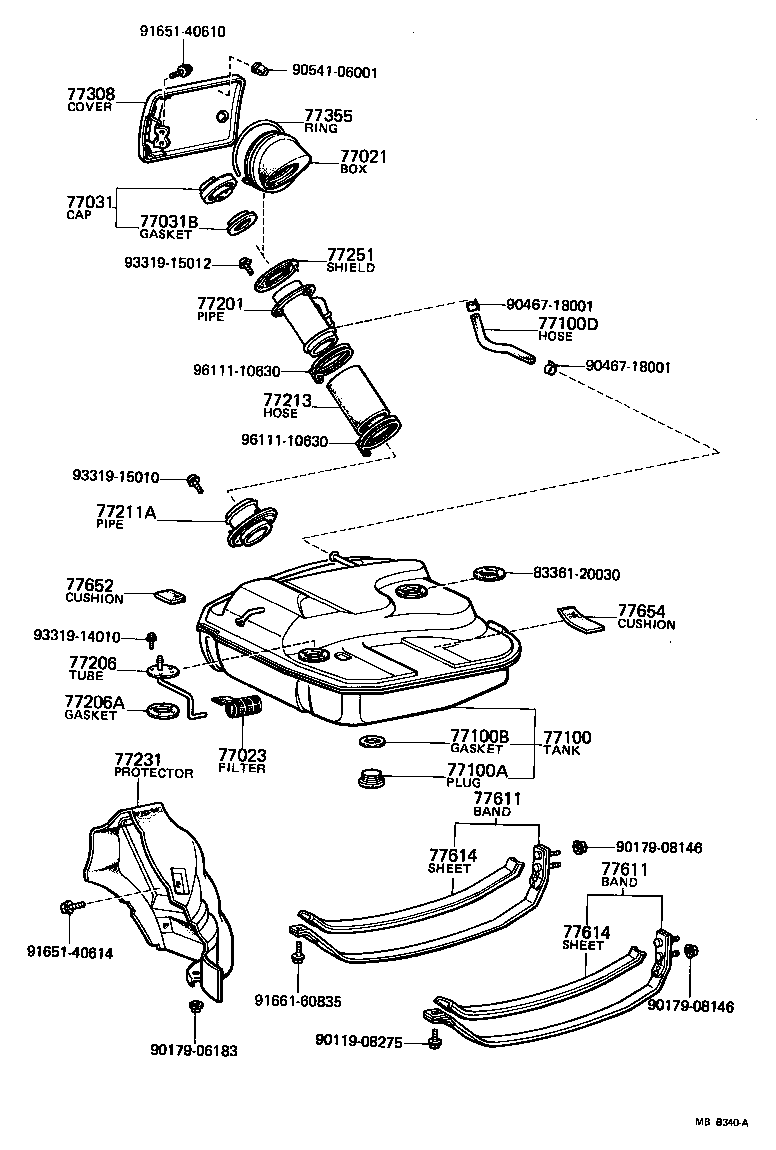

Fuel Tank & Tube
39 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77021 | Box Assy, Fuel Tank Inlet |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77211A | Pipe, Fuel Tank Filler, Lower |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77220 | Separator Assy, Fuel Evaporative & Check Valve |
| 77231 | Protector, Inlet Tube |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77285A | Support, Fuel Return And Main Tube |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77355 | Ring, Inlet Box |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77611 | Band, Fuel Tank |
| 77614 | Seat, Fuel Tank Band |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77662 | Cover, Fuel Tank Gage |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
