Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

7 part groups · 4 illustrations

Illustrations

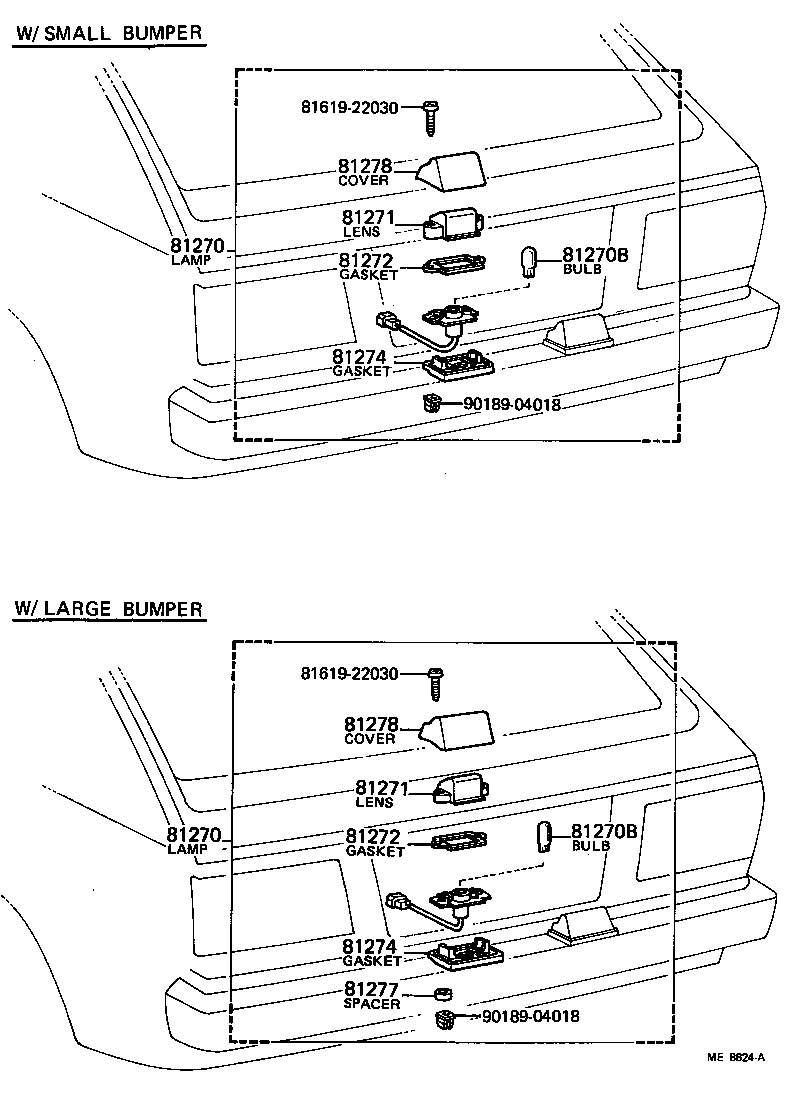

Figure ME6905C ME6905C 1978-02 → 1980-05 Figure ME8824A ME8824A 1980-05 → 1982-08 Figure MEB986 MEB986 1982-08 → — Figure MEF757 MEF757 1978-10 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81277 Spacer, License Plate Lamp Rim And Lens
81278 Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
