Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03
Meter
25 part groups · 5 illustrations
Part groups

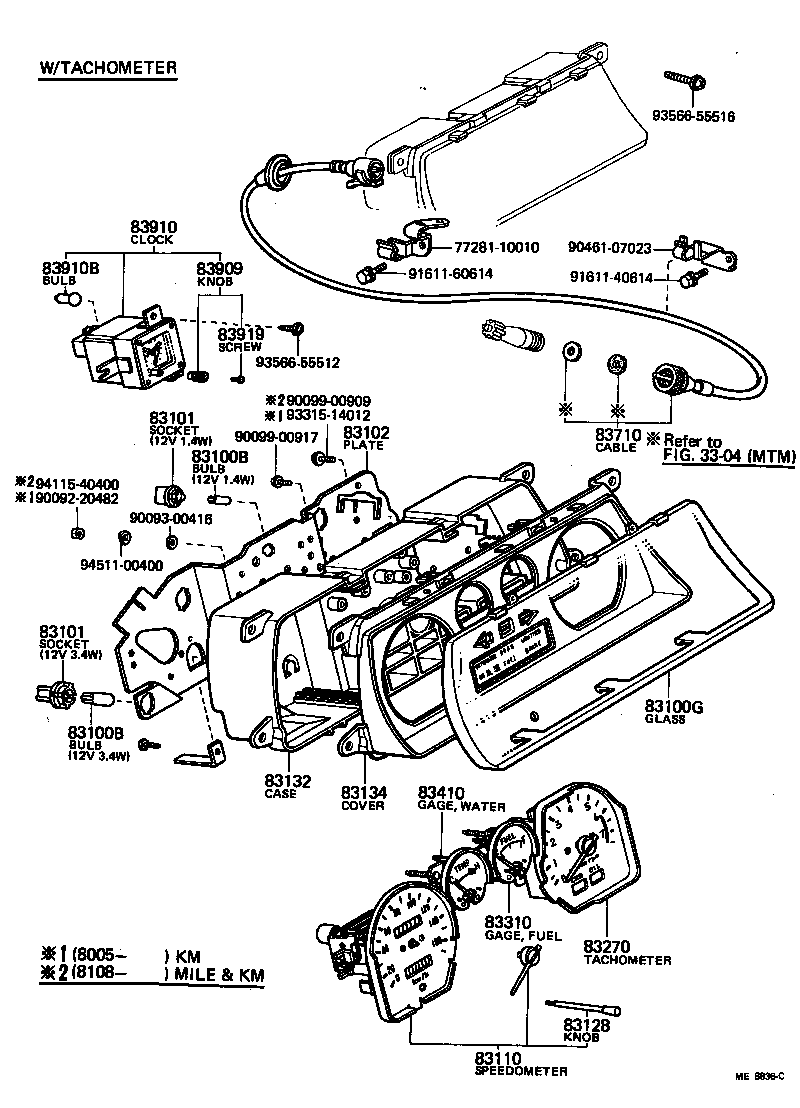

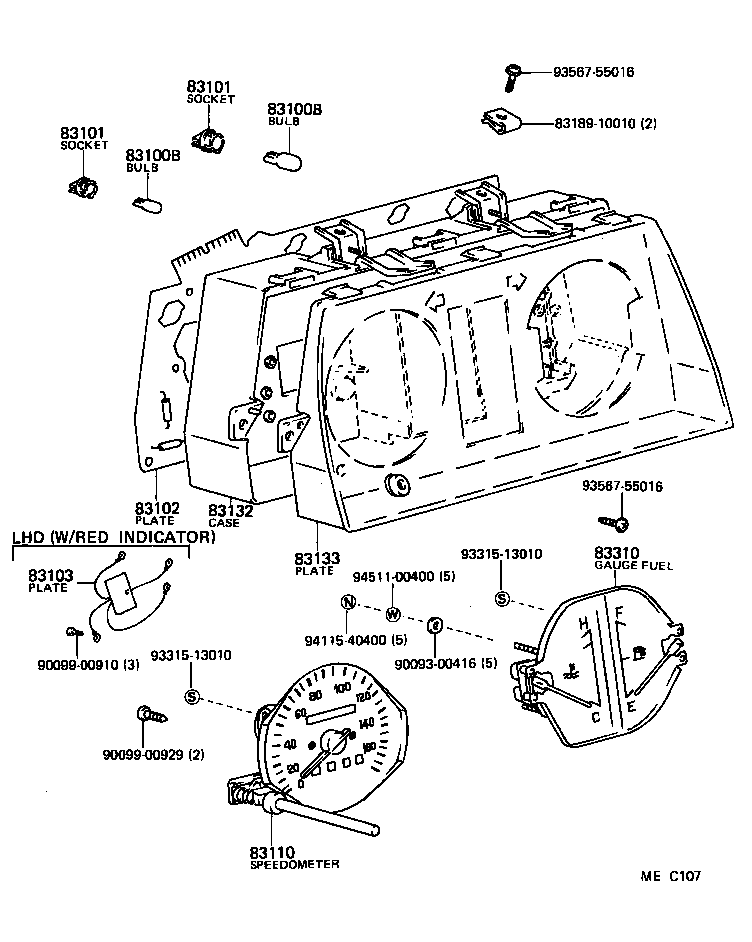

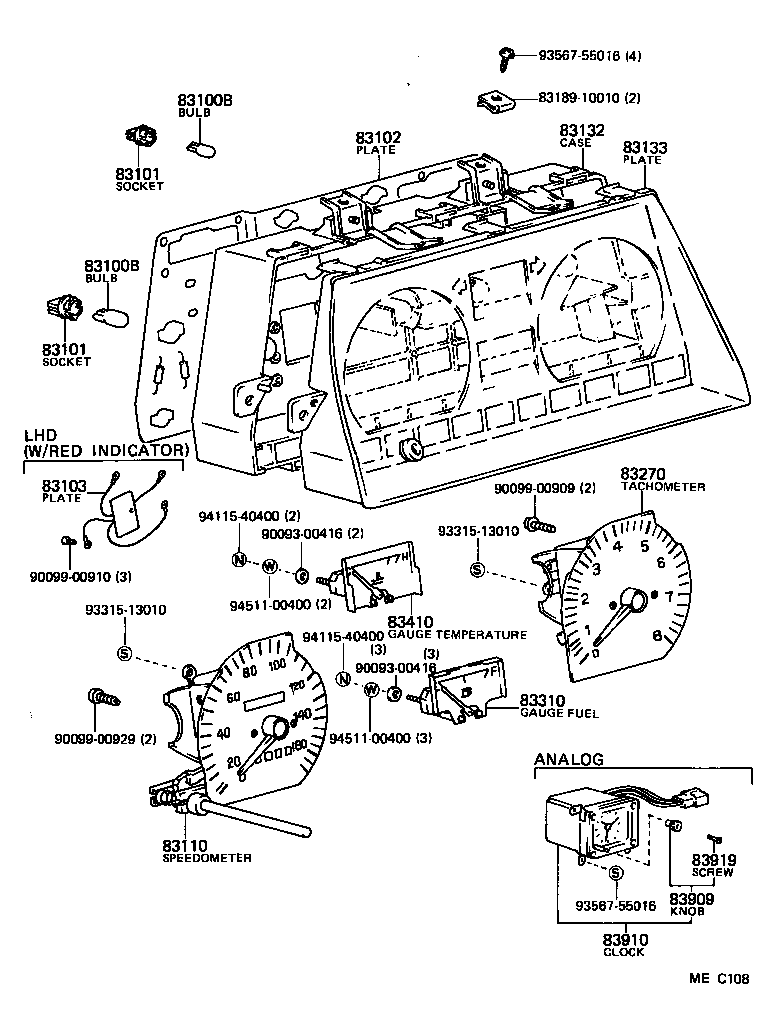

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83110 | Speedometer Assy |
| 83111 | Mechanism, Speedometer |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83135 | Pointer, Speedometer |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83390A | Switch Assy, Vacuum(FOR ECONOMETER) |
| 83390B | Hose, Vacuum(FOR ECONOMETER) |
| 83390C | Union(FOR ECONOMETER) |
| 83390D | Hose, Vacuum(FOR ECONOMETER) |
| 83390E | Way, 2 |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
