Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Indicator

6 part groups · 2 illustrations

Illustrations

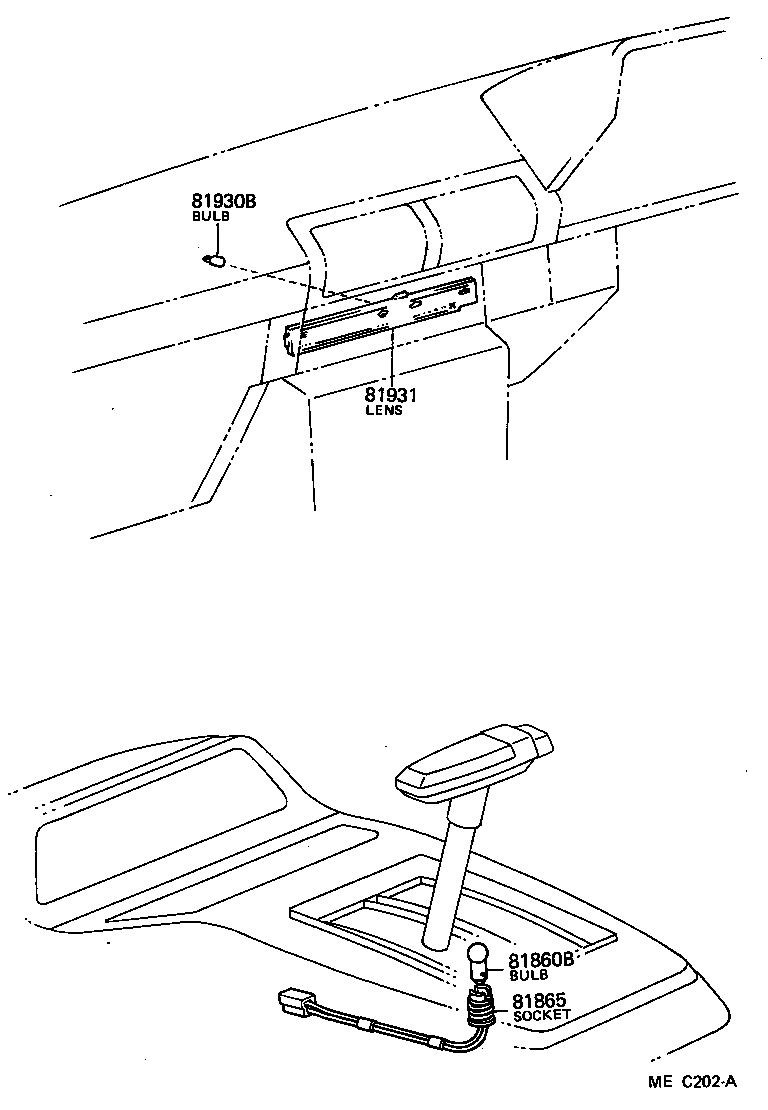

Figure ME6957C ME6957C 1978-02 → 1982-08 Figure MEC202A MEC202A 1982-08 → —

Part groups

PNCDescription
81860B Bulb, Transmission Indicator Lamp
81865 Socket And Wire, Transmission Indicator Lamp
81930 Lamp Assy, Heater Control Indicator, NO.1
81930B Bulb, Heater Control Indicator Lamp
81931 Lens, Heater Control Indicator
81935 Socket And Wire, Heater Control Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
