Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03

Switch & Relay & Computer

48 part groups · 4 illustrations

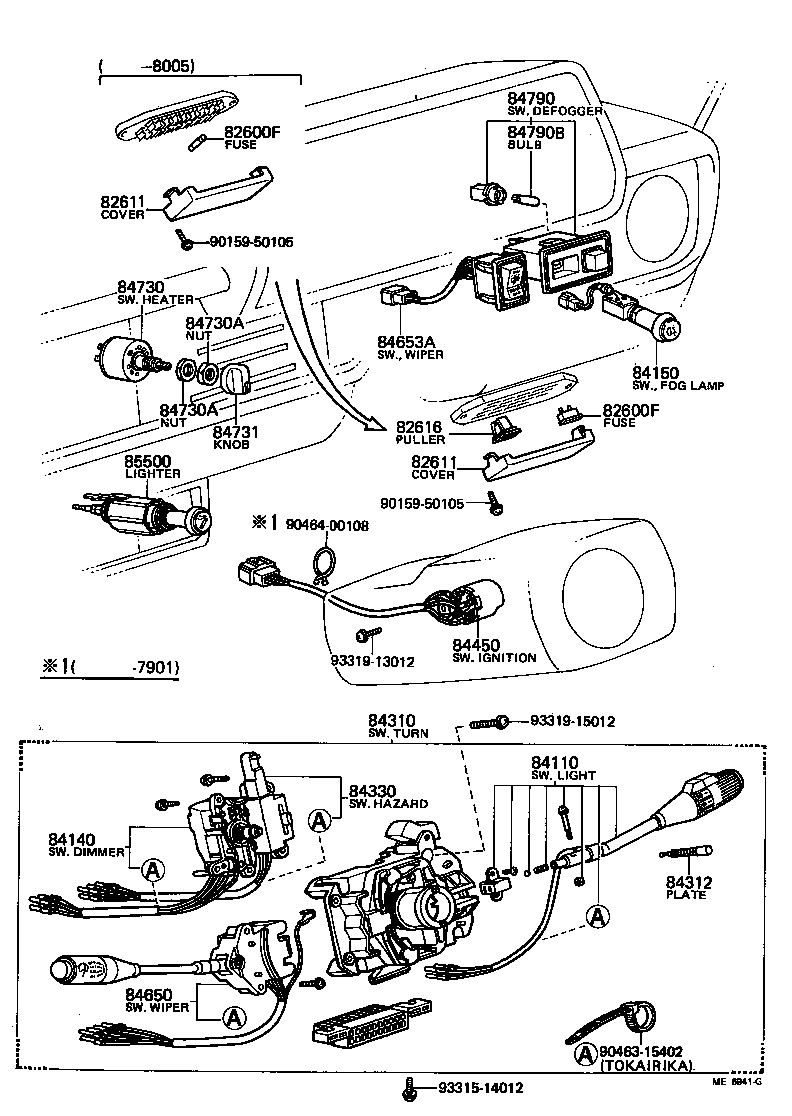

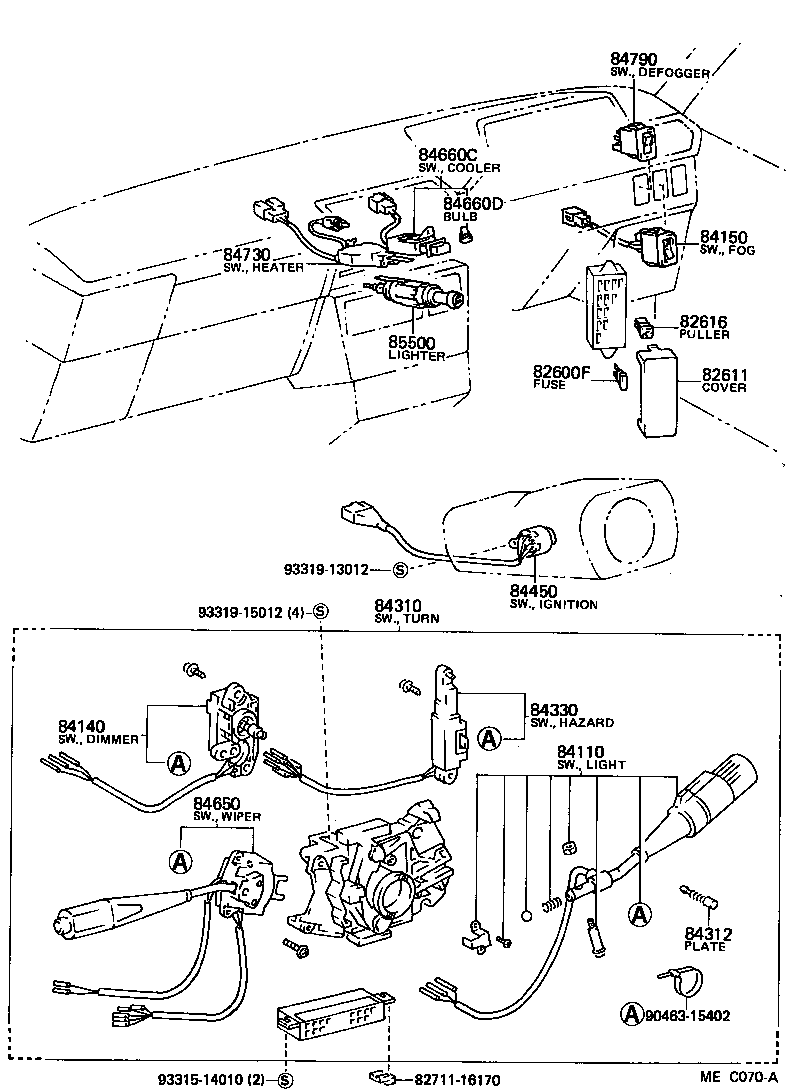

PNC	Description
27700	Regulator Assy, Generator
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82611	Cover, Fuse Block
82616	Puller, Fuse
83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84110	Switch Assy, Light Control, NO.1
84140	Switch Assy, Headlamp Dimmer
84150	Switch Assy, Fog Lamp
84210	Switch Assy, Back-up Lamp
84210T	Sensor Assy, Shift Point
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B	Cushion, Courtesy Switch (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B	Cushion, Courtesy Switch (FOR REAR DOOR)
84310	Switch Assy, Turn Signal
84312	Plate, Horn Contact
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84380	Switch Assy, Brake Warning Test
84450	Switch Assy, Ignition OR Starter
84540	Switch Assy, Neutral Start
84650	Switch Assy, Windshield Wiper
84653A	Switch, Rear Wiper
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84730	Switch Assy, Heater Blower
84730A	Nut, Heater Blower Switch
84731	Knob, Heater Blower Switch
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
85430	Valve, Outer Vent Control
85500	Lighter Assy, Cigarette
85912	Relay, Defogger
85915	Relay, Main
85916	Relay, Light Control
85916D	Relay, Fog Lamp
85925	Relay, Radiator Fan
85926	Relay, Headlamp Dimmer
85940	Relay Assy, Windshield Wiper
85940B	Relay Assy, Rear Wiper
85958	Bracket, Main Relay
85999A	Bracket, Relay, NO.2
89320	Relay Assy, Hazard Warning
89427	Switch, Temperature Detect

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
