Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

14 part groups · 3 illustrations

Illustrations

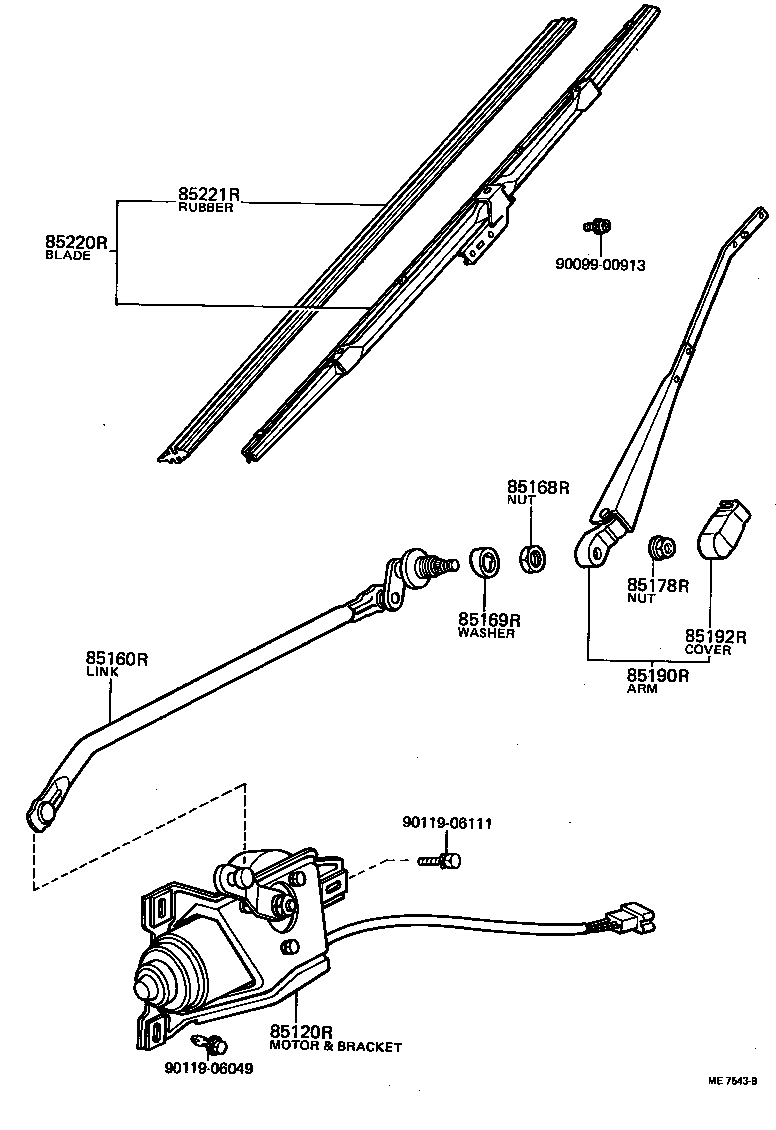

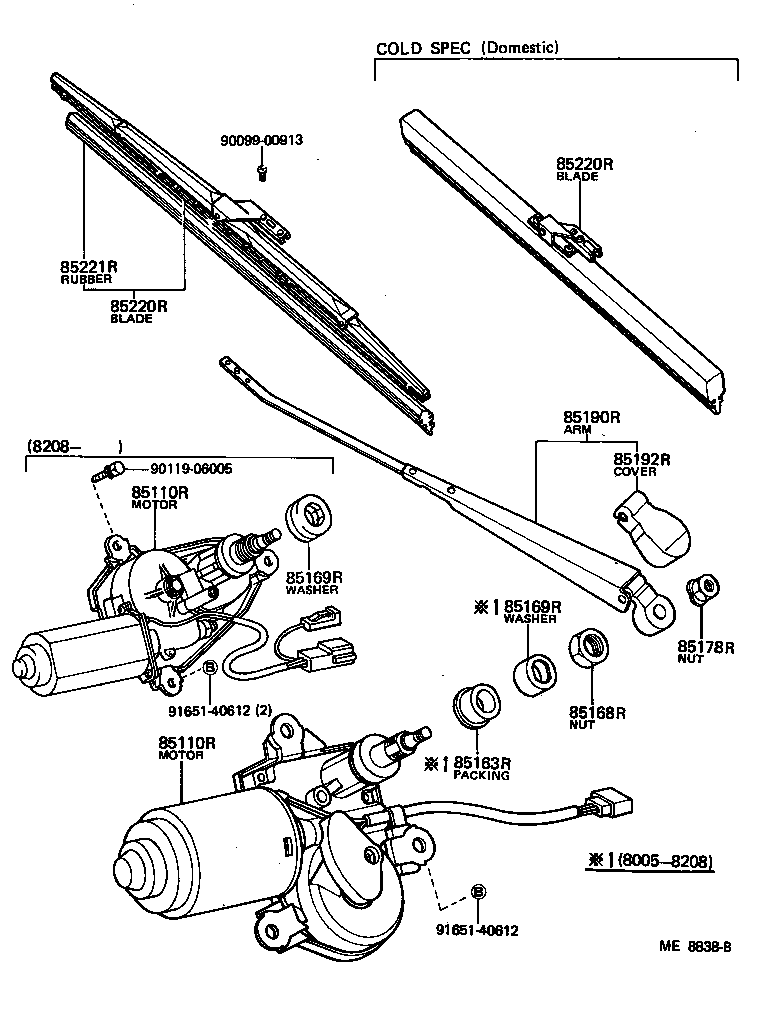

Figure ME6918D ME6918D 1978-02 → 1980-05 Figure ME8838B ME8838B 1980-05 → — Figure ME7543B ME7543B 1978-10 → —

Part groups

PNCDescription
85010R Motor & Link Assy, RR Wiper
85110R Motor Assy, Rear Wiper
85120R Motor And Bracket Assy, Rear Wiper
85160R Link Assy, Rear Wiper
85163R Packing, Rear Wiper Pivot, NO.1
85163S Packing, Rear Wiper Pivot, NO.2
85168R Nut, Rear Wiper Link Pivot, NO.1
85169R Washer, Rear Wiper Link Pivot, NO.1
85169S Washer, Rear Wiper Link Pivot, NO.2
85178R Nut (FOR REAR WIPER ARM SETTING)
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
