Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

13 part groups · 2 illustrations

Illustrations

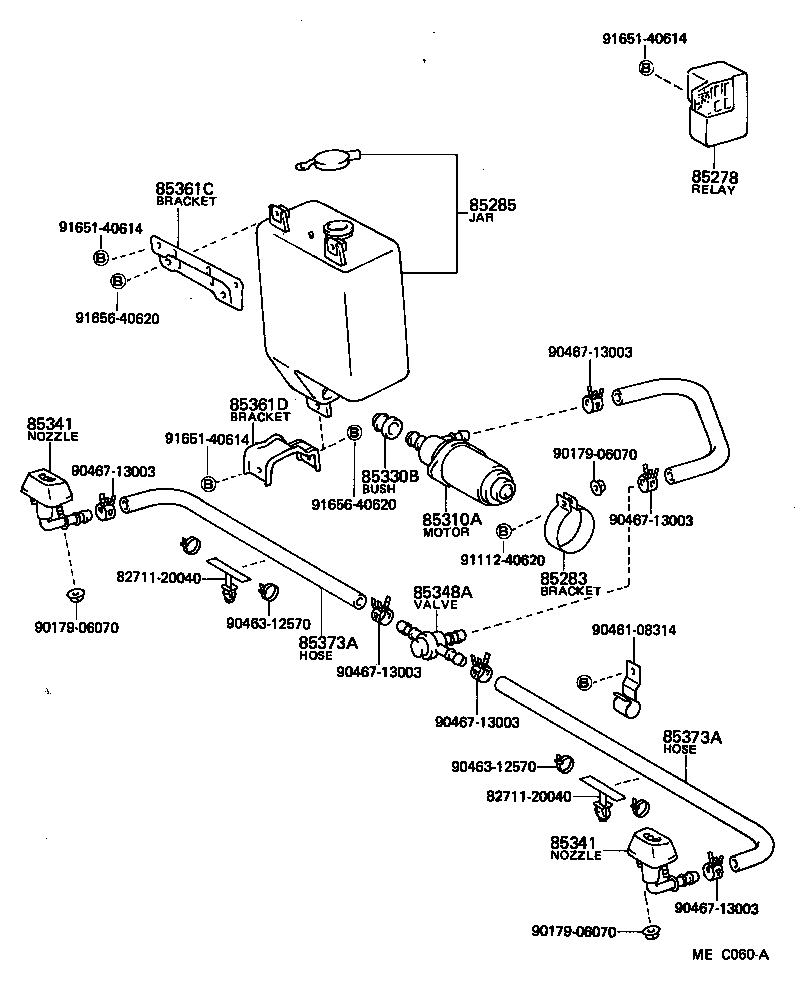

Figure ME6945C ME6945C 1978-02 → 1982-08 Figure MEC060A MEC060A 1982-08 → —

Part groups

PNCDescription
85278 Relay Assy, Headlamp Cleaner Control
85282 Holder Assy, Headlamp Cleaner Washer Jar
85283 Bracket, Headlamp Cleaner Washer
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85330B Bush, Headlamp Cleaner Washer Jar
85332A Cap, Headlamp Cleaner Washer Jar
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85361C Bracket, Washer
85361D Bracket, Headlamp Cleaner, NO.2
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
