Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03
Radio Receiver & Amplifier & Condenser
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

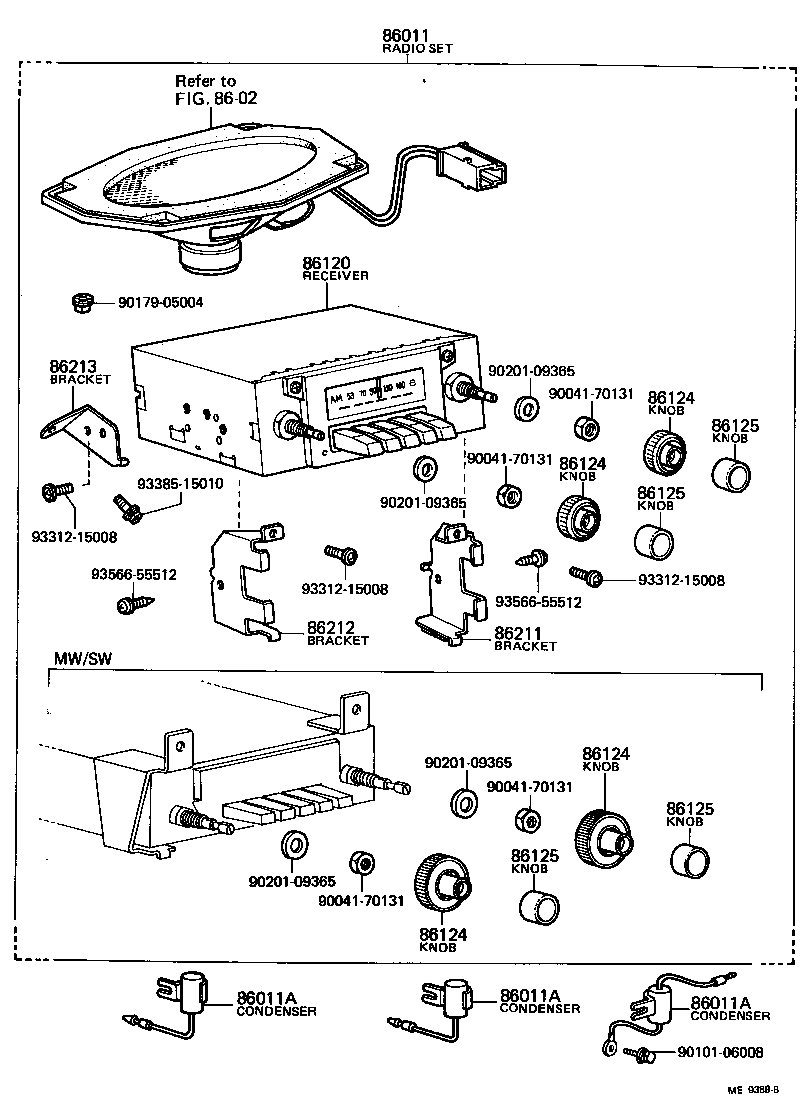

| 86011 | Radio & Setting Parts Set |
| 86011A | Condenser, Radio Setting |

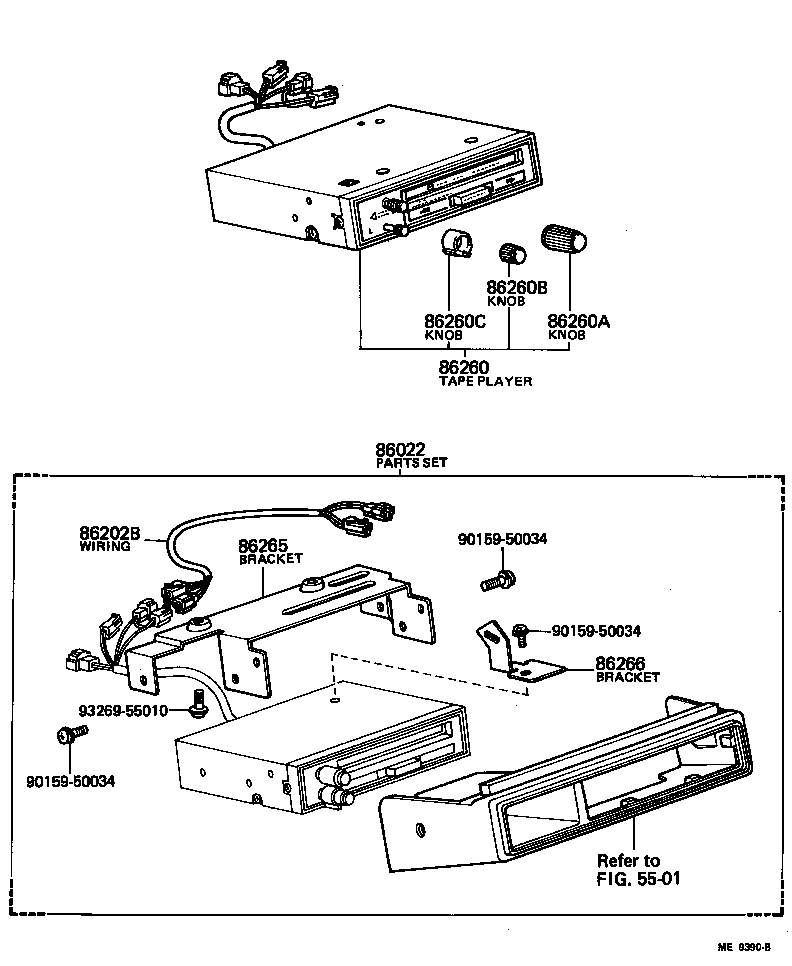

| 86022 | Parts Set, Tape Player Setting |

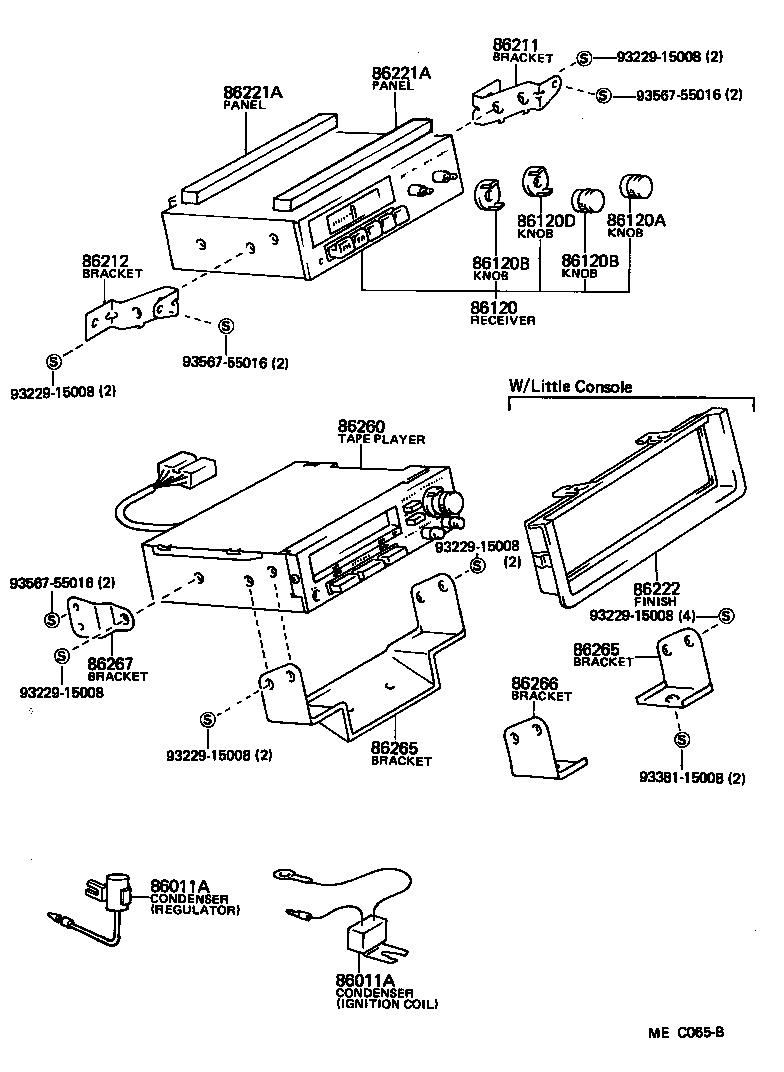

| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86120B | Knob, Radio Receiver Tuning, NO.1 |
| 86120D | Knob, Radio Receiver Tone |
| 86124 | Knob, Radio Receiver Control |
| 86125 | Knob, Radio Receiver Switch |
| 86126 | Plate, Radio Receiver |
| 86202B | Wire, Tape Player |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86213 | Bracket, Radio, NO.3 |
| 86221A | Panel, Radio Receiver |
| 86222 | Finish, Tape Player |
| 86260 | Tape Player Assy |
| 86260A | Knob, Tape Player Volume |
| 86260B | Knob, Tape Player Tone |
| 86260C | Knob, Tape Player Balance |
| 86265 | Bracket, Tape Player, NO.1 |
| 86266 | Bracket, Tape Player, NO.2 |
| 86267 | Bracket, Tape Player, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
