Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03
Heating & Air Conditioning - Heater Unit & Blower
15 part groups · 5 illustrations
Part groups

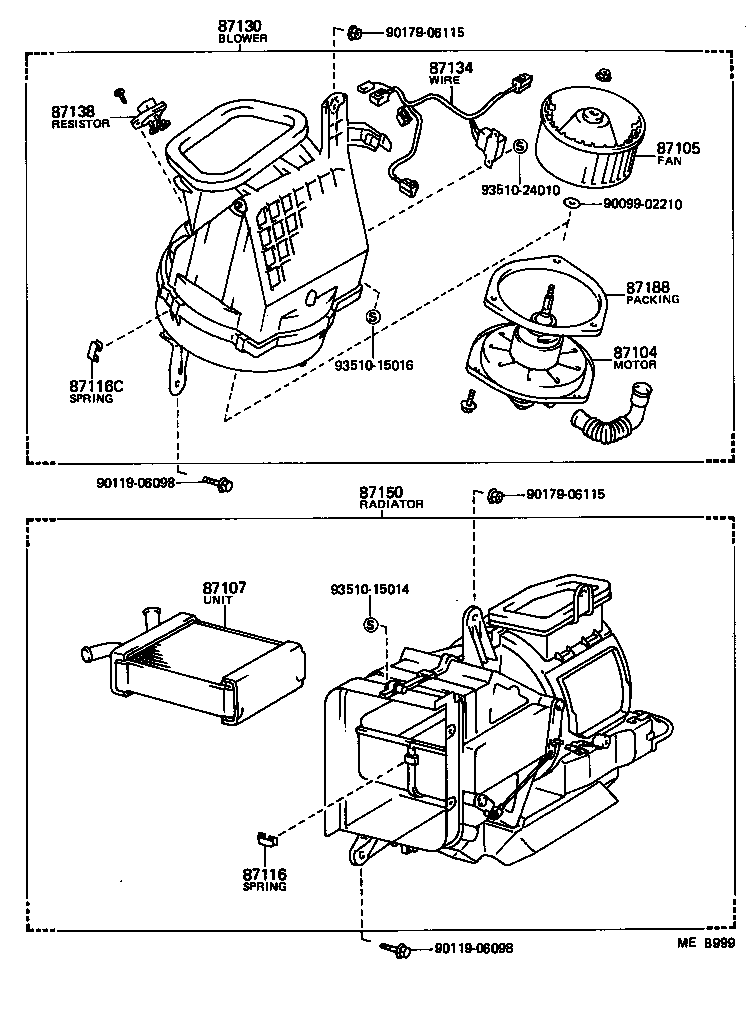

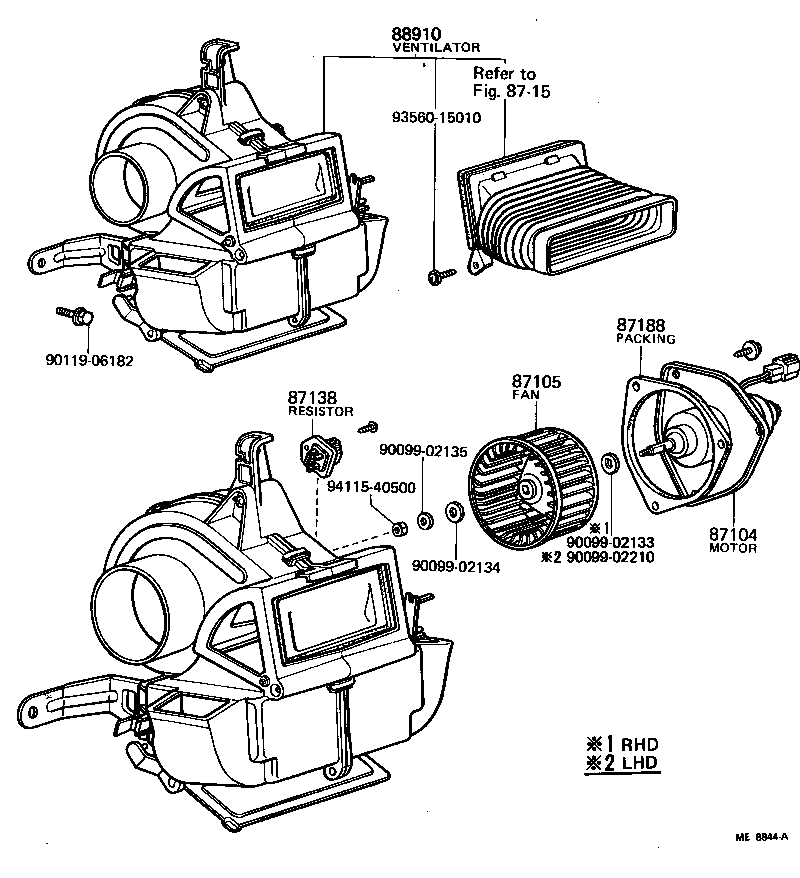

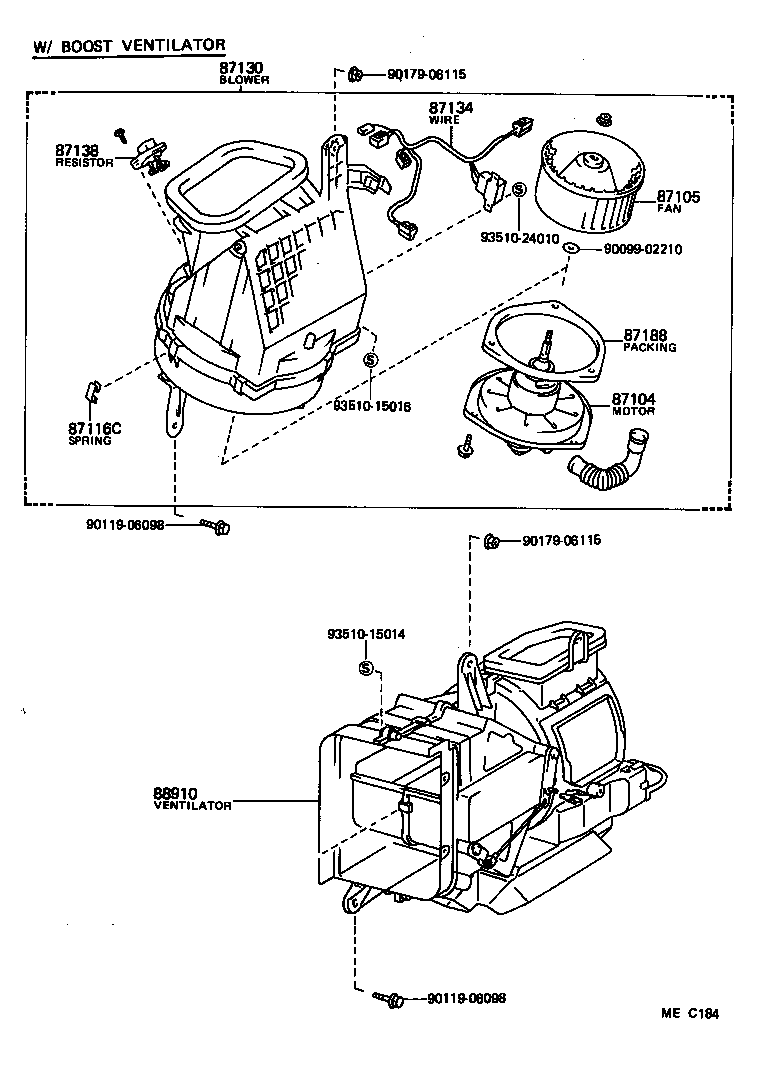

| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87110 | Heater Assy |
| 87114 | Cover, Heater |
| 87116 | Spring, Heater Case Fastening |
| 87116C | Spring, Holding (FOR HEATER BLOWER) |
| 87130 | Blower Assy, Heater, Front |
| 87134 | Wire, Heater Blower |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87188 | Packing, Heater Blower Motor |
| 87248E | Pipe, Heater Water Inlet, E |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
