Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe
Discontinued model
Data version 1985-03
Heating & Air Conditioning - Cooler Unit
18 part groups · 4 illustrations
Part groups

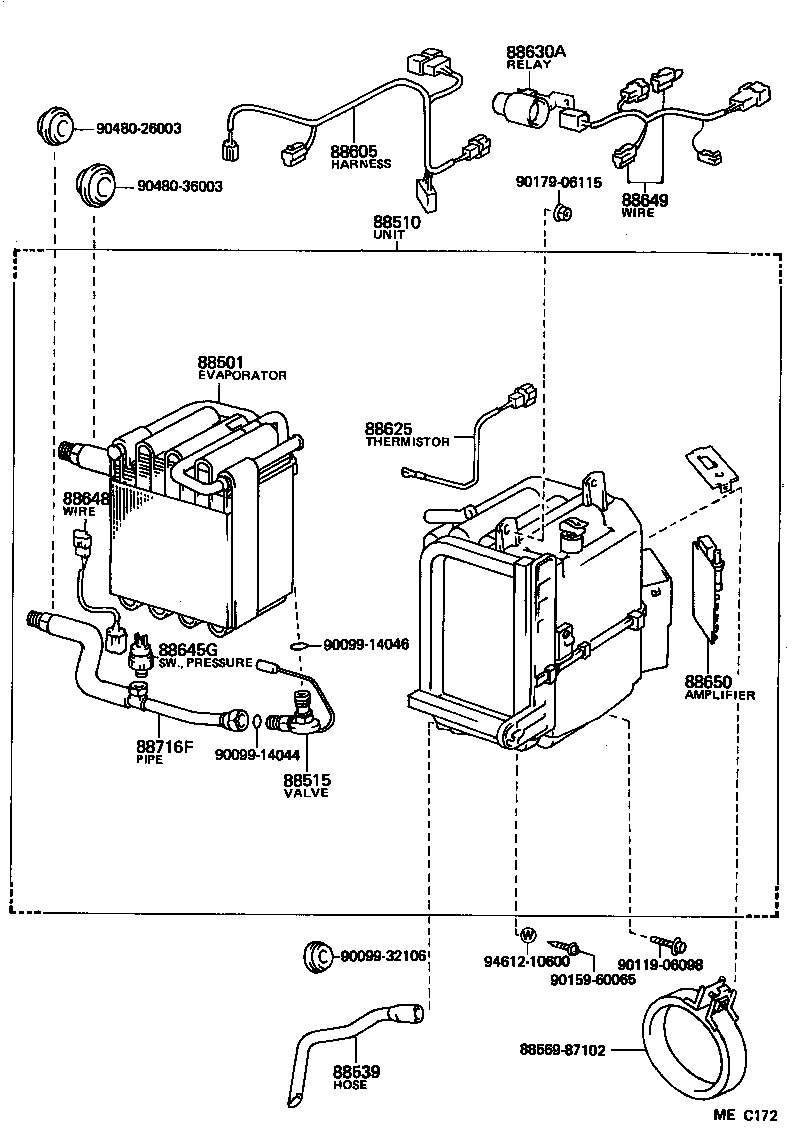

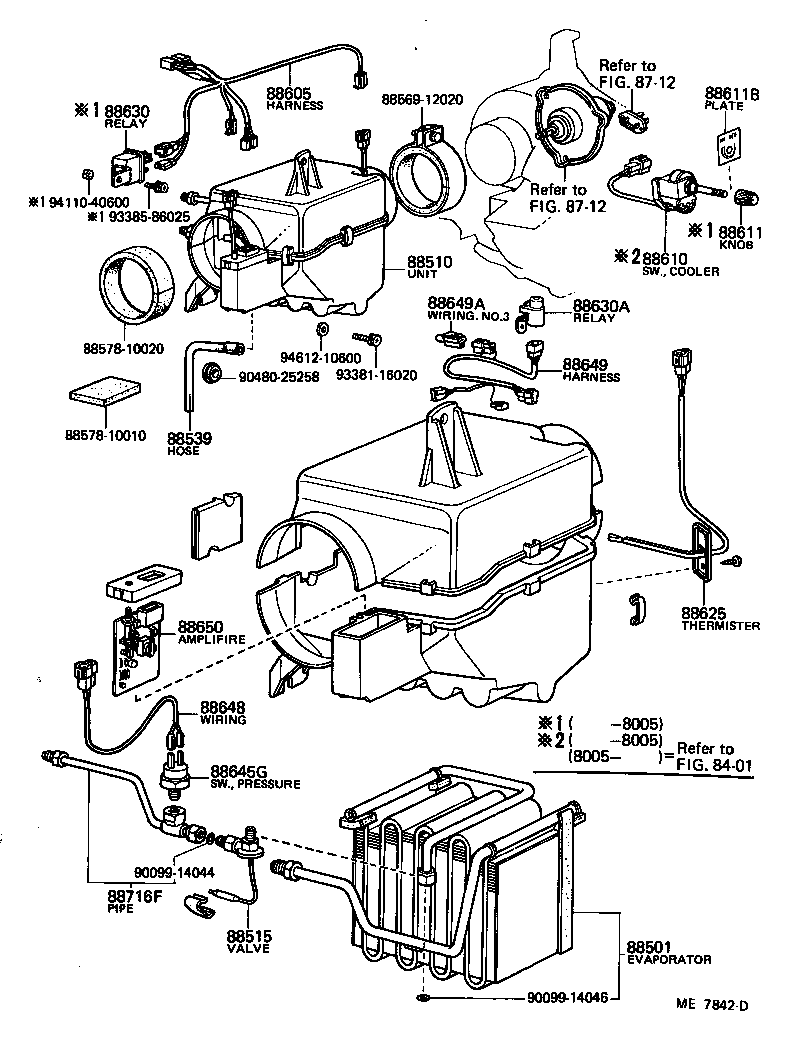

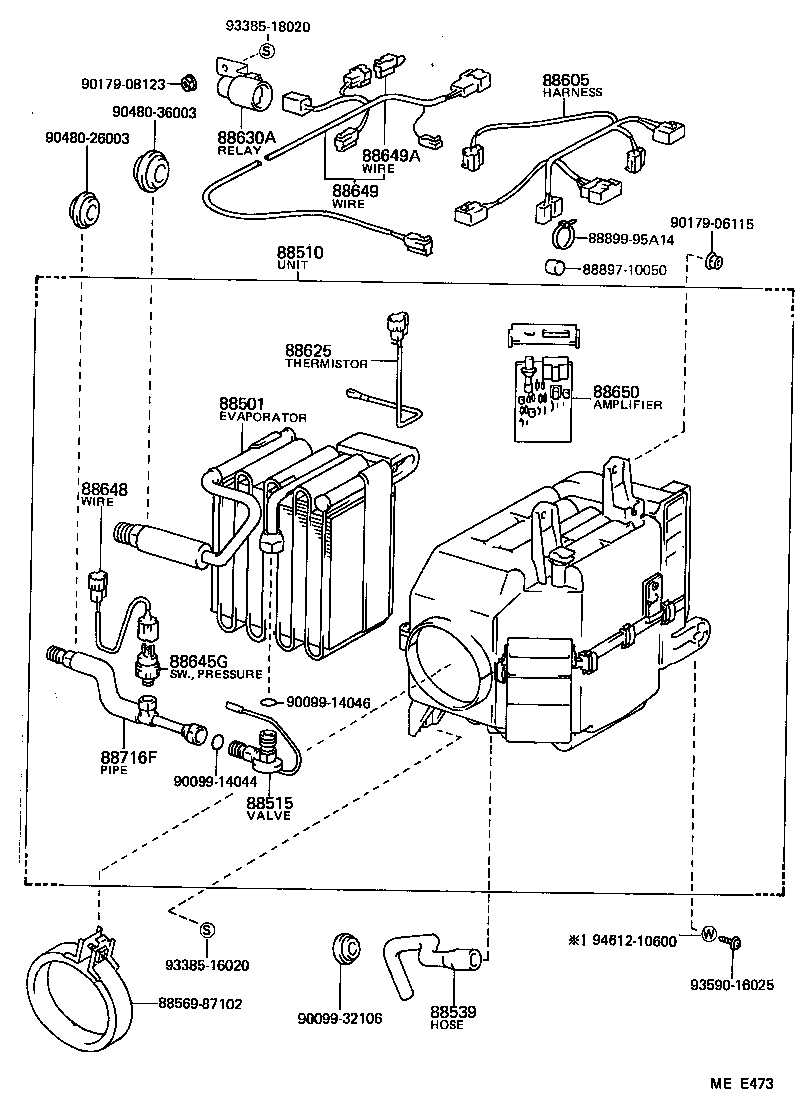

| PNC | Description |
|---|---|
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88521 | Case, Cooler Unit |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88611 | Knob, Cooler Control Switch |
| 88611B | Plate, Cooler Control Switch |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88649 | Wiring, Cooler, NO.2 |
| 88649A | Wiring, Cooler, NO.3 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
