Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121220 · Europe

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

Figure ME8687C

ME8687C 1978-02 → 1982-08

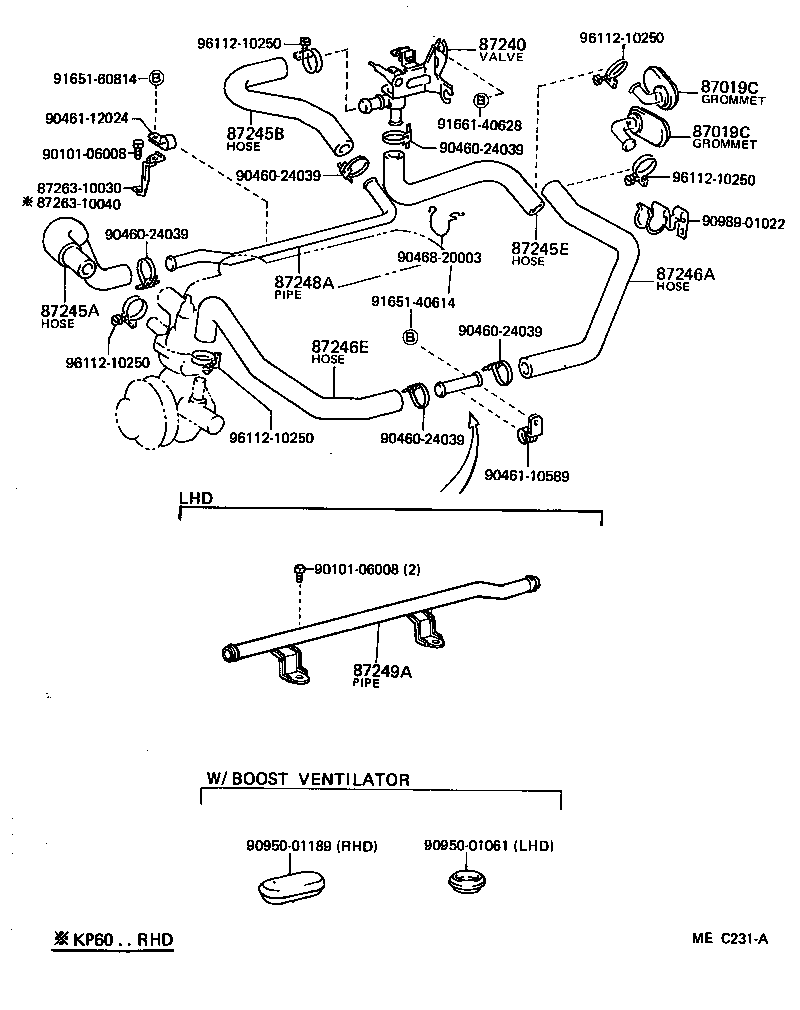

Figure MEC231A

MEC231A 1982-08 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87246E	Hose, Heater Water, Outlet E
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
