Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 2 illustrations

Illustrations

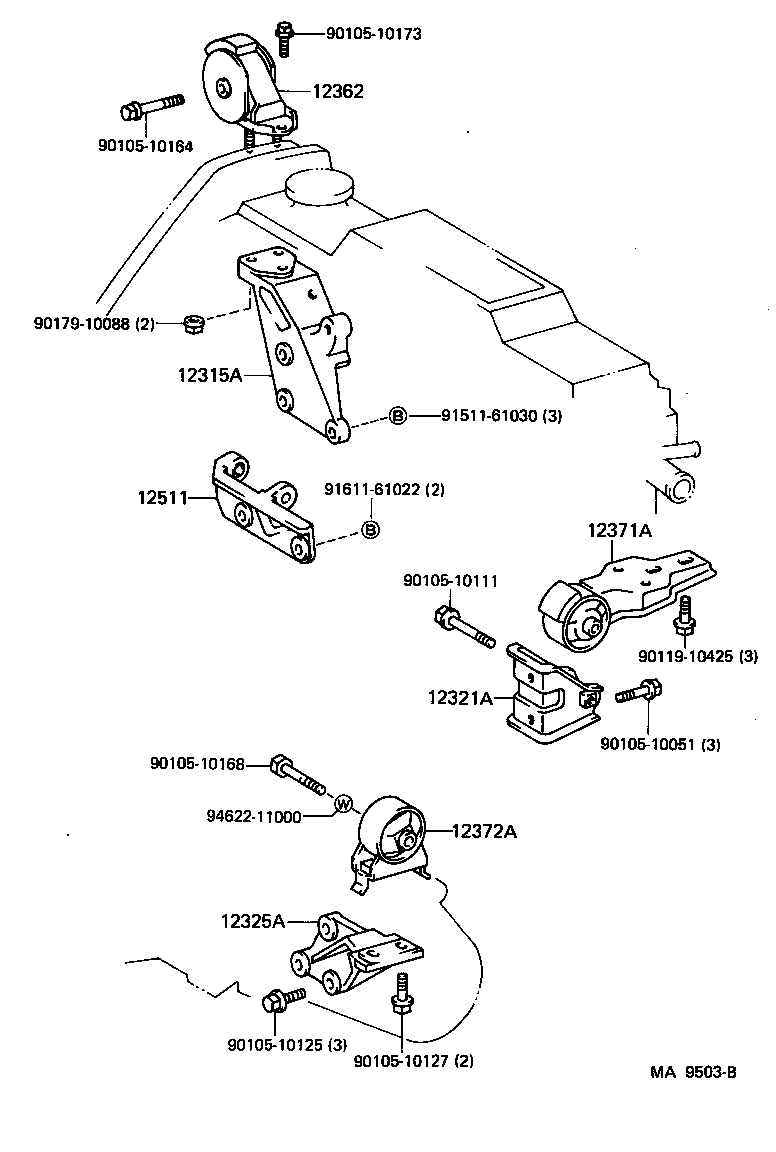

Figure MA7818G MA7818G 1984-10 → — Figure MA9503B MA9503B 1986-12 → —

Part groups

PNCDescription
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
