Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

10 part groups · 2 illustrations

Illustrations

Figure MA7827C

MA7827C 1984-10 → —

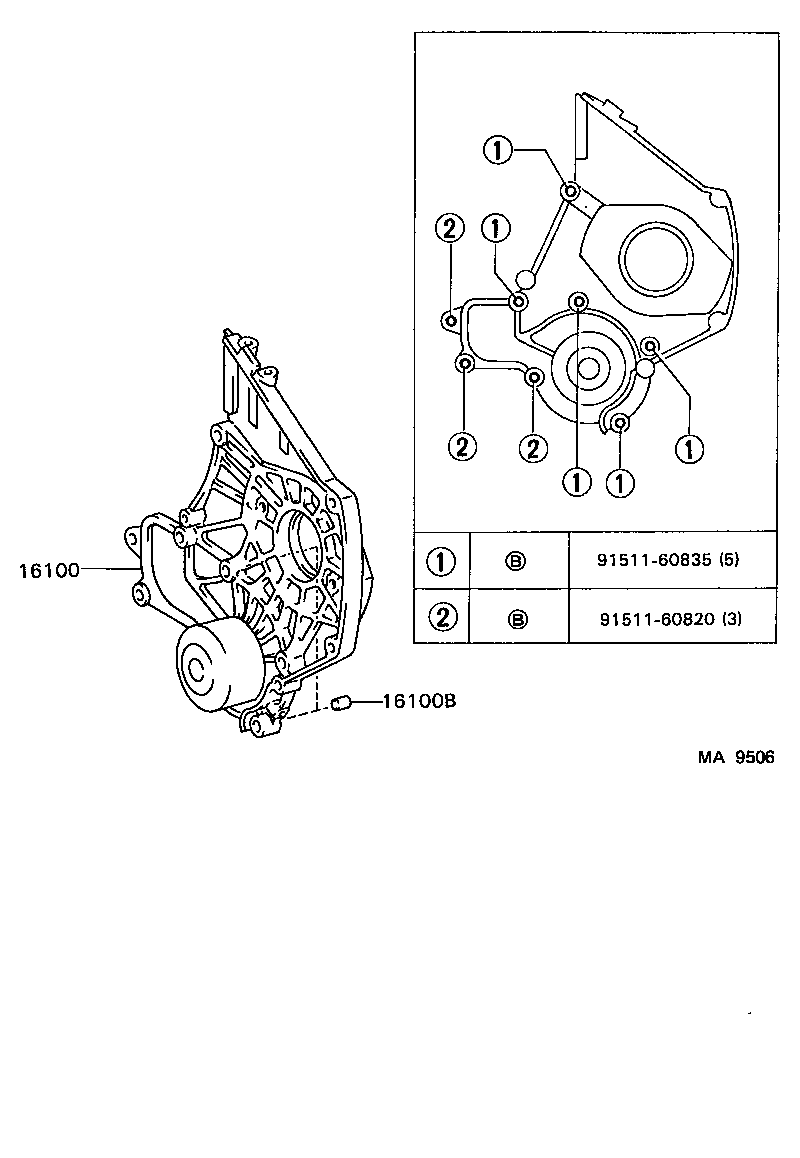

Figure MA9506

MA9506 1986-12 → —

Part groups

PNC	Description
04161	Pump Kit, Water
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16104	Seal Set, Water Pump
16110	Pump Assy, Water, W/O Coupling
16124	Gasket, Water Pump Cover
16131	Rotor, Water Pump
16131A	Bearing, Water Pump
16171	Seat, Water Pump Pulley
16371	Pulley, Fan

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
