Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 5 illustrations

Illustrations

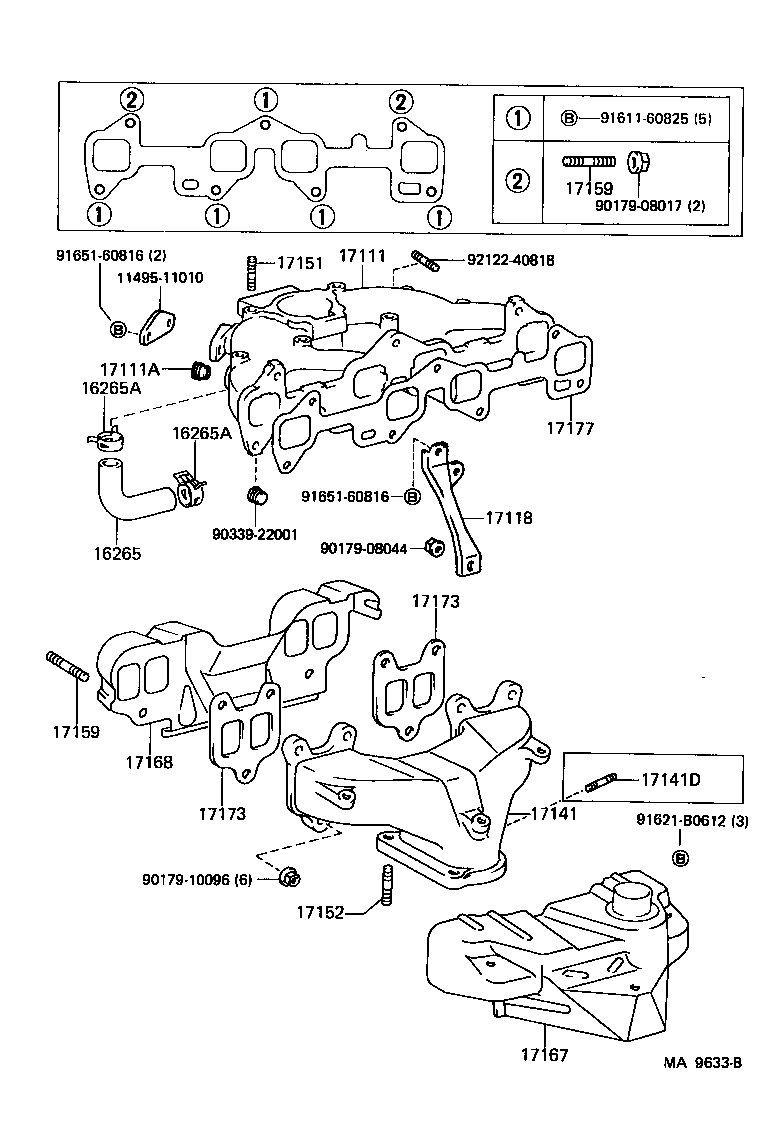

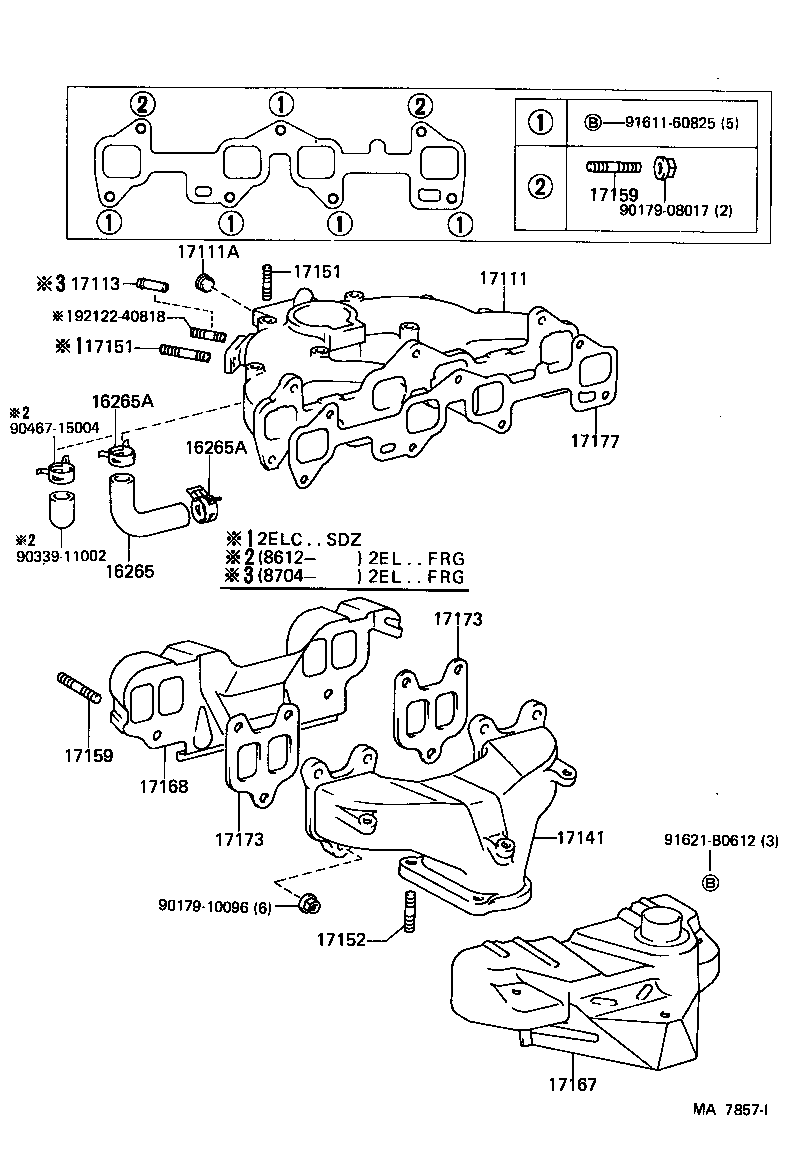

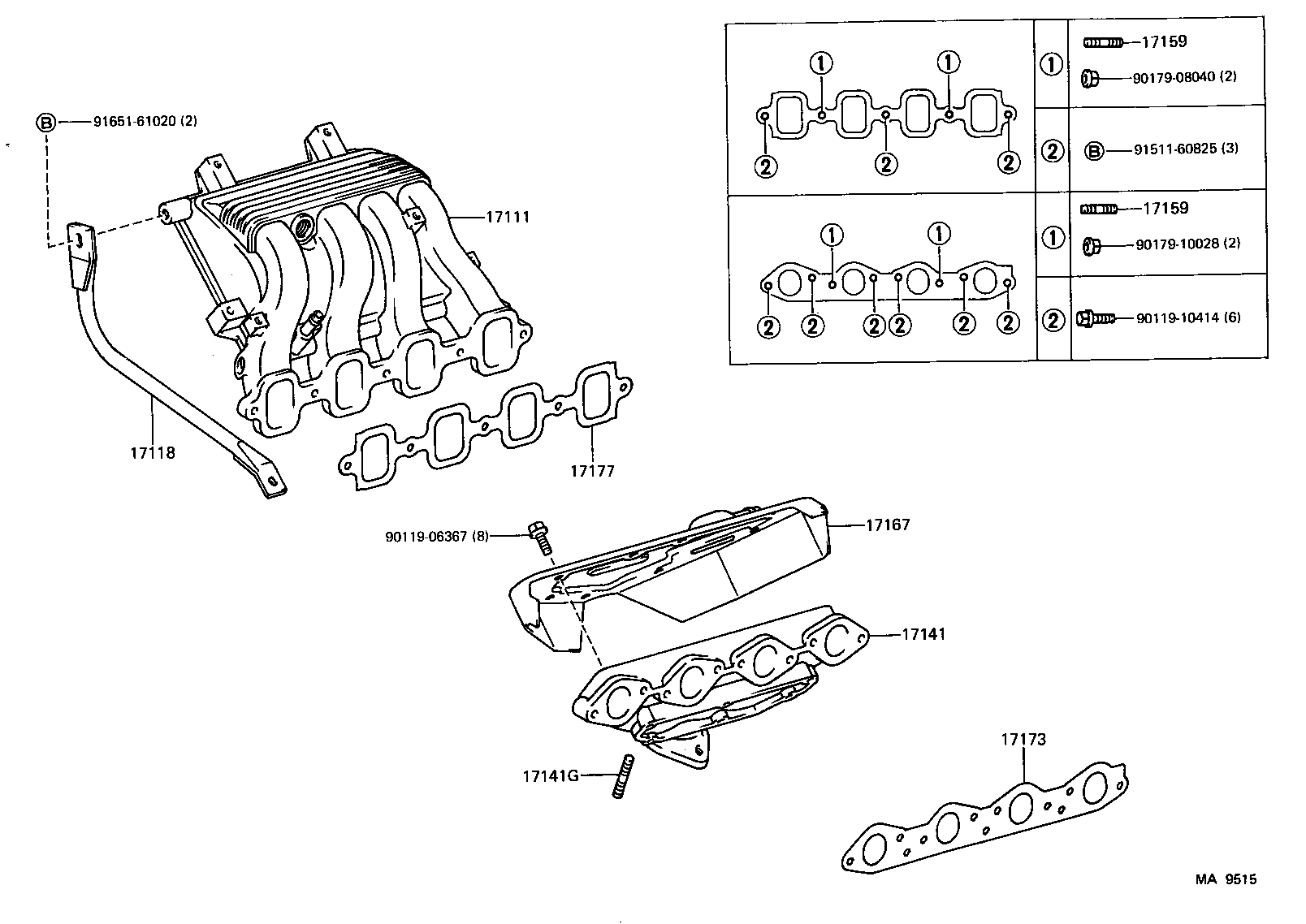

Figure MA7855D MA7855D 1984-10 → — Figure MA7857I MA7857I 1984-10 → 1987-07 Figure MA7857I MA7857I 1987-07 → — Figure MA9633B MA9633B 1987-07 → — Figure MA9515 MA9515 1986-12 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17111 Manifold, Intake
17111A Plug, NO.1
17113 Pipe, Intake
17118 Stay, Manifold
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
